Crystek Corp.    Fort Myers, FL 33913
Sep 06, 2007 CVCO55CW-1000-2000 offers control voltage range of 1-20 V and features typical phase noise of -100 dBc/Hz at 10 kHz offset. Input voltage is 10.0 V, with maximum current consumption of 25 mA, while Pulling and Pushing are minimized to 8.0 MHz and 2.5 MHz/V, respectively. Second harmonic suppression is -10 dBc typical and units are suited for digital radio equipment, fixed wireless access, satellite communications systems, and base stations.

Bosch Security Systems    Fairport, NY 14450 9199
Sep 06, 2007 Available in 3 models, Megapixel Cameras suit digital and hybrid installations when combined with DiBos digital recorders. Entry-level Model NWC-0700 delivers detailed color images using 2 megapixel sensor, while 3.1 MP color Model NWC-0800 provides extra-fine definition, allowing smaller details to be observed at extended viewing distances. For 24-hr coverage, Model NWC-0900 combines 3.1 MP color camera for daytime use and 1.3 MP monochrome camera for low light situations.

Physik Instrumente (PI)    Auburn, MA 01501
Sep 06, 2007 M-122 precision translation stage includes servo motor direct drive providing up to 20 mm/sec travel and 0.1 µm resolution, non-contacting optical linear encoder. Servo motor and drive screw are placed side-by-side in folded drive train. Offering travel range up to 25 mm, device also features cross-roller bearings and recirculating ball screw. It can be driven with networkable C-862 Mercury(TM) servo motor controller/driver.

Quality Air Management    Waterloo, ON N2K3B7
Sep 06, 2007 Inserted in ductwork where sparks are generated, QUENCHER prevents fires and explosions in dust collection systems. Fixed blade arrestor assembly thoroughly agitates gas flow in duct system to produce maximum turbulent conditions, cooling any sparks to within 50°F of temperature in process gas stream. Since cooled embers are transported safely and collected at dust collector, in-line design does not require dropout collection point.

Lumitex, Inc.    Strongsville, OH 44136

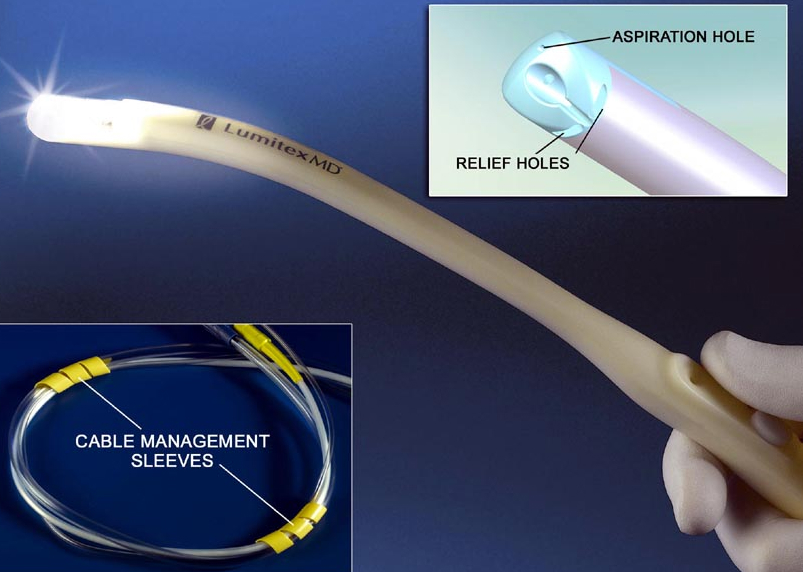

Sep 06, 2007 VersaLight® brings together suction, pushbutton-controlled irrigation, retraction, and light. Using existing OR light sources, unit produces uniform, cool, shadowless spot light that aids visualization in deep cavity surgery. Relief holes increase suction effectiveness and allow surgeons to wipe tissue dry while preventing tissue grab. Also included, cable management system features spiral wrap-arounds that keep multiple cables and tubing bundled together.

Hi-Speed Checkweigher Co., Inc.    Ithaca, NY 14850

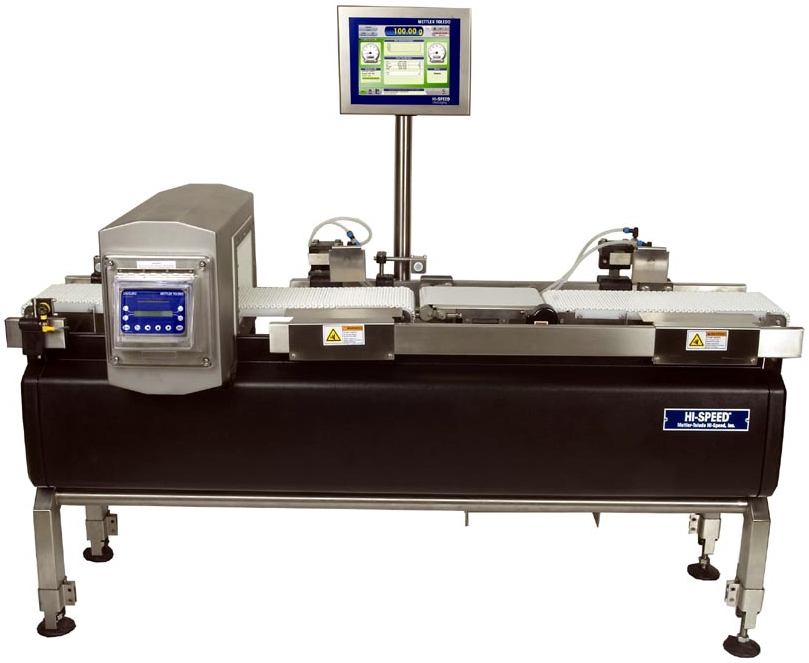

Sep 06, 2007 Cornerstone® series, available with 15 in. XS or 5.7 in. XE controller, offers flexible design for food, beverage, chemical, and other consumer product manufacturers producing range of package types. Respectively, XS and XE controllers offer 5 and 3 weight classification zones, 200- and 100 product memories, and configurable user security levels. Checkweighers are available with carbon steel, stainless steel, or sanitary construction and can be connected to plant-wide networks.

Bosch Rexroth Corp., Corporate Headquarters    Hoffman Estates, IL 60192-3707

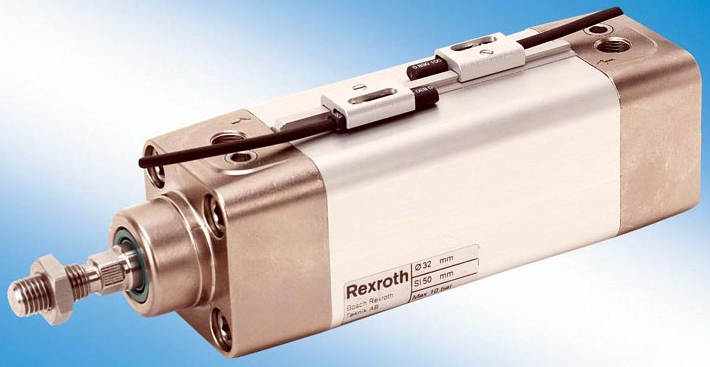

Sep 06, 2007 Constructed with hard anodized aluminum surfaces and stainless steel screws and piston rods, Series ICL (ISO Clean Line) pneumatic cylinders meet ISO 15552 standards and are suited for use in secondary packaging/handling applications. Design, with adjustable cushions and noise reducing bumpers on both ends, allows for optimization of stroke speed. Due to standard magnetic piston design, micro-sensors can be installed on integrated external rail.

Sensor Electronics Corp.    Minneapolis, MN 55436
Sep 06, 2007 Coupling SEC 3000 Sensor with SEC 3100 Transmitter, Gas Detection System reacts instantly to dangerous gas levels, protecting areas where flammable or poisonous gases are potential danger. Transmitter shows actual gas levels in ppm or % LEL on digital screen, while memory stick logs permanent record of gas levels, remembering times, concentrations, trouble signals, and service interruptions. At setpoint, integral relays can trigger alarms, turn on supply/exhaust fans, or shut down lines.

Cooper Power Tools    Lexington, SC 29071

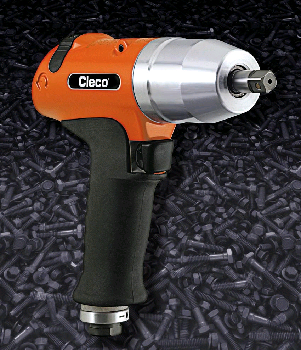

Sep 06, 2007 Equipped with 3-chamber air motor, Cleco® D Series provides optimal power during fastening applications. Design allows technicians to perform maintenance without special tools, and enables users to operate tools for extended periods of time with minimized fatigue. Onboard inertial shut-off system removes variability and complexity associated with monitoring pulse fluid pressure.

PennEngineering® (Penn Engineering)    Danboro, PA 18916
Sep 06, 2007 Offering alternative to rivets or welding, stainless steel PEM® Type SFP SpotFast(TM) Fasteners permanently join 2 metal sheets to create corrosion-resistant flush-attachment connection without protrusions on either side. Rotational capability enables single fastener to act as hardened pivot point. Available in various head diameters and sizes, RoHS-compliant fasteners can be installed in stainless steel sheets as thin as .030 in. with Rockwell B hardness of 88 or less.

JASCO, Inc.    Easton, MD 21601

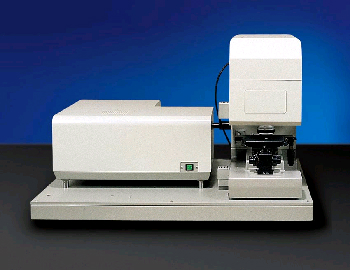

Sep 06, 2007 Offering continuous measurements from 250-2,000 nm, UV/VIS/NIR Series MSV-300 provides transmittance/reflectance measurements of microscopic sample sites. Systems can measure color, film thickness, and other spectral properties for large or small samples with minimum spatial resolution of 30 microns. Integrated CCD camera allows verification of analysis site and sample position, while optional automated X-Y-Z stage provides multi-point or mapping measurements for surface analysis.

Linear Technology Corp.    Milpitas, CA 95035
Sep 06, 2007 Operating from input voltage of 4-24 V, LTC3610 can deliver up to 12 A continuous output current at voltages as low as 0.6 V. It features valley current control architecture with switching frequencies of up to 1 MHz and operating frequency set by external resistor. Internal switches with RDS (ON) of 12 and 6.5 mW deliver efficiencies up to 95% and unit can be configured for discontinuous or forced continuous operation.

Pacific Bearing Co.    Rockford, IL 61125
Sep 06, 2007 Simplicity® ISO Metric Linear Ball Bearings feature 1-piece polymer ball cage coupled with hardened bearing steel shell providing minimal friction. They are available in range of sizes and configurations including integrated flange, twin-length types, and pillow blocks. Available accessories include hardened and ground shafting, support blocks, and shaft support rails.

J. W. Winco, Inc.    New Berlin, WI 53151
Sep 06, 2007 Made of black nylon plastic with smooth, glossy finish, Hollow Knurled Nuts and Knobs have tapped through inserts of zinc-plated steel molded in. On clamping applications, partially protruding insert prevents chipping of plastic.

Schunk    Morrisville, NC 27560

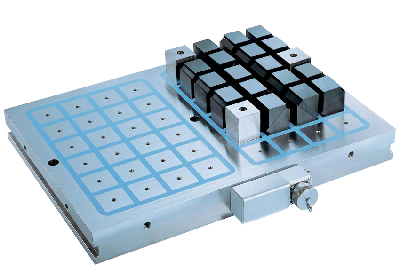

Sep 06, 2007 Requiring small amount of electricity, MAGNOS Magnetic Clamping System enables 5-sided machining at high holding forces, without interfering contours of clamping device. Pole extensions act as workpiece support, allowing user to rapidly and precisely position different workpieces. Pole sizes of 50, 75, and 100 mm are available, enabling holding forces to be tailored to individual requirements. With poles' quadratic geometry, uniform clamping force is possible.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143

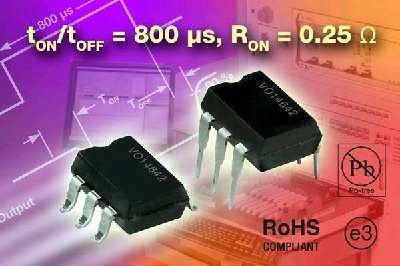

Sep 06, 2007 Rated for 2 Adc max load current and load voltage of 60 V, Model VO14642AT features 0.25 W on-resistance, permitting use of multiple relays in applications requiring low power consumption and heat dissipation. Optically isolated, 1 Form A device provides 5,300 V input-to-output isolation and bounce-free switching. Compatible with TTL/CMOS, relay is suited for variety of test and measurement and industrial applications.

Power Adhesives Ltd    Charlotte, NC 28209
Sep 06, 2007 Heating up to 380°F in 3 min, TEC 810(TM) stick gun features illuminated on/off switch and thermostat that adjusts device temperature for dispensing various types of hot melt and low melt adhesives. Set screw located in back of gun allows users to regulate amount and rate of adhesive flow. Product includes narrow profile handle with adjustable trigger stroke and is available in 250 W model using ½ in. glue sticks and 300 W version using 5/8 in. sticks.

Phoenix Contact    Harrisburg, PA 17111 0100
Sep 06, 2007 BLUEMARK printer utilizes liquid plastic-based ink and UV curing process to print markings for terminal blocks, conductors, and devices. With output of up to 10,000 markers/hr, it delivers non-smearing, non-smudging markers that are resistant to harsh chemicals and environments. On-screen graphic interface allows users to set up and align printer. Along with USB interface, it is network-compatible via Ethernet or wirelessly controlled using Bluetooth.

Omron Scientific Technologies Inc.    Fremont, CA 94555

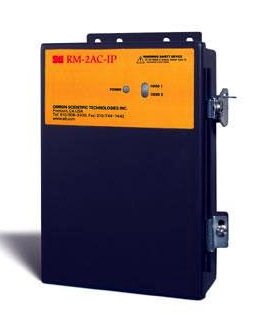

Sep 06, 2007 Including 3 models for dc or ac input power for reliable operation in variety of environments, RM-2 resource modules provide centralized location for all connections and convert output of those devices to force-guided relay outputs. Suited for harsh applications, Model RM-2AC-IP comes in rugged metal chassis, while Models RM-2 and RM-2AC feature IP20 rated 100 and 150 mm DIN enclosures, respectively. Models RM-2AC and RM-2AC-IP also include power supply and pair of safety relays.

Mainstream Engineering Corp.    Rockledge, FL 32955

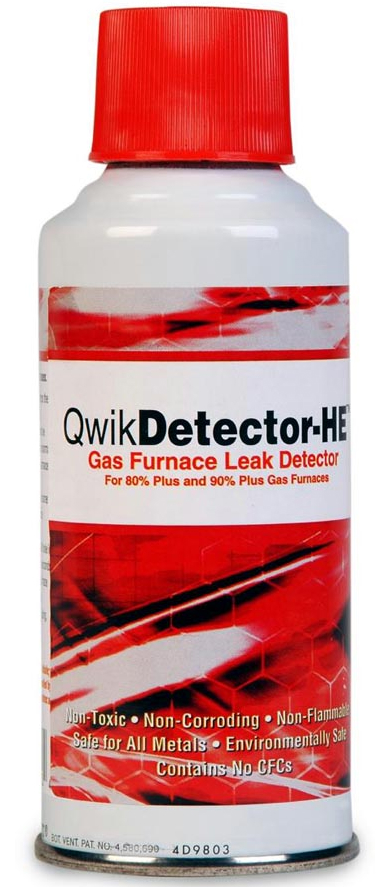

Sep 06, 2007 Developed for HVAC trade as 3 oz aerosolized can with 4 in. long nozzle extension, QwikDectector-HE(TM) can save lives by early detection of leaks due to defects caused by corrosion, expansion/contraction cracks, or manufacturer error that exposes occupants to CO. It penetrates heat exchanger fissure as small as 24/1,000 in. after one 5 sec spray into drilled 1/8 in. furnace plenum hole. Unit pinpoints openings within heat exchanger whether or not they are leaking at time of test.
