Freescale Semiconductor    AUSTIN, TX 78735-8598
Sep 12, 2007 Integrating 4-channel, 10-bit ADC, 8-bit Series S08QD can interface with analog inputs from devices such as sensors by converting analog signal to digital value. Units include 16 MHz HCS08 central processing unit, 4 KB flash memory, 256 B RAM, and internal clock source module containing frequency-locked loop controlled by internal or external reference. Housed in 8-pin, narrow body SOIC packaging, microcontrollers support 5 V and are suited for in-vehicle applications.

LENOX    East Longmeadow, MA 01028
Sep 12, 2007 With backing steel preparation and precision cutting edge, Q Performance Solution Series resists breaking. Featuring deep gullet design and extreme positive rake tooth form, QXP Series is intended for solids of mild to moderate machinability such as aluminum, carbon steel, alloy, steel, stainless steel, and bearing steels. Series QGT is developed for solids of moderate to difficult machinability like aerospace alloys, titanium alloys, tool steels, and nickel-based alloys.

TE Connectivity Ltd.    Berwyn, PA 19312
Sep 12, 2007 Providing direct IP connectivity between Voice Interoperability Data Access networks and standard IP telephony systems, VIDA CTI allows IP, VoIP, and PBX phone networks to seamlessly receive and place telephone calls to and from portable and mobile radios. Gateway application features inbound and outbound selective calls and can simultaneously conduct up to 30 interconnected telephone calls, as well as caller identification on outbound calls.

TE Connectivity Ltd.    Berwyn, PA 19312
Sep 12, 2007 Supported by Voice Interoperability Data Access network, VIDA Transcoder converts and integrates voice communications across multiple air interface technologies. Unit supports IBE, AMBE+, AMBE+2, and ADPCM formats, and uses parametric conversion to directly convert among digital formats, preserving voice quality and optimizing network response time. Equipped with built-in redundancy, device supports encrypted voice and sharing by multiple agencies or agency-dedicated servers.

TE Connectivity Ltd.    Berwyn, PA 19312
Sep 12, 2007 Designed to optimize connectivity between digital and analog radio communications networks, IP-based Interoperability Gateway enables users to maximize existing infrastructure, allowing multiple system technologies to interoperate with each other. Unit includes Ethernet interface for connectivity to legacy radio systems. It offers Adaptive Differential Pulse Code Modulation support for analog applications, which does not require voice compression.

Maxim Integrated Products    Sunnyvale, CA 94086
Sep 12, 2007 Suited for complex handheld devices, Models MAX8647 and MAX8648 have negative charge pump architecture, adaptive-mode switching, and -40 to +85°C operating temperature range. With 70 µA quiescent current and 100 µA minimum dimming current, Model MAX8647 features LED controller I2C interface that enables multizone light management for up to 32 brightness levels, or 32,768 colors with RGB LEDs. Model MAX8648 groups control of LEDs into 3 zones with serial-pulse dimming.

Rohm & Haas Co.    Philadelphia, PA 19106 2399
Sep 12, 2007 Acrysol(TM) RM-895 HEUR (hydrophobically-modified ethylene oxide urethane) rheology modifier provides viscosity stability upon colorant addition in tinted paints. Additive provides sag resistance with no loss of flow or leveling. Interior and exterior paints containing modifier have uniform film formation and gloss development.

Toshiba America Electronic Components (TAEC)    Irvine, CA 92618-1811
Sep 12, 2007 TC90240XBG uses low-voltage differential signaling connectivity to take 60 Hz video signal from LCD TV's MPEG decoder, and, using combination of motion estimation and motion compensation, builds additional frames needed to drive LCD panel at 120 Hz refresh rate. Supplied in PBGA-564 31 x 31 with 1 mm ball pitch package, unit features I2C programming interface and built-in memory controller that supports DDR-2 at 533 MHz data rate.

AVEVA    Cambridge CB3 0HB  United Kingdom
Sep 12, 2007 With interactive 3D graphical editing functions, PDMS v12 delivers engineering applications for designing equipment, piping, ducting, and structural steel. Access platforms allow parametric design and modification of complex access configurations, while cable design allows cables and cableways to be routed inside PDMS model. Object associations enable key relationships to be defined within plant model and continuously monitored as design progresses.

Fujitsu Computer Products, Inc.    San Jose, CA 95134
Sep 12, 2007 With speeds of up to 50 pages/min per 100 ipm (landscape, 200 dpi), Model fi-5530C2 transforms paper documents into manageable digital files. High-speed, duplex color scanner comes equipped with Kofax® VirtualReScan® (VRS) 4.1 Basic, Adobe® Acrobat® 8 Standard, and ScandAll Pro. It also offers true 600 dpi optical resolution, duty cycle of up to 5,000 documents per day, 100-page automatic document feeder (ADF), and dual-CCD scanning arrays, and supports TWAIN and ISIS drivers.

Gumstix, Inc.    Portola Valley, CA 94028
Sep 12, 2007 Used on verdex(TM) motherboard that provides access to wireless and Ethernet networking as well as flash storage, consoleLCD-vx(TM) expansion board comes with USB host, display, touch screen, 3 RS232 serial ports, and GPIO lines. It can be combined with 4.3 in. Samsung LCD panel to create computer for OEM, educational, and hobbyist markets.

Z Communications    San Diego, CA 92126
Sep 12, 2007 Suited for automated surface mount assembly and reflow in commercial aviation and earth station applications, Model SMV0070A-LF offers low phase noise performance of -108 dBc/Hz at 10 kHz. Sub-miniature VCO operates at 5 Vdc supply while drawing typical 19 mA over extended operating temperature range of -40 to +85ºC. Available in 0.30 x 0.30 x 0.08 in. SUB-L package, it also features tuning sensitivity of 6 MHz/V (typ) and typical output power of 9.5 dBm.

Ramtron International Corp.    Colorado Springs, CO 80921
Sep 11, 2007 Designed to restore outputs automatically upon power up, 4-bit F-RAM-based Model FM1110 operates from 4.5-5.5 V, while Model FM1112 operates from 2.7-3.6 V with standby current of 10 µA and Model FM1114 operates from 2.7-3.6 V with less than .5 µA standby current. Any change in state is automatically recorded in non-volatile ferroelectric latch. All devices change state continuously at 1 kHz, offer unlimited number of state changes, and operate from -40 to +85°C.

Parker Hannifin Corp., IPD Instrumentation Group    Huntsville, AL 35805
Sep 11, 2007 Featuring 3/8 in. bore, Hi-Pro integrates 2 ball valves for isolation and 1 needle valve for venting. Unit is supplied with MPI tubing ends that operate using compression sealing technique and are inherently vibration resistant. End connections are secured by means of Tru-Loc mechanism to guard against connector movement when disconnecting connectors or instrument. Valves are integrated within 316 SS one-piece body, minimizing potential leak paths.

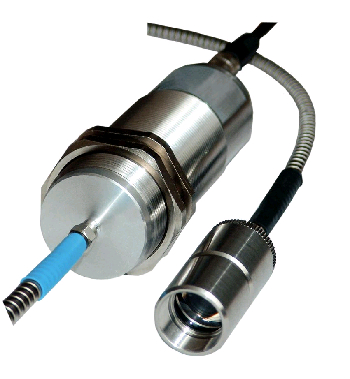

Calex Instrumentation Ltd    Leighton Buzzard Be LU7 8TE  United Kingdom
Sep 11, 2007 Measuring in 0.8-1.1 µm spectral range, Convir Models FL-SI-18 and FL-SI-25 have temperature ranges of 650-1,800ºC and 800-2,500ºC respectively, while FL-GAI-13 and FL-GAI-18 measure at 1.45-1.8 µm with temperature ranges of 300-1,300ºC and 350-1,800ºC respectively. Sensors use optical heads with manually adjustable focal distances. All have USB interface for configuration and data logging via PC. Made of stainless steel, optical heads and electronics enclosures are sealed to IP65.

REP Corporation    Bartlett, IL 60103-8146
Sep 11, 2007 Offering shot capacities from 34-216 oz, Vertical Injection Presses are based on V-head design that separates plasticizing and injection functions. Platen sizes range from 13.78 x 15.75 in. to 31.50 x 31.50 in., and largest press in series requires only 82.68 x 102.36 in. of floor space. Control cabinet is located in close proximity to work area for access and viewability.

Sealeze    Richmond, VA 23237 2206
Sep 11, 2007 Made from polypropylene and/or nylon, Ez-Flex(TM) is completely recyclable, available in continuous lengths, and flexible enough to fit around tight curves. It offers alternative to metal-backed brushes for use in variety of applications, including eliminating air flow, containing/shielding flying debris, containing light and sound, guiding, and cleaning. When properly installed, brush requires little or no maintenance.

Behringer Saws, Inc.    Morgantown, PA 19543
Sep 11, 2007 Featuring miter range of 60° to left and 45° to right, semi-automatic Model HBP-410/723 G has biased saw blade and offers cutting capacity up to 27.5 x 15.7 in. for profiles. Machine utilizes frequency-controlled 5.4 hp main drive motor with variable speed range of 65-460 sfm. Hydraulic hardened clamping jaws ensure steady and precise cuts at all speeds. Measuring 73 x 123 x 103 in., bandsaw is built with cast iron frame as well as heavy-duty guides and wheel bearings.

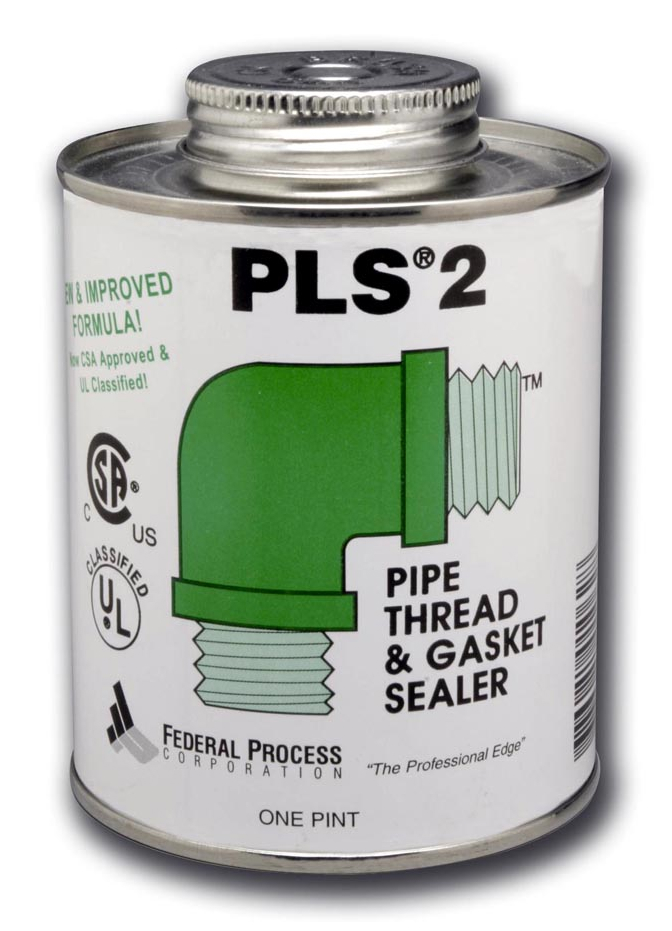

Federal Process Corp.    Cleveland, OH 44128
Sep 11, 2007 Non-hardening, non-toxic PLS® 2 thread and gasket sealer formula adheres to iron, SS, aluminum, Monel, plastics, and synthetic rubber compounds. Opaque gray paste is lead-free and is effective from -100 to +600°F, sealing liquids up to 10,000 psi and gases up to 3,000 psi. Sealant can be used in steam systems, refineries, gas service, refrigeration systems, and chemical plants and is available in 2 oz tube, ¼ and 1 pint brush top jar, and 5 gal pail.

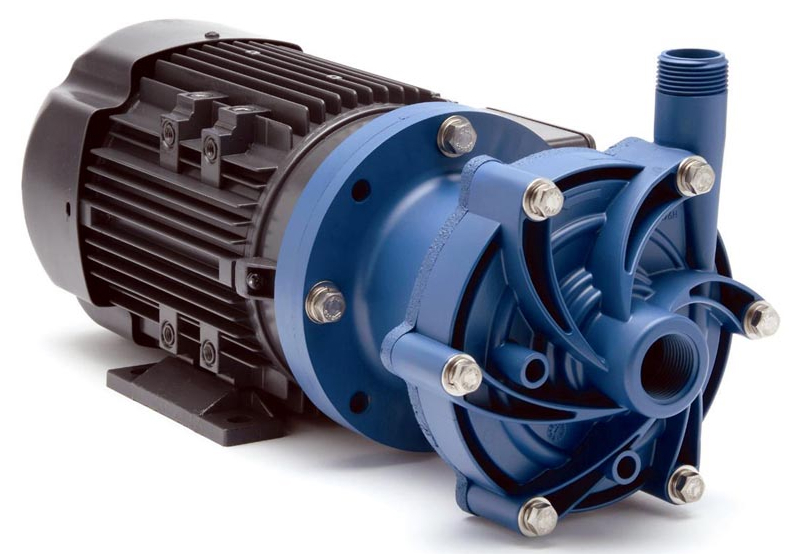

Finish Thompson, Inc.    Erie, PA 16501
Sep 11, 2007 Models DB6, 6H, 7, 8, 9, and 10 offer working pressure up to 80 psi and allow fluids up to 1.8+ sp gr to be safely pumped. Flow rates range from 15-95 gpm with discharge head from 5-68 feet away. Pumps also feature evenly spaced impeller diameters and are molded from corrosion-resistant GF Polypropylene or CF PVDF. Multiple motor adapters and drive magnet sets enable mounting to any NEMA or IEC motor. NPT or BSP threaded and flanged connections are also available.
