Flexible Montisa    Plainwell, MI 49080

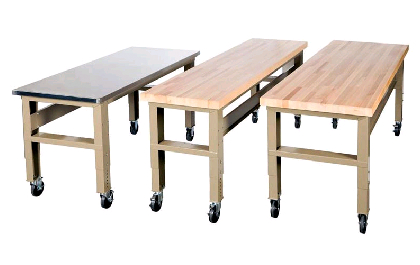

Sep 24, 2007 Available as fixed or mobile unit, Heavy Duty Adjustable Bench features 12 gauge legs and 14 gauge stringers. Top options include 2¼ in. maple, 1¼ in. stainless steel 16 gauge Cap-top, and solid 3/8 in. steel. Available with optional 5 in. casters, bench is suited for industrial applications, maintenance departments, diagnostic centers, and prototype specialists.

Elobau Sensor Technology, Inc.    Lake Bluff, IL 60044

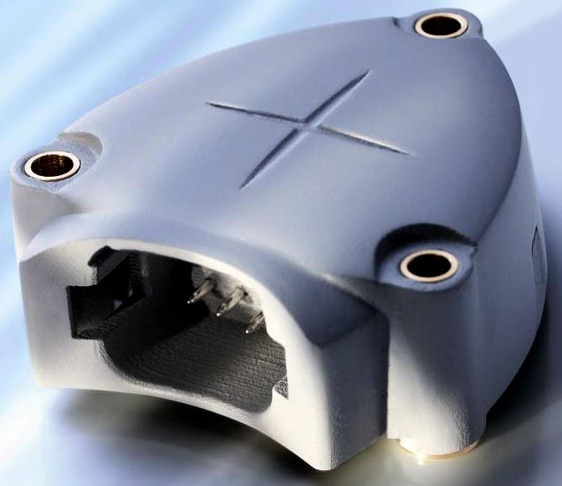

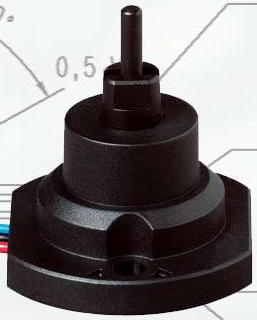

Sep 24, 2007 Non-contact axial angle sensor, Model 424 Z, is capable of measuring angle areas of 20° (±10°) to 120° (±60°) using integrated Hall element. Ratiometric output signal amounts to 0.5-4.5 V, with supply voltage of 5 V and absolute resolution of 0.1°. Rated to IP67, short-circuit-proof system is suitable for axially coupling with applications where center shaft is already supported or those that do not have to actuate angle sensor with lever. Redundant version is available.

Elobau Sensor Technology, Inc.    Lake Bluff, IL 60044
Sep 24, 2007 Offering remote adjustment of zero point, mercury-free N3 and N4 are based on capacitive measuring procedure and have monitored area of ±60°. RoHS-compliant, single-axle (N3) and dual-axle (N4) products let users select 2 digital outputs or 2 analog signals (4-20 mA current or 0.5-4.5 V voltage). Per inclination axle (x-/y-axis), switching points can be defined with 2 in positive range and 2 in negative range. Linkage of switching points is variable and can be defined as AND or OR.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143

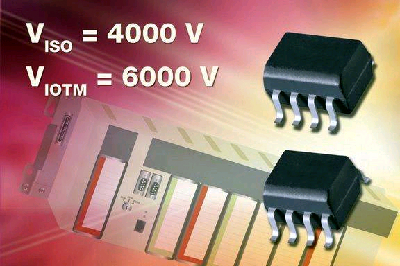

Sep 24, 2007 Designed to meet need for higher-rated isolation devices in high-density applications, all optocouplers in SOIC-8 package feature 6,000 V rated impulse voltages. Devices include single- and dual-channel units with phototransistor and photodarlington outputs, as well as high-speed models up to 10 MBd. SOIC-8 package eliminates through-hole requirements and conforms to standards for surface-mount devices.

Microsemi    Irvine, CA 92614

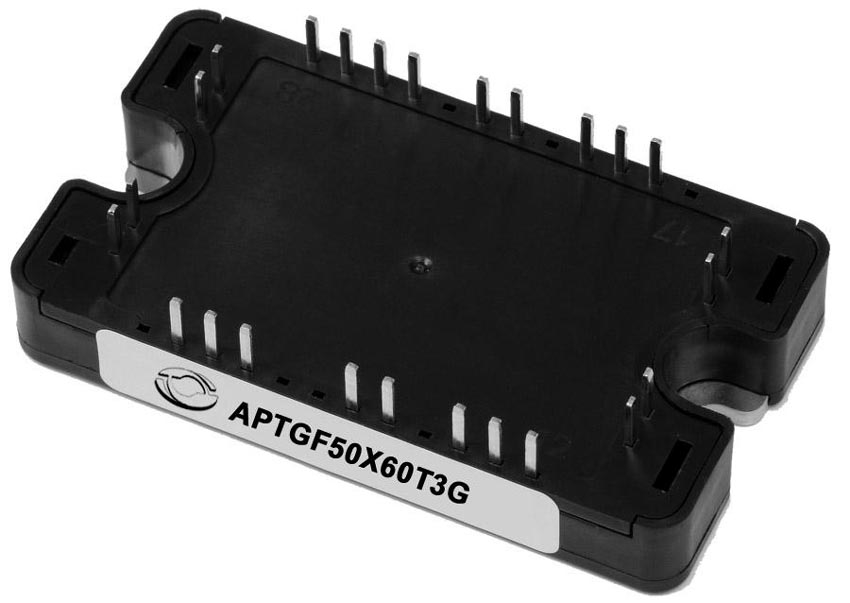

Sep 24, 2007 Designed for motor control applications, power modules feature 3-phase IGBT bridge using NPT IGBTs for 20-50 kHz frequency applications and Trench Field Stop IGBTs for 5-20 kHz applications. Current ratings are in range of 30-50 A for 600 V and 15-25 A for 1,200 V NPT IGBTs and 20-75 A for 600 V and 25-35 A for 1,200 V Trench Field Stop IGBTs. Units have 12 mm profile and 40.8 x 73.4 mm footprint, and feature integrated sensors to monitor module case temperature.

Pepperl + Fuchs, Inc.    Twinsburg, OH 44087 2245
Sep 24, 2007 Resistant to sunlight and other ambient light sources, AL21 Series Light Grid provides automatic adaptation of beam configuration and maintains triple beam crossing during closed-door conditions. It offers sensing range of up to 3.5 m and quick disconnect electrical connectivity with 1 NPN and 1 PNP output. Featuring 9 mm wide housing with field height of 1,800 mm, system consists of paired array of infrared transmitter and receiver elements in 2 separate housings.

AICSYS, INC (Advanced Industrial Computer Systems)    Taipei Hsien   Taiwan
Sep 24, 2007 Suited for harsh environments, Model RCK-206M 2U Industrial Chassis can support ATX motherboard with room for 3 additional 32-bit PCI cards. Compatible with standard 19 in. rack, it comes with two 3.5 in. drive bays for floppy or hard disk drive, as well as four 5.25 in. external drive bays that can be configured with several different drive combinations depending on specific application. Users have option of 250 W/400 W redundant ATX PSU and supplies with varying dc inputs.

Highway Products, Inc.    White City, OR 97503

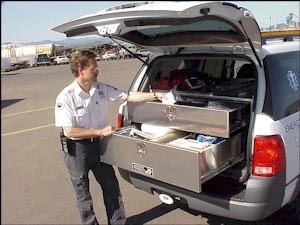

Sep 24, 2007 Designed for law enforcement and homeland security officers, Silverback(TM) Firearms Lockup Box provides lockup security for firearms, ammunition, bullet proof vests, flashlights, raid gear, and evidence storage. It is made of weather-resistant, marine grade aluminum using 1/8 in. stock. Critical gear is secured by stainless steel, 3-point Hansen® T-handle Lock. Models and sizes are available to fit in back of all SUVs.

GAO Tek Inc.    Toronto M1B2K4  Canada
Sep 24, 2007 Supporting more than 6,000 and 8,000 devices, respectively, Models VP280 and VP380 are capable of handling devices such as PROM, PLD, flash microcontrollers, serial and parallel memory. They are also designed for IC testing, including TTL 74 series, CMOS Logic IC, plus DRAM and SRAM memory devices. Units interface with any laptop, PC, PS/2, or compatibles through USB port. Auto-run mode starts programming automatically upon detection of chip insertion.

TURCK, Inc.    Plymouth, MN 55441
Sep 24, 2007 DeviceNet(TM) Drive Interface station is designed to interface adjustable frequency drives onto DeviceNet network and can support up to 4 standalone adjustable drives on network. Housing is constructed of glass-filled nylon that provides IP 20 protection rating. Station connects to DeviceNet via 5-pin removable screw terminal connector and 12 relay outputs, 4 digital inputs, and 4 analog outputs are available on screw terminal connectors.

Digital View, Inc.    Morgan Hill, CA 95037
Sep 24, 2007 Equipped with DVI and ARGB inputs, HE-1400 Series supports LVDS and TTL panels, and is capable of supporting 4:3 format panels at up to SXGA resolution and 6:9 panels at up to WXGA resolution. Fully buffered, multi-sync HE-1600 Series provides direct analog and digital connection to TFT panels up to UXGA resolution. Both controllers feature 12 Vdc ±25% power supplies, Mil-spec silicon resin conformal coatings, and laboratory-certified operating temperature of -40 to +80ºC.

VXI Technology Inc.    Irvine, CA 92614
Sep 24, 2007 Based on 1,000 W, 13-slot VXI mainframe, hybrid Model EX400 allows ATE and data acquisition system architects to integrate VXI-based subsystems within LXI instrumentation network. Mainframe includes slot 0 module that incorporates gigabit Ethernet interface compliant with LXI Class A standard. Open-architecture, VXI-based framework facilitates distribution and synchronization of high channel count measurements through LXI class definition.

Garmin International, Inc.    Olathe, KS 66062
Sep 24, 2007 Offering 3.6° horizontal and 25° vertical beamwidth for accurate target acquisition and separation, GMR(TM) 24 has max effective range of 48 nautical miles and min range of 20 m. This 24 in. unit processes signals within radome via DSP and is dynamically presented on Garmin Marine Network(TM)-compatible chartplotter/multifunction display. For navigating tight quarters, 24 and 30 rpm rotation speeds enable rapid near-target updates. Sensitivity and tuning controls are also included.

Ethernet Direct    Newburyport, MA 01950
Sep 24, 2007 Available with DB9 or terminal block interface options, RUS-115 and RUS-125 series can integrate serial and multi-mode or single-mode fiber networks to provide reliable solution for industrial Ethernet environment. Vibration- and shock-resistant products automatically detect serial baud rate and can extend transmission distance up to 2 km over multimode fiber and up to 120 km over single mode fiber. Transmission speeds reach 115.2 kbps for RS-232 and 500 kbps for RS-422/485.

Abaxis, Inc.    Union City, CA 94587
Sep 24, 2007 VetScan HM5 provides 22-parameter complete blood count and 4 cellular histograms for cat, dog, and horse. It also offers 3-part mode for 7 other species. For operation, this fully automated, 5-part differential cell counter requires operator to enter appropriate patient information, insert well-mixed blood sample, and press Start button. Device requires minimal maintenance and also offers capabilities for database management.

Advent Software    San Francisco, CA 94107
Sep 24, 2007 Automating multiple phases of investment management process, Advent Portfolio Exchange® (APX) v2.0 helps institutional and high-net worth asset managers profitably grow assets, control costs, and satisfy client as well as regulatory requirements. Solution supports fixed income calculations and includes performance analytics for performance attribution, contribution, exposure, and ex-post risk statistics. It also supports security level time-weighted returns.

Advent Software    San Francisco, CA 94107
Sep 24, 2007 Acting as global investment management, reporting, and accounting platform, Geneva® v7.0 offers access to real-time data while promoting operational efficiency by bridging needs of front, middle, and back offices. Global instrument coverage, full financial general ledger, and integration tools enable firms to manage multiple locations, complex investment vehicles, multiple investment strategies, and tiered fund structures. Scalable solution also supports customized, ad hoc queries.

General Software Inc.    Bellevue, WA 98004
Sep 24, 2007 Embedded BIOS® with StrongFrame(TM) Technology firmware utilizes AGESA v3 software, which is required to enable all 4 processors on single core. It features high availability subsystem that monitors entire system and self-heals itself by implementing configurable recovery policies. Along with boot times of 0.085 sec POST, 0.838 sec Linux boot, and 24 sec Windows Vista boot, software capabilities include diagnostic tools and remote provisioning and monitoring.

TRW Automotive    Livonia, MI 48150
Sep 24, 2007 Efficient Comfort Control (ECC) system uses proprietary algorithms to monitor vehicle cabin comfort and minimize energy draw due to vehicle's HVAC system. Concentrated on maintaining occupant comfort, keeping windshield clear of fog, and optimizing fuel use, product helps promote vehicle fuel economy and lower emissions. Use of this product results in system that provides numerical measure of occupant's comfort level in real time and can be tuned to various vehicle cabins.

TRW Automotive    Livonia, MI 48150
Sep 24, 2007 Modular, hydraulically closed ESC-R system promotes vehicle stability and fuel efficiency through compatibility with regenerative braking systems within hybrid vehicles. It is based on Standard Electronic Stability Control system with conventional booster and master cylinder, vacuum pump (if required), and brake volume displacement simulator. While causing no change in pedal feel, system configuration provides blend of regenerative/hydraulic brake output based on driver demand.
