GuardianEdge Technologies    San Francisco, CA 94107-5421
Sep 25, 2007 GuardianEdge Removable Storage Encryption provides CD/DVD encryption, self-extracting encrypted files with password control, plaintext file encryption, and enhanced logging and reporting. It features enterprise-grade manageability via single, tightly integrated Active Directory based console to manage all GuardianEdge products, 256 BIT AES FIPS 140-2 compliant encryption, device support for USB devices, thumb drives, and iPods, and safe access to encrypted media from any computer.

Endicott Research Group, Inc.    Endicott, NY 13761

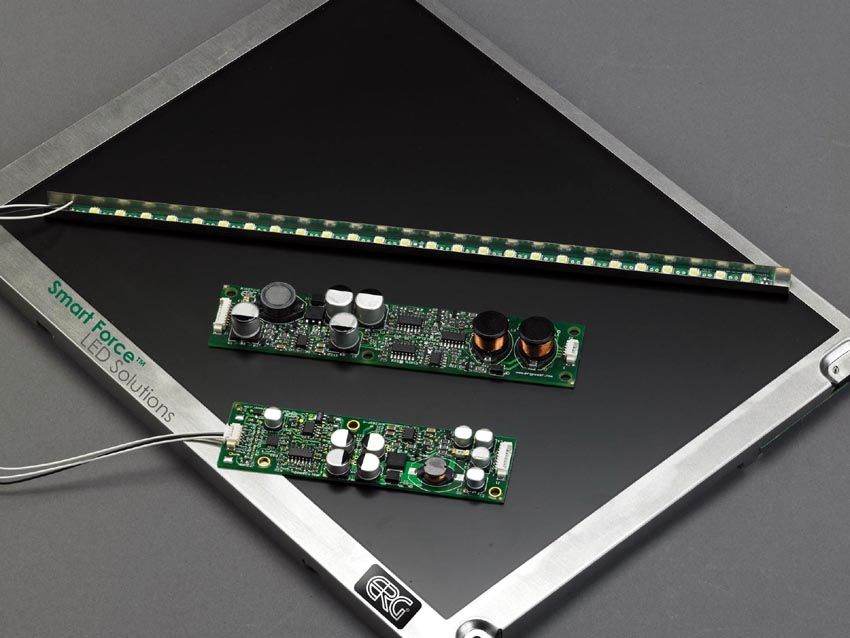

Sep 24, 2007 SFDL Series Smart Force(TM) board provides 180 mA max current to LED rails used in LCDs up to 12.1 in. diagonal, with on-board PWM dimming ratio of 1000:1 and external PWM dimming to 5000:1. Designed for high-power HBLED backlight rails used in LCDs up to 20.1 in. diagonal SFDC Series provides 1,000 mA max current and features internal/external dimming ratios of 1,000:1/20,000:1, respectively. Thermal management keeps junction temperature at or below recommended operating temperature.

AlazarTech Inc.    Lachine, QC H8T 3H2  Canada
Sep 24, 2007 Model ATS9462®, 4-lane PCIe waveform digitizer offers 2 simultaneous analog inputs that can each be sampled at rates up to 180 MS/sec, providing signal-to-noise ratio in excess of 73 dB. Device uses FPGA-based PHY to interface to PCIe bus, which is also used for control and data processing. Data generated by 2 on-board A/D converters is streamed across PCIe bus for storage in PC memory or hard disk and unit is compatible with any x4, x8, or x16 PCIe slot.

Advantech Automation Corp.    Cincinnati, OH 45240

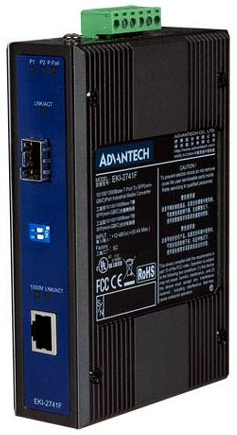

Sep 24, 2007 Combining 1,000 Mbps speed of Gigabit Ethernet (GigE) with EMI/RFI noise immunity and electrical isolation of fiber optic cable, EKI-2741 Series Gigabit Industrial Ethernet Media Converters enable GigE connections spanning up to 70 miles. All units include Link Fault Pass-through, which allows cable breaks or power failures to be signaled to attached devices. Supplied in DIN-rail mount metal chassis, series features dual 12-48 Vdc power inputs and 3,000 V power line surge protection.

Synology Inc.    Taipei 103  Taiwan
Sep 24, 2007 Model Disk Station DS207+ comes equipped with 128 Mb RAM and 500 MHz CPU enabling efficient data access in small business environments. Server utilizes an eSATA hard disk enclosure and USB hard disk enclosure to backup and restore data. Software features include File Station, which allows file access and management from any computer via web browser, and Audio Station for streaming music to connected USB speakers.

Ramtron International Corp.    Colorado Springs, CO 80921

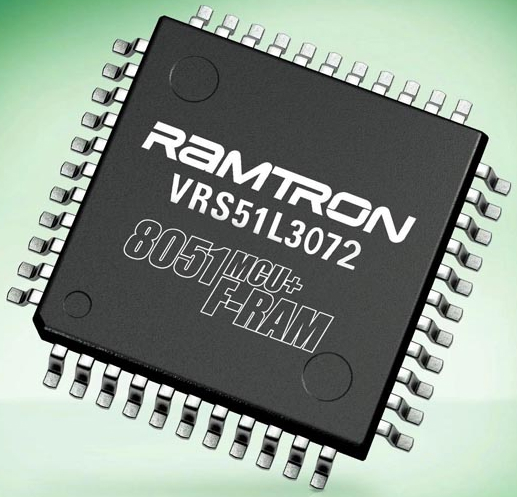

Sep 24, 2007 Suited for saving system status, data logging, and storing nonvolatile variables, VRS51L3072 comes in RoHS-compliant 64-QFN package and consists of 8051-based MCU with 2 KB of nonvolatile F-RAM. Data storage/processing system features 40 MIPS, single-cycle 8051-core; 64 KB Flash with in-system/in-application programming; 4 KB SRAM; DSP extensions; and digital peripheral set. Communication speed on SPI can be configured up to 20 Mbps, and transactions are adjustable from 1-32 bits.

Randolph Austin Co.    Manchaca, TX 78652

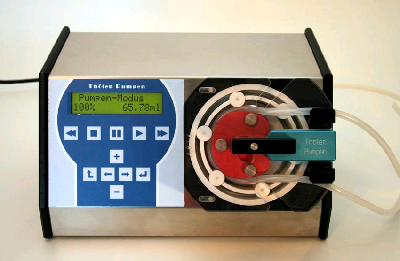

Sep 24, 2007 Designed as exact dose, metering, or bottling pump, Model TP 1000 V can be operated in semi-automatic mode or be fully integrated through RS232 as automatic filling or metering machine. It is available with 4 different rotors ranging from 1.6 x 1.6 to 6.4 x 1.6. As stand-alone unit, TP 1000 V can be programmed through touch screen or it can be integrated into PLC or computer control. Pump also provides for 4-20 mA or 0-10 Vdc signal input from variety of sensors.

Flexible Montisa    Plainwell, MI 49080
Sep 24, 2007 Available as fixed or mobile unit, Heavy Duty Adjustable Bench features 12 gauge legs and 14 gauge stringers. Top options include 2¼ in. maple, 1¼ in. stainless steel 16 gauge Cap-top, and solid 3/8 in. steel. Available with optional 5 in. casters, bench is suited for industrial applications, maintenance departments, diagnostic centers, and prototype specialists.

Elobau Sensor Technology, Inc.    Lake Bluff, IL 60044
Sep 24, 2007 Non-contact axial angle sensor, Model 424 Z, is capable of measuring angle areas of 20° (±10°) to 120° (±60°) using integrated Hall element. Ratiometric output signal amounts to 0.5-4.5 V, with supply voltage of 5 V and absolute resolution of 0.1°. Rated to IP67, short-circuit-proof system is suitable for axially coupling with applications where center shaft is already supported or those that do not have to actuate angle sensor with lever. Redundant version is available.

Elobau Sensor Technology, Inc.    Lake Bluff, IL 60044
Sep 24, 2007 Offering remote adjustment of zero point, mercury-free N3 and N4 are based on capacitive measuring procedure and have monitored area of ±60°. RoHS-compliant, single-axle (N3) and dual-axle (N4) products let users select 2 digital outputs or 2 analog signals (4-20 mA current or 0.5-4.5 V voltage). Per inclination axle (x-/y-axis), switching points can be defined with 2 in positive range and 2 in negative range. Linkage of switching points is variable and can be defined as AND or OR.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Sep 24, 2007 Designed to meet need for higher-rated isolation devices in high-density applications, all optocouplers in SOIC-8 package feature 6,000 V rated impulse voltages. Devices include single- and dual-channel units with phototransistor and photodarlington outputs, as well as high-speed models up to 10 MBd. SOIC-8 package eliminates through-hole requirements and conforms to standards for surface-mount devices.

Microsemi    Irvine, CA 92614
Sep 24, 2007 Designed for motor control applications, power modules feature 3-phase IGBT bridge using NPT IGBTs for 20-50 kHz frequency applications and Trench Field Stop IGBTs for 5-20 kHz applications. Current ratings are in range of 30-50 A for 600 V and 15-25 A for 1,200 V NPT IGBTs and 20-75 A for 600 V and 25-35 A for 1,200 V Trench Field Stop IGBTs. Units have 12 mm profile and 40.8 x 73.4 mm footprint, and feature integrated sensors to monitor module case temperature.

Pepperl + Fuchs, Inc.    Twinsburg, OH 44087 2245
Sep 24, 2007 Resistant to sunlight and other ambient light sources, AL21 Series Light Grid provides automatic adaptation of beam configuration and maintains triple beam crossing during closed-door conditions. It offers sensing range of up to 3.5 m and quick disconnect electrical connectivity with 1 NPN and 1 PNP output. Featuring 9 mm wide housing with field height of 1,800 mm, system consists of paired array of infrared transmitter and receiver elements in 2 separate housings.

AICSYS, INC (Advanced Industrial Computer Systems)    Taipei Hsien   Taiwan
Sep 24, 2007 Suited for harsh environments, Model RCK-206M 2U Industrial Chassis can support ATX motherboard with room for 3 additional 32-bit PCI cards. Compatible with standard 19 in. rack, it comes with two 3.5 in. drive bays for floppy or hard disk drive, as well as four 5.25 in. external drive bays that can be configured with several different drive combinations depending on specific application. Users have option of 250 W/400 W redundant ATX PSU and supplies with varying dc inputs.

Highway Products, Inc.    White City, OR 97503
Sep 24, 2007 Designed for law enforcement and homeland security officers, Silverback(TM) Firearms Lockup Box provides lockup security for firearms, ammunition, bullet proof vests, flashlights, raid gear, and evidence storage. It is made of weather-resistant, marine grade aluminum using 1/8 in. stock. Critical gear is secured by stainless steel, 3-point Hansen® T-handle Lock. Models and sizes are available to fit in back of all SUVs.

GAO Tek Inc.    Toronto M1B2K4  Canada
Sep 24, 2007 Supporting more than 6,000 and 8,000 devices, respectively, Models VP280 and VP380 are capable of handling devices such as PROM, PLD, flash microcontrollers, serial and parallel memory. They are also designed for IC testing, including TTL 74 series, CMOS Logic IC, plus DRAM and SRAM memory devices. Units interface with any laptop, PC, PS/2, or compatibles through USB port. Auto-run mode starts programming automatically upon detection of chip insertion.

TURCK, Inc.    Plymouth, MN 55441
Sep 24, 2007 DeviceNet(TM) Drive Interface station is designed to interface adjustable frequency drives onto DeviceNet network and can support up to 4 standalone adjustable drives on network. Housing is constructed of glass-filled nylon that provides IP 20 protection rating. Station connects to DeviceNet via 5-pin removable screw terminal connector and 12 relay outputs, 4 digital inputs, and 4 analog outputs are available on screw terminal connectors.

Digital View, Inc.    Morgan Hill, CA 95037
Sep 24, 2007 Equipped with DVI and ARGB inputs, HE-1400 Series supports LVDS and TTL panels, and is capable of supporting 4:3 format panels at up to SXGA resolution and 6:9 panels at up to WXGA resolution. Fully buffered, multi-sync HE-1600 Series provides direct analog and digital connection to TFT panels up to UXGA resolution. Both controllers feature 12 Vdc ±25% power supplies, Mil-spec silicon resin conformal coatings, and laboratory-certified operating temperature of -40 to +80ºC.

VXI Technology Inc.    Irvine, CA 92614
Sep 24, 2007 Based on 1,000 W, 13-slot VXI mainframe, hybrid Model EX400 allows ATE and data acquisition system architects to integrate VXI-based subsystems within LXI instrumentation network. Mainframe includes slot 0 module that incorporates gigabit Ethernet interface compliant with LXI Class A standard. Open-architecture, VXI-based framework facilitates distribution and synchronization of high channel count measurements through LXI class definition.

Garmin International, Inc.    Olathe, KS 66062
Sep 24, 2007 Offering 3.6° horizontal and 25° vertical beamwidth for accurate target acquisition and separation, GMR(TM) 24 has max effective range of 48 nautical miles and min range of 20 m. This 24 in. unit processes signals within radome via DSP and is dynamically presented on Garmin Marine Network(TM)-compatible chartplotter/multifunction display. For navigating tight quarters, 24 and 30 rpm rotation speeds enable rapid near-target updates. Sensitivity and tuning controls are also included.
