STMicroelectronics    Lexington, MA 02421
Oct 19, 2007 Featuring I2C serial interface, Model STVM100 facilitates removal of flicker from TFT LCD panels during manufacture. Vcom calibrator chip enables adjustment to be automated through use of Auto Flicker Detection solution, and can be designed-in to TV set, allowing manufacturing adjustment to be made through I2C interface. Available in 8-pin, 3 x 3 mm TDFN8 or TSSOP8 packages, chip provides 128 steps of Vcom adjustment, with 3 external resistors determining highest/lowest values.

Bud Industries, Inc.    Willoughby, OH 44094
Oct 19, 2007 Available in 4 sizes ranging from 2.72 x 4.92 in. up to 8.27 x 10.16 in., IA Series portable aluminum instrument case is 12.93 in. deep. Adjustable locking aluminum and plastic handle has 2 connection points for stability, and can be used for multi-positional carrying or bench-top use. Series features 4 scuff-resistant anti-skid feet, 2 of which have foldable bails. Case allows dissipation of heat without need for ventilation, providing EMI shielding and protection to instruments.

GE Intelligent Platforms    Charlottesville, VA 22911
Oct 19, 2007 QuickPanel View Interface Card allows QuickPanel View line of visualization products to communicate with Allen Bradley's Data Highway Plus local networks. Running under Windows CE operating system, it handles HMI requirements such as graphics, alarm logging, recipes, communication to multiple devices, scripting, and dial-in /dial-out support.

Lumberg, Inc.    Midlothian, VA 23113
Oct 18, 2007 Maintaining Category 5E compliance, e-FLEX(TM) industrial-grade Ethernet cordsets offer continuous flex of 10 million cycles at bend radius of 20x cable diameter. Types include IP67-rated e-FLEX Bayonet locking double-ended (male RJ45 to male RJ45), IP20-rated e-FLEX double-ended (male RJ45 to male RJ45), and IP67-rated e-FLEX Ethernet/IP double-ended (M12 male to M12 male) cordsets. Each version is available in various lengths to suit application.

Avdel USA LLC    Stanfield, NC 28163
Oct 18, 2007 Hydro-pneumatic Avdel® Genesis® nG1, nG2, nG2s, nG3, and nG4 installation tools weigh between 3.3-5.0 lb with pull forces that vary from 1,350-4,200 lbf. They include piston return spring as well as integrated cycle counter that tracks working strokes and alerts operators to maintenance schedules. Air supply shutoff can be controlled by trigger and safety feature ensures that with stem collector removed no spent stems are ejected rearwards.

Advantech Automation Corp.    Cincinnati, OH 45240
Oct 18, 2007 Featuring 4 status LEDs, IPC-630 supports PICMG 1.0/1.3 backplanes of up to 15 slots and ATX motherboards. This 4U rack-mount chassis offers front access to removable fans, including filters made of washable nylon material. Behind lockable front door, unit provides access to I/O port connectors and disk drives. Shock-mounted, removable disk drive carrier provides three 5.25 in. and one 3.5 in. drive bays as well as one 3.5 in. internal drive bay.

Dwyer Instruments, Inc.    Michigan City, IN 46361 0373
Oct 18, 2007 With flush sensor design, Series FDT prevents potential inaccuracies due to build-up or blockage, which is typically found in non-flush transmitter sensors. Units have non-oil filled sensor element that provides resistance to temperature fluctuations. Manufactured from solid piece of steel, sensing diaphragm can withstand most abrasive/cyclical applications.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Oct 18, 2007 Built on Z-Foil technology, Models SMR1DZ and SMR3DZ offer power ratings of 250 mW and 600 mW at 70°C, respectively, and provide low typical TCR of ±0.05 ppm/°C from 0-60°C and ±0.2 ppm/°C from -55 to +125°C. Units feature PCR of ±5 ppm at rated power, tolerances to ±0.01%, load life stability of 0.005%, and resistance range of 5W to 80 kW. Flexible terminations ensure minimal stress transference from PCB due to difference in CTE.

Matco-Norca, Inc.    Brewster, NY 10509
Oct 18, 2007 Extra Heavy Black Seamless Nipples range in diameter from 1/8-4 in. and are available in up to 12 in. long close lengths. They meet or exceed all ASTM and ANSI standards, including ASTM A-106 for material and ANSI B1.20.1 for threading.

Clark-Reliance Corp., The    Strongsville, OH 44136
Oct 18, 2007 Jerguson® Tri-Magnet Switches are available in kits that let plants upgrade existing mercury switches by replacing switch and enclosure without removing existing chamber. Switch mechanism is based on Jerguson 3D magnet design, in which snap action is accomplished by utilization of magnetic repulsion. Available switch mechanisms include 10 A mechanism for general-purpose duties up to 480°F, 5 A high-temperature (750°F) mechanism, as well as hermetically sealed switch mechanisms.

IMI Sensors, Div. of PCB Piezotronics    Depew, NY 14043-2495
Oct 18, 2007 Working with online or portable monitoring systems to provide vibration monitoring, Model 621B40 captures high-frequency gear mesh faults often missed during routine route-based measurements. Magnetically mounted unit supplies response to more than 30k Hz, allowing vibration analyst to obtain precise measurements of high frequency phenomena. Device is suited for measurements on high-speed compressors, gearboxes, and turbomachinery for early detection of impending problems.

WinSystems, Inc.    Arlington, TX 76011
Oct 18, 2007 Measuring 90 x 96 mm, PCM-ZigBee Board is configured with either XBee or XBee-Pro transceiver that is wired to SMA RF connector on edge of board. For XBee-Pro configuration, indoor and urban range is up to 300 ft and outdoor line-of-sight is up to 1 mile. For XBee, urban range is 100 ft and outdoor range is 300 ft. Requiring +5 V to operate, board uses PHY and MAC layers defined by IEEE 802.15.4, which is short-distance wireless communication standard for 2.4 GHz band.

Linear Technology Corp.    Milpitas, CA 95035
Oct 18, 2007 Housed in 3 x 3 mm DFN-10 package, Model LT1938 is suited for 12 V and unregulated wall transformer inputs. Internal 3.1 A switch delivers up to 2.2 A of continuous output current at voltages as low as 1.265 V. With user-programmable switching frequency from 300 kHz to 2.8 MHz, designer can optimize efficiency while avoiding critical noise-sensitive frequency bands. Step-down switching regulator includes power good flag, integrated boost diode, and soft-start capability.

ASG, Div. of Jergens, Inc.    Cleveland, OH 44110
Oct 18, 2007 Intended for vertical screw applications, ASG Linear Torque Arm is designed to provide precise positioning of assembly tools by limiting operator control. Unit features machined stainless steel and multiple ball bearing construction with side-by-side slides that provide stability for tools up to 5 lb with up to 100 lbf-in. torque. Arm movement is up/down and 360° side-to-side unless limited by tool configuration, and each arm is provided with two 1-3 lb spring balancers.

Andrews Glass Co.    Vineland, NJ 08360-5504
Oct 18, 2007 Developed to meet need for observing reactions in gases and liquids under pressure at high temperatures, PRV Kits are recommended when operating temperatures are above 175°C. Kits include chemically inert borosilicate glass vessels, PTFE insert, and PTFE O-ring. Basic starter kit with needle valve adaptor and stainless steel plug is also available for first time users. Both kits come in 3, 6, and 12 oz sizes with regular or footed pressure vessels.

Glue Dots International, LLC    New Berlin, WI 53151
Oct 18, 2007 Offering alternative to tape guns and hot glue guns, portable Dot Shot® Pro lets user dispense correct amount of adhesive in controlled way with no mess. User loads roll of Glue Dots and rolls over nearly any surface, applying single dot or dozens of dots. No adhesive is wasted and spent tape rewinds inside dispenser. Applications include packaging, printing, mail/fulfillment, point-of-purchase, and materials handling.

Glue Dots International, LLC    New Berlin, WI 53151
Oct 18, 2007 With Automated Advance System and Internal Winding Mechanism, Auto Dot(TM) Pro accommodates up to 4,000-count Glue Dots rolls and can apply up to 60 Glue Dots/min. Photo eye senses registration on liner and automatically advances each dot for hands-free, continuous application. Accommodating variety of tack levels, sizes, shapes, and thicknesses, applicator is suited for manufacturing, assembly, packaging, and printing applications.

Schaefer, Inc.    Hopkinton, MA 01748
Oct 18, 2007 Series C5100 converters are available in 3 standard dc input voltage ranges from 320-800 Vdc as well as 3-phase ac input voltages of 3 x 400 Vac (320-460) and 3 x 480 Vac (400-530). Available in 6 standard ranges from 23-200 Vdc, single outputs are adjustable and fully regulated to 0.2% or better (load) and 0.1% (line). Featuring over-voltage protection and current limit protection on output, 5,000 W power converters operate over -20 to +75°C and -40 to +75°C.

Amerlux Lighting Solutions    Fairfield, NJ 07004-2527
Oct 18, 2007 Designed for ambient and display lighting applications in commercial and retail spaces, Profilo T5/T5HO fluorescent luminary meets requirements of LEED and U.S. Green Building Council. Compact unit is constructed with 1-piece extruded aluminum housing, and features drawer latching system that provides clean joints in continuous row-mounting applications. Aircraft cable suspension in 4 or 8 ft lengths are standard, while dimming ballast is available as option.

Elma Electronic Inc.    Fremont, CA 94538

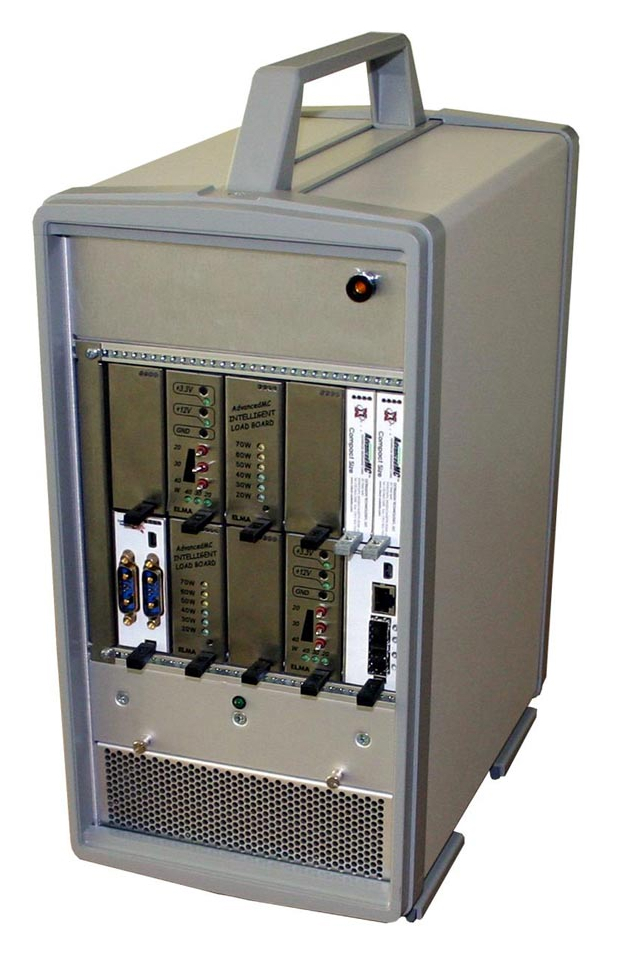

Oct 18, 2007 The 4U Type 32M MicroTCA Portable Tower features Star backplane with up to 6 AMCs, 1 MicroTCA carrier hub slot and power module slot. Backplane incorporates J-Tag switch module slot for diagnostics. Suited for use development chassis, it accommodates single or double width format modules in same backplane. Along with 5 temperature sensors, Type 32M also features EMC shielding, scratch-resistant vinyl clad aluminum covers, and cooling is achieved with 2 x 90 cfm fans.
