Eaton Hydraulics    Eden Prairie, MN 55344
Oct 31, 2007 Designed for heavy industrial applications, G-Series features ultra-heavy-duty rolled tie rods, high-yield strength tubes and pistons, steel heads/caps, as well as piston and rod sealing system. Heavy-duty rod cartridge is based on nitrided steel, and cushion design promotes linearity and smooth operation. Offered in Vickers(TM) VG Series and Hydro-line® HG Series products, series is available with stroke lengths to 300 in. and beyond.

G.T. Microwave, Inc.    Randolph, NJ 07869
Oct 31, 2007 Designed to control phase characteristics in processing of microwave signal, Digital Phase Shifter features 3 dB 90° quadrature hybrid, 2 variable attenuators capable of 180° phase shift, and in-phase power controller and drive circuits to control variable attenuators. Device will convert signal to desired phase location via digital command. Measuring 4.25 x 3.38 x 0.75 in., phase shifter is optimized over 9:1 bandwidth with 360° of phase shift and 0.088° resolution, 12 BITs.

G.T. Microwave, Inc.    Randolph, NJ 07869
Oct 31, 2007 Measuring 1.7 x 1.8 x 0.75 in., Model A6P-69N-0MG Multi-Octave Digitally Controlled Miniature PIN Diode Attenuator operates from 2-18 GHz with 64 dB Dynamic Range in 0.25 dB steps. Across entire band, VSWR is less than 2.1:1, insertion loss is less than 4.5 dB, and solution is capable of handling +13 dBm CW, 1.0 W max. With 8 BIT Binary and TTL compatible logic, switching speed is less than 1.5 µsec from any state to any state.

G.T. Microwave, Inc.    Randolph, NJ 07869
Oct 31, 2007 Measuring 3.25 x 3.00 x 1.00 in., Model M2V-82N-5JX is 360°/50 dB High Dynamic Range PIN Diode I and Q Vector Modulator that operates from 18.0-21.5 GHz. Device offers simultaneous phase and amplitude control as well as VSWR better than 1.8:1. Device is capable of handling +15 dBm CW, 1.0 W max; is voltage controlled via 2 (I and Q) inputs; and switches in 350 nsec. Across entire band, phase and amplitude flatness is ±10° and ±0.75 to 40 dB.

Crown Equipment Corp.    New Bremen, OH 45869

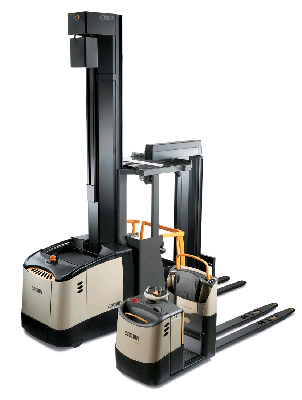

Oct 31, 2007 GPC 3000 Series starts with entry-level model with load capacity of 2,000 kg and extends to full-featured model with load capacity of 2,700 kg. Series also offers various fork lengths and battery compartment sizes. If picking locations are close by, Pick Position Control(TM) system lets operator move truck to next location without getting onboard. To speed picking process, truck can be guided with X10® control, which is operated from side of truck via thumb switch.

Beijer Electronics, Inc.    Schaumburg, IL 60173
Oct 31, 2007 Weighing 1.3 kg, IP65-rated EXTER M70 features TFT display with 640 x 480 pixels, enabling objects and images to be presented with high level of detail. Handheld unit includes red safety stop on front and can be configured with password-protected security levels so that parameters and actions can be dedicated to password holders. Designed for left- and right-handed use, panel enables connection of cable on either side and has rounded handle for comfortable grip.

Koch Knight LLC    East Canton, OH 44730
Oct 31, 2007 Engineered to provide low predictable swell, KNIGHT-WARE® PV33P withstands thermal shock and spalling common in pressure vessels, and complies with ASTM C-279 Type 1 designation for chemical resistant masonry. Offered in range of sizes and shapes to fit any application, brick is also available for acid-resistant masonry construction for various size vessels and dished heads.

G.T. Microwave, Inc.    Randolph, NJ 07869
Oct 31, 2007 Model SA-39-AR Integrated Digitally Controlled Pin Diode I & Q vector modulator, amplifier, and negative gain equalizer offers simultaneous 60 dB and 360° of dynamic attenuation and phase control with accuracy of 0.06 dB and 0.1° at any CW frequency. Across entire band, VSWR is 1.8:1 with +30 dB of RF gain held within ±1 dB window to output 1 dB compression point of +17 dBm. Device switches from state to state in 1.0 µs.

G.T. Microwave, Inc.    Randolph, NJ 07869
Oct 31, 2007 Model A0P-83N-0 Phase Invariant PIN Diode Attenuator is capable of 45 dB dynamic range with monotonic 0.18 dB steps. It features attenuation flatness of ±2.25 dB, delta phase vs. attenuation of 15° max, VSWR of 1.6:1, and insertion loss of 5 dB. Digitally controlled via 8 bits of TTL compatible binary logic, device has switching speed of less than 350 nsec. Unit can handle +15 dBm CW or 1.0 W max in 2.0 x 3.0 x 0.75 in. package.

GSA Bansemer & Scheel GbR    Rostock 18146  Germany
Oct 31, 2007 GSA Image Analyser v3.0.0 can recognize and count objects such as algorithms from Buerker, Fuchs-Rosenthal, Thoma, Schilling, Tuerk, and Tennant in any image, and can also calculate distance and areas in it. Images can be imported from many sources, including file, scanner, or microscope. Windows-compatible software is also used for counting cells and calculating size of plant roots in biometric applications.

MasterPiece Systems Co Ltd    Banglamung 21050  Thailand
Oct 31, 2007 With ability to print full A3 motif in less than one minute, Model MT-315 features 150 mm height and 1,200 dpi resolution. Feeding mechanism helps simplify assembling of table and enables transport of system from place to place without any complicated technical work. Table includes big dimension in all bearings and rails used for feeding, allowing real heavy loading for this flatbed printer. Laser-guided printer comes with picture editing and template printing software.

Micro-Drives    Clearwater, FL 33762
Oct 31, 2007 Featuring external motor-diameter of 48 mm and length of 70 mm, Series M4870U 170 W DC Micromotor reaches speeds up to 11,000 rpm. It includes iron-core construction, graphite commutation system that tolerates overload conditions, and 4.0 mm dia motor shaft for rotational stability. Unit can be combined with gearhead, encoder, and linear actuator for complete miniature DC drive system. Two channel optical encoder enables control of speed and direction of rotation.

Flexaust Co., Inc., The    Warsaw, IN 46581

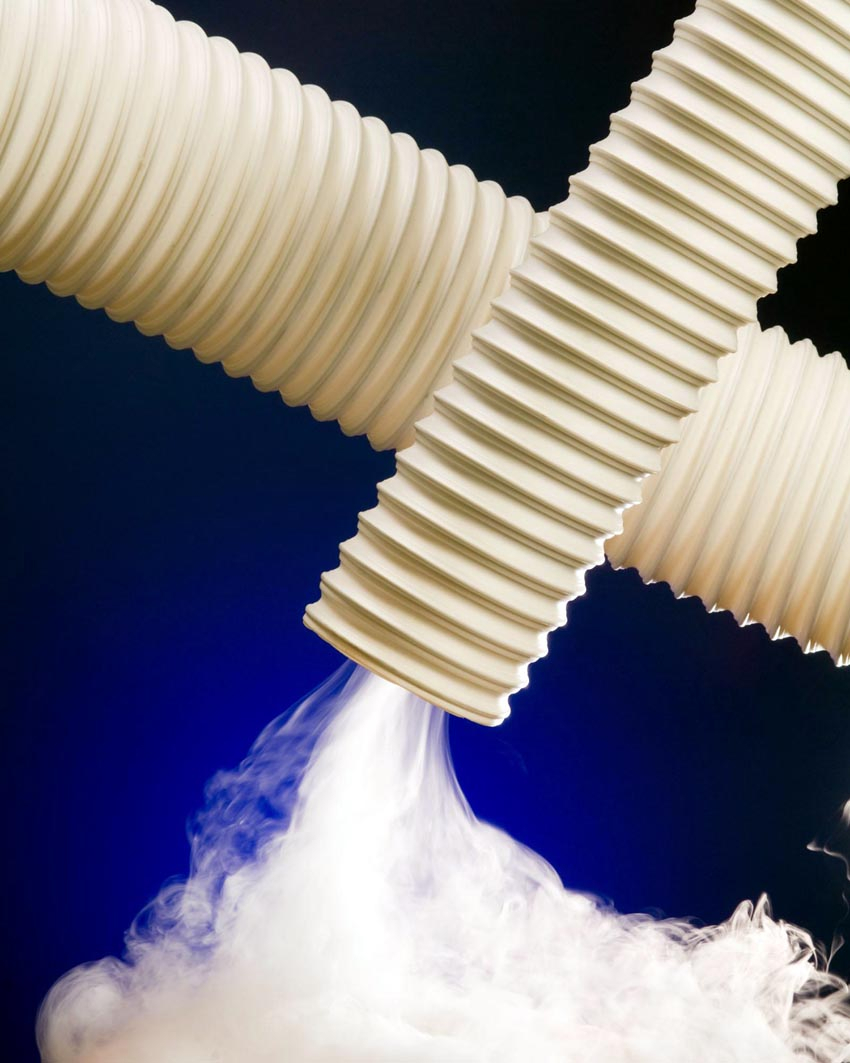

Oct 30, 2007 Model Flexadux® T-7 flexible white thermoplastic rubber hose utilizes reinforced spring steel wire helix for use in applications requiring FDA acceptable hosing. Food grade hosing features an operational temperature range of -40 to 250°F, smooth interior for airflow efficiency, and abrasion, chemical, and UV resistance. Available in 2-12 in. I.D. standard sizes, custom sizes to 24 in., and in 25 or 50 ft lengths.

AMREL/AMERICAN RELIANCE, INC    El Monte, CA 91731

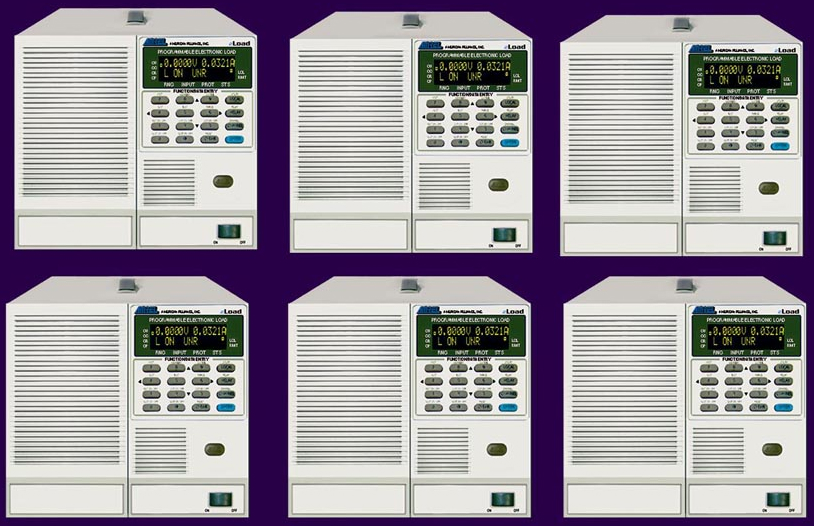

Oct 30, 2007 Addressing requirements of single-cell fuel cell testing, battery testing, power electronics, and photovoltaic testing, ZVL eLoad Series comes in 60/100/150/200/300 W power ratings, 10/150 Vdc models, and 20 A or 40/60/80/100/200 Adc current ratings. Automated testing and remote programming is achieved via LabVIEW and LabWindow drivers. Other features include CV/CC/CR/CP/Pulse operating modes, 2 FS ranges, and Co-resident GPIB IEEE-488.2/SCPI and RS-232 interface connectivity.

Emhart Teknologies, A Black & Decker Co.    Shelton, CT 06484
Oct 30, 2007 Comprised of 4 tools, POP NUT(TM) Threaded Rivet Nut Manual Setting Line features quick-change mandrel and nosepiece design as well as adjustable mandrel protrusion. Tools include PNT110 Hand Plier Tool, PNT210 Ratchet Tool, PNT310 Lever Tool, and PNT410 Heavy Duty Long Lever Tool. Each offers individual ranges for steel, stainless steel, or aluminum threaded river nuts. Construction is of heavy-duty steel, and PNT310/410 are optimized for pulling force.

AMETEK Solartron Metrology    Gastonia, NC 19301
Oct 30, 2007 Available in 23.5 and 27.5 mm models, DZ Series Probes provide 1 and 2 mm measuring range, respectively. Transducers are sealed using Viton® boot to exclude dust and moisture and meet IP65 requirements. Tips with M2 thread are available for various applications and can be replaced in field without returning them to factory. Offered in digital versions only, probes facilitate setup since neither electrical zero nor sensitivity are needed.

Bussmann Div., Cooper Industries    St. Louis, MO 63178
Oct 30, 2007 Cooper Bussmann® Quik-Spec(TM) Safety Switch features IP-20 finger-safe CUBEFuse® integration with current-limiting Class J performance for reducing arc-flash hazards. Flange-operated handle can be operated with electrical gloves and is lockable with up to 3 padlocks to protect maintenance workers. Heavy-duty switch meets NEC® 110.9 requirements and is listed to UL98 and UL50. Optional easyID(TM) fuse-viewing window is available.

Envirosight LLC, Video Pipeline Inspection    Randolph, NJ 07869
Oct 30, 2007 Wireless equipment for QuickView pipeline zoom camera consists of compact transmitter that is part of QuickView operator vest and receiver that connects to remote viewing or recording device. Video can be transmitted in real-time up to 1,000 ft line-of-sight and 300 ft otherwise using one of 8 user-selectable channels in 5.725-5.875 GHz range. System includes transmitter holster that also attaches to vest.

Astrosyn International Technology Ltd    Kent   United Kingdom
Oct 30, 2007 Lawtronics HSK extruded aluminum units consist of 2 sliding channels together with end panels, enabling electronics to be worked on while top half of casing is slid open. Able to house toroidal transformer of up to 100 VA, uninterlocking heatsink enclosures allow eurocard boards to slide into internal card guides and 2 boards can be mounted within. Free-standing or 3U rack mount models are available in 160 or 220 mm lengths with normal wall thickness of 2 mm.

Flomatic Valves Div., The Danfoss Group    Glens Falls, NY 12801

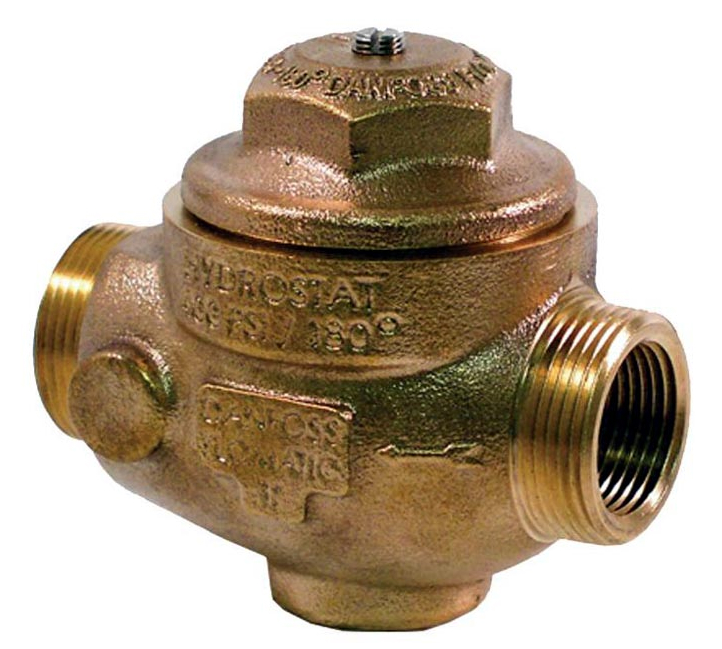

Oct 30, 2007 Hydro Stat(TM) Model C3100 constant pressure pump control valve reduces rapid pump cycling and maintains preset operating pressure which is field adjustable. It features low lead alloy body and bell housing that has threaded female ID x male OD on inlet and outlet connections as well as corrosion-resistant internal components with Nylon reinforced Buna-N diaphragm. Valve can be installed vertical or horizontal and in wall casing.
