Metalfab, Inc.    Vernon, NJ 07462-0009
Nov 07, 2007 Designed to handle dry bulk materials, MetaTech Feeder is built with 2 moving parts - drive and screw - to optimize performance and minimize process downtime. O-ring sealed inline direct drive, Delrin® bushing, and agitator/conditioner screw help maintain consistent product density and completely fill feed screw for accurate (+1-1½%) feeding. Interchangeable screw/tube combinations are available in ½-6 in. sizes and permit feed rates from 0.05-550 ft³/hr.

ACS Motion Control    Plymouth, MN 55447
Nov 07, 2007 Featuring 20 kHz servo sampling rate and 50 µsec servo update, SPiiPlus SA Series supports various motion modes - point-to-point, jog, segmented motion, master-slave, and arbitrary path with PVT cubic interpolation - on 2, 4, 6, or 8 axes. Standalone solution has D-Type connectivity and can control systems with both servo and step motors. Included disturbance rejection algorithm permits rapid profiles while keeping position window to 1 nm, with settling time of milliseconds.

Optek Technology, Inc.    Carrollton, TX 75006-6905
Nov 07, 2007 Using plastic optical fiber, OPI1270 Series provides power electronics engineers with means to isolate high voltage I/O circuits over distances from 0.71-3.15 in. These RoHS-compliant axial fiber optic isolators are constructed using visible red (645 nm) LED emitter and phototransistor detector in separate opaque molded plastic modules, linked by shrouded and flexible optical cable that shields optical signal from dust and other contaminations.

Antares Advanced Test Technologies    Vancouver, WA 98683
Nov 07, 2007 Able to accept QFN packages down to 0.35 mm pitch, 880 Series features compression mount clamshell that allows chipmakers to remove or replace sockets and retain production capacity if they were to be damaged. Specifications include beryllium copper alloy contact, gold contact plating, 20 g contact force, temperature rating of -40 to 155°C, and durability of 30,000 cycles. Socket's wiping-action contact works to create consistent resistance during burn-in, reducing maintenance.

Pickering Interfaces    Wobum, MA 01801
Nov 07, 2007 Featuring PXI form factor, 3-channel Series 40-260 covers resistance range of 90 W to 8 kW. Resistance setting resolution is better than 10 mW over entire resistance range and accuracy is better than 0.1% for all resistance settings. Suited for simulating RTD's and strain gauges in test environment, modules include calibration port that can be used to calibrate resistor channels while unit is connected to UUT.

Hoffman    Anoka, MN 55303 1778
Nov 07, 2007 Providing horizontal and vertical cable managers, CableTek(TM) Management Systems support cable bundles and individual cables in 19 in. data racks. They are EIA compliant and accommodate CAT 5e, 6, and 6A cables. Systems include covers with positive engagement and bi-directional hinges, as well as pass-through holes for wiring flexibility. Arrowhead finger design facilitates insertion and removal of cables, while rounded edges minimize twisting, over-stretching, and nicking of cables.

Mate Precision Tooling    Anoka, MN 55303

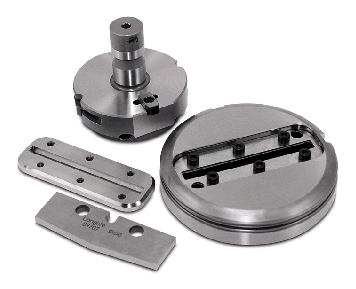

Nov 07, 2007 Designed for Trumpf style punch presses, Mate LongLife(TM) includes punch inserts manufactured from high-speed steel and available in 5.00 x 56.00 mm and 5.00 x 76.20 mm rectangular sizes. Punch insert holders are available with or without integral alignment ring. Suited for mild steel up to 3.00 mm, die inserts come in 5.00 x 56 mm and 5.00 x 76.20 mm sizes with 0.10 mm die clearance increments from +0.10-0.60 mm. Die insert holders offer precise angular orientation at 0 and 90°.

Spiroflow Systems, Inc.    Monroe, NC 28110
Nov 07, 2007 Designed to safely keep bag above floor level, Type 3 Loss-In-Weight Bulk Bag Discharger accurately dispenses from 22-3,300 lb batches by using electronic load cells directly below top bag holding frame. Dust and contamination free, operation can also remove partially discharged bulk bags. Product flows from chute into integral flexible screw discharge conveyor. Spout closure device lets operator untie bag through access door without releasing product until access door is closed.

SMS, Inc. (formerly Kaltenbach, Inc.)    Columbus, IN 47201
Nov 07, 2007 With cycle time of seconds, Model KKS450 'R' can cut two 2 in. stainless steel exhaust tubes side-by-side. Machine features 3 in. thick table for rigidity and facilitating location of jigs/fixtures commonly employed in automotive applications. Adjustable long-stroke top clamp with electronic relief adjustment and 2nd work height position facilitate unloading/loading of components. Employing standard 2 palm controls, machine operates via push-button and full stroke.

The Kerfkore Company    Brunswick, GA 31525
Nov 07, 2007 Suitable for producing stable architectural panels, FlexGreen is environmentally friendly with no added formaldehyde in face, core, or glue. Face is made from FSC certified eucalyptus fiber hardboard attached to particleboard substrate core made from 100% recovered and recycled fiber. Designed to bend down to 10 in. radius prior to lamination, FlexGreen is available in 48 x 96, 96 x 48, 48 x 120, and 120 x 48 in. sizes, all ¾ in. thick.

Tri-Phase Automation, Inc.    Hartland, WI 53029

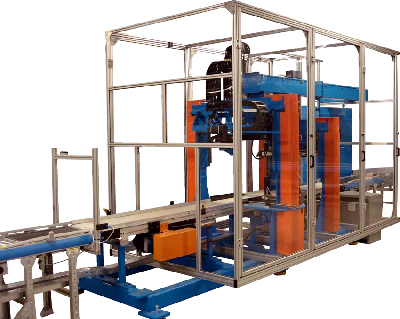

Nov 07, 2007 Designed for unattended operation, in-line Automated Case Cutting Machine can make 2, 3, or 4 sided cuts as well as staggered cuts to keep top of box on. It utilizes 360° rotating blade with quick-release head. Tilting, quick-release cutter facilitates blade changing and allows cuts of all angles. Supported by welded frame, machine includes touchscreen HMI, and is fully automatic using servo motors and sensors to measure boxes for random box opening.

Paul N. Gardner Co., Inc.    Pompano Beach, FL 33060 6608

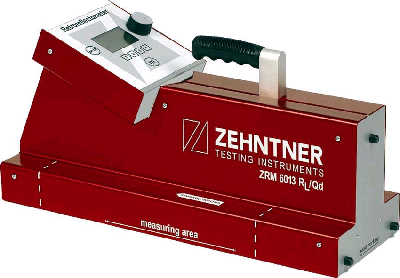

Nov 07, 2007 Equipped with interfaces for PC and printer, Model ZRM 6013 is suited for measuring all types of road markings on wet or dry roads, including smooth, textured, profiled, and colored markings as well as those with or without aggregates and reflective beads. RL simulates conditions under which road markings are seen at night by motorist driving with dipped headlights, while Qd simulates day visibility of road markings under typical or average daylight or under street lighting.

Micro Plastics, Inc.    Flippin, AR 72634

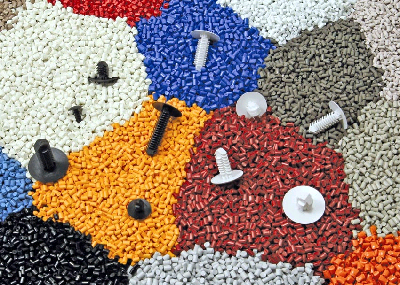

Nov 07, 2007 Available in 50 standard and 20 metric sizes with 8 item clips, X-MAS Tree Type Fasteners are molded in corrosion, abrasion, and vibration resistant black nylon with ribbed shank to facilitate installation. Clips hold secure in wide range of materials and work in blind hole applications. Standard line fits hole sizes of 1/8-3/8 in. and accommodates panel thicknesses from .062-2.00 in., while metric line accommodates hole sizes of 3-8 mm and panel thicknesses from 1.6-50 mm.

Pepperl + Fuchs, Inc.    Twinsburg, OH 44087 2245
Nov 07, 2007 AS-Interface Flat-to-M12 adapter cables facilitate connection of I/O devices such as intelligent sensors, emergency stop switches, and modules to AS-Interface. Products also aid connection of junction boxes and panels to trunk line as well as power supplies and AS-Interface scanners to bus. These M12 adapters are available in straight or 90º M12 head angles with single or dual flat cable configurations in lengths of 0.3, 1, 2, or 5 m.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Nov 07, 2007 Designed to measure height of liquid above its position in tank, sump, or pit, Model SBLTX is UL approved intrinsically safe for wastewater applications that demand rating per local codes and regulations. Unit features snub nose so it can be dropped to bottom of tank, and cable that is vented to atmosphere for barometric pressure compensation. Transmitter is suited for non-fouling applications such as groundwater remediation, well monitoring, process fluid tanks, and water tanks.

Oriental Motor U.S.A. Corp.    Torrance, CA 90502
Nov 07, 2007 RBK 2-phase bipolar stepping motor and drive package offers 2.22 in. diameter frame models RBK264A, 266A, and 268A with holding torques ranging from 68-240 oz-in., and 3.35 in. diameter models RBK296, 299, and 2913 with torques from 310-910 oz-in. Smooth drive function divides basic 1.8° step angle up to 128 microsteps in 16 selectable resolutions using built-in switches. Bipolar driver employs constant current drive strategy over voltage range of 20-75 Vdc.

Habasit America (formerly Habasit Belting)    Suwanee, GA 30024
Nov 07, 2007 Suited for light conveyor jobs in food applications, Habiblue thermoplastic round belt can be used in industries such as meat, cheese, pastries, and crackers. It features oil- and chemical-resistant composition TPU, polyurethane with resistance to hot water (belt does not absorb hot water and stretch), temperature resistance, and readily identifiable cobalt blue color.

TriCipher, Inc.    San Mateo, CA 94403
Nov 07, 2007 TriCipher MySignatureBook(TM) gathers and stores multiple signatures on single, centrally managed file. Organizations can deploy digital signature equivalent to paper-based signature with full nonrepudiation for electronic filing requirements. Software also helps manage lifecycle of digital signatures for electronic records and supports TriCipher Armored Credential System for enterprises without credential infrastructure.

Phihong USA    Fremont, CA 94539
Nov 07, 2007 Model POE80U is designed for powering satellite receivers, video conferencing systems, access points, LCD displays, security cameras, kiosks, and computer workstations. Gigabit-compatible device incorporates diagnostic LEDs and features single-source 4-pair power current sharing. Voltage detection, disconnect, and control is included and unit offers overvoltage, overcurrent, and short-circuit protection.

STMicroelectronics    Lexington, MA 02421
Nov 07, 2007 Models L6726A and L6727 single-phase PWM controllers include embedded high-current drivers, enabling creation of general purpose dc-dc step-down converters. Featuring ±0.8% voltage accuracy over line/temperature variations and PowerGOOD output, L6728 and L6728A offer fixed-frequency 300 kHz or 600 kHz oscillator, respectively. Chips include embedded high-current, high-speed N-channel MOSFET drivers and operate over input voltage range of 1.4-18 V.
