Acrosser Technology    Cypress, CA 90630
Nov 09, 2007 Utilizing VIA® MARK® 800 MHz processor with VIA® 686B chipset on 3.5 in. main board, Model AR-ES0652 offers dust proof, quiet operation and is suited for limited space environments such as machine controller, and digital signage. I/O features include 4 serial ports, 2 USB ports, 1 x Ethernet 10/100, AC'97 audio, 1 x 3.5 in. hard drive bay, compact flash slot, and VGA and 18-bit LVDS output. Additional functional expansion is possible via internal PC/104 connector.

Olympus NDT    Waltham, MA 02453
Nov 09, 2007 Capable of withstanding wide range of weather conditions and difficult inspection environments, EPOCH LTC comes in IP67-rated sealed case. EN 12668-1 compliant digital ultrasonic flaw detector features square wave pulser, selectable digital filtering, 1-110 dB gain range, peak memory, 0.001 in. measurement resolution, one gate with programmable alarm, and multicolor transflective LCD with full VGA resolution that offers readability from bright sun light to complete darkness.

Garlock Equipment Co.    Plymouth, MN 55447
Nov 09, 2007 Railguard 200 guardrails come with permanent mounting brackets for right angle, side, and floor installations, and can be used inside and outside. Quick-release pins allow rail sections to be removed in minutes when necessary. Rail sections and gates are constructed of 1 5/8 in. hot-rolled, electric welded steel tubing. Options include swinging gates for 4-10 ft openings, 4-wheel storage and transport cart, and telescopic fireproof steel toe boards to protect against falling objects.

Larson Electronics, LLC    Kemp, TX 75143
Nov 09, 2007 Available only to government entities, personnel, political dignitaries, and related customers, universal backup handcuff key is constructed of thermoplastic material and designed to be concealed on everyday clothing/uniforms. It can be removed and used with single index finger and thumb to open any handcuff model and cannot be detected by metal detectors. Black, green, tan, and white versions are available to avoid detection under lightweight materials.

Tyco Electronics/Raychem.    Menlo Park, CA 94025-1164
Nov 09, 2007 Featuring 0805 EIA compliant form factor, surface-mount PolySwitch(TM) picoSMD035F offers circuit designers smallest PPTC (polymeric positive temperature coefficient) overcurrent protection device available for consumer and computer electronics. Resettable solution, rated at 6 V, provides hold current of 0.35 A, trip current of 0.75 A, and max resistance of 1.4 X. It is full-edge terminated with nickel-gold finish and RoHS-compliant.

Microbridge Technologies Corp.    Burlington, MA 01803
Nov 09, 2007 Comprised of 4 electronic temperature compensation rejustors (re-adjustable resistors) configured in bridge, MBW-303 compensates for offset errors and offset drift in Wheatstone bridge, solving problem at source. Single chip enables adjustment and verification to be performed in single temperature cycle and can operate in temperatures from -40 to +150°C. Adjustment process is isolated from circuit, allowing true, passive in-circuit calibration and compensation.

KD Scientific Inc.    Holliston, MA 01746
Nov 09, 2007 Designed to operate unattended, Model KDS 330 emulsifies Eleutherosides and other components in adjunct composition. Unit can create viscous fluids/suspensions by forcing fluids back and forth through micro-emulsifying needle. With menu-driven program, user enters syringe diameter and flow rate, and selects dispense volume. When in emulsion mode, pump cycles from infusion to withdrawal continuously, automatically infusing preset volume and withdrawing preset volume.

AICON 3D Systems GmbH    D - 38114 Braunschweig   Germany
Nov 09, 2007 Able to display and process collected data, AICON 3D Studio v7 acts as control panel for various measuring tasks and can be integrated into any measuring solution. Its DYNAMIC module applies to 3D measurements, offering extended visualisation of dynamic measuring results and ability to process thousands of data records/epochs. Both 2D and 3D views and coordinate tables are synchronized over time. Also included, CREATE AVI SEQUENCE function generates video sequences of test processes.

AICON 3D Systems GmbH    D - 38114 Braunschweig   Germany
Nov 09, 2007 Accommodating 1-10 mm dia tubes and wires less than 500 mm long, TubeInspect HD checks geometric features such as bends, length of part, and end-to-end distance. This 700 x 700 x 900 mm 3D inspection system, with 450 x 400 x 200 mm measuring field, employs eight 2-megapixel digital cameras positioned close to work piece and features shape- and temperature-stable glass reference. Color-coded results are available within seconds, displayed on provided notebook computer.

John Deere    Research Triangle Park, NC 27709
Nov 09, 2007 Comprised of 5 models with various deck sizes, Z-Trak(TM) Pro 800 Series can be powered by air-cooled, Kawasaki engine; liquid-cooled engine (Z840A); or 31 hp Kawasaki engine for mowing speeds to 12 mph. Mulch-on-Demand(TM) Deck, optionally available on 48, 54, and 60 in. deck models, lets operators switch from side discharge to true mulching. All models have minimized moving-parts design and feature 7-Iron(TM) Pro deck with full-wrap reinforcement and double-captured anti-scalp wheels.

John Deere    Research Triangle Park, NC 27709
Nov 09, 2007 Offering top speeds to 10 mph, Z-Trak(TM) Estate 500 Series incorporates 7-Iron(TM) decks made of seven-gauge steel, heavy-duty channel frame construction, cast-iron caster wheel arms, and caster forks. Models Z510A and Z520A are powered by V-Twin, 22 and 25 hp Kohler engines and are available with 48 in. and 54 or 60 in. decks, respectively. Other features include 6 gal fuel tank, rear hitch for hauling fertilizer spreader, PTO cut-off switch, and ergonomically angled control handles.

John Deere    Research Triangle Park, NC 27709
Nov 09, 2007 With unified design suited for tight spaces, models 313 and 315 deliver 360° visibility as well as respective rated operating capacities of 1,300 and 1,500 lb. Standard machine width is 59 in. with 10 x 16.5 in. tires and reducible to 56 in. with 7 x 15 in. tires. Both models employ adjustment-free, heavy-duty drive chains; radial lift boom with 4-5 ft range; and integral, in-seat boom lock. Both machines are powered by PowerTech(TM) 4024T 4-cylinder, 2.4 L engine rated at 2,400 rpm.

Advansus    Taipei 114   Taiwan
Nov 09, 2007 Incorporating Intel® Q965 Express chipset with 4 GB Dual Channel DDR2 800 SDRAM max, iQ965-CI supports Intel LGA 775 Core Duo/Core(TM) 2 Duo and Pentium® 4/Celeron® D processors up to 1,066 MHz. Onboard Trusted Platform Module security system accompanies other features such as 5.1 and 2-CH amplified audio streams, Intel GMA3000 graphics, and one PCI Express x16 slot with ADD2 VGA/LVDS/DVI/HDMI support. Connectivity is provided via one Gigabit LAN, 2 SATA, 6 USB, and 2 serial ports.

Cogiscan, Inc.    Bromont, QC J2L 2N8  Canada
Nov 09, 2007 Designed to help reduce errors and improve traceability, Smart Reel uses RFID technology on reels of electronic components to complement use of traditional barcode labels during electronic manufacturing assembly. It eliminates manual scanning of reels by being automatically associated with feeders in machine, offline set-up area, or storage location. Solution can be used either with Smart Feeder system or independently.

Eaton Hydraulics    Eden Prairie, MN 55344

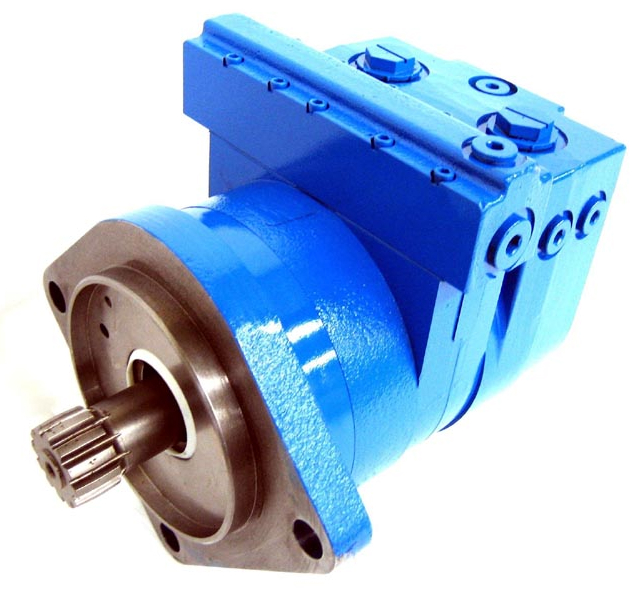

Nov 09, 2007 Featuring no-load pressure drop under 13.6 bar at 70 lpm flow, Char-Lynn® HP30 high-pressure, 30,000 lb-in. torque disc valve motor provides continuous operation with flow of 170 lpm at 310 bar, intermittent operation at 265 lpm and 345 bar, and maximum inlet pressure of 400 bar. All motors are available with HTLS and HSLT switchable capability. They are suited for mobile off-highway applications requiring up to 3,389 Nm of intermittent torque.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Nov 09, 2007 Available in yellow, amber, warm white, and white, Little Star® 1 W LEDs offer thermal resistance of 18 and 20 K/W, luminous intensity from 7,150-22,400 mcd, and luminous flux from 21,000-70,000 mlm. All devices feature 60° half-intensity angle and 120° viewing angle and are compatible with IR-reflow solder processes. Housed in SMD power package with 6.0 x 6.0 mm footprint and 1.5 mm profile, devices are suited for backlighting and illumination in variety of applications.

Norgren    Littleton, CO 80120
Nov 09, 2007 Approved by NSF 42 and NSF 61 section 9 for drinking water systems, 84080 Series can also be used with demineralized water and slightly acidic fluids. Units feature stainless steel jacketed ½ and ¾ in. NPT threads, water-hammer free design, and monolithically injection molded EPDM diaphragm. Actuated by solenoids from Click-On® coil system, valves are rated for pressures from 4.5-155 psi. They are chemical resistant and virtually maintenance free.

S-B Group    Fenton, MO 63026
Nov 09, 2007 Powered by 12 V rechargeable Ni-Cd battery, Lobster Tools Cordless Model BN-200 sets rivet nuts in No. 6, 8, and 10 sizes as well as 5/16 and 3/8 in. plus metric sizes M3, M4, M5, M6, M8, and M10. Unit includes stroke set nut, allowing operator to control how far fastener collapses, and auto reverse function that automatically engages as tool is removed from application. Suitable for offline production applications, portable tool come in molded plastic carrying case.

Topper Industrial    Sturtevant, WI 53177
Nov 09, 2007 Equipped with air bag, Tilt-Cart(TM) enables workers to tilt container, partially unload contents, and return container back to upright position. Although cart was developed for partial unloading and return, it may also be used to completely empty all contents or fully load contents.

Kimberly-Clark Professional    Roswell, GA 30076
Nov 09, 2007 Suitable for virtually any surface, WypAll Dusting System includes duster head and dusting mitt for cleaning under, over, and around furnishings, as well as up into ceiling corners without leaving residue. Disposable duster head has 380,000 soft, flexible, dust-trapping polyester fibers that change shape for dust pick-up in crevices and contours. It comes with 6 in. handle for dusting low areas and long handle, which extends to 3 ft with 7 cleaning positions.
