Applied Plastics Co.    Norwood, MA 02062
Dec 27, 2007 Suitable for PTCA guide wire, catheters, needles, and other devices, PTFE Coated Nitinol Tube features lubricious coating while maintaining kink-resistant characteristics. It can be processed in sizes from 0.002 in. OD and up in lengths to 10 ft. PTFE coating can be applied with coating tolerances from 0.0001-0.0003 in. Available in green, grey, blue, and black, product can incorporate marker bands at user-specified intervals. PTFE coating service is available for all hypotube variations.

Components Corp.    Denville, NJ 07834
Dec 27, 2007 Freestanding BC-501 series provide optimized spring force battery retention due to wireform design. As parts can be randomly placed on circuit board, contacts facilitate optimal board layout and design efficiency. RoHS-compliant, 0.250 x 0.039 in. products have current rating of 2 A and are manufactured of phosphor bronze No. 510 alloy with gold finish over nickel underplate. Contacts are provided on 8 mm wide, 4 mm pitch, conductive polycarbonate tape.

Emerson Network Power    St. Louis, MO 63136
Dec 27, 2007 Model KSI8560 Advanced Mezzanine Card combines PowerQUICC III controller with up to 8 channelized E1/T1 spans. Utilizing PowerPC Book E core running at speeds of up to 1 GHz, it features 333 MHz CPM that integrates Ethernet controller, TDM ports, ATM support, I2C controller, and PCIe interconnect. High-speed AdvancedMC interface combines dual Gigabit Ethernet channels with scalable PCIe fat pipe that provides aggregate bandwidth of up to 8 Gbps.

OK International    Garden Grove, CA 92841
Dec 27, 2007 Controlled and powered by SmartHeat® Technology, Model PS-900 enables lead-free soldering as well as soldering of multi-layer boards and large mass components. Fixed temperature system varies power to match thermal demand of device being soldered, while SmartHeat eliminates potential for thermal overshoot, and Auto-Sleep workstand automatically reduces tip temperature during idle periods. Over 30 tip geometries are available in dimensions as small as .016-.197 in.

DeWalt Industrial Tool Co.    Hampstead, MD 21074
Dec 27, 2007 Designed for heavy-duty concrete removal in commercial construction environments, models D25899K, D25901K, and D25941K are built with 14 and 15 A motors and incorporate spring-loaded dust seals and non-air pumping beat piece to promote tool longevity. Electronics package for D25901K/D25941K lets user start tool softly on contact and maintain optimum performance under load throughout any demolition application. Model D25901K also comes with variable impact control dial.

Carlton Industries    La Grange, TX 78945
Dec 27, 2007 Able to be installed in seconds (both openings in less than 30 sec), Universal Drum Lock secures around lip and has no contact with chemicals. Reusable design allows access to drum contents as needed, and non-sparking metal construction has melting temperature lower than steel. Containing devices for both openings of one standard metal or plastic 55 gallon drum, each set accommodates tags and locks through locking pen for safety and security.

Durham Manufacturing Company, The    Durham, CT 06422-2108
Dec 27, 2007 Featuring all-welded, steel construction, modular literature racks come in models with 45, 30, 15, 12, or 9 openings that measure 11 5/8 x 11 x 3 in. and offer space beneath for identifying labels. All models measure 11 11/16 x 33 13/16 in. but range from 10 13/16-53 ¼ in. tall. They can be stacked vertically using mounting holes and provided hardware, and rubber feet are furnished for desktop mounting. Optional base raises units 3 1/8 in. off surface for floor mounting.

International Rectifier Corp.    El Segundo, CA 90245
Dec 27, 2007 Comprised of power stage and full function PWM Control IC, iPOWIR(TM) iP1206 suits 2-phase single output applications up to 30 A or dual independent outputs up to 15 A. Both options utilize synchronized 180° out-of-phase operation, minimizing input current ripple and input voltage ripple. Housed in LGA package, Model iP1206 includes switching frequency up to 600 kHz/channel, over-voltage and over-temperature protection, pre-bias start up, and output voltage tracking and sequencing.

KD Scientific Inc.    Holliston, MA 01746
Dec 27, 2007 Comprised of cut-to-size 30 x 30 cm moisture sensing mat and control unit, OS-250 detects spills and leaks of as little as 3 drops of liquid before they cause problems in equipment. Mat is connected to control unit via cable; when liquid is detected, unit sounds audible alarm, flashes LED, and turns off power for any device plugged into single-outlet, solid-state power controller. Switched power outlet can control up to 8 A.

Anark Corp.    Boulder, CO 80302
Dec 27, 2007 Automated CAD data transformation software system, Anark Core(TM) v1.1, offers direct support for VRML, X3D, and Autodesk® DWF(TM) 3D data-exchange and visualization formats. Memory performance characteristics enable larger CAD assemblies and parts to be transformed within Anark Core Workstation and Anark Core Server, helping manufacturers who want to transform product design data for exchange, collaboration, and visualization processes.

Schneider Electric    Palatine, IL 60067-7399
Dec 27, 2007 With automated meter reading functionality and rate configuration tool, PowerLogic® Tenant Metering Commercial Edition enables commercial property managers to allocate and recover cost of utilities while adhering to government cost allocation regulations. Program supports up to 2,000 Modbus® metering devices and downloads data stored in meters. Using utility-approved methodology, software identifies and corrects missing data and provides invoice screen for managerial review.

TM Shea Products    Troy, MI MI 48083
Dec 27, 2007 Built atop 5 casters, mobile PowerPillar(TM) Floor Spinner offers retailers means to keep merchandise off floor. Its 18 in. footprint and 60 in. height creates additional 10 ft² of additional merchandising space, and change-out visuals can be printed to support unique merchandising themes. Optional mounting accessories such as peg hooks, shelves, dump bins, buckets, and sign frames are available to display all types of product packaging.

Torrey Pines Scientific, Inc.    Carlsbad, CA 92010
Dec 27, 2007 Able to accommodate various accessory sample blocks, EchoTherm(TM) SC20XT and SC25XT have -20 to +100°C range and incorporate variable-speed (200-1,000 rpm) orbital shaker for simultaneous sample mixing and temperature control. Model SC20XT is simple digital unit, while SC25XT has 5-program memory. Both Peltier-driven units offer 30-day countdown timer with alarm and Auto-off, data logger, and RS232 I/O port for data logging or controlling units from computer.

Supercritical Fluid Technologies, Inc.    Newark, DE 19711
Dec 27, 2007 Suited for supercritical fluid applications, Model SFT-20 Liquid Carbon Dioxide Pump utilizes dual sapphire syringe pump technology to generate pressures up to 10,000 psi. It maximizes high capacity Peltier cooling to stabilize pump head temperature, enabling efficient compression even under high flow conditions. Unit eliminates need for external cooling baths, and is available as stand alone CO₂ pump or as part of SFT-2000 Supercritical Fluid Extractor.

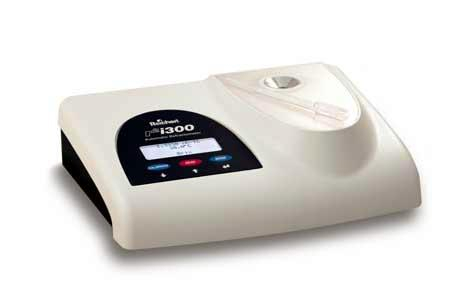

Kernco Instruments Co., Inc.    El Paso, TX 79927 7338
Dec 26, 2007 Meeting testing requirements of applications in food, beverage, chemical, and pharmaceutical industries, R2-i300 measures refractive index of 1.3330-1.5600 with resolution of 0.0001 and accuracy of ±0.0001. It also measures 0-95% brix and other soluble solids with resolution of 0.1% brix and accuracy of ±0.1% brix. Operating from -10 to +40°C with automatic temperature compensation, it includes display that lets user switch between RI, percent solids, and other custom scales.

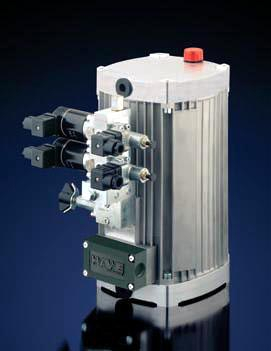

HAWE Hydraulics    Charlotte, NC 28216
Dec 26, 2007 Suited for range of machine tool, high-pressure, and clamping applications, KA compact power unit delivers operating pressures up to 10,000 psi. System combines pump, electric motor, and tank and offers reservoir capacities up to 2 gal. Available with single- and 3-phase motors and in single- or dual-stage pump versions, it can work with array of directly mountable valves. Unit can be installed vertically and horizontally.

Control Co.    Houston, TX 77258 8307
Dec 26, 2007 Featuring laser-sighting beam, Traceable® Infrared Thermometer Gun offers range of -60 to +500°C with resolution of 1° and accuracy of ±2°C. Emissivity is fixed at 0.95 and field of view is 11:1. At 7 x 3 x 1½ in., 6 oz unit features backlighting, data hold, laser, low-battery indicator, automatic maximum recording, °C/°F button, and 15 sec auto-off feature. Uses include food preparation, pharmaceuticals, electronics, safety inspection, and any liquid or solid.

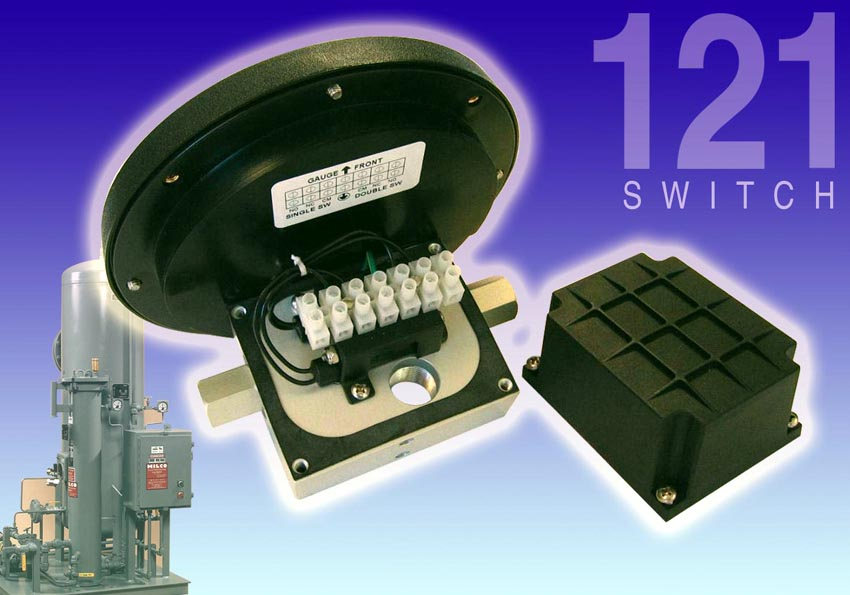

Mid-West Instrument    Sterling Heights, MI 48314
Dec 26, 2007 Model 121 Indicating Differential Pressure Switch features heavy-duty industrial type terminal strip and ½ in. NPT conduit interface. Switching configurations are available with 1 or 2 hermetically sealed switches in SPST, SPDT configuration with 240 V, 3 W, or 60 W ratings. With working pressure of 6,000 psig, unit is available in ranges from 0-5 psid to 0-110 psid with ±2% accuracy. It is available in aluminum or 316 SS pressure housing with 316 SS and ceramic internal parts.

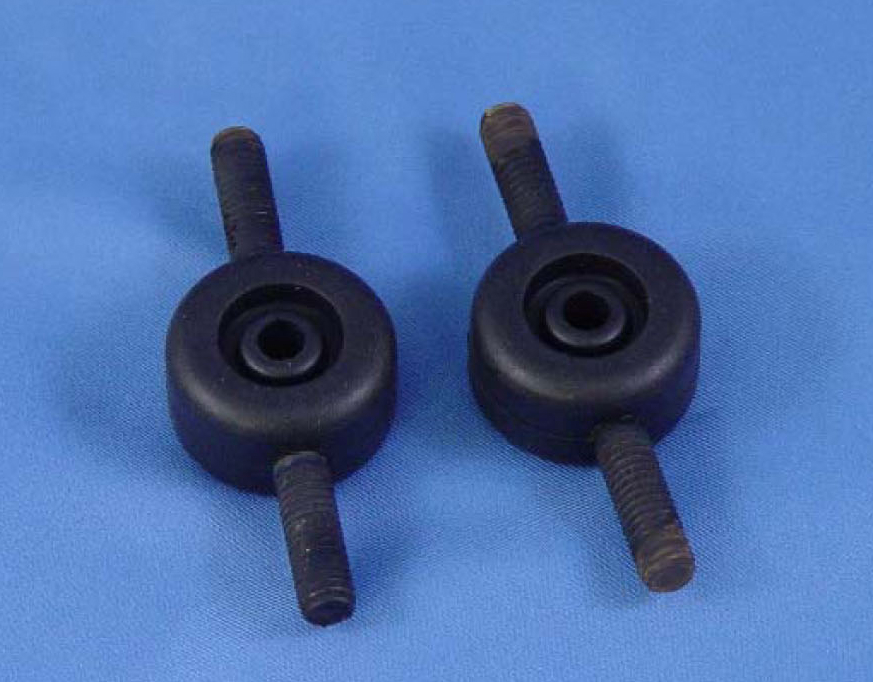

Richco, Inc.    Morton Grove, IL 60680
Dec 26, 2007 QM series vibration mounts provide vibration dampening and shock control for electronic components. They help ensure that item to which they are mounted remains stable and offer reduction of structure-born noise. Available in 2 different styles, RoHS-compliant devices can be mounted with studs and nuts.

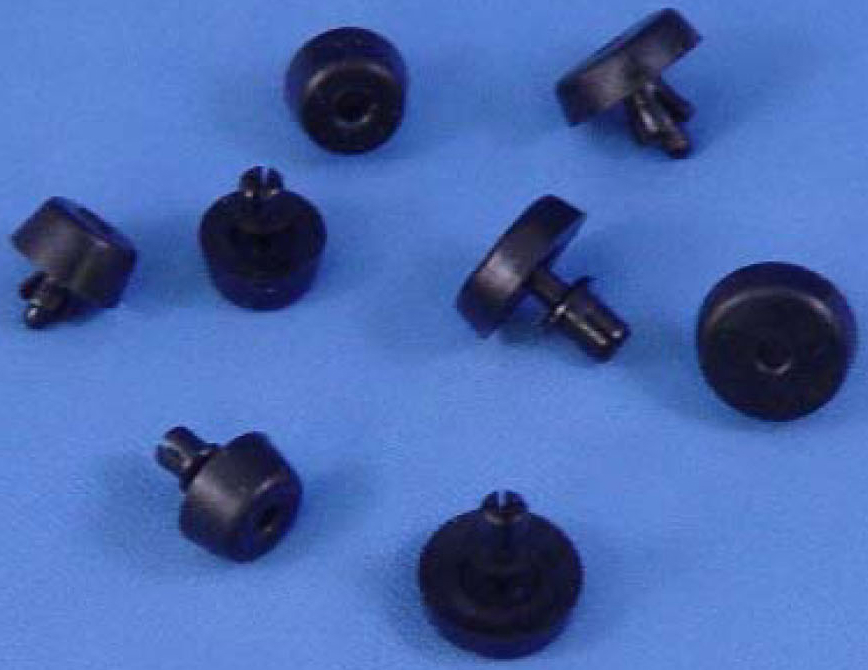

Richco, Inc.    Morton Grove, IL 60680
Dec 26, 2007 Offered in 2 head sizes and 3 rivet sizes, RoHS-compliant FSR series rubber foot provides skid and shock resistance as well as vibration control. Product mounts by pushing in nylon rivet; no assembly hardware is required. Series can be mounted into panel thicknesses from .047-.138 in.
