Dwyer Instruments, Inc.    Michigan City, IN 46361 0373

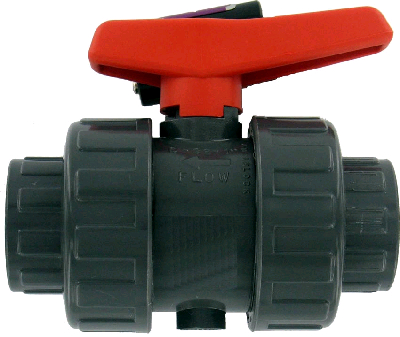

Jan 24, 2008 Designed for manual on/off service of process pipelines, Series TBV2 features PVC or CPVC plastic bodies with EPDM or FPM O-rings for wide range of chemical compatibility. True union valves have full port design and are available in sizes from ½-4 in. Units incorporate double O-ring seal and threaded seal retainer that allows for seat adjustment. Most sizes come with both NPT and socket end connections.

B & K Precision Corp.    Yorba Linda, CA 92887
Jan 24, 2008 Equipped with 4-digit counter for accurately determining output frequency, model 4040DDS provides 0.1 Hz to 20 MHz sine/square waveforms and 0.1 Hz to 2 MHz triangle waveforms. Adjustable features include dc offset (±4.5 V), coarse and fine tuning controls for output frequency, and linear or logarithmic sweep with variable sweep rate and adjustable sweep time. Adjustable symmetry lets generator produce various pulse waveforms, ramp or saw tooth waves, and slewed sine waves.

Charles A. Hones, Inc.    North Amityville, NY 11701
Jan 24, 2008 Available in 4 standard sizes, Buzzer 450 to 1,350°F oven type furnace is designed for automotive engine rebuilding and specifically suited for cast iron/aluminum engine head repair. Insulating firebrick provides abrasion resistance and retains available heat to ensure optimal slow cooling, while fabricated stainless steel roll-out tray facilitates and accelerates casting repair. Safety pilot, 100% shut-off safety valve, and digital temperature controls are standard.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143

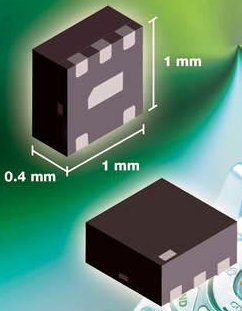

Jan 24, 2008 Supplied in 1 x 1 x 0.4 mm LLP1010-5L package that complies with WEEE and RoHS standards, VESD05A4A-HS4 and VESD09A4A-HS4 provide ESD data port protection in mobile electronics. Devices differ in max working range (5 and 9 V), load capacitance (6.5 and 12 pF), surge current, and typical leakage current, but both Pb-free products provide transient protection for 4 data lines as per IEC 61000-4-2 (ESD) at ±15 kV contact discharge and ±20 kV air discharge.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143

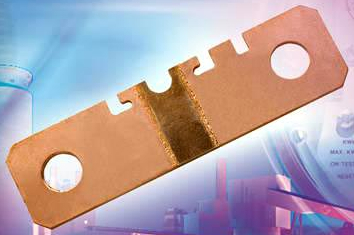

Jan 24, 2008 Supplied in 5515-size package, RoHS-compliant WSMS5515 Power Metal Strip® meter shunt resistor features 4-terminal (Kelvin) connection design and all-welded construction. Processing technique produces resistance values from 100-500 µW, which provides accuracy in current meter shunt applications for electronic power meters. Other characteristics include inductance values of less than 5 nH, thermal EMF of less than 3 µV/°C, and frequency response to 50 MHz.

Mesa Electronics    Richmond, CA 94806-1950

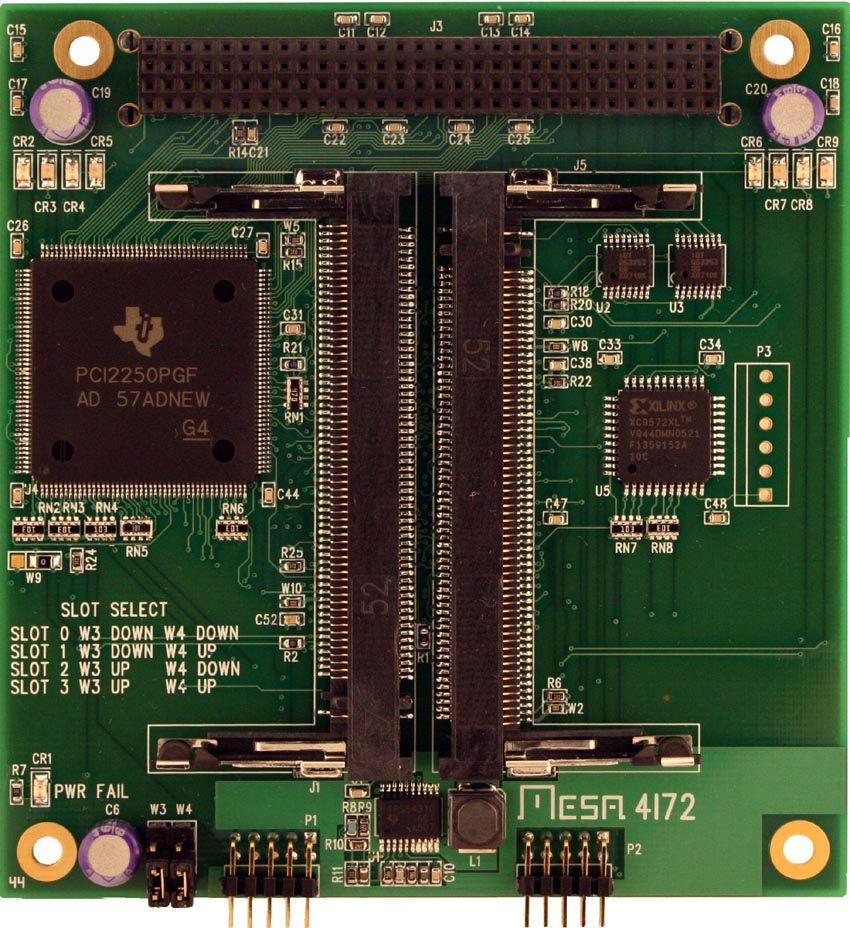

Jan 24, 2008 Model 4I72 quad type III Mini-PCI adapter allows use of 4 Mini-PCI cards such as IEEE 802.11 wireless LAN cards in PC/104-PLUS system. PCI bus bridge, which allows 1 PC/104-PLUS slot to be required, isolates MINI-PCI cards from system, allowing them to be used in systems with 5 V buses. On card jumpers are used to select which slot device occupies. Status LEDs are provided for slots and local regulator supplies 3.3 V power to slots.

Himmelstein, S., & Co.    Hoffman Estates, IL 60195-2011

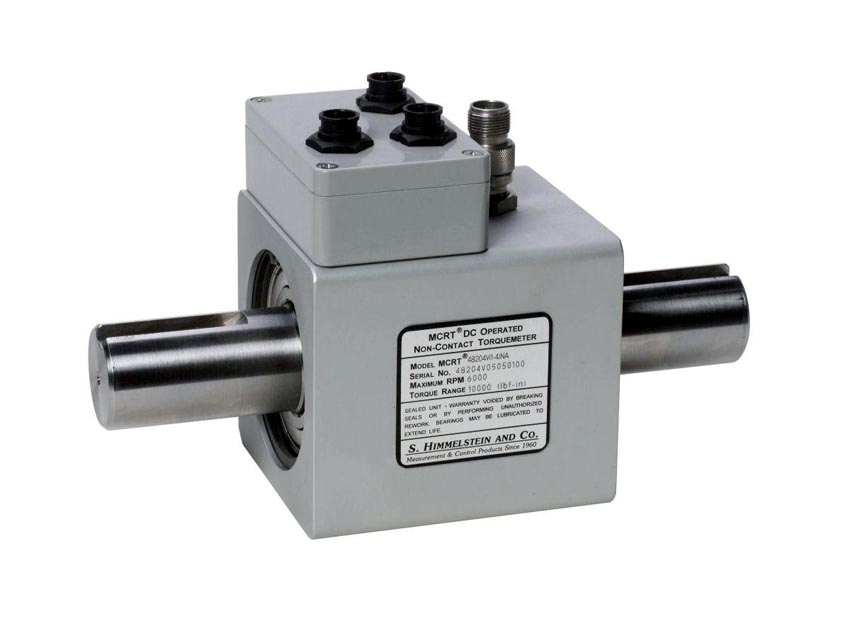

Jan 24, 2008 MCRT® 48200V Series Digital Torquemeters are compact, non-contact devices with full scale ranges from 25-10,000 lbf-in. They output ±10 or ±5 V analogs of torque, as well as engineering unit data via resident com port. Calibration values, scaling, and units of measure are stored in nonvolatile memory and automatically loaded on power up, with 10 units supported. Internal signal processing is accurate to 14 bits and devices are offered in accuracy grades of 0.2% and 0.15%.

Advanced Machine & Engineering Co.    Rockford, IL 61103
Jan 24, 2008 Suited for applications where space is limited, Spieth Type MSF Locknuts utilize clamping screws with socket head similar to TORX system screw to optimize handling, mounting, and service life of tools used for tightening. Units feature Spieth locking principle, which provides vise-like locking of locknut.

Chemline Inc.    St. Louis, MO 63103

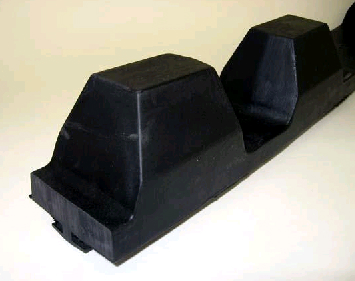

Jan 24, 2008 Providing safe storage and transportation of delicate products and materials, full density, MDI-based CHEMTHANE 8010 is used in automotive and truck manufacturing for in-process racks, material handling racks, and storage and transportation of molded body parts, glass panels, and interior trim. Product offers Shore A hardness of 90-100, 1A:2B mix ratio by volume, and 6 minute cure time. CHEMTHANE 8010 can be formulated to meet specific hardness and abrasion resistance of application.

International Rectifier Corp.    El Segundo, CA 90245

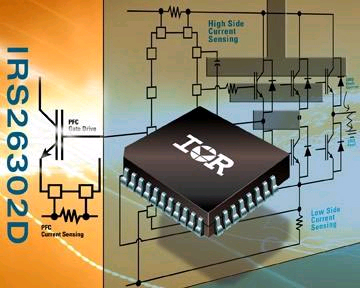

Jan 24, 2008 Featuring extra channel for PFC switch or inverter brake, 3-phase Model IRS26302D is suited for medium power appliance motor control applications. Device integrates power MOSFET/IGBT gate drivers with 3 high-side and 3 low-side referenced output channels to provide 200/350 mA drive current at up to 20 V MOS gate drive capability, operating up to 600 V. Negative Vs immunity circuitry is incorporated to protect system from catastrophic events.

Chick Workholding Solutions, Inc.    Warrendale, PA 15086 7537

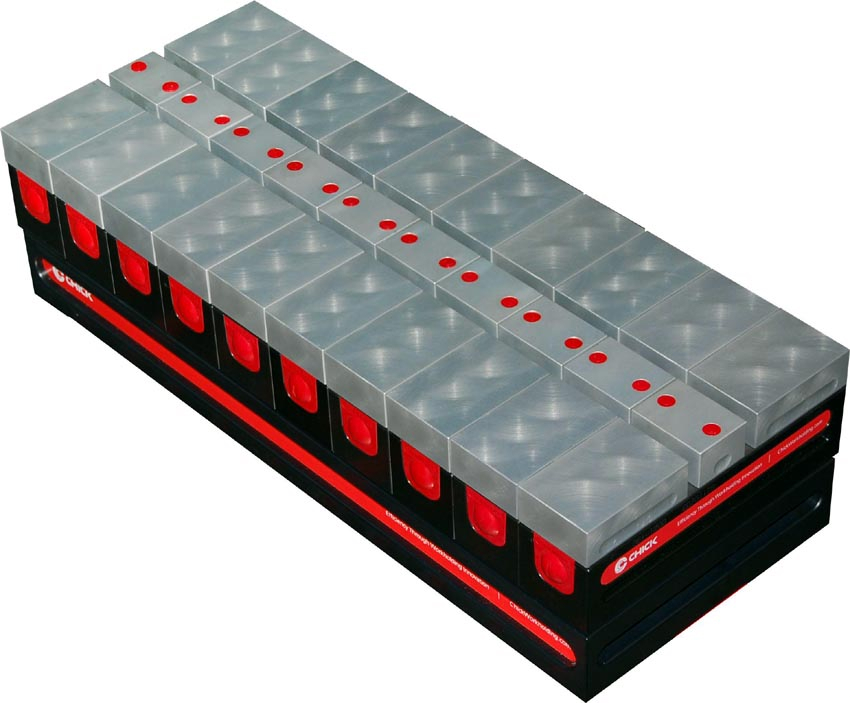

Jan 24, 2008 QwikStack is designed to utilize large workholding systems for high-density, small workpieces by interfacing directly with Chick System 5 1550 QwikLoks and MultiLoks. This also creates pallet changing system that allows for seamless job transitions. Up to ten 2 in. QwikLoks can be mounted horizontally, creating 20 small-part clamping stations, or up to 6 can be mounted vertically. QwikStack can also be mounted to VMC's T-Slotted table, or Chick Foundation using toe clamps.

Fluke Corp.    Everett, WA 98203

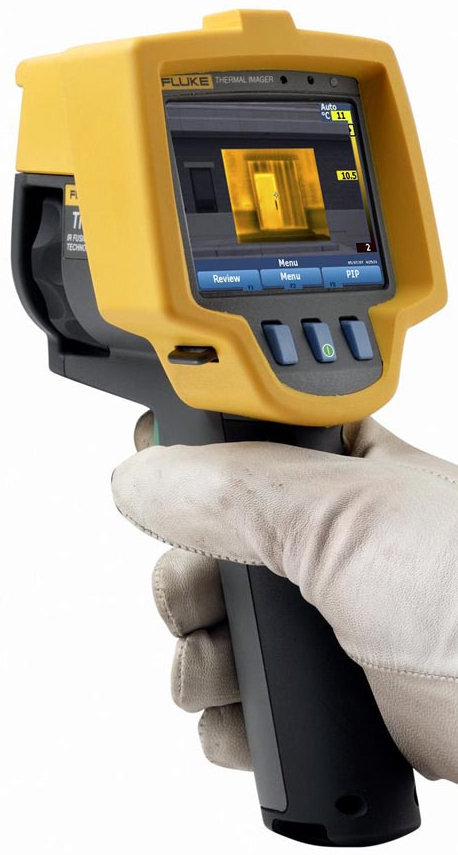

Jan 24, 2008 Able to safely measure temperatures from -20 to +100°C, IP54-rated TiR1 and TiR come with 2 Gb SD memory card and SD card reader (USB) for storing and downloading images. Incorporated into camera and SmartView(TM) software, IR Fusion® technology integrates IR and visible light images in full screen or picture-in-picture views for problem detection and analysis. Users of TiR1, which features on-screen emissivity correction, can record and save voice comments with every image taken.

Linear Technology Corp.    Milpitas, CA 95035
Jan 24, 2008 Supplied in 3 x 3 mm DFN-10 package, 12-bit LTC2302 and LTC2306 communicate via 3-wire SPI-compatible serial interface at rates to 500 kSps. Former measures one differential input channel, while letter includes internal multiplexer and measures 2 single-ended or 1 differential input channel. Both models operate from 5 V supply, dissipating 15 mW at max output rate and 70 µW at 1 kSps. Separate digital output supply voltage lets users configure serial data output for 3 or 5 V logic.

Kafko International Ltd.    Skokie, IL 60076
Jan 24, 2008 Featuring woven construction, Oil Eater absorbent pads promote safer and cleaner workplace while helping companies meet OSHA and EPA requirements. Oil Only Pads and Rolls soak up oil and repel water; Universal Pads and Rolls soak up oil, water, and other liquids; and Absorbent Socks are used to control larger spills and protect drains. Products are available in various weights and finishes, ranging in size from 16 x 18 in. to 28 in. x 150 ft rolls.

Bird Technologies Group    Solon, OH 44139
Jan 24, 2008 Employing full color, indoor/outdoor viewable high-resolution display, Model SH-36S SignalHawk Spectrum Analyzer offers radio frequency spectrum analysis as well as intended and interfering signals measurement. It allows setup of parameters such as frequency, amplitude, and markers, and graphically displays signal amplitude vs. frequency. Suited for wide range of applications, hand-held device comes with USB drive that stores 90,000 traces.

Bird Technologies Group    Solon, OH 44139
Jan 24, 2008 Featuring hand-held design, Model AT-500 is 2-520 MHz Antenna Tester that provides graphical way of determining quality of mobile and base station antennas. It tests system in VSWR, Return Loss, Match Efficiency, or Reflection Coefficient, and can save up to 12 traces for comparison and tracking over time. Offering single frequency readings and frequency sweeps, unit also includes RS232 interface that allows communication with PC for saving traces using optional software.

AMDOCS    Jersey City, NJ 07311
Jan 24, 2008 Amdocs Customer Experience Systems (CES) portfolio provides service providers with network-connected applications for creation, delivery, and control of value-added services. In addition to offering storefront capabilities for creating personalized retail experience, CES lets mobile operators/partners monetize revenue derived from search and digital advertising. Multi-channel order handover capabilities leverage SOA, and unified UI spans CRM, ordering, and collection applications.

ColorChip LTD.,    Caesarea 38900  Israel
Jan 24, 2008 Meteor II GPON Class A+ diplexer transceiver is designed for FTTH market and fits need for densely populated urban areas. Featuring Fabry Perot (FP) laser with typical output power of +1 dBm and receiver with typical sensitivity of -25 dBm, unit offers downstream bit rate of 2.488 Gbps and up stream bit rate of 1.244 Gbps.

OC Systems    Newtown, CT 06470
Jan 24, 2008 Helping engineers minimize slowdowns, Response Time Instrumentation measures system response times as experienced by user during transactions initiated within Microsoft Internet Explorer. Program monitors start of action and when result is returned and rendered. When used in standalone mode, RTI includes its own agent to collect and transmit data. Software also integrates with any agent or management system that uses established and open industry standard for Application Response Measurement.

OpenLink Software, Inc.    Burlington, MA 01803
Jan 24, 2008 Universal Data Access Drivers v6.1 includes components that support new and older releases of Oracle, Microsoft SQL Server, Sybase, IBM DB2, IBM Informix, Ingres, Progress Open Edge, MySQL, PostgreSQL, and Firebird across Windows, Mac OS X, Linux, Solaris, HP-UX, and AIX. Along with XA-based, 2-phase commit across ODBC, JDBC, and ADO.NET, secure solution offers Microsoft SQL Linked Server-compatible ODBC provider, ODBC Bridge, and Ruby on Rails Adapter.
