Hansen Couplings Tuthill Coupling    Berea, OH 44017
Jan 29, 2008 With max operating pressure of 5,075 psi, flat face, quick-connect couplings are primarily used for applications where there is risk of contamination of hydraulic circuits. Double shut-off valve configuration provides for dry break connection where fluid loss is eliminated and entry of air into hydraulic circuit is minimized. Available in NPT, BS, and SAE threads, RoHS-compliant couplings include automatic connection and sleeve lock.

Malcom Co., Inc. (Distributor of LEISTER Hot Air Tools)    Tiverton, RI 02878
Jan 29, 2008 Producing up to 1,380°F and 0.35-1.06 cfm, Leister® LE-Mini Heater removes hair-like flash from injection molded, cut, and skived parts, without open flames. Mounted in any orientation, unit requires 120/230 V single-phase and 30 psi air. Heater integrates with various parts handling systems to de-flash at production line speeds and can be controlled via PLC or temperature controller. Measuring 1 x 10 in., LE-Mini can be supplied with nozzles to match application.

Data Translation, Inc.    Marlboro, MA 01752
Jan 29, 2008 Featuring virtually no warm-up time, TEMPpoint DT9872 allows direct RTD measurements from -328 to 1,562°F using PC. Temperature values can be viewed, graphed, and exported to Excel(TM). Instrument includes 48 4-wire RTD inputs with Kelvin sensing to eliminate measurement errors, and 8 opto-isolated digital I/O for monitoring, control, and driving relays. With 1,000 V channel-to-channel isolation, Model DT9872 virtually creates 48 separate instruments in one box.

NVIDIA Corp.    Santa Clara, CA 95051
Jan 29, 2008 Quadro® FX 3700 graphics board delivers 16 Gpbs data transfer rates, which enable it to manage large models and complex shaders in both CAD and digital content creation applications. Characteristics include 112 parallel processors, 512 MB of onboard graphics memory, and 256-bit memory interface. Graphics board features SLI technology and PCI-Express Gen 2 support. It consumes less than 80 W of power and is Energy Star 4.0 compliant.

Ethernet Direct    Newburyport, MA 01950
Jan 29, 2008 Supporting Gigabit SX and LX or flexible SFP form factor, HMG-1628, 10/100TX + 2 port Gigabit copper switch features SFP fiber slot design allowing user to insert multi- or single-mode fiber modules at various distances. Rigid aluminum case complies with IP31 protection and input power isolation design for telecom applications passes Hi-Pot 1.5 kV isolation. Device also supports 802.1Q VLAN, QoS, IGMP snooping, rate control, port mirroring, MAC IP security, and email warning.

Maxim Integrated Products    Sunnyvale, CA 94086
Jan 29, 2008 Intended for applications where speakers must be positioned close together, MAX9775 integrates mono, DirectDrive(TM), 80 mW receiver amplifier; stereo, DirectDrive, 80 mW headphone amplifier; and high-efficiency, Class D, stereo 1.5 W audio power amplifier, while MAX9776 employs mono, 80 mW receiver amplifier; stereo, DirectDrive 80 mW headphone amplifier; and mono Class D amplifier. Spread-spectrum modulation flattens wideband spectral components, minimizing EMI emissions.

Tamron USA Inc.    Commack, NY 11725
Jan 29, 2008 Designed for full-size format, model A17NII telephoto macro zoom offers focal length from 70-300 mm, max aperture of F/4-5.6, and min aperture of F/32. Lens construction consists of 13 elements in 9 groups, and angle of view ranges from 34° 21 min - 8° 15 min. Measuring 4.6 in. long and 3.0 in. dia, product has 9 diaphragm blades and offers max magnification ratio of 1:2 at f=300 mm MFD 0.95 m. Min focus distance is 59 in. (normal) and 37.4 in. (macro).

Siemon Co., The    Watertown, CT 06795
Jan 29, 2008 Integrating with category 6A 10 Gbps screened twisted-pair copper cabling, 10G 6A(TM) F/UTP version of MapIT meets or exceeds all channel requirements dictated by IEEE 802.3an standard. It combines software and sensor-enabled connecting hardware to track changes made to physical layer and provides location information for any IP-enabled device connected to network. System features screened tool-less MAX modules, sensor-enabled MapIT patch panels, and screened 10G 6A MC patch cords.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Jan 29, 2008 Eight-channel ADC models ADS5281/ADS5282 (12-bit) and ADS5287 (10-bit) consume as little as 77 mW per channel at 65 MSPS max sampling speed or 64 mW at 50 MSPS. With dynamic scaling, at 30 MSPS sample rate, per-channel power consumption is as low as 48 mW. Devices come in 64-pin, 9 x 9 mm QFN package and offer low-frequency noise suppression mode that eliminates 1/f (Flicker) noise. With programmable gain from 0-12 dB, FS outputs can be provided for input signals as low as 0.5 Vpp.

VizUp Technology    Vancouver V6R 2H9  Canada
Jan 29, 2008 Available in Standard, Professional, and Enterprise editions, VizUp 2.5.1 enables user to reduce number of polygons in 3D model while retaining quality and appearance of original. Program automatically picks all necessary parameters without any manual interference, and compresses model for all possible ratios at once. End result provides balanced level of details and size, which is suitable for use in virtual reality and real-time visualization systems.

ABB Automation    New Berlin, WI 53151
Jan 29, 2008 Designed for HVAC industry, E-Clipse Bypass communicates over 45 individual points of data to Building Automation System master controller. Unit is available in UL Type 1, UL Type 12, or NEMA 3R enclosure, and integrates with ACH DriveIT Low Voltage 550 adjustable-speed ac drives. Dual switch design ensures uninterrupted operation since motor/load never needs to go offline. Bypass comes equipped with Modbus RTU, Johnson Controls N2, Siemens FLN, and BACnet communications protocols.

Noble Systems Corporation    Atlanta, GA GA 30319
Jan 29, 2008 Combining blended contacts with IVR and TTS, Noble® Messenger lets companies send information to customers without taking agent resources away from other services. Special offers, service reminders, welcome messages, renewal notices, collection calls, and time-sensitive announcements can be handled through Messenger's automated agent-less outbound messaging system. In response, customers can confirm appointments, place orders, pay bills, or speak with live agent.

Murata Power Solutions, Inc.    Mansfield, MA 02048
Jan 29, 2008 Featuring small form factor with 1U height, 60 A Model VCN60BADJTU-1C and 70 A Model VCN70BADJTU-1C offer current density of 50 A/in³ and 88% efficiency at full load. With input voltage of 12 Vdc, units deliver programmable output from 0.6-3.5 Vdc with setpoint accuracy of 0.5%. Both include soft start circuit, differential remote sense, power good signal, pre-bias turn on, and output enable. For safety, converters feature over-voltage, over-current, and over-temperature protection.

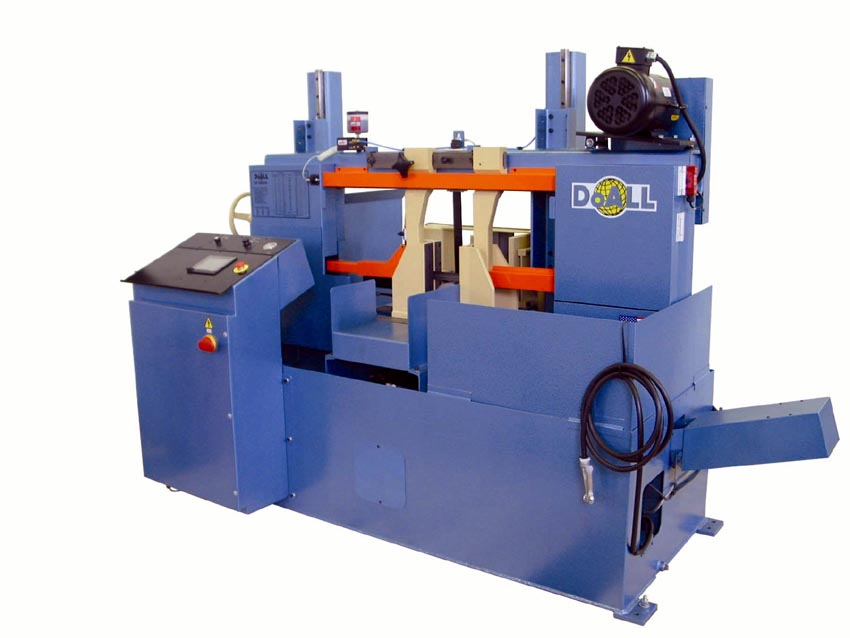

DoAll Company    Des Plaines, IL 60016
Jan 29, 2008 Model DC-310NC II has 1¼ in. blade and precision linear ways, which support dual-column saw head to promote smooth, accurate movement. Cutting up to 12 in. dia rounds and 12 x 12 in. rectangles, saw features 5 hp ac inverter band drive system with variable speeds from 50-400 fpm. Additional components include floating style index assembly with automatic multiple indexing, split-style front vise assembly with full stroke cylinders, and numeric controls with 10-job storage capacity.

Freewave Technologies, Inc.    Boulder, CO 80301
Jan 29, 2008 Offering range of more than 40 miles, 900 MHz Model FGRIO-S30 operates from 6-30 Vdc, delivering data over wireless link to RTU or PLC. Two analog outputs with 0-22 mA range enable wireless proportional control of devices, while 2 digital inputs with high-speed counters support devices such as turbine meters. With radio, users can remotely control and monitor tanks, lifting stations, pumps, flow meters, fluid levels, water sources, temperatures, and pressures.

Waters Corp.    Milford, MA 01757
Jan 29, 2008 SYNAPT(TM) MS quadrupole acceleration, time-of-flight mass spectrometry (MS) platform provides upgrade pathway to SYNAPT High Definition MS(TM) (HDMS(TM)). This enables researchers to analyze samples differentiated by size, shape, and charge as well as mass. Combining ACQUITY UltraPerformance LC® separations, Exact Mass MSE data acquisition, and chemically intelligent MassLynx(TM) Informatics, system performs sample identification and detailed characterization in biomedical applications.

Intense    Glasgow   United Kingdom
Jan 29, 2008 Power Core 808 single-emitter laser engine chip features compact design that combines 100 µm emitting aperture with low beam divergence to produce very high brightness in small chip-level device. Delivering up to 4 W of output power at 808 nm, it is designed for use in demanding industrial and coding applications, such as pumping and sensor-based instrumentation. It can be packaged into variety of enclosures, including C-mount, fiber-coupled MFP, and HHL.

Automation Products Group, Inc.    Logan, UT 84321
Jan 29, 2008 Providing standard output of 4-20 mA, PR Series operates using frequency burst at 6.3 GHz, delivering non-contact level measurement in challenging environmental conditions. Units offer detection range up to 100 ft, resolution to 0.22 in., and accuracy to ¼% of max range. Sensors automatically adjust transmit power and receive gain to optimize return signal to level that delivers accurate readings. Utilizing electromagnetic waves, sensors are unaffected by interference.

Lantronix    Irvine, CA 92618-2216
Jan 29, 2008 Suited for data sensitive, regulatory, and IT-driven applications, MatchPort® b/g Pro is equipped with 32-bit/159 MIPS/166 MHz processor, 8 MB SDRAM, 8 MB flash, and 2 serial ports with 230 Kbps data rate capability. SmartRoam technology continuously tracks radio signal strength of access points within range. Pre-authentication and caching enables automatic transition to access point with stronger signal, minimizing communication disruption for user.

Wilevco, Inc.    Billerica, MA 01821
Jan 29, 2008 Utilizing spinning-discs, Rotary Atomization Spray Applicator applies pumpable liquids, including particulates up to 5/16 in., onto baked goods, foods, poultry, and meat. Unit produces gentle spray that will not disrupt existing coatings, eliminating air knives and nozzles, which can clog as well as over- or under-coat. Built to customer requirements with pickup range from 1-50%, applicator is available with up to 12 upper sprayers and 8 below belt.
