Dorner Mfg. Corp.    Hartland, WI 53029 0020
Feb 19, 2008 Designed for light- to medium-duty applications, 2200 Series offers perforated bed plate option on conveyors 12 in. or wider to accommodate cooling and draining applications. Conveyors include instant belt tensioning and V-guide bed plate for positive belt tracking. Offered in lengths from 18 in. to 18 ft, conveyors feature load capacity up to 80 lb, belt speeds up to 276 fpm, and belt widths from 1.75-24 in.

Morgan Advanced Ceramics    New Bedford, MA 02745
Feb 19, 2008 Intended for hermetic packages used for relays, fuses, fiber optic connections, and IC packages, Pressed Glass Spacers are available in lengths from .070-.155 in. and inner diameters from .026-.063 in. Standard tolerance in all dimensions is ±.002 in. Offered in green, blue, black, and white, spacers withstand temperatures required for PCB applications, and are also suitable for positioning and isolating electrically sensitive components during wave soldering.

Phidgets, Inc.    Calgary, AB T2M3R7  Canada

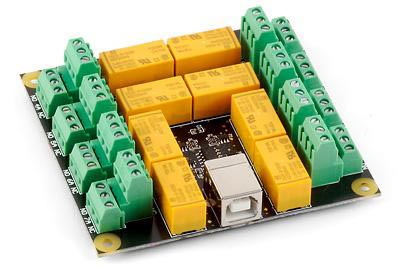

Feb 19, 2008 Intended for wide range of applications, PhidgetInterfaceKit 0/0/8 allows users to control, from any PC, 8 DPDT relay outputs that are rated at 250 Vac or 2 A, for maximum of 65 W. It has maximum switching voltage of 250 Vac and 220 Vdc, 10 µA wetting current, 10 mV voltage, and quiescent and active current consumption of 14 and 380 mA, respectively. Unit also offers 18 msec operating and releasing time and 20 contacts/minute switching speed at maximum load.

Pacific Instruments, Inc.    Concord, CA 94520

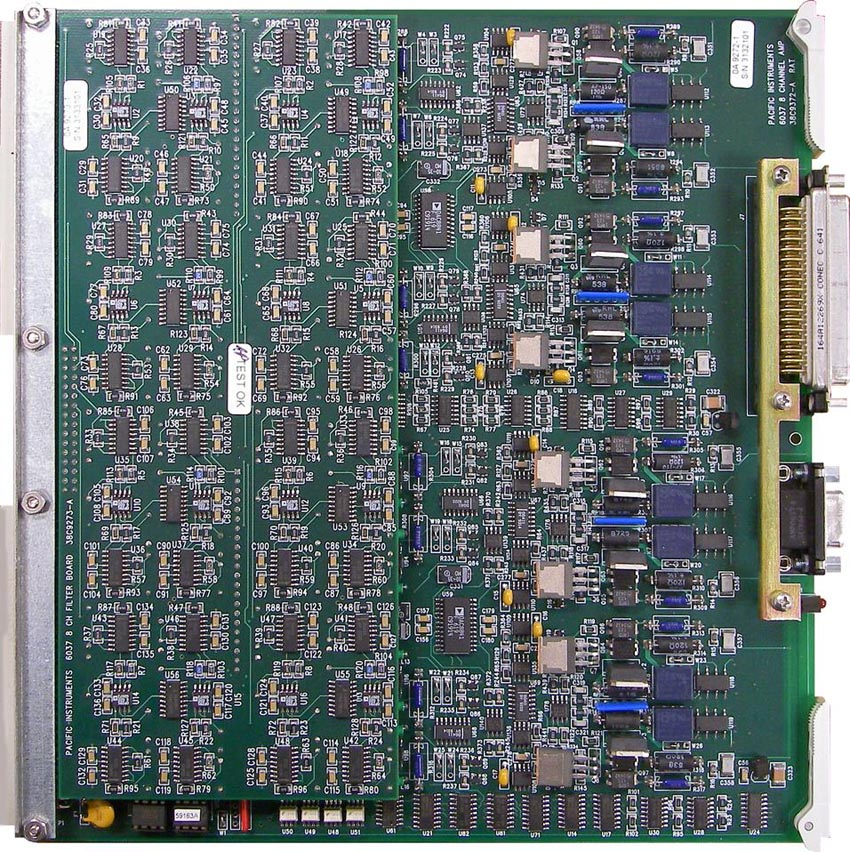

Feb 19, 2008 Designed for Series 6000 DAQ System, Model 6037 is 8-channel strain gage and transducer signal conditioning-amplifier-digitizer that automatically ranges gain according to signal level. Excitation is programmed in 1 V steps from 0-12 V, while 4-pole, low-pass filter provides bandwidths from 1 Hz to 1 kHz with programmable selection of filtered or wideband output. Unit features 16-bit Adc that digitizes transducer signals at programmable sample rates up to 10,000/channel.

Phoenix Contact    Harrisburg, PA 17111 0100

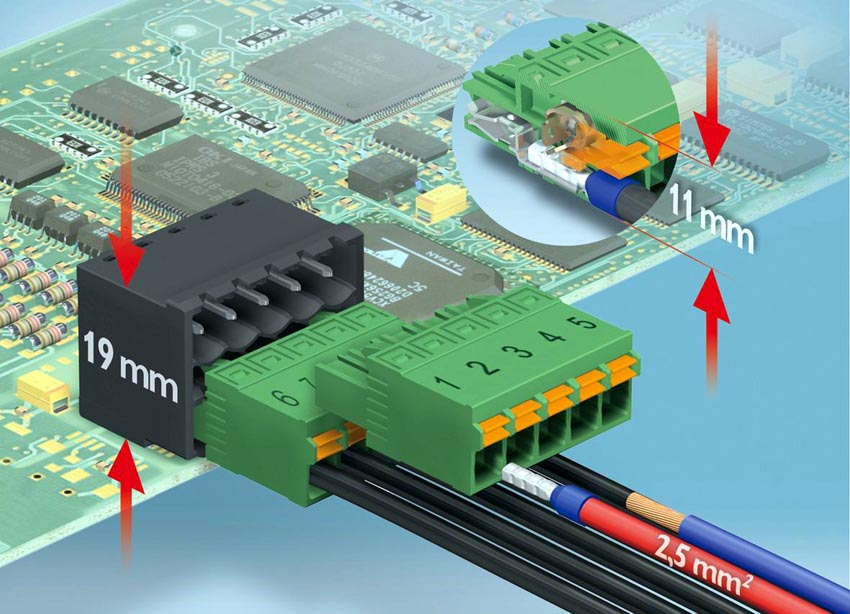

Feb 19, 2008 FKCN 2.5 spring-cage plug connector allows rigid and flexible wires with ferrule to be connected quickly without any tools. Large wire entry supports flexible wire ferrules, and wires can be disconnected using orange actuation levers. Measuring 19 mm high, accompanying CCDN 2.5 is double-level, pin-in-paste base header. When used together, FKCN 2.5 and CCDN 2.5 support trend of smaller electronics components by creating free space on board.

Tharo Systems Inc.    Brunswick, OH 44212 0798

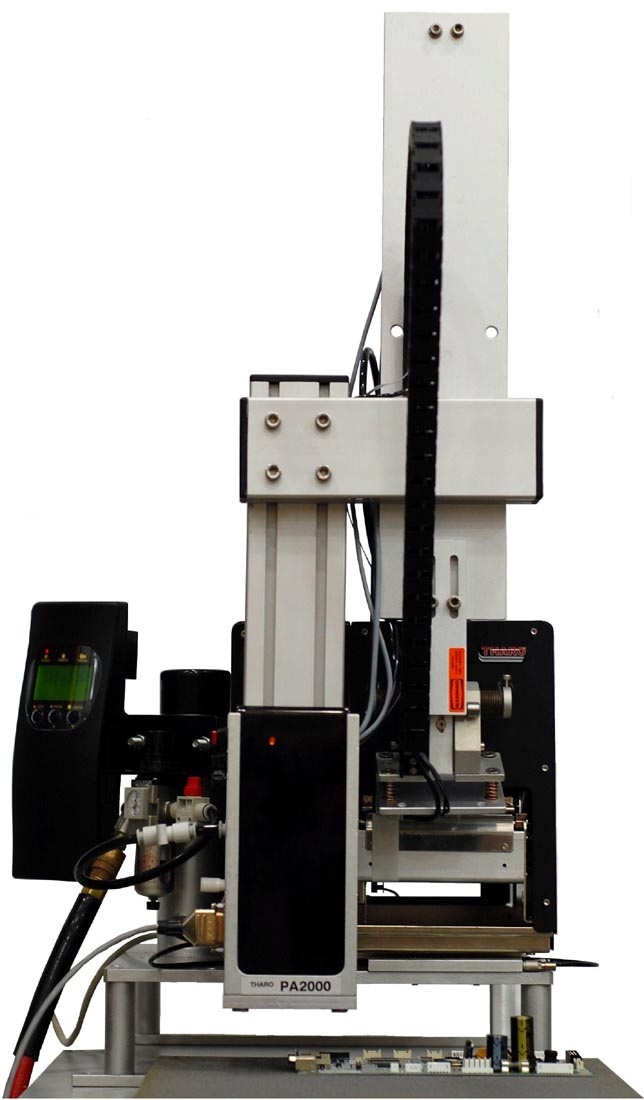

Feb 19, 2008 Offered as accessory for H-400/H-600 Series of thermal/thermal transfer bar code label printers, PA2000t Label Printer/Applicator applies labels to top or side of varying height and width products. Unit measures 15 x 32 x 30 in. and features remote front panel for easy access regardless of applicator orientation. With or without computer attached, PA2000t is automatic or semi-automatic and applies labels from 2 x 1 to 4.5 x 8 in. in size.

SICK STEGMANN, INC.    Dayton, OH 45413

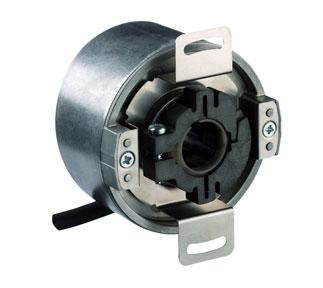

Feb 19, 2008 Designed for use in dirty/dusty environments with water washdown cleansing, Model DFS 60 reduces potential for contamination by dust, dirt, or water, delivers from 1-65,536 ppr, and operates in temperatures ranging from -20 to 100°C. Available with TTL or HTL interface, it features nickel code disc that supports operation in heavy duty industrial applications. Radial/axial cable outlet reduces installation depth and allows single encoder type to be used for various applications.

Klein Tools, Inc.    Lincolnshire, IL 60069
Feb 19, 2008 Including Models K90-10/2, K90-12/2, and K90-14/2, Bent-Nose NM Romex® Strippers feature tool steel black oxide finish, precision ground stripping holes, shear type cutting blades, and Klein-Kurve® handles. Units eliminate need to angle tool, wire, or hand, enabling precise removal of outer jacket of non-metallic cable. They strip, cut, and loop 10, 12, or 14 AWG solid wire, and cleanly shear 6-32 and 8-32 screws. Models K90-12/2 and K90-14/2 also strip 18 AWG stranded wire.

Igus, Inc.    East Providence, RI 02914 0349
Feb 19, 2008 Guide troughs enable Energy Chains and Energy Tubes to operate with reduced friction over long travel lengths exceeding 16 ft. Available in steel or aluminum, corrosion-resistant aluminum troughs are suited for outdoor and wash down applications, while steel troughs are suited for lighter loads. Troughs are offered as separate components or fully assembled systems, come equipped with glide bars, and can be custom designed for specific application.

W.A.C. Lighting Company    Port Washington, NY 11050

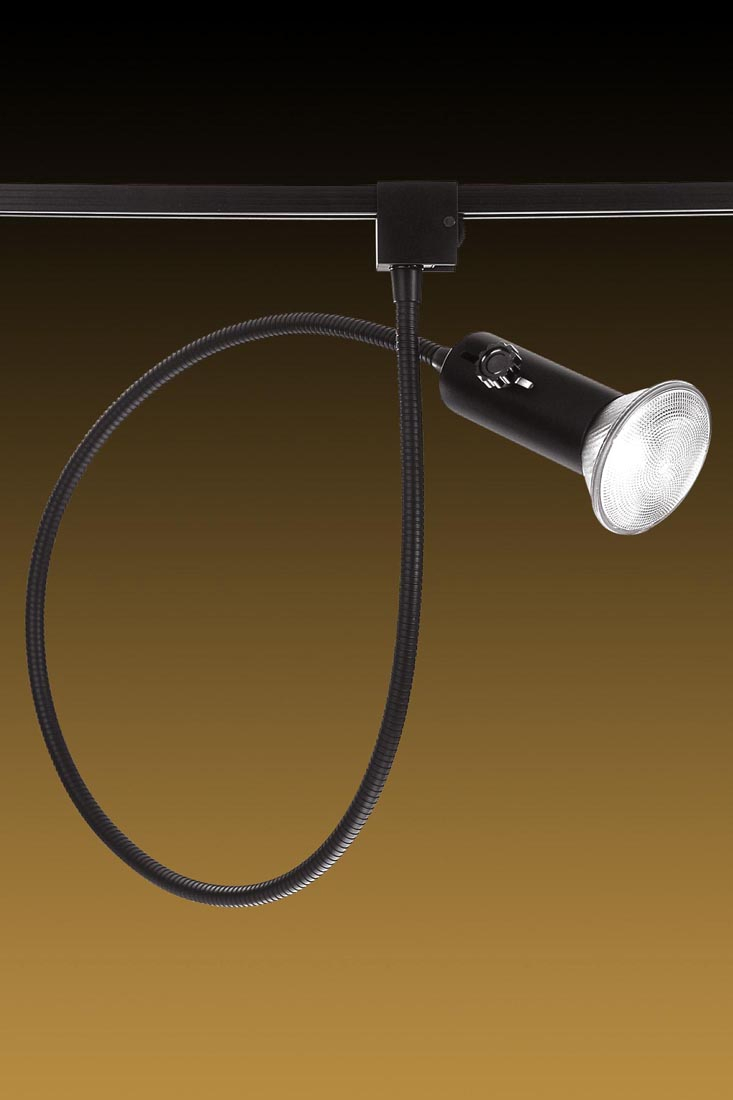

Feb 19, 2008 Line Voltage Flex Arm Track Heads can be mounted and aimed in any configuration to provide right amount of light for variety of applications. Available in 4 finishes including black, white, brushed nickel/black, and brushed nickel/white, they operate with variety of lamps ranging from G, A, BR, and PAR16 to PAR38, and feature sliding adjustable socket that accommodates different lamp positioning. Fixture has maximum extension of 54 in.

Kinetic Systems, Inc.    Boston, MA 02131

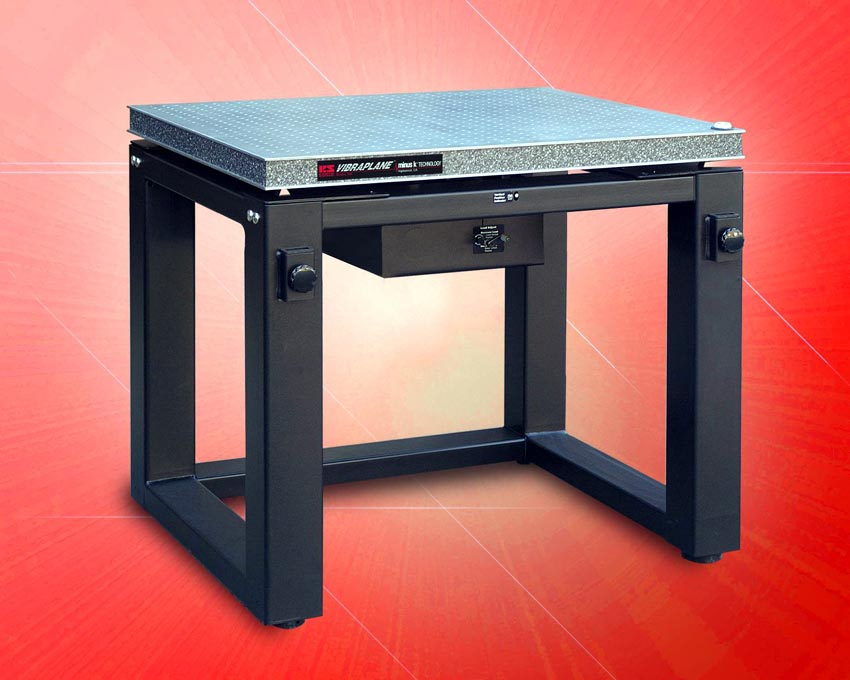

Feb 19, 2008 Featuring Minus K® stiff spring and negative-stiffness mechanism, Model MK26 achieves low net vertical stiffness while supporting static loads. Adjusted to ½ Hz natural frequency, ergonomic workstation achieves 93% isolation efficiency at 2 Hz, 99% at 5 Hz, and 99.7% at 10 Hz. Class 100 cleanroom compatible with optional Class 10 compatibility, unit is available with 30 x 36 and 36 x 48 in. tabletop sizes that feature either lightweight honeycomb or composite construction.

STMicroelectronics    Lexington, MA 02421
Feb 19, 2008 Implimented in 0.13 micron embedded non-volatile memory EEPROM technology, ST21NFCA integrates all necessary hardware and software for complete NFC (Near Field Communication) system, including support for all NFC proximity and vicinity standards. It enables contactless communication at 14.56 MHz and integrates Host Controller Interface (HCI) functions as well as interfaces for I2C bus and SPI bus. System also includes ST21 smart card microcontroller.

Loyalty Lab, Inc.    San Francisco, CA 94104
Feb 19, 2008 Loyalty Lab platform features stand-alone email product, which offers integrated targeting, segmentation, and customer relationship marketing capabilities. Data integration options let email marketers draw from customer and transaction data for personalized and precise messaging. Also included, Ready-Aim-Engage platform enables marketers to link email to various activities, including non-transactional, so that messaging can be relevant to social networks and branded environments.

Zinwave Ltd    Cambridge CB22 7GG  United Kingdom
Feb 19, 2008 Covering wireless spectrum from 136 MHz to 2.7 GHz, Zinwave 3000 Active Wideband Distributed Antenna System (DAS) supports and aggregates multi-service, multi-operator wireless environment. Centrally managed system does not require parallel service specific units or cabling overlays, and supports Time Division Duplex (TDD) services. Any number or combination of services is supported, enabling simultaneous mobility for employees, consumers, and emergency services.

Ethernity Networks Ltd    San Francisco, CA 94129
Feb 19, 2008 Together with XAUI 10G for backplane/uplink connectivity, ENET4000 FPGA Access Flow Processor comes with user side interface selection of 8 x 1 Gbps SGMIIs for EPON or 4 x 2.5G SGMII for GPON. ENET architecture enables support of full PON OLT line card solution on one FPGA. Furthermore, solution supports all required networking and traffic management functionalities at 15 Gbps and includes SERDESs for direct connectivity to fiber transceivers.

NEC Electronics    Santa Clara, CA 95050
Feb 19, 2008 Featuring 8-bit power consumption, 16-bit All Flash(TM) MCUs of 78K0R/Ix3 series integrate all analog circuits required for inverter control - comparators, op amps, ADCs - and hardware multiply/divide functionality for processing mathematical algorithms. On-chip oscillators drive 12 integrated multifunctional timers at rates to 40 MHz for fine-tuned inverter control of 3-phase motors, and 78K0R CPU core executes 13 MIPS at clock speed of 20 MHz while consuming 1.8 mW per MIPS.

FrontRange Solutions    Pleasanton, CA 94588
Feb 19, 2008 GoldMine® Mobile Edition v3.0 gives sales teams ability to manage customer contacts, calendars, sales activities, and opportunities at any time and from anywhere via BlackBerry smartphones. With this solution, always-connected sales team can collaborate and obtain insight into customer activities as they occur as well as compile sales forecasts. Data is held locally on smartphone, and program seamlessly integrates phone and e-mail features.

NitroSecurity, Inc.    Portsmouth, NH 03801
Feb 19, 2008 All-in-One model of NitroView Enterprise Security Manager (ESM) provides unified security management by incorporating functionalities of security information and event management, log management, as well as network behavior and anomaly detection into one 5,000 event/sec, 1U appliance. Solution, based on real-time relational data management engine, also features identity correlation, compliance reporting, and network and event analysis topology.

Novarra, Inc.    Itasca, IL 60143
Feb 19, 2008 Mobile web and multimedia platform, Vision(TM) v7.0, brings handset Internet experience closer to that of desktop via server and micro-clients and includes support for advertising. Along with Web 2.0 content support, scalable solution includes functionality for content adaptation and reduction, acceleration, optimization, real-time multimedia transformation, and filtering. Micro-clients and browsers (Java, BREW, C++) promote mobile usability.

Design Master Software, Inc.    Seattle, WA 98155
Feb 19, 2008 Design Master Electrical v7.0 lets users create electrical systems in 3D and export those models to any architectural building information modeling program. Along with photometric calculations used to demonstrate compliance and provide precise lighting levels, software includes voltage list that addresses various regulations. Support is also provided for multiple floors on one drawing, branch circuit wire sizing calculations, and equipment schedules.
