Ashby Cross Co., Inc.    Newburyport, MA 01950

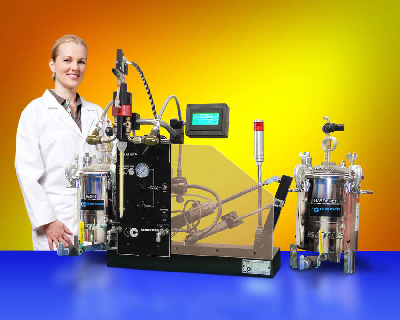

Sep 07, 2012 Suitable for low- to mid-volume production, Model 1125 Variable Ratio IDS handles filled or unfilled epoxies, silicones, and urethanes, with ratios from 1:1-6:1 by volume. PLC-based unit has touchscreen interface with menu-selectable shot sizes from 0.30-160 cc, depending upon ratio, and accuracy and repeatability of ±1% by volume. Featuring 18 x 12 in. footprint, Model 1125 operates on 100 Vac and 100 psi air, and handles viscosities up to 100,000 cps.

Greenheck    Schofield, WI 54476 0410

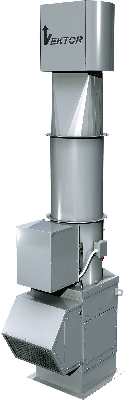

Sep 07, 2012 Intended for variable volume or demand-based laboratory ventilation systems, Vektor®-HS features Sure-Aire(TM) Variable Volume Exhaust technology, which incorporates non-invasive flow monitoring system that measures pressure drop across fan's inlet venturi. As airflow varies, SAVVE technology automatically adjusts nozzle discharge area to maintain constant and safe discharge velocity. System helps minimize energy consumption and sound levels while maintaining proper pressurization of occupied spaces.

Power Sources Unlimited, Inc.    Wrentham, MA 02093-2210

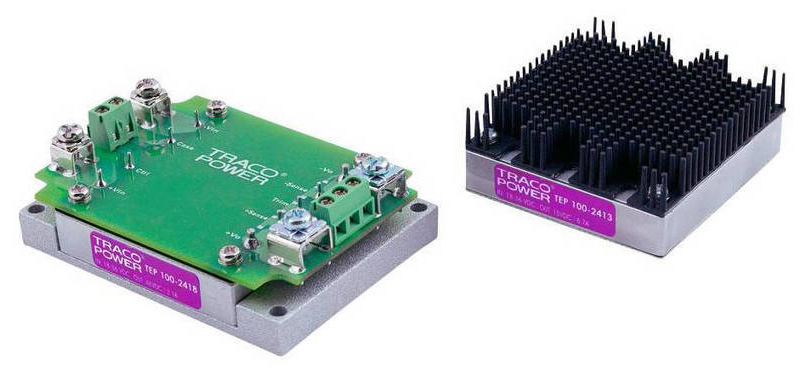

Sep 07, 2012 Along with 2:1 or 4:1 input voltage ranges, TEP Series features efficiency ratings up to 93%, UVLO, reverse input voltage protection, and input protection filter. Sealed metal case with aluminum baseplate and optional heat sink allows full load operation up to 60°C with convection cooling. Modules also include EMI Filter to meet EN 55022 Class A and can be mounted to PCB, with or without heat sink, chassis mounted screw terminal connections with filter, and DIN-Rail mount.

JAI, Inc.    San Jose, CA 95134

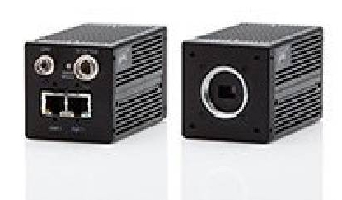

Sep 07, 2012 Combining different exposures from dual ICX447 CCDs in real-time, Model AD-131GE generates high dynamic range images with total resolution of 1.3 megapixels (1296 x 966). Precisely aligned 1/3 in. CCDs are mounted to beam-splitter prism, enabling camera to provide identical field of view to each CCD at full resolution speed of 31 fps. GigE Vision output is provided via 2 configurable RJ-45 ports, offering choice of single-cable or dual-cable operation. Monochrome output can be 8, 10, or 12-bit.

ABB Ltd.    Zurich CH-8050  Switzerland
Sep 07, 2012 MNS-MCC Low Voltage Motor Control Center offers plug-in type, withdrawable type, and full height unit technology, with up to 4,000 A horizontal bus and 1,600 A vertical bus. Meeting UL 845, CSA C22.2, and IBC-2006 standards, design is available in unit types that include starters, softstarters, VFDs, as well as mains and feeder breakers. Ability to remove unit - with door closed and without any tools or disconnecting any wires - encourages work to be performed outside arc flash boundary.

Kaivac, Inc.    Hamilton, OH 45011
Sep 07, 2012 Certified by National Floor Safety Institute, OmniFlex(TM) AutoVac system can transform into automated floor machine within minutes. It operates on all types of floors and has been tested by TURI Laboratory to remove 98.3% of targeted soil. Equipped with 10 gal solution tank, variable flow spigot, and 11.5 gal, see-through vac tank, 55 lb system has 28 in. cleaning width, operates at 75 dB, and can clean 16,000+ ft²/hr. All components necessary for complete floor care system are included.

Magnetek    Menomonee Falls, WI 53051
Sep 07, 2012 Available in 400 MHz and 2.4 GHz, Flex VUE(TM) has built-in color display that keeps operator informed of system status and diagnostics - battery life, signal strength, warnings - at all times. Operators can configure transmitter directly via display menu, and available 2-way feedback provides information on machine parameters, alarms, and command confirmation. For accurate and smooth operation, 4, 8, or 12 two-step or stepless pushbutton configurations are available.

Nu Flow    San Diego, CA 92121
Sep 07, 2012 Designed for indoor use of commercial, industrial, and high-rise buildings where it is difficult for pneumatic access, Light Duty Electric Micro-Cutter runs at 110 V with variable speeds in variety of pipes from 2-6 in. in diameter. Foot pedal activated unit includes water injection hookup and can negotiate turns of 90°.

McPherson, Inc.    Chelmsford, MA 01824
Sep 07, 2012 Featuring nested design, C-Mount Adapters fasten via 1 in., 32-pitch screw thread with 17.526 mm back distance to focal plane. Units allow mounting detectors in correct rotational orientation on spectrometers to intercept well focused spectra at focal plane. If required, micrometer inside spectrometer allows precise and reproducible focus trimming. Adapters are suitable for cryogenic, TE-cooled, deep depletion, NIR InGaAs, and Silicon visible range cameras.

SPTS Technologies Limited    Newport   United Kingdom
Sep 07, 2012 Allowing flexible multiple mode operation with dual source design, Pegasus Rapier Module offers uniformities of ±2.5% on 300 mm bonded Through Silicon Via wafers. In its principal mode, optimum etch depth uniformity is achieved to edge exclusion of 3 mm, preserving total thickness variation of good incoming wafers. Available on Pegasus Rapier, ReVia(TM) end-point system detects point at which TSV chips are revealed, enabling consistent reveal height from one wafer to next.

Visteon    Dearborn, MI 48126
Sep 07, 2012 Classified as a metal gasket under SAE J2727 refrigerant emission chart, Metal Seal Fitting is designed to eliminate refrigerant leakage stemming from air conditioning connections in vehicles. Fitting exceeds demanding requirements for R134a, R1234yf, and other alternative refrigerants in development. Additional advantages include protection from damage due to handling and minimal pressure drop due to full-flow internal design.

Wurldtech Security Technologies    Vancouver   Canada
Sep 07, 2012 Extending cyber security assessment to development teams of mission critical embedded devices, Achilles Test Software delivers tools required to test critical software early in development cycle. Solution specifically provides means to proactively expose and correct vulnerabilities as well as validate system resiliency in real-time environment. This fosters corporate and strategic focus on cyber testing by allowing for candidate software and hardware assessment.

Anadigics, Inc.    Warren, NJ 07059
Sep 07, 2012 Able to extend battery life in mobile devices such as smartphones and tablets, ProEficient(TM) dual-band power amplifiers (PAs) leverage InGaP-Plus(TM) technology and design architectures to increase talk time in low-power mode and data application use in high-power mode. Along with 2 independent amplification chains, features include 3 x 4 x 0.9 mm package, 46% (high power) and 40% (low power) efficiency ratings, as well as CDMA, WCDMA, HSPA, and HSPA+ compliance.

Bokashicycle LLC    Henderson, NV 89014-8909
Sep 07, 2012 Plugging into standard 220 V outlet, 3 hp Food Waste Pulverizer has metering forward and reverse motor that moves waste into thrashing chamber where it is immediately pulverized. Waste then exits chamber and fills 55-gallon barrel which holds approximately 500 lb of waste. If ever needed, chain walls can be replaced and there are no moving blades. To prevent accidental startup, safety switches are activated any time hopper is moved away from thrashing chamber.

SynaptiCAD    Blacksburg, VA 24060
Sep 07, 2012 By automatically translating command-line options from one simulator vendor to equivalent options of alternate EDA vendor, SimSwapper allows drop-in replacement of original simulator with new one. Program memorizes options to be passed to original simulator and feeds them forward to appropriate phase tool in target simulator's toolchain. It also generates log file with warnings about any options passed that are not supported by target simulator.

Hine Automation    Tampa, FL 33626
Sep 07, 2012 Benefitting companies in early stages of process development and characterization, Star SL-450 transfers single substrates or substrate holders up to 450 mm in diameter. System uses intelligent motor to transfer and track position of substrate. With Z-lift option, Star SL-450 can hand-off substrates to any process module, including those without lift pins.

Hine Automation    Tampa, FL 33626
Sep 07, 2012 Able to be customized and designed to meet unique handling needs of OEMs, Constellation HA-200 four-sided vacuum transfer system platform employs HA-3.0 vacuum robotic arm, HA-50V vacuum elevator, and mechanical aligner. Cassette load port and transport module design lend to compact dimensions and operational value. System provides alternative to automated load locks in projects requiring high throughput and low production volume.

Metso Power    Charlotte, NC 28277
Sep 07, 2012 Suited for new construction or as retrofit for existing recovery boilers, Metso Smelt Spout System consists of smelt spout, upper/lower micro hoods, hood showers, and ShatterMax(TM) dual shatter jet. Insertable and water-cooled smelt spout's tip projects inside furnace, minimizing wear on tube openings as well as smelt leak risk. Each ShatterMax(TM) dual shatter jet nozzle is rated for less than 400 lb/hr flow with 160 lb steam, and adjustable shatter jet brackets enable accurate positioning.

Epoxyset, Inc.    Lincoln, RI 02865
Sep 07, 2012 Offered in 2-part kits or premixed and frozen syringes, Epoxibond 112LC-1 bonds ceramic, glass, plastic, metal, and other substrates that require heat and chemical resistance. Clear, unfilled, 100% solids epoxy system exhibits tensile strength of 2,200+ psi, has 90+ shore D hardness, and can snap cure at 150°C or higher. With pot life of 6+ hr, halogen-free product can also be used to pot or encapsulate small electronic components as well as seal or coat parts for chemical resistance.

David Weisman, LLC    Stamford, CT 06903
Sep 06, 2012 Enhanced Heavy Duty Gas Fired or Electrically Heated Hot Air Convection Curved Oven Systems preheat, dry, and/or cure liquid and powder coatings and plastisol on small- and medium-sized products. Along with gas-fired burners or electric heating elements, features include air recirculation system with internal ductwork, readily adjustable louvers and heavy-duty oven insulated enclosure. Enhanced systems' curved design feature pneumatic vertical lift entrance/exit doors and slide slots.
