Linear Technology Corp.    Milpitas, CA 95035
Feb 21, 2008 Sampling at 105 Msps, 16-bit Model LTC2217 consumes 1,190 mW and can interface to variety of digital systems with multiple digital output modes. Ultra-low jitter helps maintain high SNR at high input frequencies, yielding 80.4 dBFS SNR at 70 MHz, while high linearity sample/hold circuitry allows for low distortion of 92 dBFS at 70 MHz. Separate output power supply enables CMOS output swing to be as low as 0.5 V. Housed in 9 x 9 QFN package, Adc offers optional internal dither circuit.

Dwyer Instruments, Inc.    Michigan City, IN 46361 0373
Feb 21, 2008 Designed for pressure, vacuum, and differential pressures, Series ADPS features scaled adjustment knob, which allows adjustment of pressure to be made from 0.08-16 in. W.C. without using pressure gage. Silicone diaphragm and PA 6.6 body make switches suited for air and other non-combustible gases. Series ADPS can be used in monitoring air filters, ventilators, and industrial cooling-air circuits, as well as controlling air and fire-protection flaps.

Lapp USA    Florham Park, NJ 07932
Feb 21, 2008 With 20 different tubing and sleeving options in variety of sizes, colors, and lengths, OLFLEX® tubing and cable management solutions suit virtually any application or environment. Products offer insulation as well as chemical and temperature resistance for flexible and non-flexing cable in extreme environments. Offered in shrink ratios of 2:1, 3:1, and 4:1, tubing comes in dual wall, adhesive-lined, permanent bonding, and polyolefin type for liquid tight sealing.

Tripp Lite    Chicago, IL 60609
Feb 21, 2008 Featuring molded, detachable connectors and threaded end caps with integrated pull tabs, Easy-Pull Cables can be installed through conduit and drop ceilings. Pull tabs tolerate up to 30 lb of pull force, while end caps protect cable connectors from dirt and grime during pull-through. Offered in multiple lengths up to 100 ft for both analog and digital applications, cables enable long cable runs while maintaining compliance with building codes.

Acroprint Time Recorder Co.    Raleigh, NC 27616
Feb 21, 2008 Made from 30% post-consumer recycled content, Green Guard Time Cards feature built-in antimicrobial technology. They can be used with Acroprint side print time recorders and time clocks, as well as any standard side printing employee time clock. Available in packs of 200 and 400, cards come in both single-sided and double-sided options.

Picker Components Inc.    Carrollton, TX 75006
Feb 21, 2008 Available in top flange, side flange, and plain case mounting configurations, Model PC740 includes silver alloy contacts and heavy swinger wires that go down to contacts to carry current load and minimize heat in springs. Two-pole version is rated 40 A, 250 Vac, while 3-pole version is rated 30 A, 250 Vac. Measuring 55.2 x 52.0 x 38 mm plus mounting tabs, relay is suited for driving motors and actuators, battery chargers, heater elements, industrial controls, and safety circuits.

ADAMS Magnetic Products, Co.    Elmhurst, IL 60126
Feb 21, 2008 Used like paper in inkjet printers, PRINTMAG(TM) magnetic sheets provide on-demand options for end-users with small runs or one-of-a-kind, cut-to-size custom business cards and signage. White sheets are 0.012 in. thick, finished in matte or gloss, and available in 8.5 x 11 in. full sheets or with 10 pre-scored business cards ready to be pressed out after printing.

Bosch Security Systems    Fairport, NY 14450 9199
Feb 21, 2008 Sensitive to various materials, regardless of texture or color, Professional Series features multi-point anti-mask technology with integrated spray detection. This technology utilizes prism lenses and active IR detection to protect against all known forms of attack. Detectors support integration with Local Security Network bus system and utilize Sensor Data Fusion technology that interactively processes and compares data from up to 5 different sensors to eliminate false alarms.

Tornado® Industries, Inc.    West Chicago, IL 60185
Feb 21, 2008 Made of rotomold polyethylene, automatic floor scrubbing machines are offered in walk-behind and ride-on versions. They are available in standard rotary disk format as well as cylindrical brush, which uses counter-rotating brushes instead of pads. Cleaning paths range from 18-33 in., and tank capacity varies from 11-30 gal. Designed for optimal floor contact pressure, machines operate at 67 dB and have square base design that aids in edge cleaning.

Dickson Co.    Addison, IL 60101-4917
Feb 21, 2008 Available in temperature-only (FT300/FT325) as well as temperature and humidity (FH320/FH325) models, Graph-at-a-Glance data loggers meet needs of design engineers tracking conditions affecting prototyping. These flat-panel, paperless chart recorders provide real-time data and digital graph on 4.5 x 3.4 in. display for immediate visualization of environmental trends. Data transfer is supported via Flash memory card as well as USB-enabled downloading, and storage capacity is 32 KB.

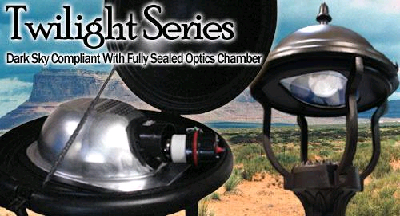

Niland Co.    El Paso, TX 79905
Feb 21, 2008 Using basic HID ballast/lamps as well as Philips QL Induction lighting system, Twilight Series features hydro-formed sealed optics chamber with Twist 'N' Seal lamp base and quick disconnects for re-lamping. Each fixture is opened with tool-less lift and turn latch on butterfly lock. Lid pivots open on hinge and is securely held with neoprene protected chain link. Classified as cut off, luminaires offer 100,000 hours of life with instant hot and cold (re)start.

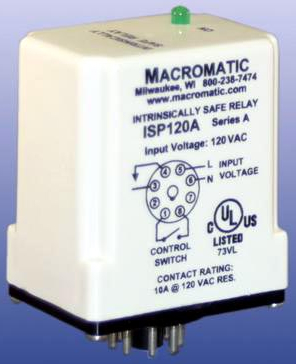

Macromatic Controls, LLC    Menomonee Falls, WI 53051
Feb 21, 2008 Comprised of intrinsically safe control switch input and electromechanical relay output, ISP Series provides safe method to control load with input device located in hazardous area. Products are incapable of releasing sufficient energy to cause accidental ignition of hazardous material by minimizing current level on input side of unit. When control switch in hazardous area is closed, relay is energized. When control switch is opened, relay is de-energized.

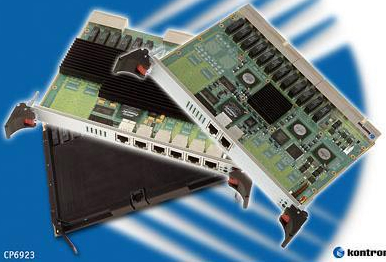

Kontron    Poway, CA 92064
Feb 21, 2008 Designed for high-end communication solutions, CP6923 PICMG 2.16-compliant 6U CompactPCI managed Ethernet switch comes in 3 rugged levels: R1, R2, and R3. R1 is designed for standard application requirements in air-cooled environments; R2, for higher shock and vibration environments; and R3 is fully conduction cooled. Each offers 24 link ports and dual 10 GbE XFP uplink connections, but only R2 and R3 versions are available with extended temperature range from -40 to +85°C.

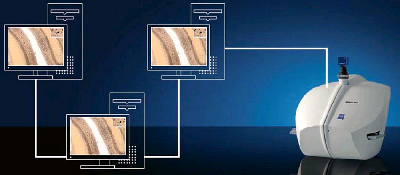

Carl Zeiss Microimaging, Inc.    Thornwood, NY 10594-1939
Feb 21, 2008 With horizontal loading system, MIRAX MIDI offers method of mounting both freshly cover-slipped slides and non-standard slides. Unit is modified to meet needs of clinical pathology departments and toxicopathology research laboratories by allowing ample walk-away time and simultaneous scanning of samples from dose and control group. Fluorescence option is available to enable scanning of slides in up to 10 different fluorescence channels at same time.

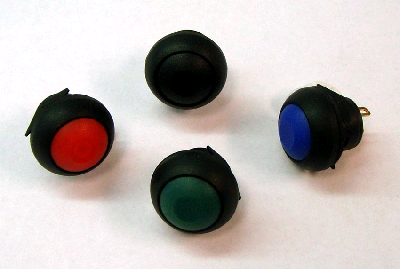

E-Switch Inc.    Brooklyn Park, MN 55428 1514
Feb 21, 2008 Available in threaded or snap-in panel mount configurations, Series RP8100 offers contact ratings of 125 mA at 125 Vac and 100 mA at 50 Vdc. Initial contact resistance is 5 mW, while insulation resistance is 1,000 MW at 500 Vdc, and dielectric strength is 1,000 Vac rms. Operating from -30 to +85°C, round illuminated switch is suited for instrumentation, telecommunications, audio, and appliance applications.

Linear Technology Corp.    Milpitas, CA 95035
Feb 21, 2008 With input voltage of 2.7-10 V, full-bridge Model LT3572 is capable of driving 2 piezo motors at up to 40 V. Each driver and 900 mA boost converter can be independently turned on or off, making device suited for dual-axis image stabilization as well as auto focus and zoom motor control for digital still and video cameras. Housed in 4 x 4 mm QFN package, LT3572 includes soft-start, external synchronization, and programmable switching frequency from 500 kHz to 2.25 MHz.

RNR Plastics, Inc.    Raynham, MA 02767
Feb 21, 2008 Developed for holding job tickets with barcodes, manifests, and other inventory management notices, RNR Magna-Hinge(TM) Vinyl Pouches feature clear window to display messages and reinforced strap with 2 encapsulated rare earth magnets. Heavy-duty pouches are made from 10 ga PVC, and permit barcode scanning. Available in standard sizes from 4 x 6 to 8½ x 11 in., they do not scratch painted metal surfaces, and can be used for wide range of display applications.

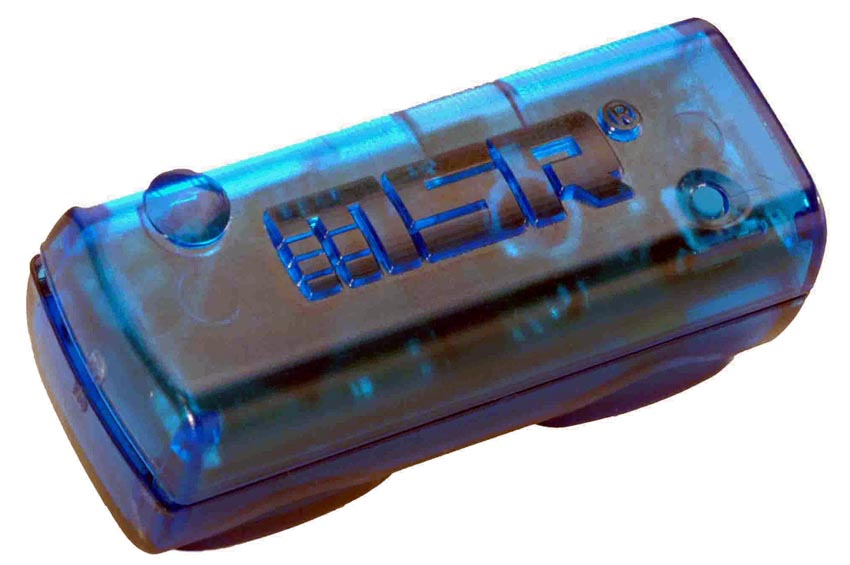

Saelig Co., Inc.    Pittsford, NY 14534
Feb 21, 2008 Capable of measuring and recording several different physical parameters simultaneously, Series MSR145S miniaturized universal data logger measures 52 x 20 x 16 mm and weighs 16 g. Model MSR145S-B51111 contains built-in temperature sensor, humidity sensor, pressure sensor, and 3-axis accelerometer, while Model MSRS145-B51112 comes with 2 additional 12-bit analog inputs. Units have accuracy of ±0.1°C (5-45°C) and ±0.2°C (-10 to +65°C) and 0-100% RH with accuracy of ±2% (10-90% RH).

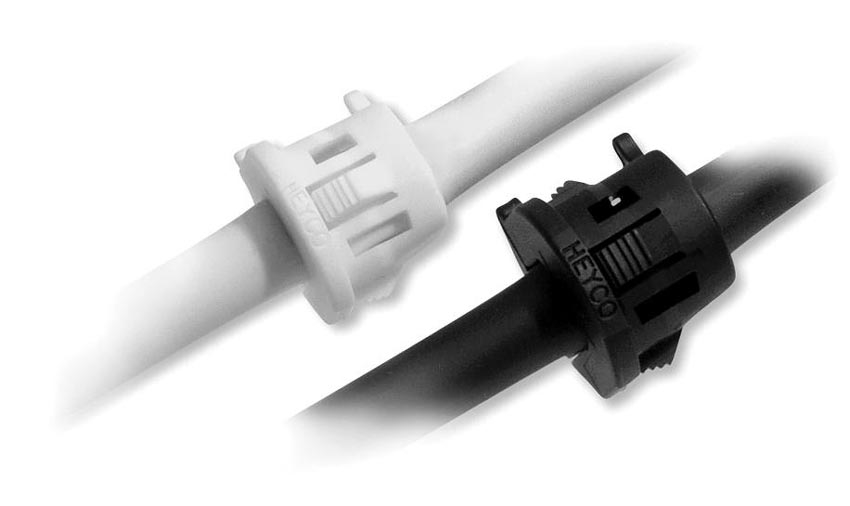

Heyco Products    Toms River, NJ 08753
Feb 21, 2008 Model RDD-601 Lockit(TM) Strain Relief Bushing fits round cables up to .700 in. and panel mounting holes up to 1.109 in. w/1.000 in. flats. Unit can be preassembled onto round or flat cables for final panel assembly or at any remote location, and can also be installed into standard Double D panel hole with simple fingertip pressure. Multiple panel locking steps secure unit into range of panel thicknesses, and available matching plugs can be used to fill blank/unused mounting holes.

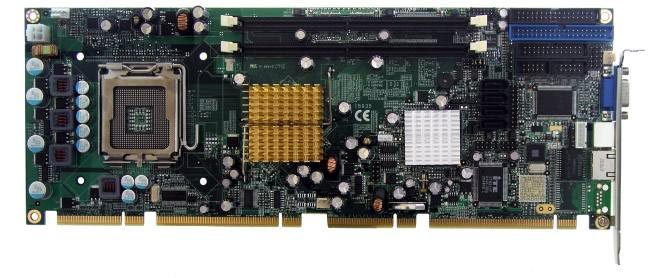

IBASE Technology Inc.    Taipei   Taiwan
Feb 21, 2008 Operating with front side bus of 1,333/1,066/800 MHz, Model IB935 PICMG 1.3 System Host Board (SHB) is suitable for intensive data and image acquisition applications. It offers various interfaces including 4 PCI, 4 PCI-E(x1) or 1x PCI-E(x4), 1 PCI-E(x16) routed to backplane, 8 USB 2.0 (4 via backplane), 6 SATA II (2 via backplane), 2 COM, digital I/O, and 7.1 channel HD audio. LAN functionality comes with Intel 82562V 10/100 or Intel 82566DM.
