Anver Corp. - Anver.Com    Hudson, MA 01749
Feb 26, 2008 FP Foam Seal Rectangular Vacuum Pads handle surfaces such as concrete, stone, tread-plate, wood, and various composites during fabrication and on-site installation applications. They feature steel construction with welded steel lip, which secures neoprene rubber slip-on edge, and soft foam sealing edge. Designed for use with VPE1 Series electric vacuum generator, pads can be changed in field using 2 nut and bolt mounting system. Units are offered in 12 sizes from 500-2,000 lb.

CAS Data Loggers    Chesterland, OH 44026
Feb 26, 2008 Using web interface, dataTaker DT85 Series 2 provides graphical display of up to 6 channels of real-time data, command interface, on-line documentation, and data retrieval with support for ASCII CSV files. Unit includes up to 48 differential analog inputs and 12 digital/counter channels, as well as USB, Ethernet, and Serial host interfaces. Input channels can measure thermocouples, RTD's, thermistors, strain gauges, voltage, 4-20 mA current, resistance, or frequency inputs.

NJM/CLI Packaging Systems Int'l.    Lebanon, NH 03766 1403
Feb 26, 2008 Model 401X Pallet Labeler can be configured for optional RFID pallet tagging as well as standard corner, side, and multipanel print and apply labeling. It is equipped with Allen-Bradley PLC and Allen-Bradley PanelView 550 touchscreen user interface. With full clock and calendar functions, as well as serialization, device can print fixed and variable data including text and graphics and array of barcodes. Standard reach of up to 14 in. can be extended to 36 in.

Linear Corp.    Carlsbad, CA 92009

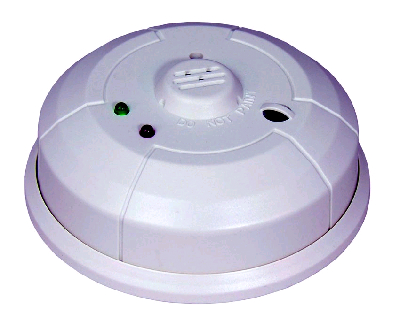

Feb 26, 2008 Powered by 3 V lithium battery that lasts up to 6 years, electrochemical Model DXS-80 uses chemical reaction to assess CO concentration in air. UL listed unit not only sounds alarm when dangerous CO levels are present, but it can be integrated into most alarms systems, with addition of DX receiver, to alert authorities and summon assistance. When installing, no field coding is required, since each DXS-80 is factory set to unique code.

Beswick Engineering Co., Inc.    Greenland, NH 03840
Feb 26, 2008 Constructed of stainless steel throughout and weighing 15 g, dry break quick disconnect connects without any fluid spray or leakage and disconnects with minimal dead volume. Internal and external ends are available with 10-32 internal or external threads and include captured o-ring seals for leak-tight connections. Panel mount versions are also available. Products suit applications where space, leak-tightness, durability, and weight are of concern.

Edwards Vacuum Technology    Wilmington, MA 01887
Feb 26, 2008 Featuring modular design, iXH series of vacuum pumps meets increasing demands of emerging processes required for semiconductor manufacturing at 60 nm and smaller design rules. Gas Buster(TM) inlet purge helps deal with process byproducts and minimize system maintenance and Active Utility Control (AUC) includes idle mode for periods when pump is not in use. Pump mechanism can handle hydrogen and also withstands corrosive effects of ammonia.

Raycap Inc.    Post Falls, ID 83814
Feb 26, 2008 Rayvoss® is rugged system that integrates Strikesorb® SPD modules into heavy-duty enclosure and meets requirements of IEC 61643-1 and UL 1449 2nd Edition safety standards. Available in single-phase, split-phase, 3-phase wye and 3-phase delta configurations, system can be installed directly to internal bus bars, eliminating voltage drop across fuse. Operating voltages include 120, 240, 120/208Y, 240/415Y, 277/480Y, 347/600Y, 240D, and 480D.

Opto Diode Corp.    Newbury Park, CA 91320
Feb 26, 2008 Suited for tight spaces, 6 mm² Model ODA-6W-100M includes shielded amplifier electronics and operates in NIR wavelength with response at 940 nm. Standard version features 500 MW gain with custom gains also available. Housed in hermetically sealed TO-39 package, infrared component's operating and storage temperature ranges from -25 to +100°C. Device is suited for applications in low pW region where discrete detector/preamplifier solutions are not sensitive enough.

AXIOMTEK Co., Ltd.    Taipei   Taiwan
Feb 26, 2008 Equipped with AMD LX800 processor, fanless embedded Model ICO-100 offers smart remote management tools, including remote monitoring, alarm, diagnosis, and security for use over wired/wireless network. Stacking design enables expansion through PC-104 slot or 2.5 in. hard drive. Featuring built-in fuse for over-current protection, RoHS-compliant device can be applied in limited-space applications and endure vibration and shock in critical environments.

AXIOMTEK Co., Ltd.    Taipei   Taiwan

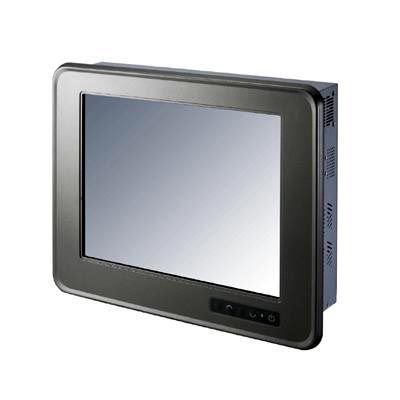

Feb 26, 2008 Series PANEL1158-831 15 in. TFT panel PC features NEMA 4/12 plastic front bezel, Intel® Core(TM)2 Duo processor, and Mobile Intel® 945GME Express chipset. Supporting Windows® Vista, it includes 2 x 240-pin DDR DIMM sockets with total capacity up to 3 GB. It also has built-in speakers, dual GbE ports, 2 IEEE 1394a ports, 4 USB 2.0 connectors, 3 COM ports, and Line-out/Mic-in. Device supports resolution up to 1,024 x 768 and offers luminance at 260 cd/m².

Quick Cable Corp.    Franksville, WI 53126

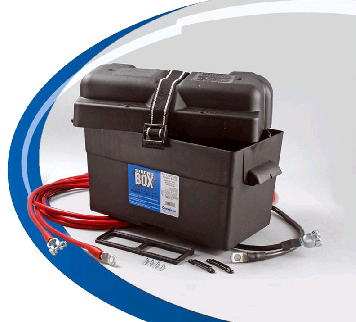

Feb 26, 2008 With Battery Relocation Kits, users can relocate their battery in another area of their vehicle or boat for better weight distribution or traction, to create more room, or to facilitate access. Available in 5 versions, kits include all parts need to relocate or add another battery, and allow for top post or stud batteries.

Schurter, Inc.    Santa Rosa, CA 95403
Feb 26, 2008 Available with current ratings of 20 A or 16 A, depending on attenuation requirements, 5130 ECO IEC Inlet meets demands of IT, medical, and industrial applications. Positive electrical contact of metal flange or snap arms to chassis ensures optimal filtering and shielding. Flange version is available for front or rear mounting with traditional screws and nuts or rivet mounting. For rear mounting only, version is available with pre-formed threaded holes for M3 screws.

Thomas Products Division    Sheboygan, WI 53081
Feb 26, 2008 Featuring 8.3 x 4.0 x 6.4 in. footprint, 2450 Series WOB-L® weighs 9.5 lb and produces low sound levels of 50 dBA at 20 psig. Monolithic head minimizes leak paths, while optional intake locations on side and bottom facilitate plumbing, and boltless construction minimizes vibration and noise. Max flow is 3.0 cfm and max pressure is 30 psig.

TURCK, Inc.    Plymouth, MN 55441

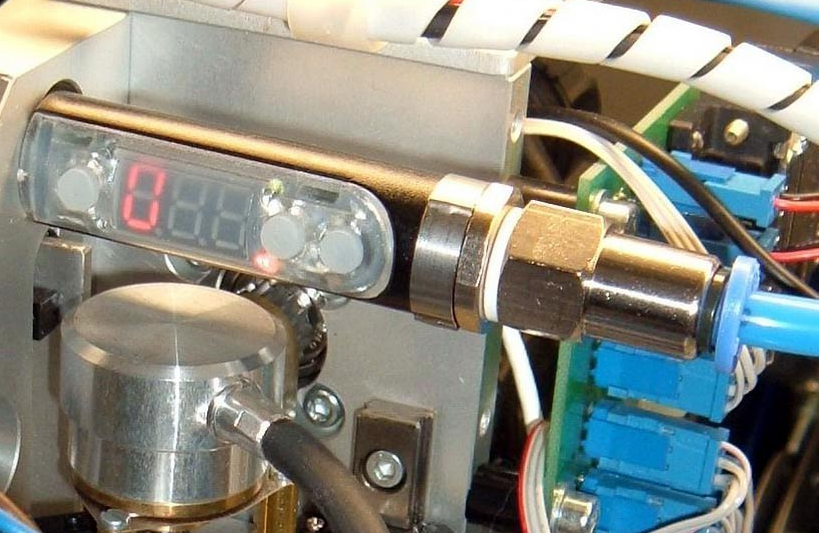

Feb 26, 2008 PK pressure sensors provide pneumatic pressure ranges of -29.5 to 0 in. Hg and 0 to 145 psi, with 3 percent accuracy, and are available in two body styles, pico and nano, to support various mounting options. Programmed through push buttons, sensor menu may be inverted for programming flexibility. Features include 2 PNP switch points and integrated M8 connector. Compact sensors are IP 65 rated and suit pneumatic and robotic applications.

Hitachi Power Tools    Norcross, GA 30093
Feb 26, 2008 Micro driver drill, Model DB10DL, measures less than 6 in. long and weighs 1.8 lb. With 88 lb-in. of turning torque and 21+1 stage clutch, drill can drive 130 three in. screws into wood during single battery charge. Features include battery charger that prevents overheating or power loss, ¼ in. hex chuck that allows for simple bit replacements, and optimized handle dimensions that create ergonomic grip span for comfortable hand control.

Richco, Inc.    Morton Grove, IL 60680
Feb 26, 2008 WITBH series can be inserted into threaded, non-threaded, drilled, or punched holes. While barbed mounting head grips to inside of hole, ribs deflect when pushed into hole then spring back for secure lock. RoHS-compliant series, offering 50 lb of tensile strength, comes in standard Nylon 6/6 and Heat Stabilized Nylon 6/6, serviceable to 286°F. Products mount to range of materials, including wood, threaded metal, particleboard, plastic, foam, and rubber.

Richco, Inc.    Morton Grove, IL 60680
Feb 26, 2008 Pressure hold cable tie holder Model FTH-33 allows pre-assembly of cable tie into holder and secures it in position. Cupped mounting base prevents dust ingress while providing tight grip to board in environments prone to vibration. Part accepts all Richco QTE-30/50 and WIT-30/50 cable ties.

Richco, Inc.    Morton Grove, IL 60680
Feb 26, 2008 RoHS-compliant SEI series provides strong threads in metal sheets that are too thin to be tapped. Products allow for right-angle assemblies and provide alternate to self-clinching fasteners. With design that reduces necessary hardware, series is installed by rotating in side of panel and can be removed by pinching spring leg and rotating. Series is available with No. 6-32 and M4 internal threads.

Richco, Inc.    Morton Grove, IL 60680
Feb 26, 2008 RoHS-compliant SHR-C Series, comprised of snap-fit and screw-mount base versions, lock securely and can be reopened for maintenance. Able to hold SHR-20 and SHR-25 slit harness wrap sizes, adjustable clip is designed to accelerate installation and features internal ribs that hold harness wrap firmly.

Camfil Farr    Riverdale, NJ 07457
Feb 26, 2008 Designed as value-added upgrade from standard MERV 8s, 30/30® air filter features radial pleat design that allows full use of all-mechanical media for optimal dust holding capacity. Maintained resistance to airflow and average pressure drop contribute to savings on heating/cooling. Rated to 2.0 in. w.g. without media pack failure, solution has 5-star ECI rating and comes in 2 or 4 in. configuration. Grid is treated for corrosion protection and bonded to media to prevent oscillation.
