Wisconsin Oven Corp.    East Troy, WI 53120

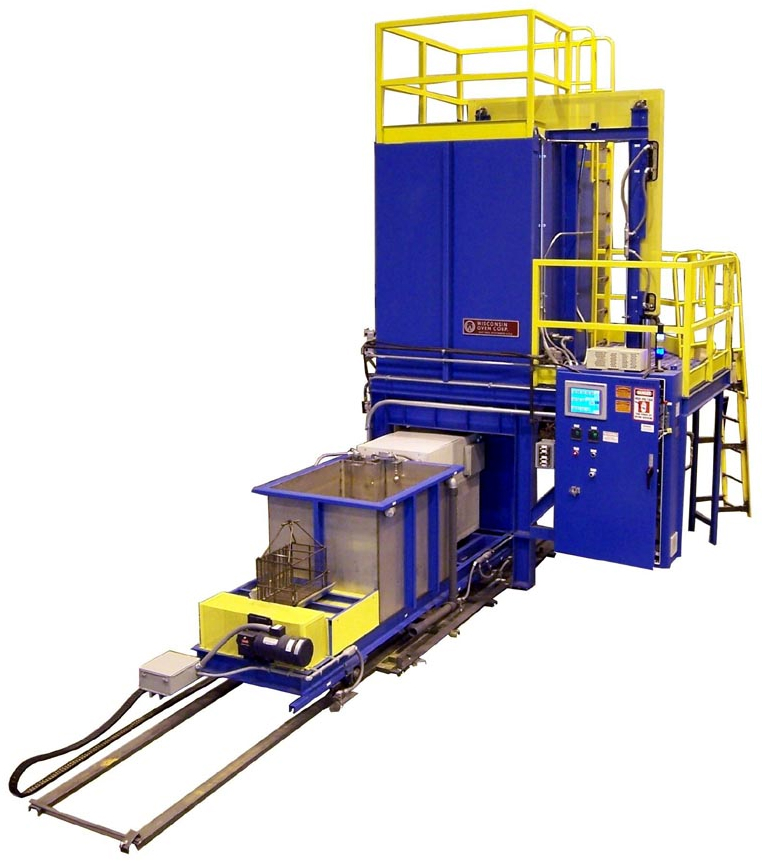

Feb 25, 2008 Along with pneumatically operated quench system, Electrically Heated Solution Treat System is built with furnace that has 1 ft x 1 ft 6 in. x 1 ft basket and 1,200ºF max operating temperature. Load can drop into quench tank or onto load/unload platform for ambient air cool. Featuring bottom-up airflow, system achieves part temperature uniformity of ±3°F @ 875° and 1,055°F with no overshoot. It is controlled via Allen-Bradley Micrologix 1500 PLC.

Montech, LLC    Huntersville, NC 28078
Feb 25, 2008 Montrac is available with TracSwitch Arena, which diverts shuttle from main track to secondary loop (bypass) and re-inserts shuttle onto main track when it leaves bypass. Switch is suited for long bypasses with several work stations and for 45 deg diversions. It has incoming and outgoing angle of 45 deg, so shuttle and conveyed workpieces move along diversion smoothly. Only one TracSwitch Arena unit is required to make complete bypass. Self-propelled shuttles have 24 kg max load capacity.

Matrox Graphics Inc.    Dorval Quebec H9P 2T4, CD   Canada

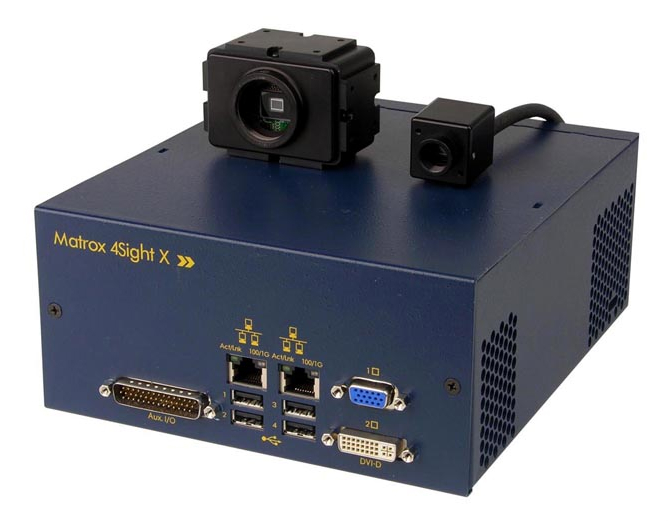

Feb 25, 2008 Featuring rugged construction, Matrox 4Sight X is built upon embedded Intel® 64-bit multicore architecture and is equipped with Core(TM)2 Duo or Celeron® processor. Intel® GMA x3100 2D/3D graphics engine offloads image processing. System includes dual integrated GbE ports for GigE Vision(TM) and 3 IEEE 1394 a/b ports for Industrial Instrumentation Digital Camera (IIDC). Optional frame grabbers for x4 PCIe®/32-bit PCI can acquire video from analog, digital RS-422/LVDS, and Camera Link® sources.

Allegro MicroSystems Inc.    Worcester, MA 01615

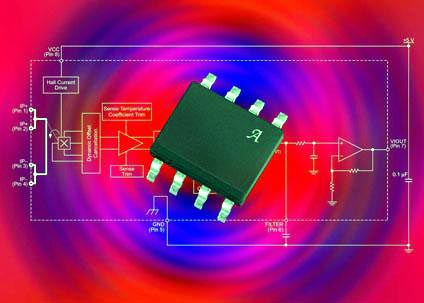

Feb 25, 2008 Available in ±5, ±20, or ±30 A versions, with corresponding sensitivity levels of 185, 100, or 66 mV/A, ACS712 bidirectional and ACS713 unidirectional sensors are based on low-noise 0.65 mm BiCMOS process. Integrated shield attenuates high dV/dt voltage transients across leadframe and filter pin can be used to set -3 dB point with capacitor. Total output error is 1.5% at room temperature and +4% in industrial temperature range from -40º to +85ºC.

Beckhoff Automation LLC    Minneapolis, MN 55337

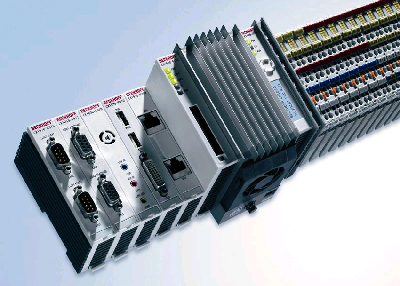

Feb 25, 2008 Equipped with 1.8 GHz Intel® Pentium® M processor, DIN rail mounted Model CX1030 contains 256 Mb DDR RAM, which is expandable to 512 Mb or 1 Gb. CPU is cooled by passive cooling module and exchangeable fan cartridge located on underside of housing. Operating without use of hard drive, PC boots from Compact Flash. Basic configuration includes removable 64 Mb CF card, 2 Ethernet RJ45 interfaces, and PC/104 interface available on both sides.

Laser Photonics, Inc.    Lake Mary, FL 32746
Feb 25, 2008 Based on 2,000-5,000 W upgradeable Fiber Laser, Titan FLS 48 comes equipped with single pallet shuttle table, Class I safety enclosure, and direct drive motion control platform. It has small heat affected zone and requires no optical system alignment, laser service, or laser replacement parts. In addition to cutting intricate designs and highly reflective metals such as aluminum, system is suitable for deep engraving.

Precision Airconvey Corp.    Newark, DE 19702

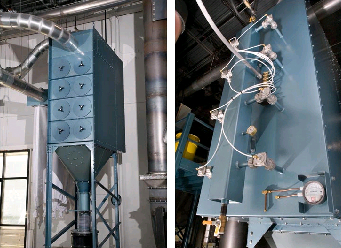

Feb 25, 2008 By eliminating need for workers to enter dust collector at equipment design stage, PAC Sonic Jet Dust Collectors safeguard workers from exposure to potentially harmful situations while eliminating concern for compliance with OSHA's 29 CFR 1910.146. Front loading filter cartridge array enables filter inspection and replacement to be performed by one person from outside unit with no tools. Featuring modular design, collectors come in 7 models with capacities from 12-64 filters.

FKI Logistex North America    St. Louis, MO 63132

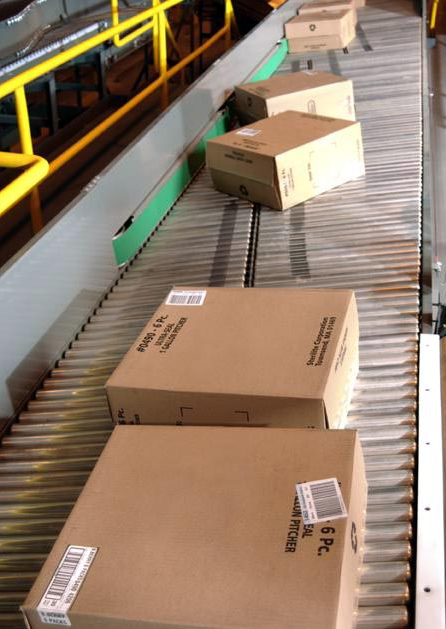

Feb 25, 2008 Mini-Unscrambler conveyor orients cases into single-file line at up to 100 cartons/min for induction into high-speed material handling systems. With standard length of 15 ft, system is suited for pre-sorter induction areas, following manual or automated depalletizing cells, and in manual repack areas. It decreases carton recirculation, minimizes scuffling, and is able to accept wide range of products.

STMicroelectronics    Lexington, MA 02421
Feb 25, 2008 With 1.75-micron pixel design, Model VD6725 fits in phone camera modules smaller than 6 x 6 x 3.8 mm. Device is 1/5-inch optical-format with active pixel array of 1,600 x 1,200 UXGA. Anti-vignetting algorithms and white-balance control support color rendition in varying light conditions, and sensor produces digital video streams at 15 fps at full UXGA resolution and 30 fps at VGA resolution. It also supports fast context switching from preview to capture mode, minimizing capture delay.

Microsoft Corp.    Redmond, WA 98052-6399
Feb 25, 2008 Windows Live Mobile Developer Program enables developers to create mobile versions of Windows Live services that can be built for any mobile phone independent of phone OS. It includes SDK for creation of mobile versions of Windows Live Hotmail, Windows Live Messenger, and Windows Live Spaces. Windows Live @mobile enables mobile operators to deploy set of standard Microsoft mobile services such as Windows Live for Mobile and MSN Mobile to customers.

Toshiba America Electronic Components (TAEC)    Irvine, CA 92618-1811
Feb 25, 2008 Suited for mobile computers, servers, and network equipment, TB7005FL synchronous step-down converter switching module combines MOSFET gate driver IC for 5 V operation with high-side and low-side MOSFETs. This multi-chip module has input range up to 30 V, output current of 35 A, and operating frequency up to 1 MHz. At switching frequency of 750 kHz, unit achieves greater than 90% peak efficiency. Other features include built-in boot-strap switch and low-side MOSFET shutdown switch.

GSK Innovations, LLC    East Walpole, MA 02032
Feb 25, 2008 Offered as 2-step system, Endurance Bio-Barrier(TM) is comprised of cleaner/prep agent and Bio-Door Technology(TM) barrier and odor control application. Safe active ingredients are below required EPA registration levels, and treatments can be effective for 6 months to 10 years depending on area of application. Polymer film continually presents environmentally friendly and water-based ingredients, which are free of toxic silane, quaternary ammonia salts, and triclosan.

STMicroelectronics    Lexington, MA 02421
Feb 25, 2008 Using STripFET(TM) V technology, STD60N3LH5/STD85N3LH5 are 30 V (BVDSS) devices that deliver minimal conduction and switching losses while achieving low FOM. They allow practical circuits to operate higher-than-normal switching frequencies, reducing size of circuit's passive components. While gate charge (Qg) of 8.8 nC (nanocoulombs) and Rds(on) of 7.2 mX @ 10 V make STD60N3LH5 a suitable control FET, Qg of 14 nC and 4.2 mX Rds(on) @ 10 V make STD85N3LH5 a suitable synchronous FET.

Oracle Corp.    Redwood Shores, CA 94065
Feb 25, 2008 Part of Oracle Fusion Middleware, Oracle® Identity Manager enables organizations to automate process of adding, updating, and deleting user accounts from applications and directories. Attestation capabilities provide certification of access privileges as required by compliance requirements, while compliance and operational report templates streamline audit processes. WS-SPML 2.0 Inbound Gateway enables rapid integration across heterogeneous environments, accelerating deployment.

Thomson Healthcare    Durham, NC 27703
Feb 25, 2008 Medstat Advantage Suite® v4.0 enables large employers, health plans, and government agencies to aggregate and integrate healthcare claims data and other information from diverse sources and systems. Further functionality lets users organize, standardize, and enhance data as well as conduct analyses that inform and improve management decision-making. Based on BI platform, solution incorporates SOA, application portal, production reporting, and dashboard reporting.

Anywhere Software    Moshav Yodfat 20180  Israel
Feb 25, 2008 Built on Microsoft .NET framework, Basic4ppc v6.0 offers complete Integrated Development Environment running on Pocket PC and desktop. Program includes set of DLLs, which address important desktop and Pocket PC functions, including such libraries as GPS, SQL, Networking, Graphics, HTTP, FTP, Regular Expressions, Sprites, Cryptography, and Serial Ports.

ProStor Systems Inc.    Boulder, CO 80301
Feb 25, 2008 Suited for small and mid-sized enterprises, InfiniVault(TM) combines long-term data retention, regulatory compliance, automated data archiving, and disaster recovery protection in single appliance. Integrated Archive Compliance Engine provides complete audit trail for every file, while content addressable storage functionality verifies all content to ensure integrity of data. Privacy is assured with InfiniVault managing all encryption keys associated with each file.

Advanced Analogic Technologies Inc.    Sunnyvale, CA 94085
Feb 25, 2008 Supplied in Pb-free, 16-pin TDFN34 package, AAT2784 and AAT2785 combine 3 step-down DC/DC converters in one monolithic IC. Each of 3 regulators has independent enable pin, and products have efficiency levels that exceed 95%. These mini-Power Management Units (PMUs), suited for portable devices with evolving feature sets, operate from 2.7-5.5 V and offer adjustable outputs from 0.6 V to VIN. Quiescent current is 50 µA/channel, and transient response time is less than 20 µs typ.

Vectron International    Hudson, NH 03051
Feb 25, 2008 Featuring phase noise floor of -155 dBc/Hz, VTM3 temperature compensated crystal oscillator (TCXO) stabilizes frequencies from 8-45 MHz in -30 to +80°C range at equal to or better than ±0.5 ppm. It is generally available as fixed-frequency TCXO, but can also be ordered with voltage controlled crystal oscillator (VCTCXO) function. Optimized for wireless RF applications, RoHS-compliant solution operates from 2.8, 3.0, or 3.3 Vdc supply and consumes 1 mA.

WhiteHat Security, Inc.    Santa Clara, CA 95054
Feb 25, 2008 WhiteHat Sentinel Service allows customers to rank their sites based upon scoring system that combines business value of each site with severity and threat of individual vulnerability. It provides advanced reporting to facilitate remediation, on-demand vulnerability retest, and Q&A features. Web-based API enables users to integrate vulnerability data with critical development software and security information systems.
