Pro-Link, Inc    Canton, MA 02021
Mar 04, 2008 Made of recyclable components, Radiant Standard Air Care System requires no batteries and has no propellants, making it totally noise-free. Requiring two D-cell batteries, Radiant Power Air Care System features fan, which allows it to quietly disperse malodors and freshen restrooms. Unit automatically turns on for 5 sec and then off for 15, ensuring consistent and constant odor control.

S.I.E. Computing Solutions, Inc.    Brockton, MA 02301

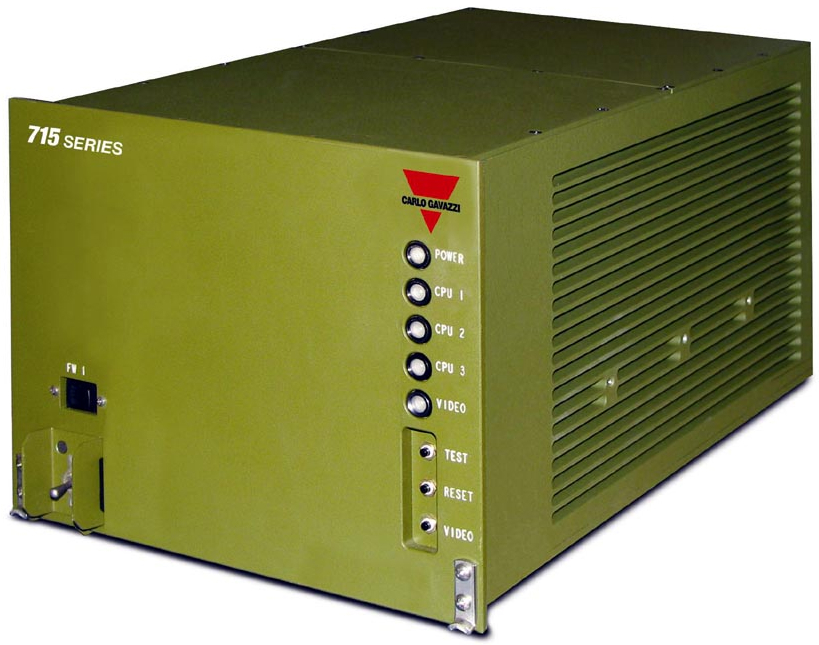

Mar 04, 2008 Engineered to protect COTS cards in caustic environments, 715 Series withstands extremes in temperature, vibration, humidity, and contaminants. Solution functions as conduction cooled system on outside, but uses re-circulating fan on inside to transfer circuit card heat energy to conducting walls. No outside air is drawn in to cool system, eliminating chance of dust ingress. Offered in custom form factors, enclosure has brazed aluminum frame and is offered with scalable power options.

Material Transfer & Storage, Inc.    Allegan, MI 49010 0218

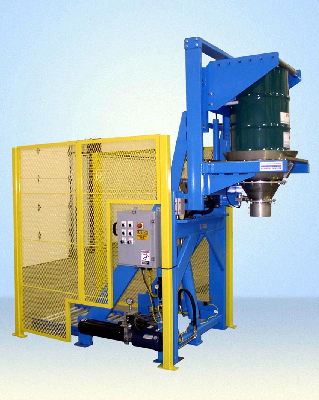

Mar 04, 2008 Equipped with Lift and Seal(TM) System, Drum Handling System includes 304 stainless steel pour cone and adjustable metering valve for dust-tight discharge and feeding of various dry solids and powders. Unit allows operator to load, seal, invert, and discharge variety of drum sizes at height specifically engineered for application needs.

ERNI Electronics, Inc.    Midlothian, VA 23112

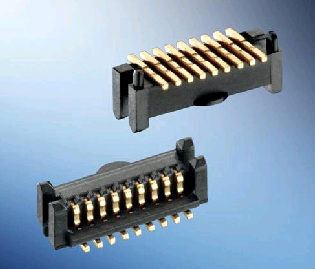

Mar 04, 2008 Available in 9- and 14-pin versions with 0.8 mm pitch, MicroStac® Series features hermaphroditic design, where connector and counter-connector are identical and subdivision of male and female multipoint connectors is omitted. Stability of miniature components is supported by tilt-proof contact principle with dual side positioning of contact on PCB. Featuring temperature-resistant insulating body and SMT construction, subminiature connectors allow for automatic assembly.

Williams & White Machine Shop, Ltd.    Burnaby, BC V5B3B3  Canada
Mar 04, 2008 Available in multiple lengths ranging from 60-240 in., KGDM Vertical Spindle Surface Grinder comes equipped with through spindle coolant as standard. Carriage travel incorporates linear bearing technology, while CNC control of grinding stone down feed enables resolution up to 0.0001 in. Offering 360° rotation, magnetic chuck allows specialty fixtures to be mounted to backside of magnet while maintaining precision ground surface on magnet face.

Parker Hannifin Corp., Hose Products Division    Wickliffe, OH 44092 1797

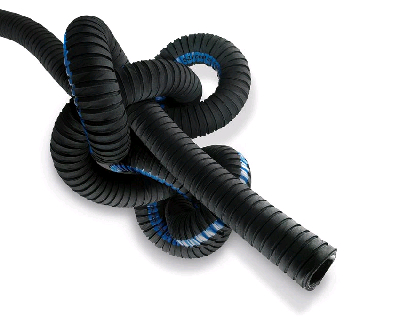

Mar 04, 2008 Available in sizes from ½-4 in. ID, E-Z Form Hoses come in versions for oil-based and water-based fluids. Both are rated to 75 psi max recommended working pressure as well as for full vacuum or suction applications. Standard hose length is 25 ft, however lengths up to 130 ft are available. Hoses can be used where formed hoses were required because conventional industrial hose products were not able to bend tightly enough without kinking.

Thomas Products Division    Sheboygan, WI 53081

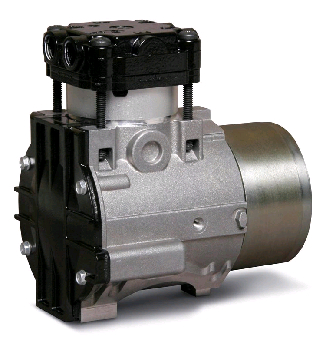

Mar 04, 2008 Measuring 4.25 x 4.54 x 3.02 in. and weighing 1.9 lb, Series 250 WOB-L® air compressor and vacuum pump delivers variable output from 1,000-3,000 rpm utilizing brushless DC motor, enclosed crankcase, and WOB-L® piston technology. Unit features max flow of 1.0 cfm, max pressure of 30 psig, and max vacuum of 22 in. Hg.

Sumitomo Electric Carbide    Mount Prospect, IL 60056

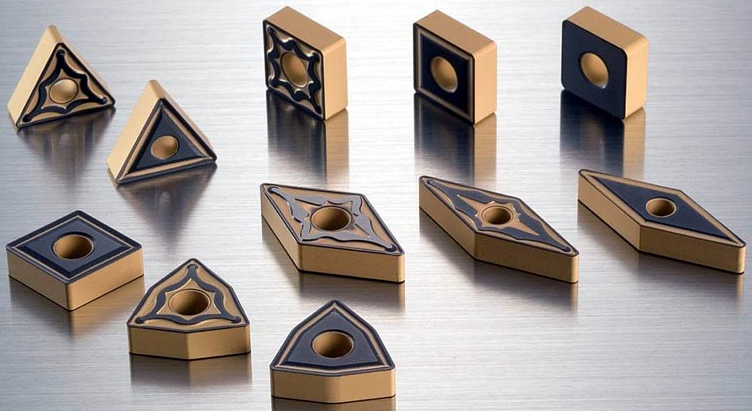

Mar 04, 2008 Comprised of 2 coating layers over hard carbide substrate, wear-resistant AC410K grade is available in positive and negative insert styles to respectively cover light- to medium-duty and light- to rough-cutting applications. Inner Super FF Alumina layer provides thermal resistance, while outer Super FF TiCN layer offers chipping resistance. Both provide peeling resistance and lend to overall insert stability during continuous to light-interrupted machining of gray/ductile cast iron.

ITW Rocol North America    Glenview, IL 60025
Mar 04, 2008 Featuring natural, environmentally safe formulation, Accu-Lube LB4600 provides lubricity required for sawing and machining of aluminum in near-dry (MQL) machining operations. Non-toxic and biodegradable product, recommended for non-ferrous machining processes, has additive-fortified and mineral oil-free base oil made from renewable vegetable resources. Non-staining and odorless, this purple lubricant can be burned off during post heat-treat processes.

AMETEK Test & Calibration Instruments    Largo, FL 33773

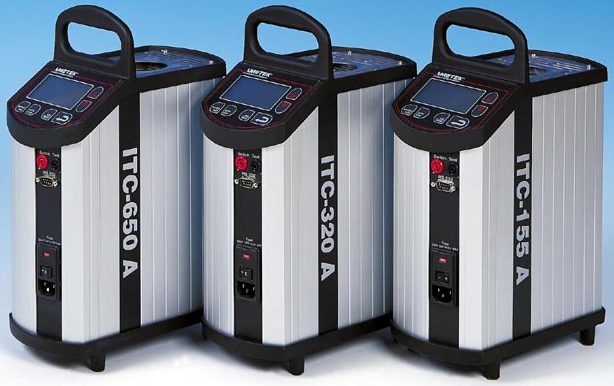

Mar 04, 2008 Accurate to +0.05°C, JOFRA ITC series consists of 3 models that cover -23 to +155°C (ITC-155), 33 to 320°C (ITC-320), and 33 to 650°C (ITC-650) temperature ranges. Dual-zone heating block promotes temperature homogeneity in critical calibration zone, minimizing need to insulate sensors-under-test and making it possible to calibrate liquid-filled and other mechanical sensors, while MVI circuitry ensures stable temperatures even when mains voltage is unstable.

Stanley Assembly Technologies    Cleveland, OH 44143-2328

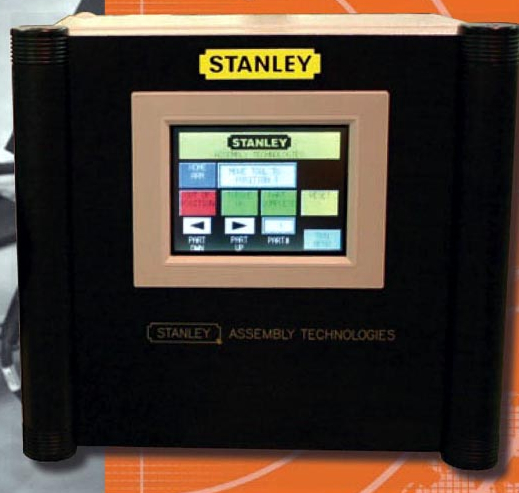

Mar 04, 2008 Utilizing position monitoring technology, Tool Position System (TPS) keeps track of assembly tool location and can set specific control parameters for each fastener. It is available for articulating arms from 10-4,000 Nm, and sequence of XYZ fastener positions can be programmed to ensure assembly to specifications. Along with 5 or 10 in. color touchscreen HMI, other features include socket tray option, PLC with built-in power supply, Teach mode, and part pattern storage.

Gore, W. L., & Associates, Inc., Sealant Technologies Group    Elkton, MD 22222

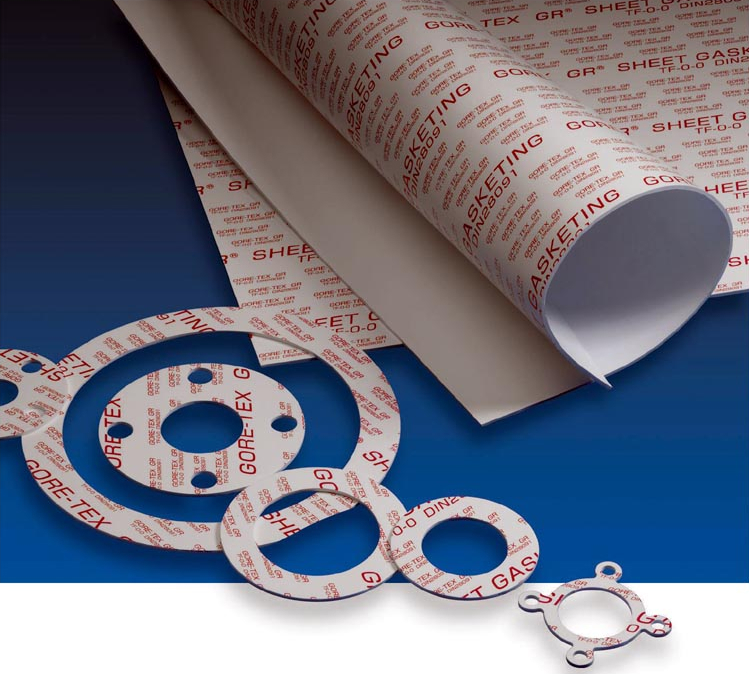

Mar 04, 2008 Made from 100% expanded PTFE, GORE(TM) GR sheet gasketing withstands creep relaxation and promotes performance at elevated operating temperatures. Sheet integrity helps prevent fractures that can occur due to improper gasket loading in circumstances such as extreme flange deviation and misaligned flanges. Able to be used in most types of sealing applications, product is impervious to chemicals, suitable for use from -450 to +600°F, and withstands pressures to 3,000 psig.

Yamaha Robotics    Edgemont, PA 19028

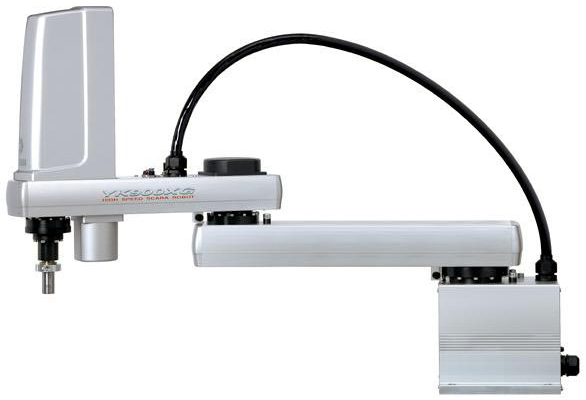

Mar 04, 2008 Designed with minimal parts for reduced maintenance concerns, YK900XG uses long-life grease and features directly connected (belt-less) motor and reduction system for Z and R axes. Absolute type resolver is used for position detector, eliminating need for return-to-origin action, and positioning accuracy is +0.02 mm for XY axes. Piping and wiring can be designed in compact layout, and special controller is available to facilitate execution of complicated operations.

Mass-Vac, Inc.    North Billerica, MA 01862 0359
Mar 04, 2008 Constructed from 304 stainless steel and available with ISO-160 flanges, MV Multi-Trap® 16 in. Vacuum Inlet Trap features knock-down stage, 2 stages of user-selectable filter elements, and cooling coils for removing condensable byproducts and corrosives from deposition process forelines. It is capable of up to 2,500 cu in. of solids accumulation and can be customized with various filter options to remove residual solvent vapor acids and particulates.

Stauff Corp.    Waldwick, NJ 07463
Mar 04, 2008 Resistant to effects of UV, ozone, and weather, LBBU Series facilitates hanging of pipe, hose, cable, and tubing. Clamp bodies are made of thermoplastic elastomer (87 Shore-A), which helps reduce vibration and noise. Single- and double-line clamp styles are available in sizes from 6-18 mm dia for applications where space is limited and noise must be minimized, such as hydraulics/pneumatics, mechanical and plant engineering, as well as instrumentation.

ON Semiconductor, LLC    Phoenix, AZ 85008

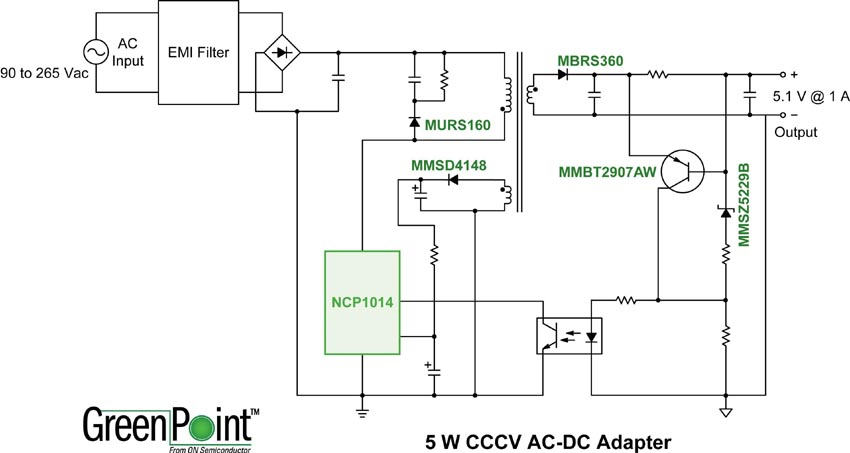

Mar 04, 2008 GreenPoint(TM) open reference design for 5 W AC-DC adapters for constant current, constant voltage mobile phone chargers achieves active-mode efficiency of 70% at 120 Vac and 65% at 230 Vac. In standby-mode, it consumes 75 mW at 120 Vac and 90 mW at 240 Vac. Addressing all functional blocks of adapter, reference design includes monolithic switcher; 1 A, 600 V Ultrafast rectifier; 3 A, 60 V Schottky rectifier; 100 V switching diode; 500 mW Zener diode; and PNP transistor.

Coleman Cable, Inc.    Waukegan, IL 60085

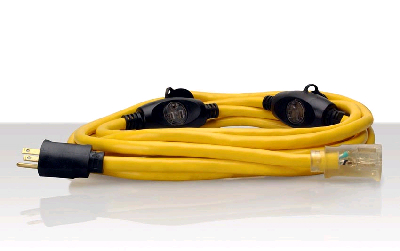

Mar 04, 2008 Available in 6 and 50 ft lengths with yellow jacket for safety and visibility, 12-gauge STW 600 V Cord Runner(TM) is suitable for workshops and job-sites that involve multiple tasks running in different areas. Each outlet has power indicator light to let user know when power is on. Outlet covers keep water and dust out, while outdoor-rated cord remains flexible even in coldest weather.

Custom Service Hardware    Cedarburg, WI 53012
Mar 04, 2008 Offered in 3 types, Hardware Kits feature quiet rollers and non-marring wheels. Kit contains 2 bottom rollers, 2 rolling top guides, 7 rung support rods for steps, fasteners, and instructions. Track kit includes 1 in. dia x 8 ft powder-coated black aluminum track, 2 end stops, support brackets and screws, and steel support dowels. Available in 8, 9, or 10 ft length, which user cuts to desired height, wood ladder kit offers choice of red oak, maple, or cherry wood ladders.

CONCOA    Virginia Beach, VA 23454

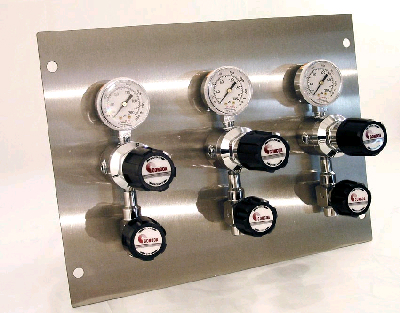

Mar 04, 2008 Suited for gas distribution systems, Series 53/54 can be configured with 1-4 regulators mounted on modular 308 SS panels. Series 54 features 445 SS or 435 brass barstock regulators, while Series 53 features 327 SS or 307 chrome-plated brass barstock regulators. Each regulator comes with diffusion-resistant diaphragm shutoff valve that ensures positive gas supply shutoff and maintains purity of gases. User can select from 5 delivery pressures for each regulator station from 0-15 to 0-500 psig.

Futek    Irvine, CA 92618

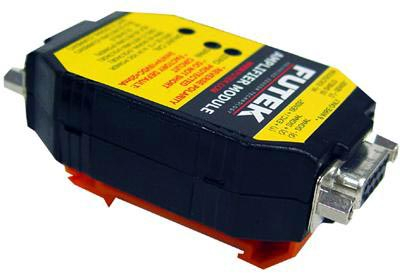

Mar 04, 2008 Suited for any full-bridge strain-gauge-type sensor, CSG110 Inline Signal Conditioner/Amplifier offers mV/V range output to provide VDC and/or 4-20 mA signal with built-in regulated bridge excitation source. It features plastic housing with mating DB9 female connector for power output side and DB9 male connector for sensor side, offering power supply range of 12-24 Vdc. DIN-rail-mountable, unit accepts inputs from transducer and converts them to standard current signal.
