Xspect Solutions Inc.    Wixom, MI 48393

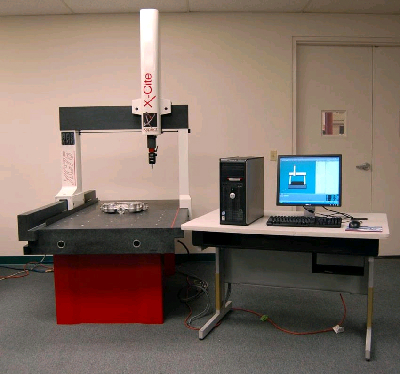

Apr 01, 2008 Combining granite table construction with individual axis locks, X-Cite(TM) Series utilizes OpenDMIS(TM) measuring software, which offers full CAD capabilities with Quick Measure(TM) feature for hands-free inspection. Model 5.6.4 provides measuring range of 500 x 600 x 400 mm with volumetric measuring accuracy of 3.5 + L/300; while Model 7.8.5 has measuring range of 700 x 800 x 500 mm with 4.5 + L/250 accuracy. Models 7.10.5 and 7.15.5 allow measurement of parts 1,000 and 1,500 mm in length.

IKey Ltd.    Austin, TX 78754
Apr 01, 2008 Available with single USB cable option, DU-5K-TP2 integrates Synaptics touchpad and 2 buttons below it that serve as left- and right-click mouse buttons. Touchpad can also be used for clicking and selection purposes, but buttons facilitate operation. Fully sealed, keyboard features industrial silicone rubber keypad and ABS polycarbonate base. It measures 15 x 6.5 x 1.5 in. and meets NEMA 4X specifications for resistance to water, dirt, dust, and corrosive liquids.

Photovac Inc.    Waltham, MA 02451 1166

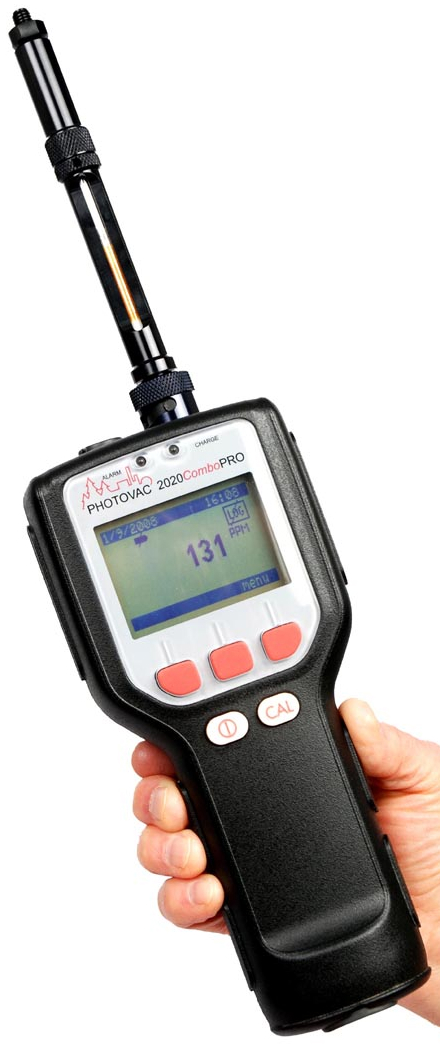

Apr 01, 2008 Rated intrinsically safe for explosive environments, 2020ComboPRO utilizes photoionization detection (PID) technology to detect ethanol leaks in ethanol fuel production plants. Portable instrument has 0.1-10,000 ppm measurement range and meets/exceeds requirements of NSPS Subpart VV specific to EPA Method 21 for fugitive emissions. Critical data is displayed in less than 3 sec, and audible/visual alarms alert operator when pre-defined limits are exceeded.

Pericom Semiconductor Corp.    San Jose, CA 95131

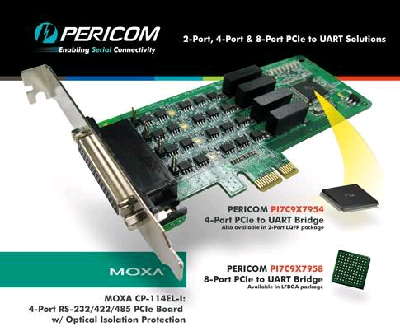

Apr 01, 2008 Integrating complete PCI Express interface bridge with multi-protocol UART controller, SBridge Series supports baud rates to 62.5 Mb/sec and comes in 2-, 4-, and 8-port models. RoHS-compliant units include customer programmable EEPROM port and software drivers for Windows and Linux. Family fully meets requirements of PCI-SIG PCIe 1.1 and PCI 1.2 specifications.

Loadstar Sensors, Inc.    Mountain View, CA 94043

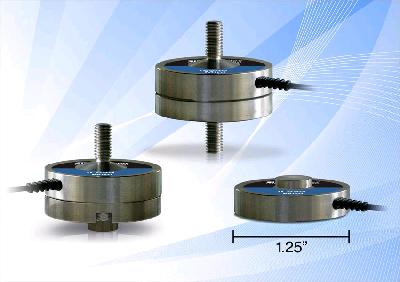

Apr 01, 2008 Based on capacitive Plug and Sense technology, iLoad Mini accepts 5 Vdc input and outputs baseline 5 V TTL frequency signal proportional to applied load. Load signal is complemented by reference signal, which is sensitive to environmental effects such as temperature and humidity. Secondary signal can be used to compensate baseline signal for temperature and humidity effects. When used with DQ-1000 interface board, load cell produces digital USB or analog outputs of 0.5-4.5 V or 2 mV/V.

Columbia Weather Systems, Inc.    Hillsboro, OR 97124

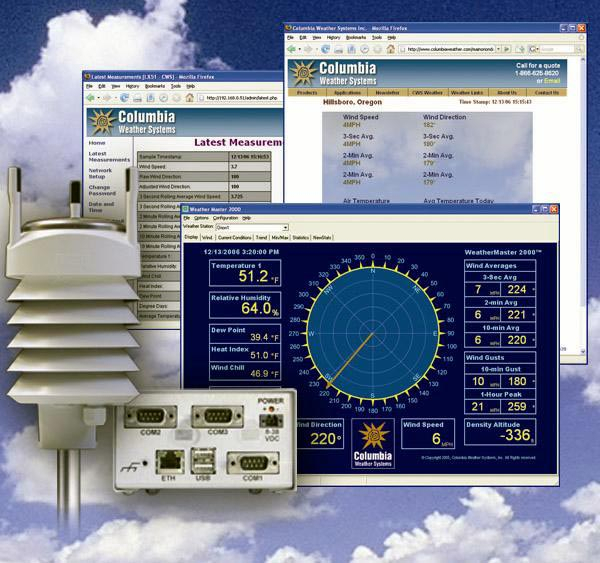

Apr 01, 2008 Weather MicroServer includes Modbus TCP/IP interface for communication with industrial automation systems and OPC servers. Also featuring XML, SNMP, and FTP communication protocols, system interfaces with any CWS weather station to provide range of weather sensor and monitoring options. It creates Internet-ready system by automatically providing FTP output, XML web service, and Internet browser user interface.

Omega Engineering, Inc.    Stamford, CT 06907

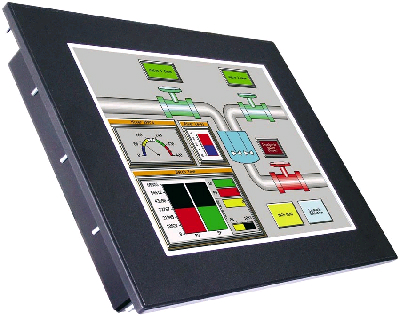

Apr 01, 2008 Programmable in 10 min, EZ Series Touchpanels come in 8 display sizes featuring optimized data acquisition, 3D graphical objects, fast response to touch input, and 8 levels of password security with programming software. Units are suited for any industry that uses factory automation, including food processing and automotive and electronic assembly.

Omega Engineering, Inc.    Stamford, CT 06907

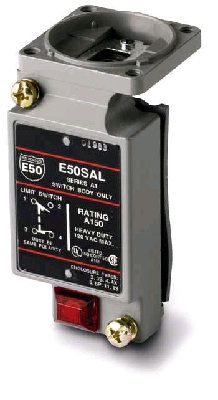

Apr 01, 2008 Supplied with FKM gaskets, seals, and boots, Series E50 features zinc die cast enclosures for chemical resistance to common coolants, cleansing agents, and hydraulic fluids found in machine tool, automotive, wastewater treatment, and other heavy-duty industrial applications. Bright indicating LED facilitates setup and troubleshooting operations.

Omega Engineering, Inc.    Stamford, CT 06907

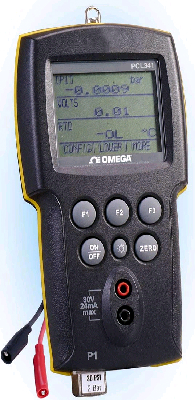

Apr 01, 2008 Featuring isolated SS pressure sensors, Models PCL341 and PLC342 measure 4-20 mA loop current and up to 30 Vdc. Graphic-style LCD with backlight features triple display screen, which shows process voltage and current, temperature, and pressure. With operating mode layers supporting simple and complex applications, calibrators are suited for gas flow applications and industries where pressure and temperature measurements are needed.

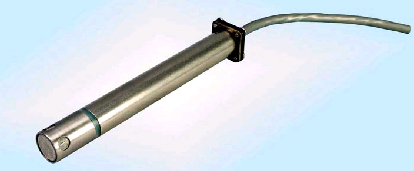

Omega Engineering, Inc.    Stamford, CT 06907
Apr 01, 2008 Suited for most relative humidity monitoring applications, HX71 Series is factory-calibrated and can be wall or duct mounted. Units feature shielded output cable with stripped wire leads, and linearized current or voltage output that permits interfacing with most display and control devices such as meters, controllers, recorders, and data loggers. Applications include laboratory environmental monitoring, food processing, and HVAC.

Gleason Corp.    Rochester, NY 14692 2970
Apr 01, 2008 Employing carbide substrates and coatings, OPTI-CUT(TM) Series is designed for gear gashing, shaping, and hobbing. Wear is accommodated by indexing inserts to new cutting edge, with 4 edges available before insert needs to be replaced. For secure clamping, insert screw clamping system uses angled clamping screws rather than screws that clamp at right angles to insert. Cutters are suited for industries where large cylindrical gears are used including mining and power generation.

FOCUS Electronic Co., Ltd.    Taipei   Taiwan
Apr 01, 2008 Providing effective range of 10 m and max range of 30 m, Model FK-760 includes optical trackball with 800 and 1,000 dpi resolution, and 360° navigation system that enables accurate position control. Multimedia hot keys are provided for e-mail, My Favorite, back, forward, copy, paste, media, play/pause, and stop.

Universal Instruments Corp.    Binghamton, NY 13902 0825

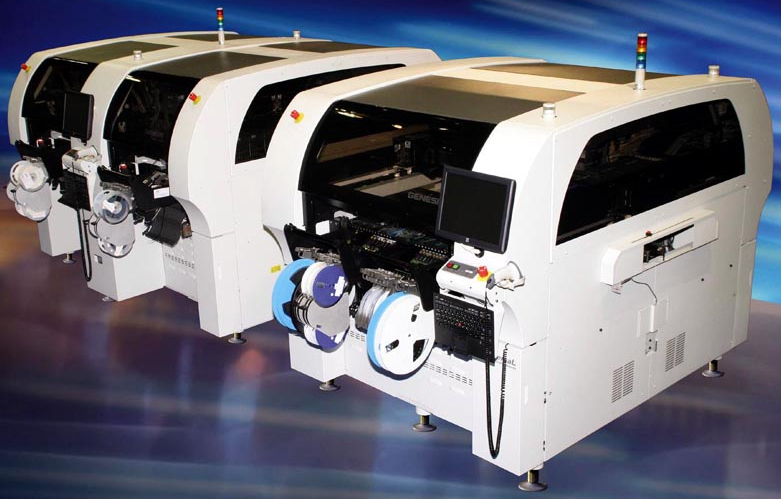

Apr 01, 2008 Targeted at mid-tier assembly sector, AdvantisX surface mount platform features linear motor positioning system and is available in single- as well as dual-gantry models empowered by Lightning Head technology. Platform is also offered in several multifunction configurations utilizing Inline7 and Inline4 High Force flexible heads.

OMAX Corp.    Kent, WA 98032

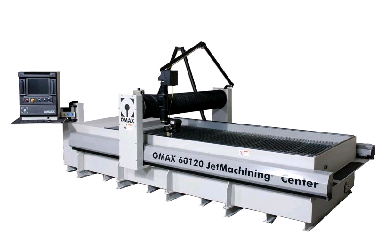

Apr 01, 2008 Designed for shops that specialize in cutting thick, difficult-to-machine materials, Dual Pump Package operates both pumps at optimum efficiency and offers seal life in excess of 500 hr. Direct drive plunger pump, Model P4055V is driven by variable speed electric motor for variable output pressure. Based on single design platform, pump delivers more than 90% of electrical input power to cutting nozzle. Variable frequency drive prevents in-rush of current upon starting pump.

Humphrey Products    Kalamazoo, MI 49003
Apr 01, 2008 Available in 2, 4, 6, 8, or 12 station lengths, 410M Series accommodates 310/410 Series inline pneumatic valves. Units contain one common media supply port, one common vent/exhaust port, and isolator plugs that permit isolation of galleys for separation of pressure, media, or exhaust. Other accessories include manifold station block-off plates, separate air supply plate, electrical sockets, valve mounting kit, DIN rail clips, and separate 12-station control board.

Bosch Rexroth Corp.    Hoffman Estates, IL 60192

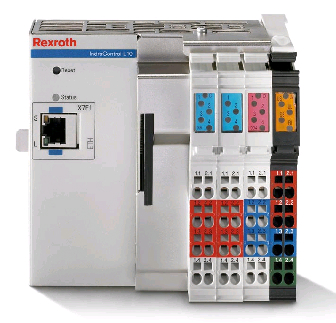

Apr 01, 2008 Equipped with pre-developed machine functions, reusable code, and unified programming software, OPC-compliant IndraControl L10 PLC helps cut engineering time for machine builders who work with complex machines. Unit includes full megabyte of program storage along with Ethernet port for remote access or SCADA functionality. With expandability up to 256 I/O, PLC is suited for general automation, printing, converting, packaging, and machine tool industries.

Agilent Technologies, Inc.    Santa Clara, CA 95051

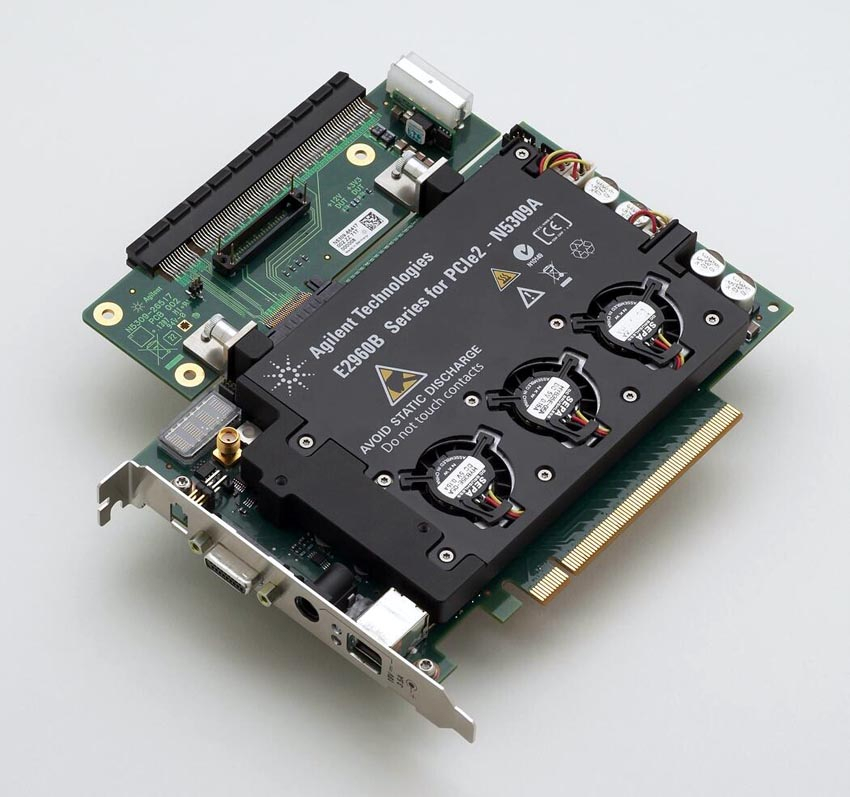

Apr 01, 2008 Protocol Test Card (PTC) 2.0 allows engineers, with single mouse click, to run all tests specified by PCI-SIG and view detailed results through intuitive HTML report. It includes test package suite of 180 additional tests comprised of 94 transaction-layer tests, 31 link-layer tests, 57 configuration-space tests, and 1 electrical-layer test. HTML report displays failed tests in red, warnings in yellow, and passed tests in green.

Microchip Technology, Inc.    Chandler, AZ 85224 6199
Apr 01, 2008 Offered in 28- and 44-pin packages, 16-bit dsPIC® Series includes dual-channel, 100 ksps, 16-bit audio DAC for designers who require optimized audio performance or wish to add audio playback to embedded applications. Units are DMA-enabled with 2 Kbytes of dual-port RAM to eliminate CPU overhead during data transfer. All models feature 16 Kbytes RAM and 64 or 128 Kbytes Flash memory. To process, compress, and decompress audio data, controllers feature full DSP capability.

Slideways, Inc.    Worcester, MA 01605

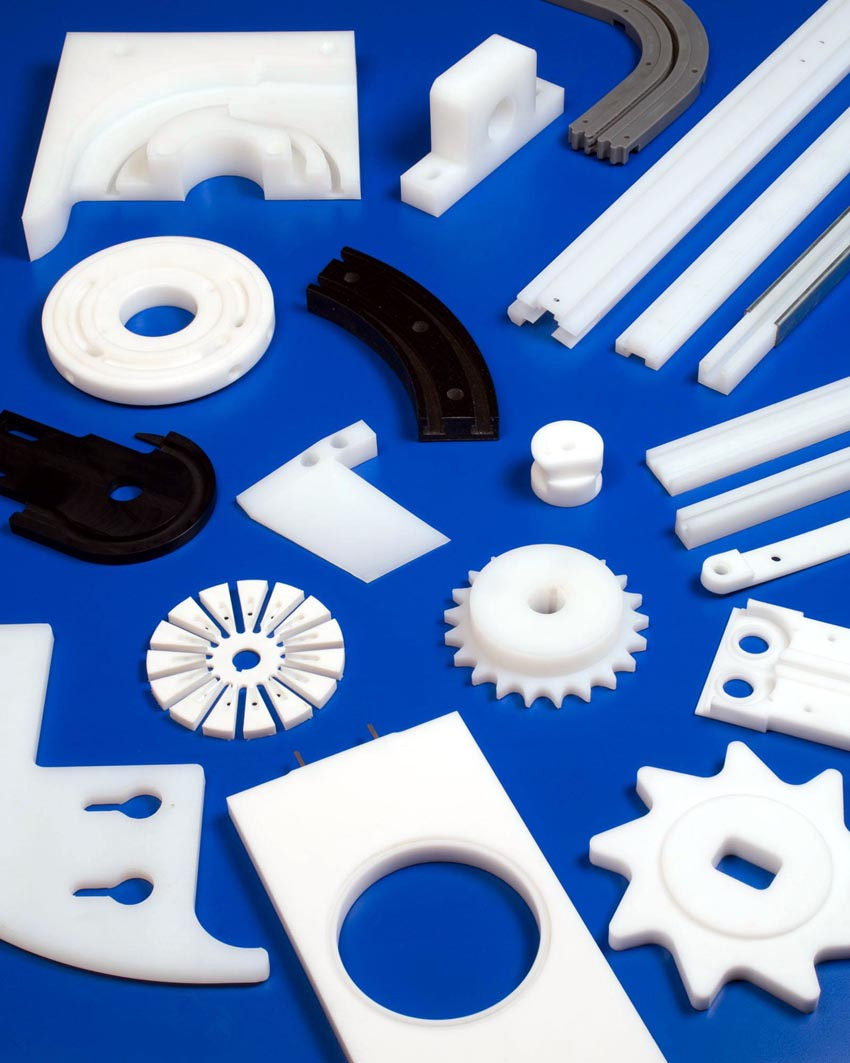

Apr 01, 2008 Slideways Retrofit Plastic Wear Components can be reverse engineered from existing drawings and custom machined from various types of plastic to duplicate existing parts or provide users with material upgrades. They provide tolerances to ±0.0005 in. and surface finishes to 16 rms, depending on material. Components can be machined from oil-filled nylon, MD-nylon, acetal, glass filled PTFE, UHMW, and UHMW-HT. Applications include processing and packaging equipment as well as conveyors.

Astrodyne Corp.    Mansfield, MA 02048

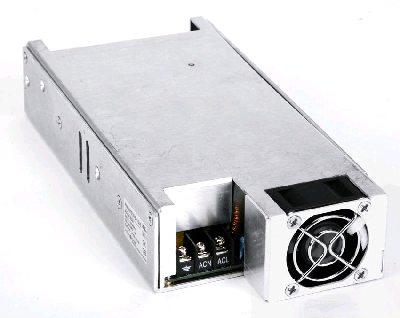

Apr 01, 2008 Accepting input from 90-264 Vac, PMK320 Series includes 6 models that provide single outputs from 5-48 Vdc. Units are housed in aluminum enclosure with fan and screw terminals for I/O connections. Approved for UL/EN60950-1 safety specifications, power supplies provide power densities up to 6 W/cu-in. and offer 2 fully enclosed mounting options with or without DIN rail mounts. Operating from -10 to 50°C, units feature remote on/off and remote sense to 0.5 V compensation.
