Tape O Corp.    Dover, NH 03820
Mar 19, 2008 Designed for use as compression wrap after blood and plasma collection, COHERE® non-woven cohesive bandage maintains consistent non-slip compression, yet is soft, flexible, and porous. It sticks only to itself and never leaves residue. Utilizing woven fabric, COTEAR(TM) tears by hand in both directions. Both come in latex-free and latex types. Individually wrapped rolls are 1, 1 ½, 2, 3, or 4 in. wide x 5 yards and available in assorted colors.

HARTING, Inc. Of North America    Elgin, IL 60123 5538

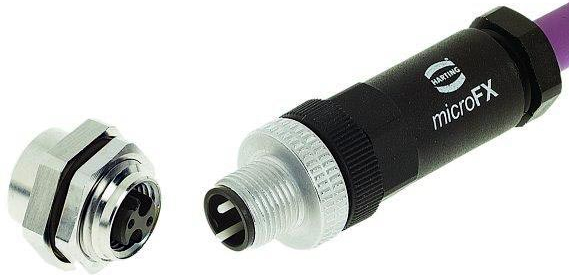

Mar 19, 2008 Suited for hazardous industrial environments, M12 microFX data transmission system is comprised of active transceivers with diagnostic function for optical data transmission up to 125 Mbps as well as corresponding connectors for multimode glass fiber. In addition to 2 optical contacts for data transmission, 2 electrical contacts for power supply of devices linked by microFX are integrated into connector. Passive coupling units are also included.

Dwyer Instruments, Inc.    Michigan City, IN 46361 0373
Mar 19, 2008 Model MN-1 Mini-Node Communication Signal Converter transforms half duplex RS-485 serial communications signals into those that can be read by any computer with USB port. While integral USB connector and RJ-45 connector minimize set up time by eliminating extra wiring, USB-powered design also eliminates need for external power source. Solution consumes 0.4 W of power and supports baud rates from 75-115,200 bps.

HARTING, Inc. Of North America    Elgin, IL 60123 5538

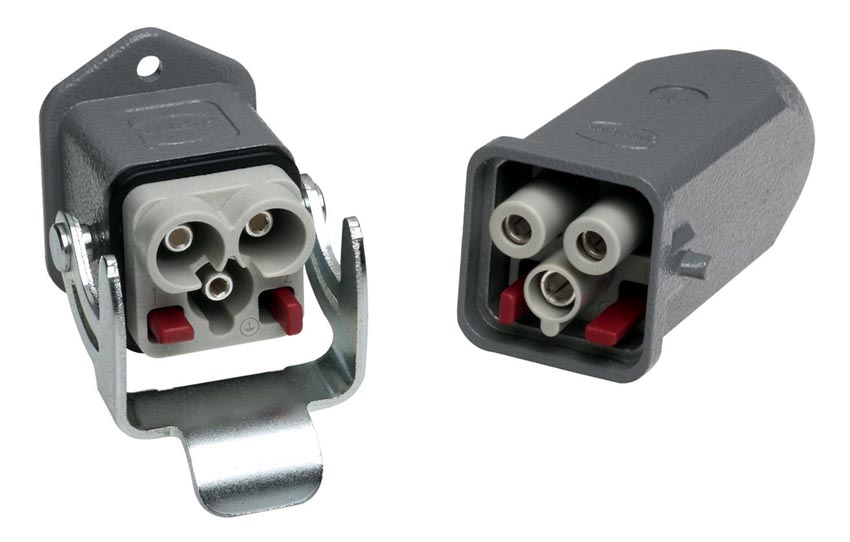

Mar 19, 2008 Able to be combined with wide range of Han 3A hoods and housings, Han® Q2/0 insert enables termination for wires from 12-10 AWG. Device features 2 + PE contact configuration complemented by coding system that prevents incorrect mating. Designed to withstand up to 830 V, it is suited for applications found in decentralized power supplies, lighting and signaling equipment, and with photovoltaic systems.

HARTING, Inc. Of North America    Elgin, IL 60123 5538

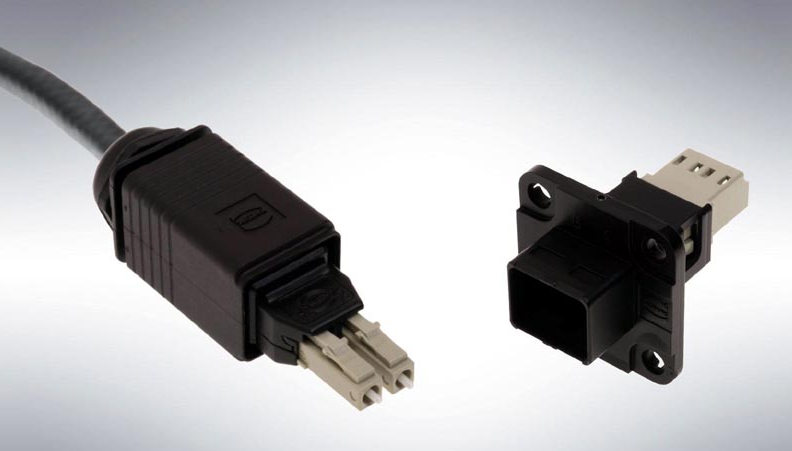

Mar 19, 2008 HARTING PushPull LC Duplex integrates PushPull technology with inserts for fiber optic systems. Integration of standard LC fiber optic connectors, in single-mode and multimode, is suitable for harsh outdoor environments. Robust interfaces also offer vibration and IP 67/65 protection as standard. Connectors are suited for applications such as FTTA (Fiber To The Antenna), FTTH (Fiber To The Home), or WiMAX.

HARTING, Inc. Of North America    Elgin, IL 60123 5538
Mar 19, 2008 HARTING Micro Card Edge Data (MCE) connector is aimed at board-to-board mezzanine or small pluggable daughter card applications. Suitable for data transmission rates up to 14 Gbps in telecommunication, medical, and industrial applications, connector is available with 40 and 100 contacts in pitch of 0.8 mm. It offers features for SMT reflow soldering and features tape and reel packaging with pick and place pad for vacuum nozzle.

SICK STEGMANN, INC.    Dayton, OH 45413

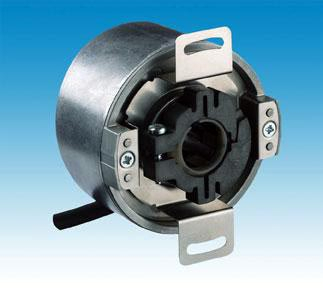

Mar 19, 2008 Suited for use in dirty or dusty environments with water washdown cleansing, VFS 60 Motor Feedback Systems come with single point of potential access. Hollow shaft encoders feature nickel code disc that facilitates operation in harsh industrial environments and tolerance to temperatures as high as 100ºC. They are IP65 rated and deliver from 1-10,000 ppr in industry-standard 60 mm housing. Ball bearings that support encoder shaft are spaced 30 mm apart to ensure concentricity.

Aremco Products, Inc.    Valley Cottage, NY 10989
Mar 19, 2008 Aremcolox(TM) 502-1550-LD is low expansion, zirconia phosphate machinable ceramic that can be used to produce high temperature fixtures and insulators used in brazing, heat treating, optical, and semiconductor applications. It features 0.5 ppm/°F coefficient of thermal expansion (CTE), compressive strength of 25K psi, dielectric strength of 80 V/mil, and thermal conductivity of 5.3 Btu-in/hr-ft²-°F. Completely inert ceramic does not react with most molten metals, salts, and acids.

Universal Flow Monitors, Inc.    Hazel Park, MI 48030

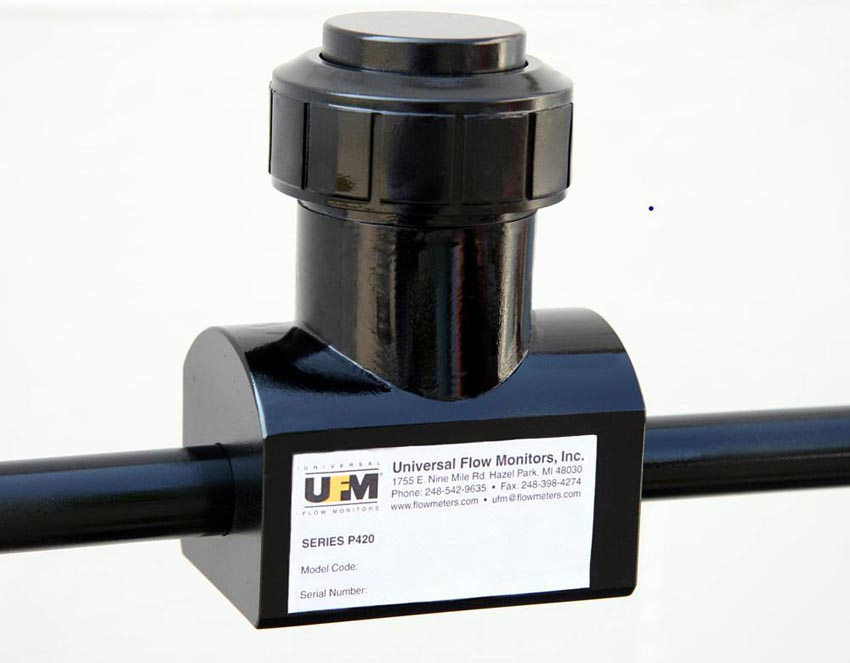

Mar 19, 2008 Suited for water, chemicals, brine, corrosives, and low-viscosity pure liquids, P420 Series vortex-shedding flow meters meet requirements of water desalination, chemical, and water treatment operations. Non-mechanical meters have no O-ring seals, and are designed to transmit low-viscosity liquids that are compatible with PVC, including liquids that contain particles. Units are available in ½, ¾, 1, 1½, and 2 in. pipe sizes with 12, 25, 50, 100, and 200 gpm flow rates, respectively.

Master Bond, Inc.    Hackensack, NJ 07601
Mar 19, 2008 One component, optically clear, non-yellowing UV15-7DC is designed for bonding, sealing, and coating applications. Cure times range from 5 sec to 2-3 min depending upon wave length, intensity of UV light, and thickness being cured. Heat curing schedules are 10-30 min at 250-260°F. System adheres to glass, metals, plastics, polyester films, and polycarbonates, and exhibits Shore D hardness of greater than 70 and elongation of 65-75%. Tensile strength is 5,460 psi.

MTS Systems Corp. - Sensor Div.    Cary, NC 27513
Mar 19, 2008 Temposonics® MT sensor is designed to be embedded in welded and tie-rod style cylinders or any space-limited cylinder application. Sensor provides measuring range of 50-1,500 mm with less than 0.04% FS linearity and less than 0.005% FS repeatability. Suited for mobile hydraulics applications, it operates over -40 to +105°C temperature range, and comes standard with cable connection that is compatible with typical mobile equipment electrical connector requirements.

Mainstream Engineering Corp.    Rockledge, FL 32955
Mar 19, 2008 Designed for removing system-damaging residual oil, moisture, and acid, Qwik System Flush(TM) leaves no residue if system is properly evacuated down to 25 in. of mercury. It does not evaporate prematurely or contain decafluoropentane and other solutions that can contaminate service technician and environment. Biodegradable flush is available in 2 lb recyclable aluminum canisters containing enough flush to clean 10 ton air conditioning or refrigeration system.

PCB Piezotronics Inc.    Depew, NY 14043 2495
Mar 19, 2008 Designed for NVH powertrain and vehicle underhood testing applications, Model HT426E01 high temperature preamplifier operates from ICP® sensor power, terminating with BNC connector and utilizing standard coaxial cables. With ability to operate to +120°C, it measures ½ in., and features noise characteristics of 4.9 µV based on A-weight scale. Common automotive applications include underhood measurements, near-field measurements on manifolds, and exhaust after treatment components.

National Semiconductor Corp.    Santa Clara, CA 95051-0695

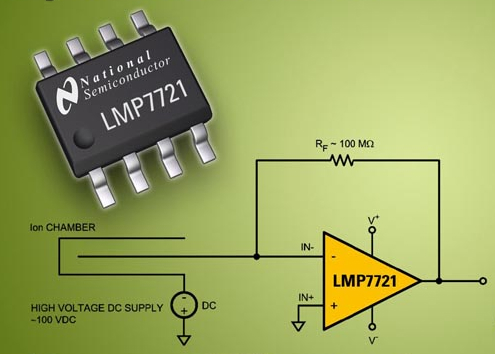

Mar 19, 2008 Operating at room temperature and over extended temperature range of -40 to 125°C, Model LMP7721 provides wide gain bandwidth of 17 MHz while consuming only 1.3 mA of current. It includes input voltage noise of 6.5 nV/sqrt Hz, dc offset voltage of ±150 µV max at 25°C, and offset voltage temperature coefficient of 1.5 µV/°C. Available in 8-pin SOIC package, device suits battery-operated portable applications and electrochemical sensor interface circuitry.

Phoenix Contact    Harrisburg, PA 17111 0100

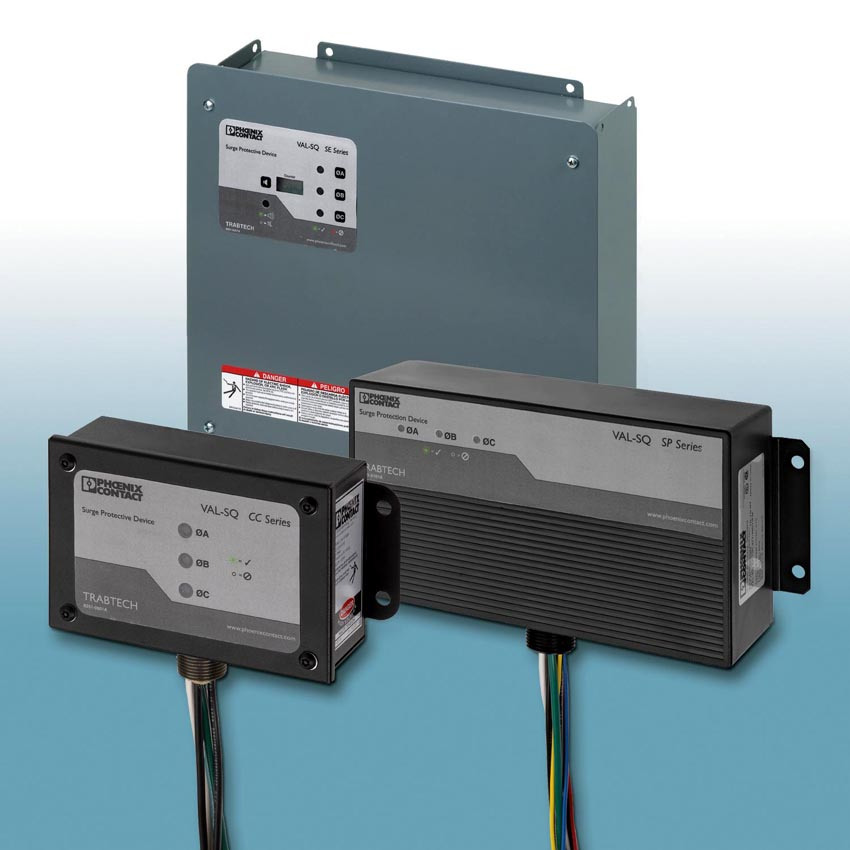

Mar 19, 2008 Featuring status LEDs, audible alarms, sine wave tracking filtration, and function monitoring, NEMA-style VALVETRAB-SQ series comes in 3 versions. VAL-SQ CC with 40,000 A rating, is for installation in control cabinet or directly to critical equipment, while VAL-SQ SP (80,000 or 120,000 A) can be installed adjacent to sub-panels or directly to equipment. VAL-SQ SE (120,000, 160,000 and 200,000 A) is for service entrance and remote locations in industrial/medical/commercial applications.

ITT Electronic Components    Santa Ana, CA 92705

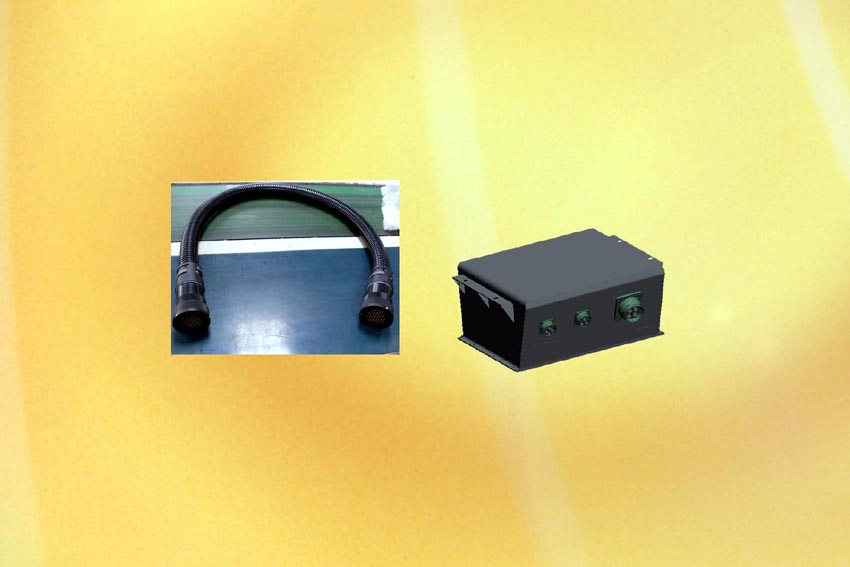

Mar 19, 2008 Approved to IP66 standards, VEAM junction box assembly contains complete harnessing system, including terminal blocks, cables, and electrical components. It is designed for control switchboard connections between vehicles, tilting systems, CCTV equipment, inter-vehicle connections, power and signal connections, and motor supplies up to 660 A. Power and signal contacts on components are rated to 400 A, and complete system is tested to electrical, shock, and vibration specifications.

Topline Innovations LLC    Tewksbury, MA 01876
Mar 19, 2008 Made with stainless steel and fiberglass, AngLevel Multi-Purpose Measuring Tool performs same functions as torpedo level, speed-square, T-bevel, plumb bob, and mini-T-square. Able to level up to 16 in., tool includes 1/8 and ¼ in. pitch for drainage. Body of tool displays 1-20 pitch lines simultaneously with degree dial that ranges from 0-90° in 5° increments. Ruler rotates 360°, while compass feature makes circles from 2-15 in. in ½ in. increments.

Performance Motion Devices, Inc.    Lincoln, MA 01773
Mar 19, 2008 Designed with Magellan(TM) motion control IC, Prodigy® Motion Control Cards deliver board-level, multi-axis motion control for dc brush, brushless dc, step, and microstepping motors. Units feature servo loop rate of 50 µsec/axis and are available in both PCI and PC/104 configurations. In addition to trace capture, cards provide trajectory generation, servo loop closure, quadrature signal input, motor output signal generation, on-the-fly changes, and commutation.

Thiele Technologies, Inc.    Minneapolis, MN 55418
Mar 19, 2008 Inserting paperboard, chipboard, or corrugated slip sheet between layers of 8 oz plastic bottles, slip sheet inserter eliminates slippage and prevents bottles from nesting into lower layers. Machine is capable of inserting 10 sheets/min and can be incorporated into any Thiele Pak Tek caser, creating fully integrated system capable of packaging more than 400 bottles/min. It can also be used to upgrade existing caser systems.

ThinGap LLC    Ventura, CA 93003
Mar 19, 2008 Suited for hand-held and battery-powered devices and machines, TGB2013 utilizes ironless-core motor technology, measures 2.0 in. dia x 3.87 in. long, and weighs 34 oz. It delivers 400 W (0.5 hp) of continuous shaft power with max efficiency of 86%. At 18 V, motor runs at 13,400 rpm, producing 40 oz-in. of torque while drawing 26 A. Linearity between torque and current allows peak torque of 240 oz-in.
