Viking Corp., The    Hastings, MI 49058 9706
Mar 24, 2008 VFR-400 includes 4 programmable class B initiating zones, 2 class B supervisory zones, and 4 programmable output circuits. Onboard, menu-driven programming with 12 pre-installed programs facilitates set-up. Panel is compatible with various initiating devices including linear heat detection, smoke and heat detectors, water flow indicators, low air pressure switches, and manual pull stations. The VFR-400 accommodates multiple voltage applications, including 110/220 V and 50/60 Hz.

Fox Electronics    Fort Myers, FL 33905 5022
Mar 24, 2008 Including ASICs, XpressO(TM) LVPECL and LVDS oscillators employ noise reducing DSM technology and low noise architecture, providing low jitter and phase noise levels. Models FXO-PC72 and FXO-LC72 offer 0.75 MHz to 1.0 GHz frequency range, stabilities as tight as ±20 ppm, and operate at temperatures of -20 to +70°C or -40 to +85°C. They are suited for low power applications including SONET, Ethernet, SAN, broadband access, microprocessors/DSP/FPGA, and industrial controllers.

ChoicePoint    Alpharetta, GA 30005
Mar 24, 2008 MARI Loan Fraud Alert Service (LFAS) is mortgage industry-contributed loan process database that enables lenders and investors to identify potential application risk and patterns of fraud and hidden relationships among transaction parties. It can help reduce mortgage fraud by comparing lender's loan-level data, which includes borrower, collateral, and professional information, against industry-contributed loan application data during origination process.

Paul N. Gardner Co., Inc.    Pompano Beach, FL 33060 6608

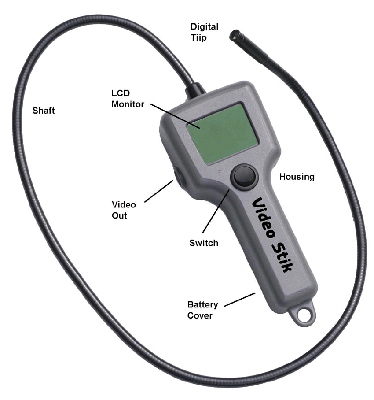

Mar 21, 2008 Featuring distal video camera at end of 36 in. shaft, Video Stik VS36-10WW provides internal inspection of engines, A/C systems, and interior structures of walls. Imaging and illumination are provided by full color image sensor and dual solid state LEDs, which are controlled by on/off rocker switch. Users can view live video from camera on 2.5 in. full color LCD screen. Operating for 5 hr on 4 AA batteries, scope comes in protective case with mirror and magnet accessories.

CS Unitec, Inc.    Norwalk, CT 06850
Mar 21, 2008 VARILEX WSF 1600 speed-controlled angle grinder features 12.27 A motor and infinite variable-speed control from 2,000-7,300 rpm. Designed for heavy industrial use, it weighs 5.2 lb and includes EASY-LOCK clamping nut and spindle lock button for changing discs and standard 5/8 in. 11 UNC spindle thread connection with balanced handle. Machine is available with safety guards from 4½-7 in. for use with various-size grinding discs of 4-7 in. dia.

Interstate Specialty Products    Sutton, MA 01590

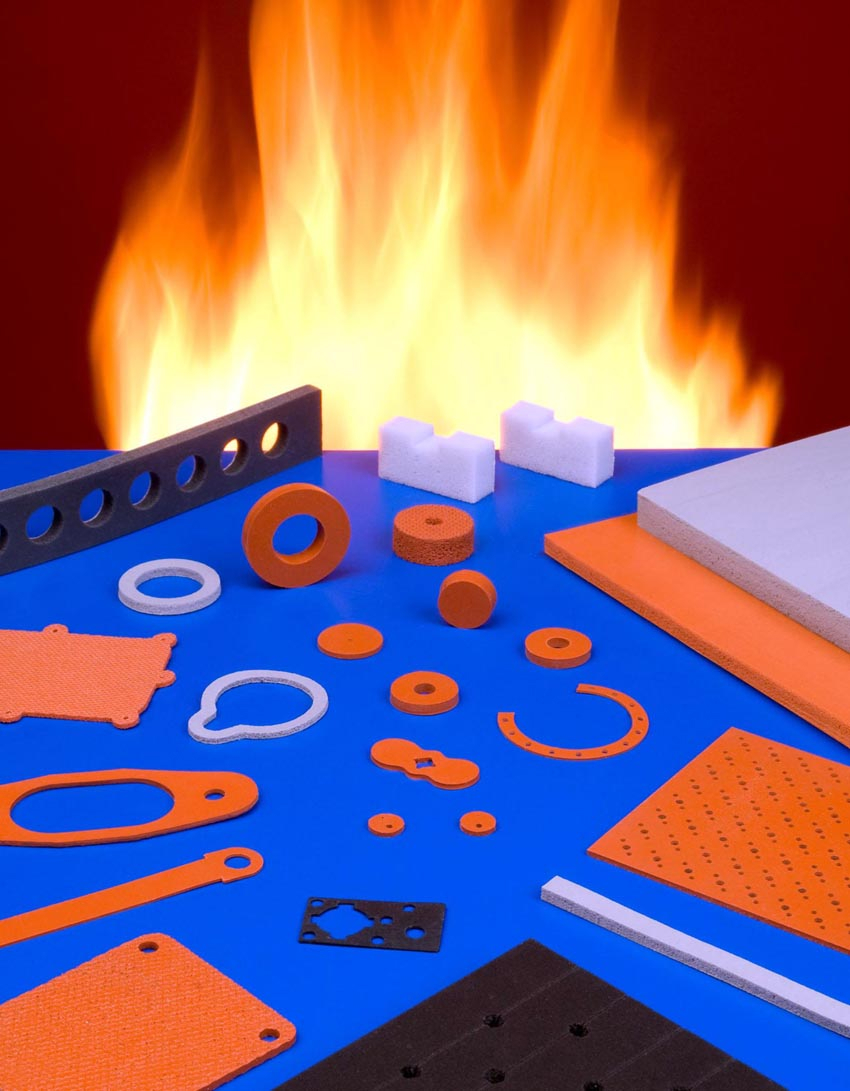

Mar 21, 2008 Interstate Cellular Silicone Gaskets and Seals are custom fabricated from open- and closed-cell substrates to match sealing, cushioning, vibration isolation, and insulation requirements. Designed to operate from -67° to +400°F, they are resistant to most chemicals and solvents and are available in closure forces from very soft to extremely firm. Products feature UL 94-0 HF-1 approvals and meet ASTM specifications for flame spread, smoke density, and low toxic gas emissions.

austriamicrosystems AG    Premstatten   Austria

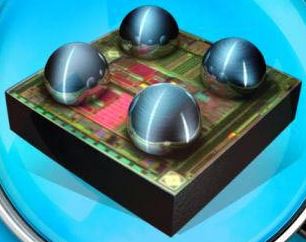

Mar 21, 2008 Supplied in 4-bump WL-CSP, AS1369 suits dual or triple standard cell as well as single Li-Ion cell battery-powered applications. It operates from 2-5.5 V and is available in various pre-programmed output voltages from 1.2-5.0 V, regulated with accuracy of 0.7%. Design allows use of 1 µF ceramic output capacitor, and no external bypass capacitor is needed. Along with low dropout voltage of 40 mV @ 100 mA, characteristics include quiescent current of 25 µA during operation.

Sprint Electric Ltd    Arundel East Susse BN18 0BE  United Kingdom

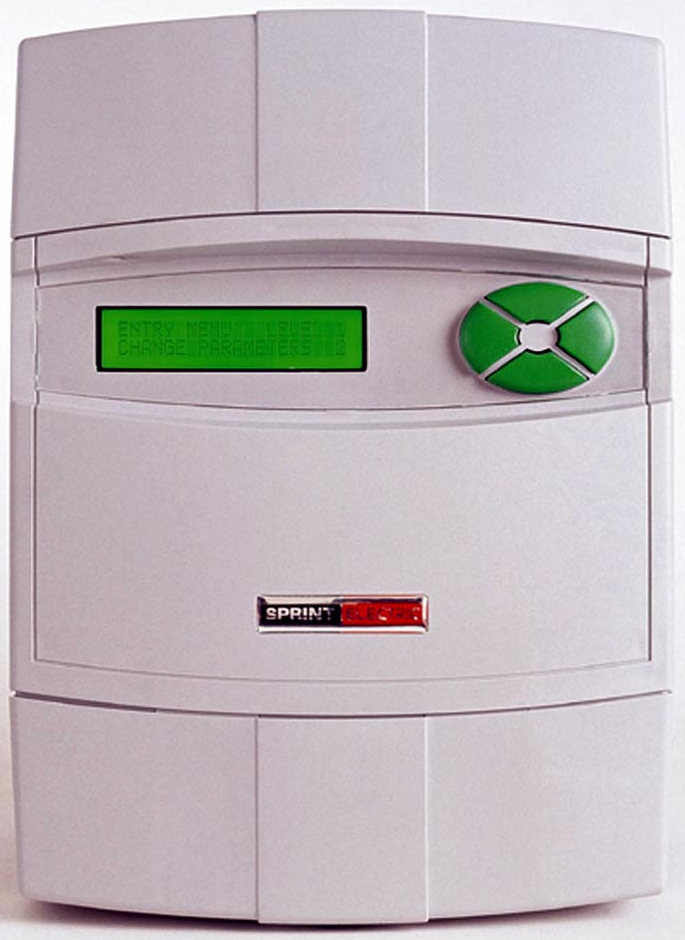

Mar 21, 2008 Used by system integrators, Programmable Logic Arithmetic unit (PLA) offers functionalities for diverse applications and motion tasks. Stand-alone unit can compliment and enhance any analog or digital drives system. Via range of configurable I/O to internal application blocks, PLA enables user to define control strategy to meet unique demands of process or application at hand. Connectivity is fostered by RS232 port and field bus communication card compatibility.

Cooper Lighting    Peachtree City, GA 30269

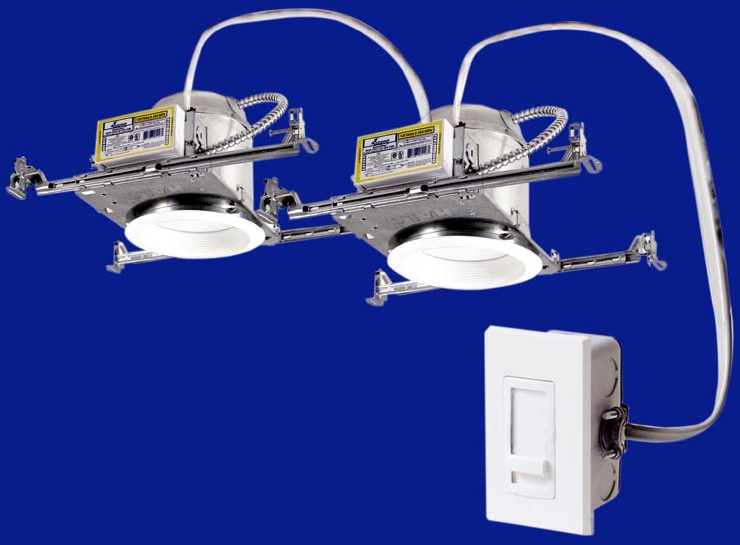

Mar 21, 2008 Halo compact fluorescent recessed downlights feature electronic ballasts and dimming capabilities from 15-100%. Available for 5 in. (H573) and 6 in. (H273) aperture lines, 5 in. housings utilize 26 W lamps and 6 in. housings utilize 26 and 32 W lamps and accept either triple twin tube or double twin tube (quad) CFL lamps. Housings are Air-Tite(TM), which meets restricted air flow code requirements, and IC (Insulated Ceiling)-rated for direct contact with ceiling insulation.

Opto Diode Corp.    Newbury Park, CA 91320
Mar 21, 2008 Supplied in hermetically-sealed TO-39 package, NIR/Red Enhanced 6 mm² ODA-6W-500M Photodetector-Preamplifier features high gain in low light environments. Low-light, high-sensitivity component has active area that operates in NIR wavelength with response at 940 nm (typically 315 V/µW, min 290). Based on shielded amplifier electronics, standard unit offers 500 Mohm gain. Custom gains are available based on application specifications.

SICK, Inc.    Minneapolis, MN 55438

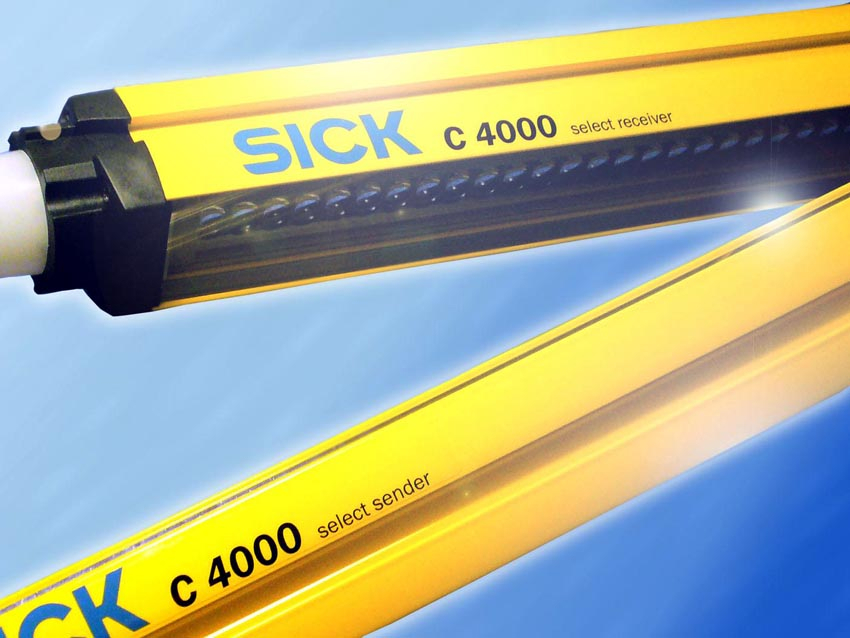

Mar 21, 2008 C4000 Select Safety Light Curtain features integrated laser and bar graph alignment system and offers ability to cascade 3 Select pairs or S300/S3000 Safety Laser Scanner. Selectable features include safety field width, 2 beam codes, 1 or 2 beam floating blanking with partial object detection, and extended I/O. Type 4, PL e, SIL 3 safety light curtain is available in 30 mm resolution in protective heights from 300-1,800 mm in 300 mm increments.

3S Simons Security Systems GmbH    Nottuln D-48301  Germany

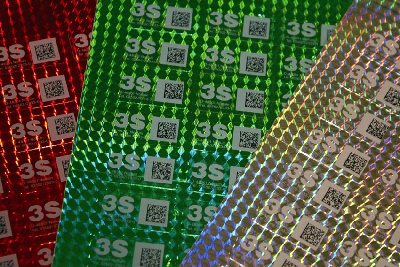

Mar 21, 2008 Combining SECUTAG® counterfeit-proof micro color-code system with barcodes, RFID, or data-matrix traceability codes, System Solution enables products to be traced and tested for originality. Micro color-code particles are detectable under microscope or automatic reader. Each producer has unique color-code, which is also accepted as evidence by international courts, serving global defense of industrial property rights and supporting fight against unjustified damage claims.

Sumitomo Electric Carbide    Mount Prospect, IL 60056

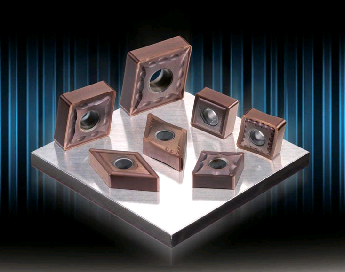

Mar 21, 2008 Featuring Super ZX multi-layered coating, AC510U and AC520U are available in both molded and ground insert types. Coating consists of ultra-thin layers of TiAln and AlCrn, alternately stacked up to 1,000 layers for wear resistance. AC510U grade is suited for finish turning of exotic materials, while AC520U is intended for roughing and medium cut machining applications.

Cognex Corp.    Natick, MA 01760 2059
Mar 21, 2008 Measuring 30 x 30 x 60 mm, In-Sight® Micro mounts in space-constrained areas on robots, production lines, and machinery. Non-linear calibration tool enables mounting at angles up to 45° for hard-to-reach applications. With point-and-click approach, EasyBuilder(TM) software walks users through process of setting up vision application, while VisionView 700 operator interface panel enables users to monitor production processes without PC.

National Hybrid, Inc.    Ronkonkoma, NY 11779
Mar 21, 2008 Featuring 7 x 7 x 2 mm footprint, NHi-1565CSP and NHi-15LV65CSP Dual Transceivers are available in +3.3 or +5 V versions with optimal noise performance. Each receiver converts 1553 Manchester encoded bi-phase data to complementary Rx and Rx_L TTL digital outputs, while each transmitter converts TTL Data to analog bi-phase Manchester data. Coupling transformer is used to provide proper analog signal levels to 1553 bus or stub.

Paul N. Gardner Co., Inc.    Pompano Beach, FL 33060 6608
Mar 21, 2008 Microprocessor-controlled LICO 500 features wavelength range from 380-720 nm for color measurement or 320-1,100 nm for routine analysis. Besides over 20 color indexes, transmittance and absorbance can be measured at individual wavelengths. Instrument includes color touch-screen display, automatic cuvette recognition, and automatic zero calibration program. With single measurement, unit can carry out exact colorimetric evaluation in conformity with ISO/ASTM standards.

Seegrid Corporation    Pittsburgh, PA 15201
Mar 21, 2008 Employing Industrial Mobile Robotics technology, vision-guided Model GT3 moves through manufacturing, warehousing, and distribution operations utilizing stereo cameras to build 3D map of environment. It then uses map and its own reasoning ability to navigate predetermined path to complete assigned transport task. Designed to free up skilled employees, GT3 pulls carts, delivers palletized materials, and positions supplies without wire guides, magnets, or lasers.

TDK-Lambda Americas Inc.    San Diego, CA 92154
Mar 21, 2008 Accepting input range of 85-264 Vac, 20 W PCB-mountable ZPSA20 Series features 2 x 3.5 in. footprint and is available with output voltages of 3.3, 5, 9, 12, 15, or 24 Vdc. Outputs are floating so they can be used as positive or negative polarity. Delivering efficiencies up to 82%, supplies are rated for operation in convection-cooled environment from 0-70°C with derating. RoHS-compliant units are suited for datacom, telecom, PoS equipment, LED signs, and video/audio routers.

Donaldson Co., Inc.    Minneapolis, MN 55440-1299
Mar 21, 2008 Targeting heavy-duty truck and off-road equipment manufacturers, Donaldson PowerCore(TM) G2 filters utilize Ultra-Web® Nanofiber Filtration technology and feature compact, metal-free, cartridge-style design that traps contaminants inside structure. Filters are available in panel-, round-, and obround-shaped configurations for medium- and heavy-duty engine applications.

Donaldson Co., Inc.    Minneapolis, MN 55440-1299
Mar 21, 2008 Manufactured using Synteq(TM) XP filter media, Duramax® HNK delivers 5 micron absolute efficiency with holding capacity of 12 micron filter. Users can choose between spin-on or bowl cartridge style filter without changing heads. Filter interface provides optimal sealing without having to torque to specification. Applications include hydrostatic charge filtration, pilot circuits, powershift transmissions, mid-pressure kidney loops, and return line with cold start spikes.
