Rino Industries Ltd.    Chesterfield S41 9RN  United Kingdom
Mar 28, 2008 Made of anodized extruded aluminum, KVP Series features double profile rail guide complete with 4 carriages. Fixed bearing side with integrated double row angular ball bearings are standard. Carriages are supplied complete with 4 T-slots. Also made of extruded anodized aluminum with fixed traverses, KVD Series includes 8 T-slots on end blocks and carriages. Both designs offer trapezoidal or ball screw drive.

Mio Technology Limited    Fremont, CA 94538
Mar 28, 2008 Featuring built-in speakers, USB v2.0, and TFT anti-glare touch screen, Mio Moov 200, 210, 300, and 310 come pre-loaded with maps of all 50 U.S. states and Puerto Rico. Including 4.3 in. widescreen window and text-to-speech functionality to call out actual street names when making turns, Mio Moov 300 and 310 weigh 0.4 lb and measure 5.12 x 3 x 0.7 in. Weighing 0.3 lb, Mio Moov 200 and 210 incorporate 3.5 in. square-shaped display, and measure 3.9 x 2.9 x 0.8 in.

Advansus    Taipei 114   Taiwan
Mar 27, 2008 Model i965GM-DCQI Intel® GME965 Mini-ITX motherboard features up to 4 Gb dual-channel DDR2 667 SDRAM and dual-channel 24-bit LVDS and DVI display. System performs 3D rendering at core speeds up to 500 MHz with 384 Mb of video memory, and includes LC888 5.1 + 2 channel audio codec and TPA3005D2 6 W stereo amplifier. Featuring dual LAN capability, device also offers 10 USB ports, 3 SATA interfaces, and 1 PCI expansion slot. Security is provided by SLB 9635 Trusted Platform Module chipset.

Jergens, Inc.    Cleveland, OH 44110
Mar 27, 2008 Spinner-Grip Flange Locking Bolt has conical flange design that locks bolt to part without need for lock washer. It can be uninstalled and reused without reapplication of locking patches or additional hardware and can be used in zince-plated or corrosion-resistant SS applications. Also resistant to vibration, bolt is suited for industries such as material handling, construction, medical, and packaging.

ALLIANCE Manufacturing, Inc.    Fond du Lac, WI 54936 2006
Mar 27, 2008 Designed for cleaning complex parts with internal passageways, blind holes, and hidden surfaces, Aquamate SF accepts unlimited number of part fixtures for cleaning one part, multiple parts, or family of common parts. Fixtures are secured in support carriage and water supply lines are direct-coupled to inlet port, which feeds fixture spray manifold. For complex parts that must meet specific cleanliness parameters, filtration units are incorporated for filtering cleaning solution.

Weidmuller, Inc.    Richmond, VA 23236
Mar 27, 2008 WAVELine Series of unmanaged Industrial Ethernet switches and media converters feature housings of 22.5 or 45 mm wide. Port auto negotiation and auto crossing are also featured, as well as Auto Link detection to monitor link status on I/O ports. They are available in multi-mode and single-mode versions and can be switched between half- and full-duplex via switch. Various port configurations comprise of both RJ45 copper and Fiber Optic connections.

Imaging Solutions Group of NY, Inc.    Fairport, NY 14450

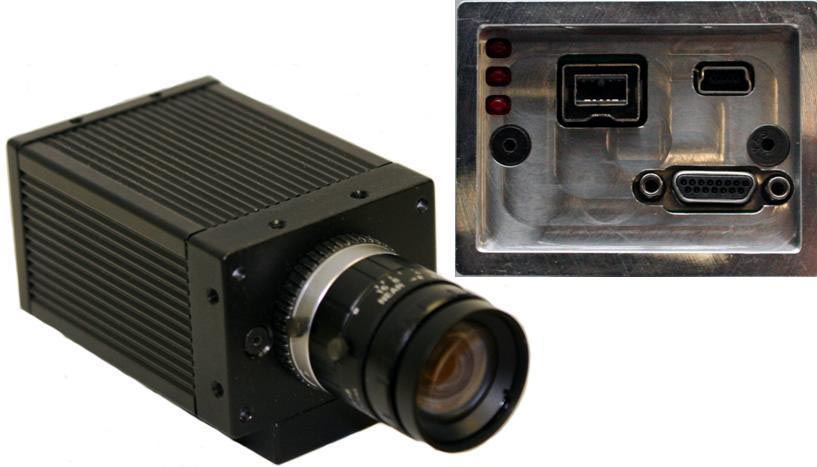

Mar 27, 2008 IEEE-1394b LightWise Cameras are 5-megapixel devices offering 2,592 x 1,944 resolution running at sustained 12 fps. With image buffer of 128 MB, cameras are controlled through 1394 interface, which includes fully programmable image processing pipeline and dynamic range/gamma control LUT. They utilize 800 Mbps 1394b bus that supports applications such as optical inspection and are available in color and monochrome versions.

Fluke Corp.    Everett, WA 98203

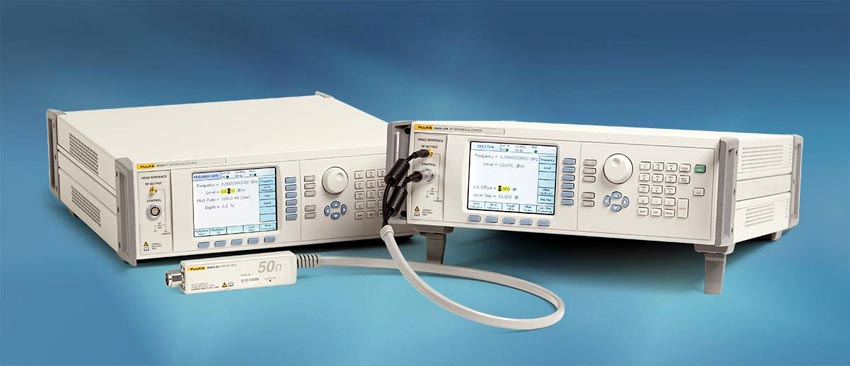

Mar 27, 2008 Fluke 9640A-LPN features integrated signal leveling and attenuation within 50 ohm leveling head, which delivers signals directly to unit under test, maintaining signal precision and noise immunity throughout +24 dBm to -130 dBm range. Option to add 75 ohm head is available. Designed to simplify calibration lab applications, device features dedicated function keys, context-sensitive softkeys, and color display. Typ phase noise at 1 GHz is 10 kHz offset -138 dBc/Hz, 1 MHz offset -152 dBc/Hz.

Keyence Corporation of America    Elmwood Park, NJ 07407
Mar 27, 2008 Supplied in stainless steel casing, PX Series is rated to IP-69K and can be subjected to high pressure (1,400 psi) washdown applications at temperatures to 176°F. Dynamic Stability Control continuously and automatically adjusts set point according to environmental conditions, and MEGA mode can blast through dust and other types of dirty environments. Thru beam PX-H71 (20 m) and reflective PX-H61 (2 m) produce visible red light, while PX-H72 (40 m) produces IR beam.

LASELEC Inc.    Arlington, TX 76011
Mar 27, 2008 Able to operate in Boost and Economic modes, ULYS 990 Modena comes with 4 printing fonts as well as 2 horizontal and 2 vertical orientations. There are 90 characters per font, including upper/lower case, and Twin Shots process allows choice of appropriate production mode. Machine supports barcode 39 printing capability and allows up to 128 characters per identification mark. Also included, EASYPROD(TM) command software helps optimize production via data input and menus.

Instron    Norwood, MA 02062-2643

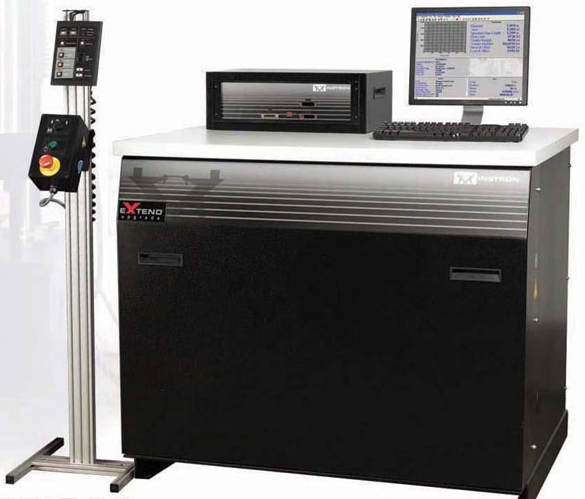

Mar 27, 2008 Available for Instron and non-Instron hydraulic load frames, EXTEND(TM) Upgrade System packages update tension, compression, bend, and shear testing systems with software and real-time system status electronics. I-Series electronics allow for automatic recognition and calibration of transducers, while fully integrated Partner(TM) Software delivers automated data collection, result calculation, networking capabilities, and online help system.

Key Technology, Inc.    Walla Walla, WA 99362
Mar 27, 2008 Designed for sanitation, Manta(TM) uses hi-res scanning to detect and remove defects and foreign material from up to 60,000 lb of processed vegetables/fruit per hour. System is network-ready and can be configured with up to 8 top-mounted color or Vis/IR cameras and up to 2 top-mounted FluoRaptor(TM) fluorescence-sensing lasers. Bottom-mounted sensors are also available, and modularity allows in-field reconfiguration. Design supports on-belt viewing as well as off-belt, in-air viewing.

Regal Components, Inc.    Clearwater, FL 33762
Mar 27, 2008 Regal ESL H-13 Nitrided Ejector Sleeves, machined from H-13 hotwork die steel, are nitrided on ID and OD surfaces to Rc 65-74 for optimal wear resistance. Offered in 109 standard sizes with IDs from 3/32-¾ in. and lengths from 3-12 in. in 1 in. increments, sleeves can also be produced as specials down to 1/16 in. ID, with varying wall thick-nesses, ID/OD combinations, and lengths to 25 in. Custom front and EDM forms, head flats, vents, and other steels can be provided.

HTC Corp.    Taoyuan 330  Taiwan

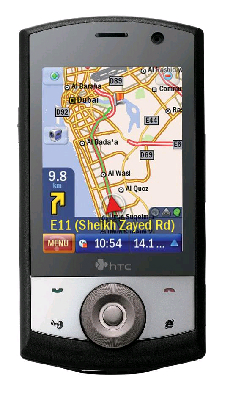

Mar 27, 2008 Providing 3.5G-HSDPA wireless connectivity as well as Wi-Fi® and Bluetooth®, HTC Touch Cruise(TM) includes TouchFLO(TM) technology, which optimizes finger touch scrolling and browsing of Web pages, documents, messages, and contacts lists, controlled by sweeping finger across screen. HTC Home(TM) screen provides 1-touch access to emails, text messages, calendar appointments, and contacts. Running on Microsoft Windows Mobile®, device utilizes mapping and navigation solutions from CoPilot Live 7.

Network Technologies, Inc. (NTI)    Aurora, OH 44202
Mar 27, 2008 ENVIROMUX®-GSM interfaces with ENVIROMUX-SEMS-16 Server Environment Monitoring System and sends SMS text messages to pager or cell phone when sensor goes out of configurable threshold's range. Able to be used worldwide on GSM networks, modem functions on 850, 900, 1,800, or 1,900 MHz GSM frequency and supports AT commands, UDP/API, PPP, UDP/PAD, CMUX, TCP/PAD, and TCP/API protocols. No special tools or software are required for immediate operation.

Deposition Sciences, Inc.    Santa Rosa, CA 95403

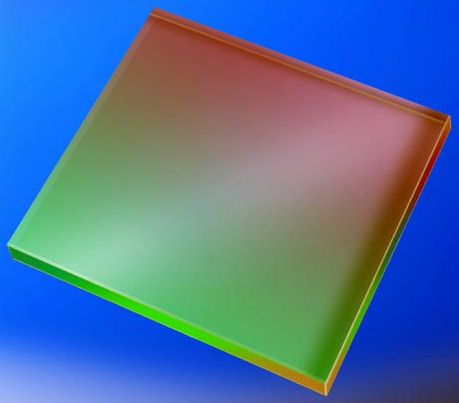

Mar 27, 2008 Covering wavelengths from 400-2,500 nm, Conductive Coatings with indium tin oxide, induced transmission silver, and induced transmission gold can be applied to various substrates. They are compatible with DSI dichroic filter technology, enabled by Microdyn sputtering process, and remain stable while withstanding thermal loads and changes in humidity. Coatings can be combined with optical thin films that operate in Vis and NIR wavelengths and formulated to be broadband or spectrally selective.

SUI    Princeton, NJ 08540
Mar 27, 2008 NIR/SWIR can see from near IR to shortwave IR portions of light spectrum. It utilizes indium gallium arsenide-night vision technology to detect and track broad range of battlefield IR lasers and can detect light wavelengths from 0.7-1.7 microns. Available in camera packages with 320 x 256 or 640 x 512 resolution, cameras are suited for various military as well as industrial machine vision applications.

ACS Motion Control    Plymouth, MN 55447

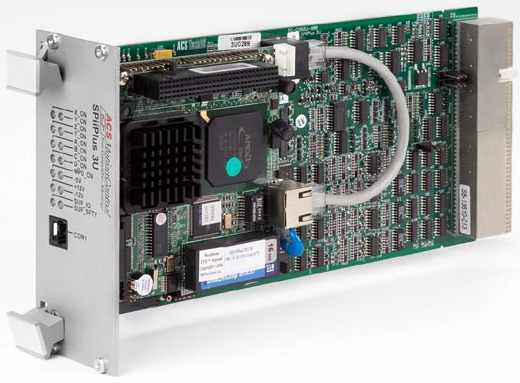

Mar 27, 2008 Featuring customized algorithms for precise control, SPiiPlus 3U provides sub-nanometer resolution using optional Sin-Cos encoders with multiplier factor of up to 65,536. Digital, incremental encoders for all axes offer dual loop options, and position event generator with sub-microsecond delay ensures smooth motion and accuracy. This 2-, 4-, 6-, or 8-axis motion controller supports range of motion modes and features third-order profile generation.

Omron Electronics, LLC    Schaumburg, IL 60173
Mar 27, 2008 Model ZG 2D laser sensor performs height and width inspection to capture shapes by measuring X and Z axis in single pass. Real-time profile display is offered on controller's built-in LCD monitor and system includes 4 sensing heads that capture profiles from 3-70 mm wide using visible laser. With 18 built-in measuring tools, it can be configured to gauge height; 2- or 3-point step; edge position, width, angle, and area; and perform comparative calculations between measurements.

VEE GEE Scientific, Inc.    Kirkland, WA 98034
Mar 27, 2008 Along with infinity optics and trinocular head that supports digital image documentation, 1400INi series supports 4 stage inserts that offer flexibility to observe biological cultures within well plates, Petri dishes, slides, and vials. Stage extension expands mechanical stage to 300 x 160 mm, and ergonomic design features focusing controls low on base to prevent wrist strain. Microscopes also support fluorescence upgrade kits and digital camera systems.
