Jackson Labs    Campbell, CA 95008
Mar 26, 2008 Measuring 1.25 cu-in., FireFly provides Stratum-1 long-term performance of better than 10 parts per trillion averaged over 24 hr when locked to GPS. Unit generates both OCXO-driven 1 pps output that is phase synchronized to better than 100 ns rms to UTC, and synchronized +12 dBm 10 MHz sine-wave output. Able to be integrated into any application requiring stable and accurate reference clock, FireFly can be monitored and controlled by RS-232 port via SCPI commands.

Digital Precision Corporation    Huntington Beach, CA 92649
Mar 26, 2008 Featuring pushbutton operation, OneTouch Field of View measuring device delivers micron-level accuracy for select features or complex piece parts. Standard and configurable screen overlay targets and movable Crosshair/DRO combine with geometric edge acquisition tools for optimal measuring capability. System automates measuring process and eliminates need for traditional gaging. There is no need for keyboard or mouse once measuring program is created with DPC software.

Microchip Technology, Inc.    Chandler, AZ 85224 6199
Mar 26, 2008 With respective operating voltage ranges of 1.7-5.5 V, 2.5-5.5 V, and 1.5-3.6 V, Serial Presence Detect (SPD) EEPROM devices 34AA02, 34LC02, and 34VL02 are suited for PCs that utilize low-voltage battery designs. Products are designed to meet JEDEC standard for DDR1, DDR2, and DDR3 modules and are offered in 8-pin TSSOP, 2 x 3 mm TDFN and MSOP packages, as well as 6-pin SOT-23 package.

Northwire, Inc.    Osceola, WI 54020
Mar 26, 2008 Offered in any length, Guardian Load Cell Cables come in standard and extreme environment versions for 4- or 6-wire load cells. Standard cable features weatherproof PVC jacket, while extreme environment cable is double jacketed with polyurethane over PVC, providing resistance to chemicals, abrasion, and weather. Both include 20 AWG stranded tinned copper wire, color-coded conductors, and tinned copper braid armor shield over aluminized foil shield for RFI/EMI protection.

Imaging Solutions Group of NY, Inc.    Fairport, NY 14450
Mar 26, 2008 LightWise LW-5-S-1394 is 5 megapixel camera controlled via 1394 interface, which includes fully programmable image processing pipeline and dynamic range/gamma control LUT. On-board image buffer is included, along with range of triggering and strobe control capabilities. Camera incorporates ISG Image Pipeline and can be programmed with customer supplied algorithms inside on-board FPGA. It is fully compliant to IEEE-1394 IIDC DCAM Specification 1.3 or later.

Air-Lec Industries, Inc.    Madison, WI 53714 1499
Mar 26, 2008 Designed to function with or without door operators, Zephyr Track Door System features open, modular design, offering access to mechanism for routine maintenance and cleaning. System is made of FDA-approved materials, making it suitable for heavy-duty lightweight door applications that require sanitary conditions such as food processing or clean rooms.

Dwyer Instruments, Inc.    Michigan City, IN 46361 0373
Mar 26, 2008 Series PTGA is suited for measuring pressure drop across filters and strainers, as well as pump performance testing and heat exchanger pressure drop monitoring. Unit offers piston sensing element that provides differential pressure ranges from 0-150 through 0-400 psid with ASME Grade B accuracy. Constructed from aluminum or 316 SS and available with two ¼ in. FNPT end connections, Series PTGA provides over-range protection to 5,000 psig.

Dwyer Instruments, Inc.    Michigan City, IN 46361 0373
Mar 26, 2008 Combining aluminum or 316 stainless steel construction with weather- and corrosion-resistant gauge front and shatter-resistant lens, Series PTGB is suited for measuring pressure drop across filters, strainers, and heat exchangers as well as pump performance testing. Piston-sensing element provides differential pressure from 0-10 to 0-110 PSID with ASME Grade B accuracy. Gage is available with two ¼ in. female NPT back or end connections.

Dwyer Instruments, Inc.    Michigan City, IN 46361 0373
Mar 26, 2008 Utilizing piston-sensing element, Series PTGC provides differential pressure ranges from 0-10 to 0-110 psid. Unit possesses weather- and corrosion-resistant front and shatter-resistant lens. Constructed from aluminum with 316 SS internal materials, gage features two ¼ in. FNPT end connections and provides over-range protection to 5,000 psig. Gage is suited for measuring pressure drop across filters and strainers, as well as pump performance testing and heat exchanger pressure drop monitoring.

Kason Corporation    Millburn, NJ 07041
Mar 26, 2008 Centri-Sifter® model MO-SS has hinged end cover and 3-bearing shaft that cantilevers for removal of internal components. External roller bearings are located at motor end of shaft and on hinged cover at discharge end for vibration-free operation. Constructed of SS finished to 3-A, FDA, and BISSC standards, screener is designed for sifting and scalping of dry bulk materials and can break up soft agglomerates and/or dewater moist solids or slurries.

Banner Engineering Corp.    Minneapolis, MN 55441
Mar 26, 2008 Used in place of standard hinges on swinging guards, gates, or doors, SI-HG63 Series Hinge Safety Interlock Switches offer 2 NC safety contacts and one NO auxiliary contact. NC safety contacts, when activated, interrupt electrical circuit and send stop signal to machine control. Rated IEC IP67, switches withstand harsh plant environments and have safety switching point adjustable ±1.5° throughout full 0-270° range of motion. Each hinge can support axial and radial load of 1,200 N.

GAO Tek Inc.    Toronto M1B2K4  Canada
Mar 26, 2008 Based on STR711FR2T6 processor with on-chip 256+16 KB single voltage Flash memory and 64 KB high speed RAM, Model STDV711F enables evaluation of STR71x series of 32-bit 64-pin ARM7 core microcontrollers. It includes 2 SPIs, 2 IIC interfaces, and 4 UARTs serial peripheral interfaces, and HDLC, SC, and MMC interfaces. Measuring 135 x 108 mm, unit features -40 to +85°C working temperature, 12 MB USB 2.0 interface, 4-channel 12-bit A/D converter, and four 16-bit standard timers.

Landrex Technologies, Inc    Santa Clara, CA 95054

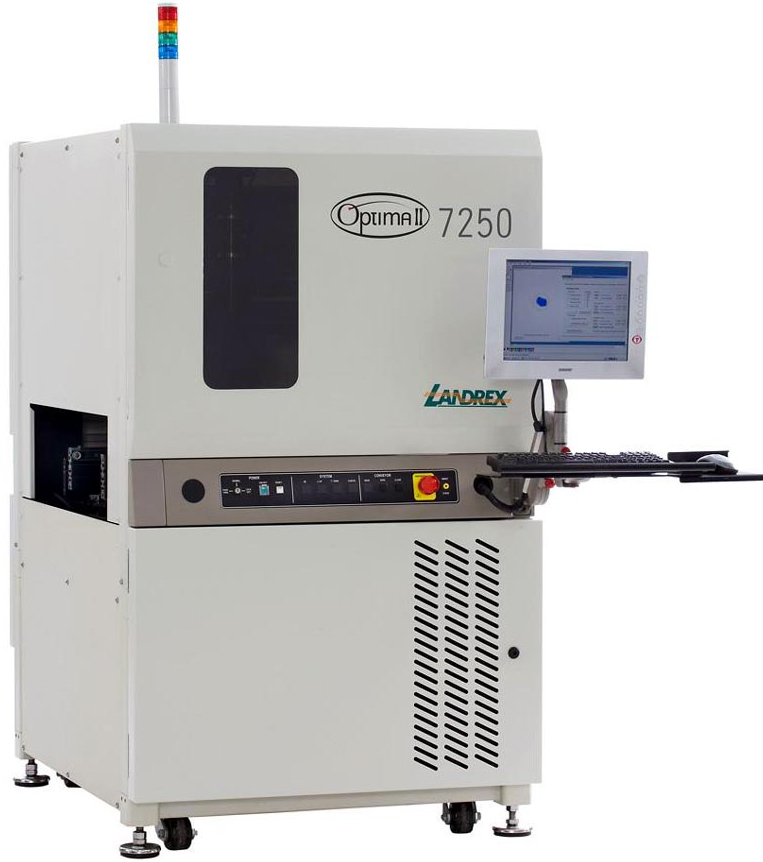

Mar 26, 2008 Optima 7250 four megapixel camera enables users to inspect small SMT devices such as 01005 parts for presence, correct value, placement accuracy, and orientation. Offering in-process measurement and defect detection for wireless, RF, and NPI applications, unit is suitable measurement vehicle for PCBA manufacturers implementing 6-sigma SMD practices. It features built-in compensation for normal PCBA and process variation during program and runtime.

Palmer Manufacturing & Supply, Inc.    Springfield, OH 45504
Mar 26, 2008 With 7 tilting shelves that measure 29 x 68 in. for ergonomic loading and unloading, Portable Core Storage Racks can hold up to 250 lb per shelf for total weight capacity of 2,000 lb. They provide safe way to store cores, and feature heat dissipating lift handles, large industrial casters for mobility, and spring assisted hinges. Available in 3 standard sizes (7, 5, 4 shelves) with adjustable shelf height, racks are suitable for varying core production.

Lin Engineering    Santa Clara, CA 95054
Mar 26, 2008 Capable of step resolutions ranging from 2x to 256x, Model R256-RO operates from +12 to 40 Vdc and phase current ranges from 0.1-2.0 A peak. It features fully programmable ramps and speeds, software selectable hold/move currents, 2 user configurable digital I/Os, 1 optical sensor for homing, and 1 switch closure to ground. With ability to store up to 16 different programs at once using built-in 4 KB of memory, unit can be used stand alone with no PC connection required.

ON Semiconductor, LLC    Phoenix, AZ 85008

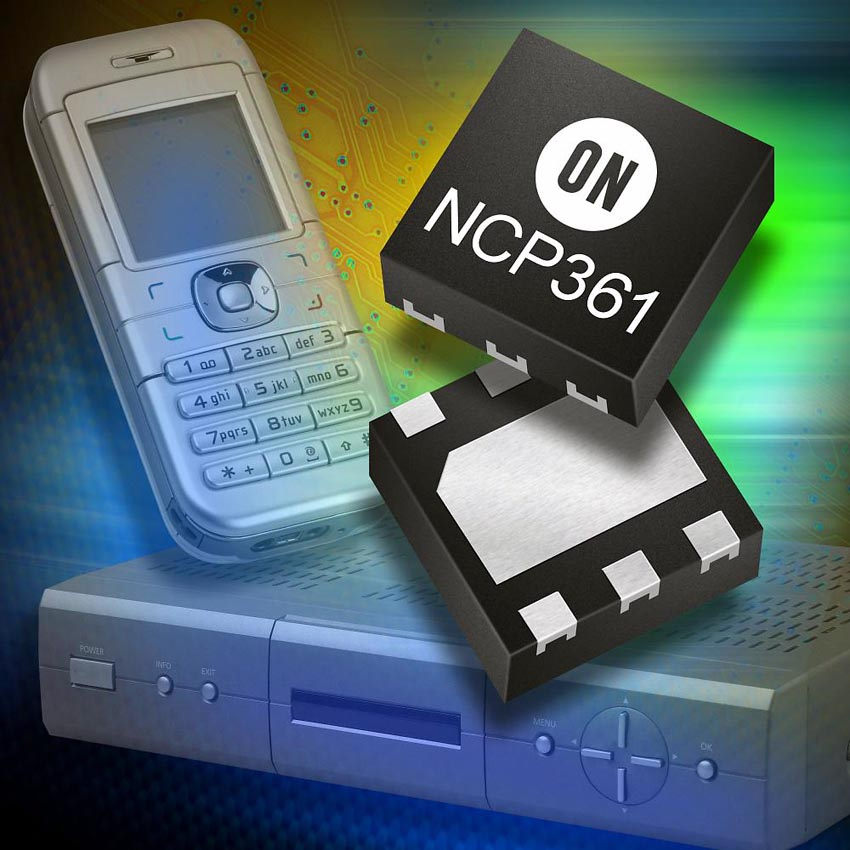

Mar 26, 2008 Designed for portable and consumer devices such as cell phones, MP3 players, set top boxes, and computers, Model NCP361 consumes 20 µA, and features overcurrent protection at 750 mA typical. Offered in lead-free 2.0 x 2.0 mm DFN-6 package, it also offers protection of VBUS up to +20 V, and uses internal P-channel FET, eliminating need for external device. Negative-going flag (FLAG) output alerts about faults, while enable pin allows device to be forced to off-state.

Microsoft Corp.    Redmond, WA 98052-6399
Mar 26, 2008 Institutional Client Platform (ICP) enables buy- and sell-side firms to provide improved client service by seamlessly integrating entire communication infrastructure, including IM, email, and trader's turret system. By offering various services and combining all front-, middle-, and back-office activity into one view of customer, solution provides insight into trading positions across various product silos and enables firms to cross-sell additional suitable products.

Surgient, Inc.    Austin, TX 78759
Mar 26, 2008 Surgient Lab Management Platform v5.4 enables IT operations teams to provide managed, shared access to complex software configurations required in software development, testing, deployment, and change management. Able to work with complex application configurations and integrate with application lifecycle management tools, solution features management capabilities and support for virtualization platforms as well as collaboration and integration capabilities.

Syncsort Inc.    Woodcliff Lake, NJ 07675 7654
Mar 26, 2008 Backup Express v3.01, available for Novell Open Enterprise Server 2 (Linux), enables integration of those 2 solutions so joint customers can successfully protect their data, applications, and servers while utilizing Xen-based NetWare paravirtualization. On its own, product delivers data protection for clustered OES environments and provides Novell users with backup and recovery features for SLES and OES. Additional functionality covers file-and-print networking and communication.

Shipcom Wireless Inc.    Houston, TX 77082
Mar 26, 2008 Combining mobility, business process management, and workflow simplification, CATAMARAN solutions extend Oracle ERP applications to global Oil and Gas industry edge environments such as offshore rigs, refineries, pipelines. Solutions enable end-to-end real-time information by bridging back-office business applications that rely on operational data from field to real-world processes that collect, filter, analyze, and integrate data to ERP systems.
