American Power Tool Company    Wellington, CO 80549
Mar 26, 2008 Computer-controlled Aeroswage provides accurate assembly combined with instant documentation of gaugeable fittings. Uniting precision drive train with automatic electronic micrometer, integrated fitting body capture feature holds fitting body for 1-handed installation of 2 ferrule fittings. Onboard micrometer dynamically measures nut to body gap and closure rates thousands of times per second during assembly. Aeroswage also detects missing and inverted ferrules or cross threaded nuts.

Endicott Research Group, Inc.    Endicott, NY 13761
Mar 26, 2008 Available in single- and dual-lamp versions, Smart Force(TM) SFW Series dc-to-ac inverters are designed for display backlighting applications that require wide range dimming, lamp current stability over wide input range (8-18 V), and full RoHS compliance. Intelligent power solutions, at less than 6 mm high, offer open lamp detection, onboard PWM dimming, and lamp current regulation. They can be used in 5.7-12.1 in. LCDs (single-output) or 6.4-15 in. LCDs (dual output).

Steinmeyer Inc.    Bedford, MA 01730

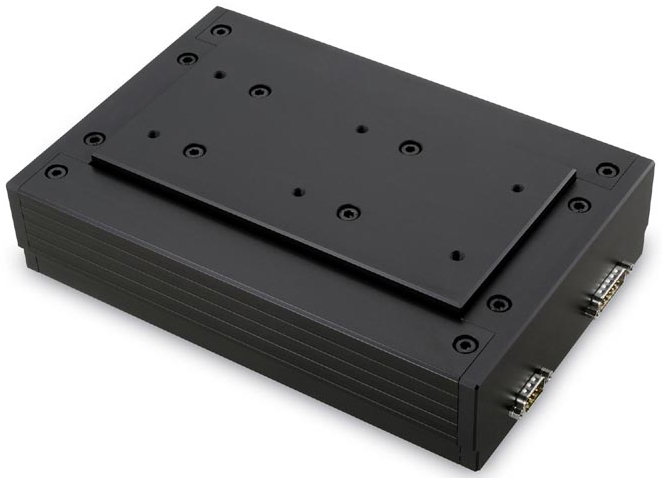

Mar 26, 2008 Manufactured from stable aluminum alloy, HT 16-LM incorporates compact piezo linear motor that drives 3:1 ratio wedge. Offering travel of 16 mm, with resolution of 33 nm and accuracy of 2 microns, and precision crossed roller bearings ensure smooth motion as well as rigidity. Weighing 5.5 kg, stage supports loads up to 50 N and has max speed of 20 mm/sec. Position feedback is provided via precision linear encoder with 0.1 µm resolution.

Conicity Technologies, LLC    Cresco, PA 18326-0149
Mar 26, 2008 EXM-50EZ allows edge prep to be applied to various lateral and OD style cutting tools, handling tools with less than .100 in. OD up to 1¼ in. OD, such as end mills with flute length capacity from ½-10 in. long. It lets user pick tool family from list of 10 tools displayed on touchscreen, each with edge prep process designated as ferrous and non-ferrous. Designed to work with DXM-50EZ in cellular manufacturing or apart in remote locations, machine operates on 110 Vac.

E-Switch Inc.    Brooklyn Park, MN 55428 1514

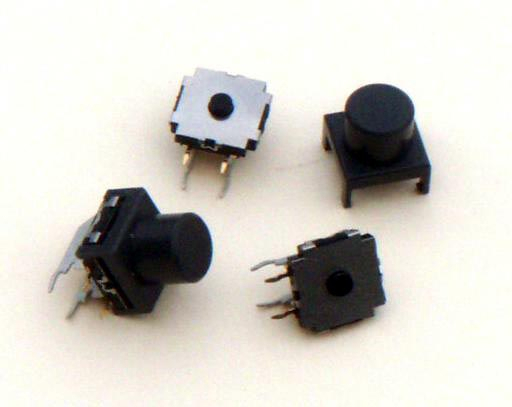

Mar 26, 2008 TL6190 right angle, process-sealed tactile switch features nylon housing with SS cover and silicone rubber actuator. It offers operating force of 220 ± 60 gf and dielectric strength of 500 Vdc. Contact rating is 50 mA at 12 Vdc, contact resistance is 100 mW max initial, and insulation resistance is 100 MW min at 100 V. With travel of 0.50 ± 0.20 mm, device operates at temperatures from -40 to +85°C.

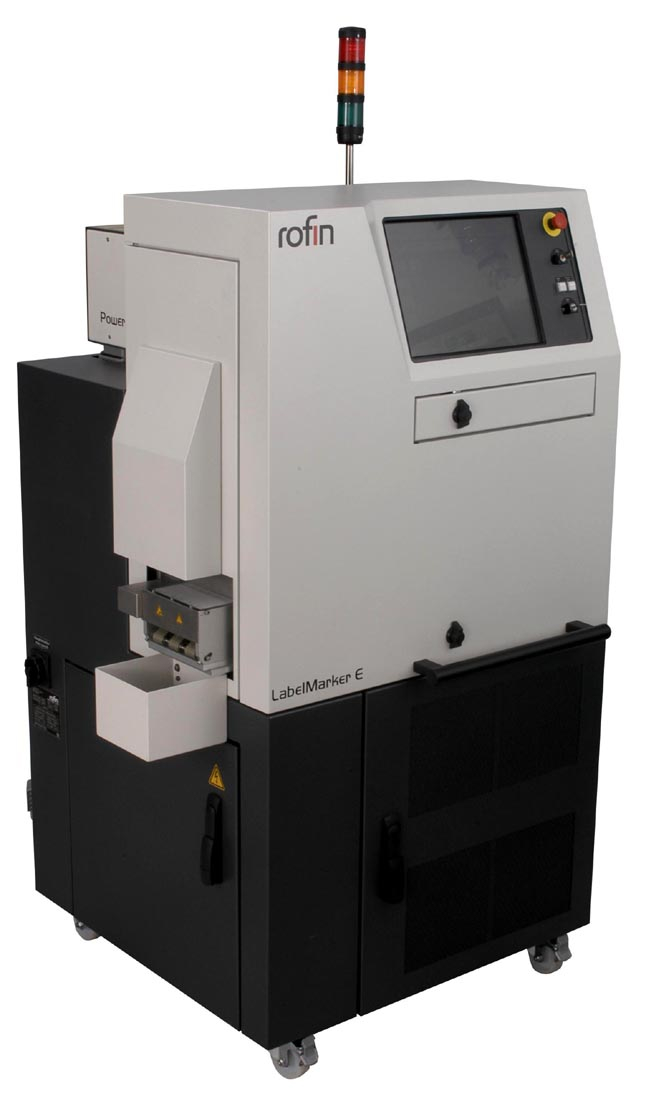

Rofin-Baasel Inc.    Boxborough, MA 01719
Mar 26, 2008 Featuring 800 x 800 mm footprint and rated IP54, LabelMarker E includes automatic foil feeding with sensors for detection of foil jam, start and end of foil, and splice recognition. It can accept roll widths of 100 or 120 mm with maximum diameter of 300 mm, process foil between 0.1 and 0.25 mm thick, and has marking field of 180 x 140 mm. Pneumatically operated label cutting system and 30 W solid-state Rofin laser are included, as well as built-in HMI and touchscreen.

Data Translation, Inc.    Marlboro, MA 01752

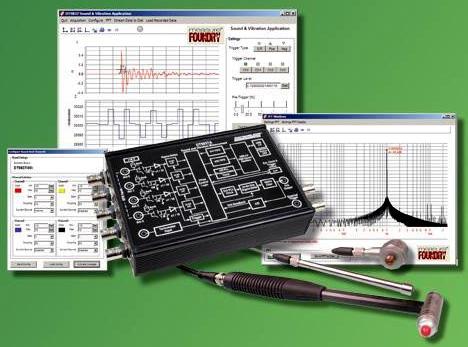

Mar 26, 2008 Powered via USB connection to PC/laptop, DT9837A has 4 independent 24-bit IEPE sensor inputs synchronized with tachometer input to provide data streams matched in time for field or laboratory use. Read-back channel from analog output ensures correlation of all signals with input stream, output stream, and tachometer. Different modes allow measurements of rotation speed as well as precise tachometer pulse phase measurement with resolution of 37 ns or 0.002°.

Degree Controls Inc.    Milford, NH 03055

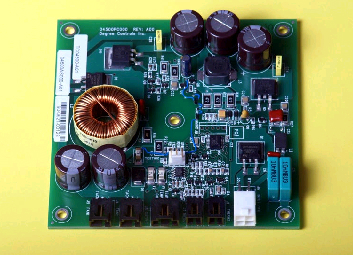

Mar 26, 2008 Ruggedized to meet both Mil-STD-461 and Mil-STD 810F testing requirements, fully configurable Thermal Controllers leverage proprietary software allowing for programmable alarm thresholds and fan curves. On-board microcontroller monitors and controls fan speeds, communicates with host through serial interfaces, measures temperatures, detects filter blockages, and reports alarms.

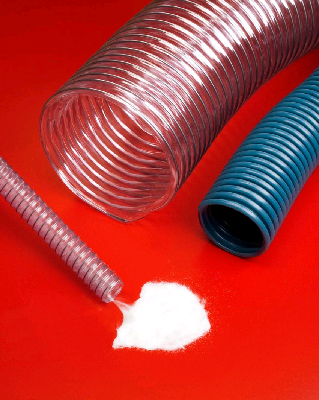

Flexaust Co., Inc., The    Warsaw, IN 46581
Mar 26, 2008 Reinforced with spring steel wire helix, Flexaust Flexadux® R-2 Hose comes in clear FDA-approved version and UL 94V-0 flame-retardant blue. All-purpose PVC hose has 0.020 in. thick wall and is available in standard sizes of 1.25-18 in. ID with lengths of 25 and 50 ft. Operating from 20-160°F, hose offers compressibility, as well as chemical and moisture resistance. Metric and custom sizes up to 24 in. ID can be provided.

Jackson Labs    Campbell, CA 95008

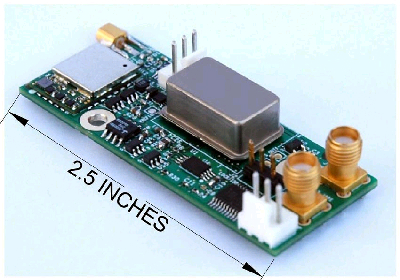

Mar 26, 2008 Measuring 1.25 cu-in., FireFly provides Stratum-1 long-term performance of better than 10 parts per trillion averaged over 24 hr when locked to GPS. Unit generates both OCXO-driven 1 pps output that is phase synchronized to better than 100 ns rms to UTC, and synchronized +12 dBm 10 MHz sine-wave output. Able to be integrated into any application requiring stable and accurate reference clock, FireFly can be monitored and controlled by RS-232 port via SCPI commands.

Digital Precision Corporation    Huntington Beach, CA 92649

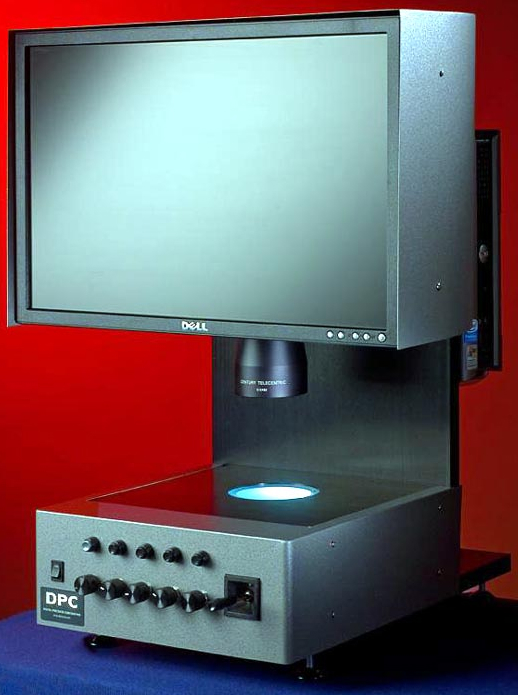

Mar 26, 2008 Featuring pushbutton operation, OneTouch Field of View measuring device delivers micron-level accuracy for select features or complex piece parts. Standard and configurable screen overlay targets and movable Crosshair/DRO combine with geometric edge acquisition tools for optimal measuring capability. System automates measuring process and eliminates need for traditional gaging. There is no need for keyboard or mouse once measuring program is created with DPC software.

Microchip Technology, Inc.    Chandler, AZ 85224 6199

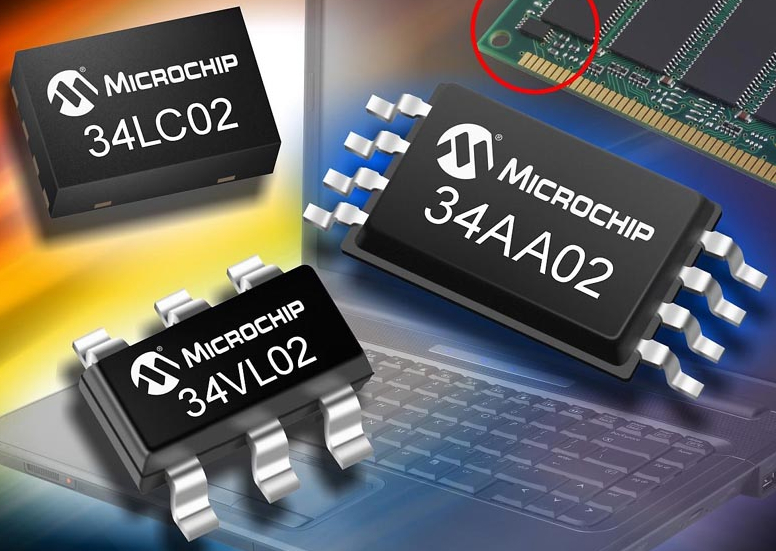

Mar 26, 2008 With respective operating voltage ranges of 1.7-5.5 V, 2.5-5.5 V, and 1.5-3.6 V, Serial Presence Detect (SPD) EEPROM devices 34AA02, 34LC02, and 34VL02 are suited for PCs that utilize low-voltage battery designs. Products are designed to meet JEDEC standard for DDR1, DDR2, and DDR3 modules and are offered in 8-pin TSSOP, 2 x 3 mm TDFN and MSOP packages, as well as 6-pin SOT-23 package.

Northwire, Inc.    Osceola, WI 54020
Mar 26, 2008 Offered in any length, Guardian Load Cell Cables come in standard and extreme environment versions for 4- or 6-wire load cells. Standard cable features weatherproof PVC jacket, while extreme environment cable is double jacketed with polyurethane over PVC, providing resistance to chemicals, abrasion, and weather. Both include 20 AWG stranded tinned copper wire, color-coded conductors, and tinned copper braid armor shield over aluminized foil shield for RFI/EMI protection.

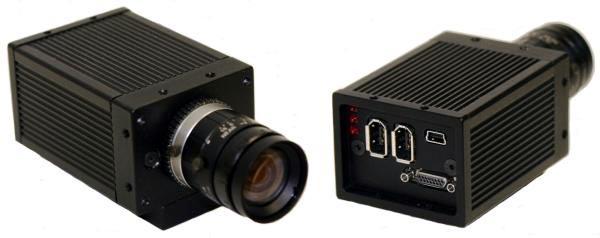

Imaging Solutions Group of NY, Inc.    Fairport, NY 14450
Mar 26, 2008 LightWise LW-5-S-1394 is 5 megapixel camera controlled via 1394 interface, which includes fully programmable image processing pipeline and dynamic range/gamma control LUT. On-board image buffer is included, along with range of triggering and strobe control capabilities. Camera incorporates ISG Image Pipeline and can be programmed with customer supplied algorithms inside on-board FPGA. It is fully compliant to IEEE-1394 IIDC DCAM Specification 1.3 or later.

Air-Lec Industries, Inc.    Madison, WI 53714 1499

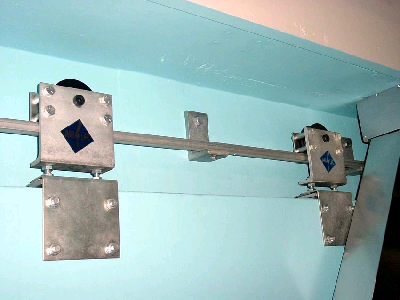

Mar 26, 2008 Designed to function with or without door operators, Zephyr Track Door System features open, modular design, offering access to mechanism for routine maintenance and cleaning. System is made of FDA-approved materials, making it suitable for heavy-duty lightweight door applications that require sanitary conditions such as food processing or clean rooms.

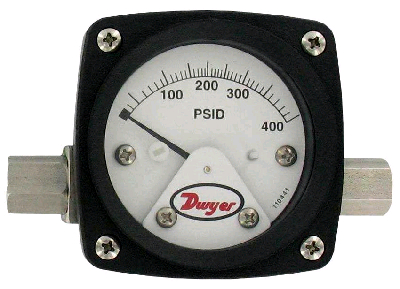

Dwyer Instruments, Inc.    Michigan City, IN 46361 0373
Mar 26, 2008 Series PTGA is suited for measuring pressure drop across filters and strainers, as well as pump performance testing and heat exchanger pressure drop monitoring. Unit offers piston sensing element that provides differential pressure ranges from 0-150 through 0-400 psid with ASME Grade B accuracy. Constructed from aluminum or 316 SS and available with two ¼ in. FNPT end connections, Series PTGA provides over-range protection to 5,000 psig.

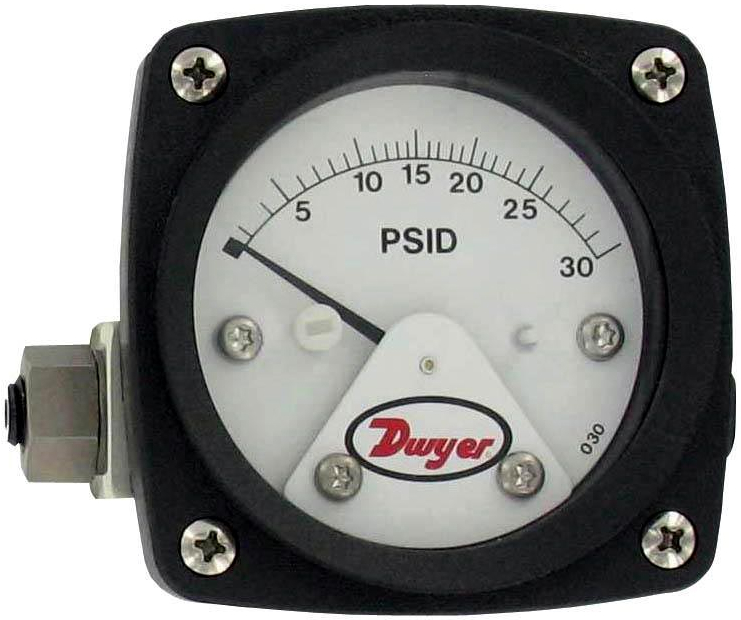

Dwyer Instruments, Inc.    Michigan City, IN 46361 0373
Mar 26, 2008 Combining aluminum or 316 stainless steel construction with weather- and corrosion-resistant gauge front and shatter-resistant lens, Series PTGB is suited for measuring pressure drop across filters, strainers, and heat exchangers as well as pump performance testing. Piston-sensing element provides differential pressure from 0-10 to 0-110 PSID with ASME Grade B accuracy. Gage is available with two ¼ in. female NPT back or end connections.

Dwyer Instruments, Inc.    Michigan City, IN 46361 0373
Mar 26, 2008 Utilizing piston-sensing element, Series PTGC provides differential pressure ranges from 0-10 to 0-110 psid. Unit possesses weather- and corrosion-resistant front and shatter-resistant lens. Constructed from aluminum with 316 SS internal materials, gage features two ¼ in. FNPT end connections and provides over-range protection to 5,000 psig. Gage is suited for measuring pressure drop across filters and strainers, as well as pump performance testing and heat exchanger pressure drop monitoring.

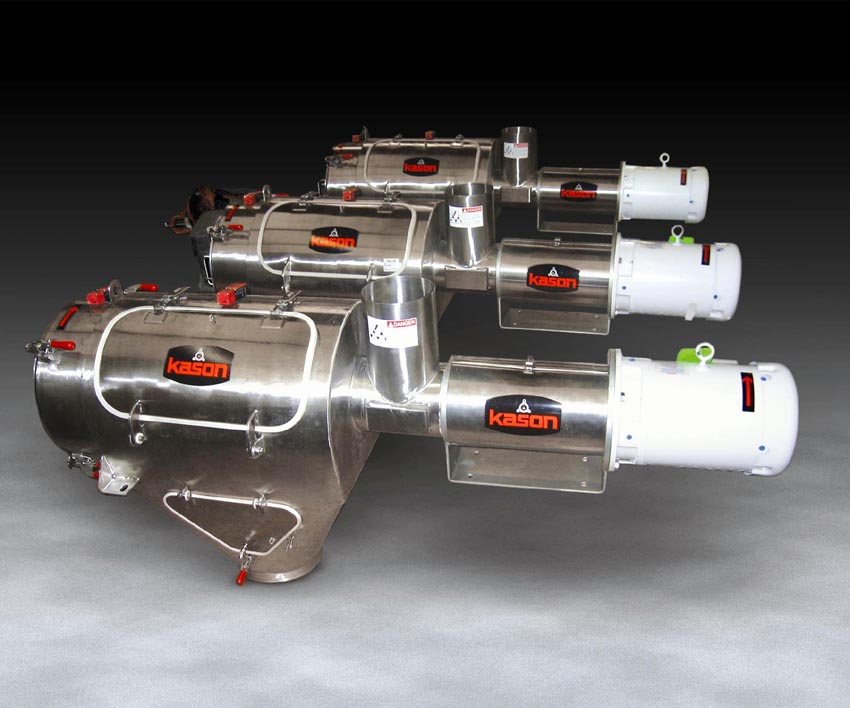

Kason Corporation    Millburn, NJ 07041
Mar 26, 2008 Centri-Sifter® model MO-SS has hinged end cover and 3-bearing shaft that cantilevers for removal of internal components. External roller bearings are located at motor end of shaft and on hinged cover at discharge end for vibration-free operation. Constructed of SS finished to 3-A, FDA, and BISSC standards, screener is designed for sifting and scalping of dry bulk materials and can break up soft agglomerates and/or dewater moist solids or slurries.

Banner Engineering Corp.    Minneapolis, MN 55441
Mar 26, 2008 Used in place of standard hinges on swinging guards, gates, or doors, SI-HG63 Series Hinge Safety Interlock Switches offer 2 NC safety contacts and one NO auxiliary contact. NC safety contacts, when activated, interrupt electrical circuit and send stop signal to machine control. Rated IEC IP67, switches withstand harsh plant environments and have safety switching point adjustable ±1.5° throughout full 0-270° range of motion. Each hinge can support axial and radial load of 1,200 N.
