IBASE Technology Inc.    Taipei   Taiwan

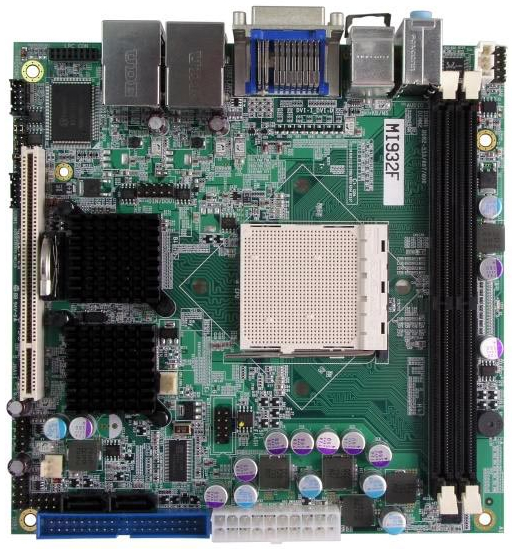

Apr 09, 2008 Supporting AMD 940-pin AM2 socket for single-core Athlon 64 and dual-core 64 X2 processors up to 1.8 GHz, MI932 incorporates fan socket and dual display feature with 2 DVI connections. Board accepts up to 4 GB through 2 DDR2 DIMM sockets and is based on M690T chipset with SB600E south bridge. Along with expansion slots for PCI card and optional I/O card, connectivity is provided by 8 x USB, 2 x SATA II, parallel port, and IDE interface. Board also supports 2x PCI-E Gigabit LAN.

TabletKiosk    Torrance, CA 90503

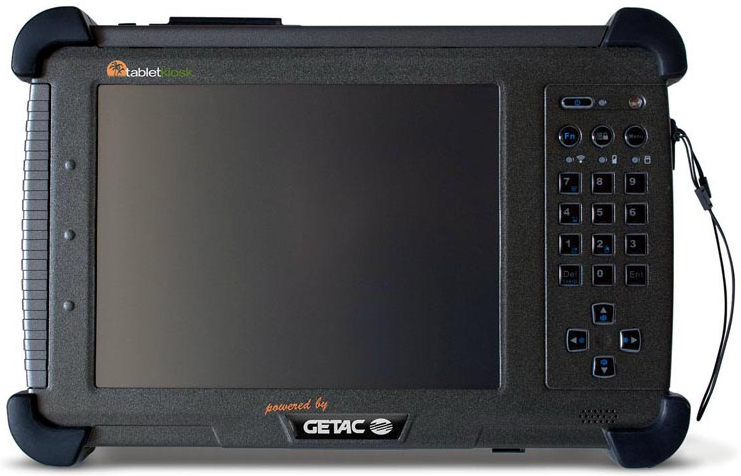

Apr 09, 2008 Compliant with environmental requirements of MIL-STD-810F standard, fanless g840XT has magnesium alloy exterior and 8.4 in. TFT SVGA sunlight-readable display with integrated touchscreen. Product is powered by Intel® Stealey(TM) A110 ULV processor (800 MHz, 512 KB L2 ATCA cache) and incorporates 1.0 GB DDR2 533/400 MHz SDRAM. Shock-mounted, 80 GB, 1.8 in. PATA, 4,200 rpm HDD is standard, along with GPS module, 802.11 b/g networking, Bluetooth® 2.0, and various security features.

Electro Standards Laboratories    Cranston, RI 02921 3403
Apr 09, 2008 QuickSwitch Model 6272 allows access to either of 2 ST Duplex Fiber Optic networks from one computer connected to ST Duplex COMMON port. It features MEMS-based multimode mirror switch and can be controlled manually or remotely. Switched Fiber Optic ST Duplex ports are transparent to data and speed, and switch supports fiber optic wavelength of 1,300 nm as well as Gigabyte data rate.

Optek Technology, Inc.    Carrollton, TX 75006-6905

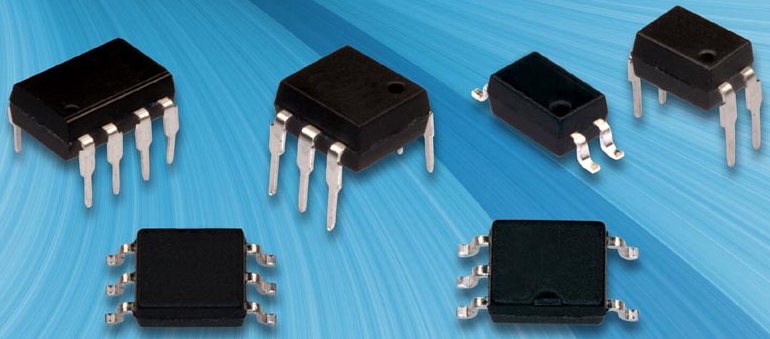

Apr 09, 2008 Analog output OP1A400 Series, analog output OPIA500/600 Series, as well as analog or digital Photologic® output OPIA/D800 Series are UL- and VDE-certified devices that provide electrical isolation for high-voltage power systems. Offering typical isolation voltage of 2,500, 3,750, and 5,000 V RMS, products are designed for applications that require either analog or digital output in dual-in-line package, with either single or dual LED transmitter.

ABS    Houston, TX 77092

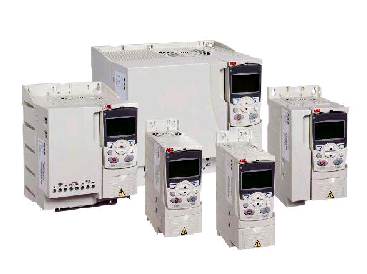

Apr 09, 2008 RoHS-compliant with coated boards, ACS350 Series measures 7.13 x 6.65 x 10.24 in., enabling cable tunnels to be arranged in straight runs to power units and control motors. With FlashDrop technology, parameters can be downloaded and uploaded into non-powered drive using hand-held FlashDrop MFDT-01 unit. PLC-like sequence programming enables user to create pre-set sequences of operations, without drive options. Packaged in IP20-rated housing, drives include EMC filter and built-in brake chopper.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Apr 09, 2008 Model FPC-1200 is float switch based duplex pump controller that includes sensor inputs for seal fail and temperature fail sensors on most submersible pumps. It connects to 4 float switches to measure tank level and has relay outputs to control 2 pumps and high alarm. Built-in HOA switches and pump run lights are included and lead pump selector switch permits pump to be selected as lead pump or alternation to be selected, causing pumps to alternate as lead.

Thayer Scale-Hyer Industries, Inc.    Pembroke, MA 02359
Apr 09, 2008 Constructed of SS, MWF-OS Sanitary Open Construction Weigh Belt Feeder can handle wide range of materials and densities. It can provide closed-loop gravimetric control of material feed rate or open-loop control for precise convey rate output and totalization of uncontrolled or intermittent material supply. Belt velocity is measured from tail pulley, providing direct measurement of belt speed. Load cell assembly can be removed and reinstalled without recalibration of feeder.

Label-Aire Inc.    Fullerton, CA 92833
Apr 09, 2008 Label-Aire 3111 HS utilizes Air-Blow technology that retains label by vacuum on honeycomb applicator grid. When product passes under grid, label is blown onto product and peel tip sensing ensures repeatable label placement accuracy. Machine features DC Servo that allows it to handle up to 5,000 in. of web/min at peak velocity. It can be mounted in almost any position adjacent to production line to apply labels to tops, sides, or bottoms of products.

Kontron    Poway, CA 92064

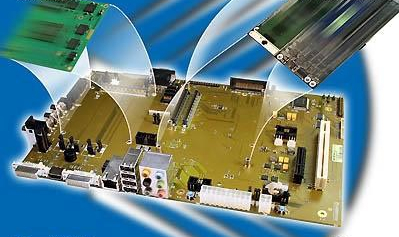

Apr 09, 2008 Meeting design guidelines of COM Express(TM) Extension and UGM Standard 1.0, ETXexpress UGM Evalboard is suited for embedded system configuration of CPUs and GPUs with fast software validation. It features onboard HDMI output, 2 DVI-I outputs, 2 LVDS interfaces with JILI30, additional LVDS interface via pin header, as well as outputs for analog video (576 i) via S-video and component output. Board also offers 1 PCI express, optional ExpressCard54 slot, 32-bit PCI, 6 USB 2.0, and 1 GbE.

Saelig Co., Inc.    Pittsford, NY 14534

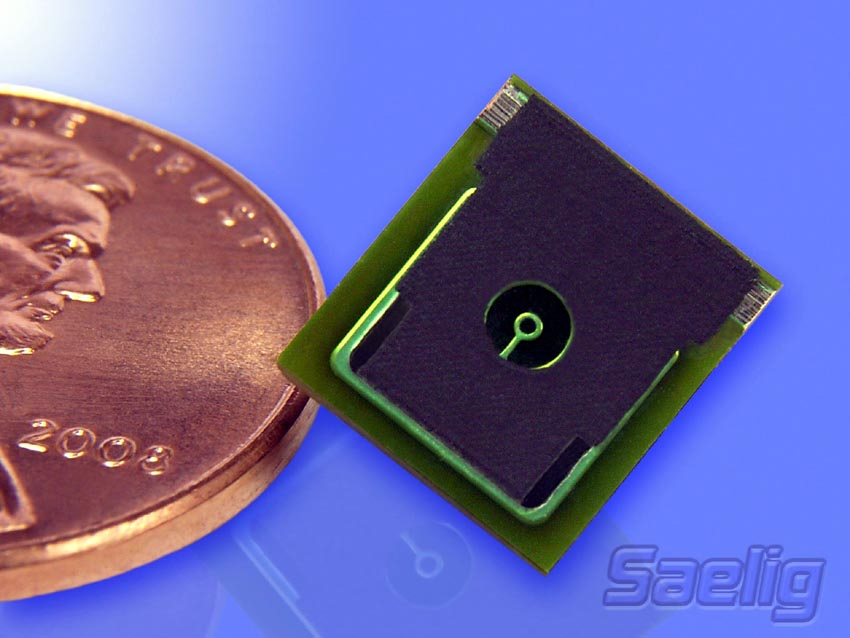

Apr 09, 2008 Available in 9 x 8 mm size, UPSICAP(TM) passive and active sensors feature 4-layer construction to resist effect of condensation and water immersion on their accuracy or response time. Featuring MSS bi-face(TM) technology, devices can operate from 0-100% RH and in -90 to +85°C temperature range. Output frequency varies with humidity (7.2-5.8 kHz) and temperature is accurately indicated optionally by NTC variable resistance, linear platinum sensor, or linear voltage output consuming less than 1 mW.

Saelig Co., Inc.    Pittsford, NY 14534
Apr 09, 2008 Housed in 55 x 80 x 16 mm anodized aluminum case, Wave Generator Xpress(TM) generates arbitrary digital signals of up to 16 bits and 100 MB depth per run, at up to 50 MS/sec (11 MB/sec sustained). Controlled by GUI-based 8PI Control Panel Software, 50 MHz device features multiple graphical and programming (TCL/tk and C/C++) interfaces. Additional 6 digital control lines can be used to handle I/O clock signals and generate repetitive sequences.

Brooks Instrument    Hatfield, PA 19440
Apr 09, 2008 Featuring digital communications via built-in RS-232 protocol, Model 4800 Mass Flow Meter/Controller allows users to provide setpoint and receive process value, select one of 9 gases for calibration curve, access valve override function, and access re-zero function. Optional downport connection allows for top mounting to facilitate maintenance and installation while also offering space savings because there is no point-to-point tubing necessary.

Advantech Automation Corp.    Cincinnati, OH 45240
Apr 09, 2008 Featuring front-accessible USB design, DDR2 memory bus that supports up to 2 Gb, CD-ROM drive, and 2 PCI expansion slots, Model IPPC-6152A is 15 in. XGA TFT LCD Industrial Panel PC. Available with NEMA4/IP65 flat-sealed front-panel, unit can resist harsh conditions of any industrial environment. Compact, low voltage, and fanless, HMI device provides multiple standard communication ports including dual Ethernet LAN's and 5 NEMA4/IP65 compliant USB 2.0 ports.

AMAG Technology    Torrance, CA 90501
Apr 09, 2008 Offering PoE support for controller, reader, and door release, Symmetry Edge Network Controller provides up to 700 mA of power, eliminating need for separate power supply. Utilizing on-board LAN interface, it supports up to 50,000 credentials and 10,500 off-line transactions. Unit can be surface or wall switch mounted on secure side of door, and supports full range of reading technologies including magnetic stripe, smart card, proximity, biometrics, and Wiegand.

Thermo Fisher Scientific    Waltham, MA 02454
Apr 09, 2008 Including Models iCE 3300, iCE 3400, and iCE 3500, Series iCE 3000 Atomic Absorption spectrometers can accommodate both flame and furnace analyses. Suited for food safety, environmental, clinical, pharmaceutical, metals, and materials industries, units operate on iCE SOLAAR software platform that features extensive wizards to guide routine activities and demonstrate correct sequence of operations. Models iCE 3500 and iCE 3400 include Zeeman furnace option and D2 background correction.

Wood's Powr-Grip Co., Inc.    Laurel, MT 59044

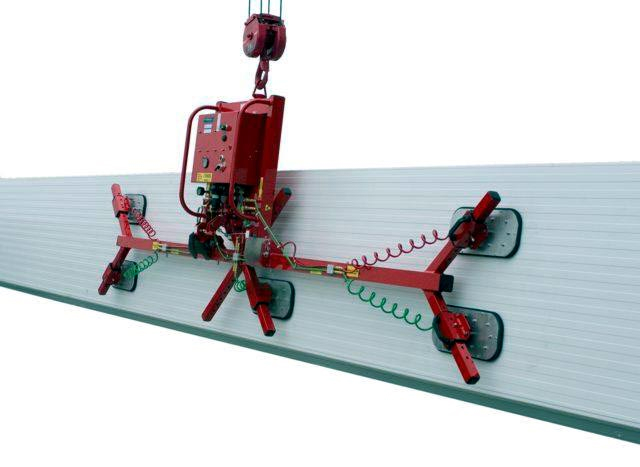

Apr 09, 2008 Configurable to stretch to 183¾ in. in length, Model MT4FS818DCS can handle long sheets of cladding materials weighing up to 700 lb. It comes with dual vacuum system with vacuum reserve tanks to reduce risk of falling loads that could result from breakage or other accidents. Unit features on-board battery charging system, battery energy gauge, low vacuum level buzzer, and 90° manual tilt between upright and flat positions with hydraulic damping and automatic latching.

Cooper Lighting    Peachtree City, GA 30269

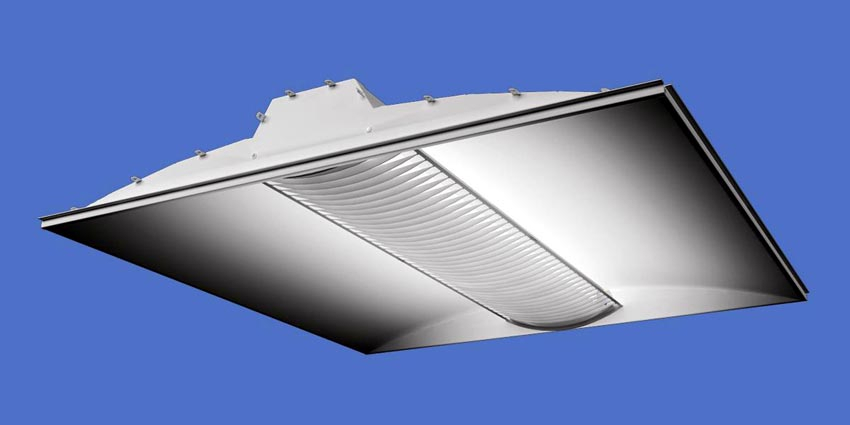

Apr 09, 2008 Available in 1 x 4, 2 x 2, and 2 x 4 ft sizes with 1, 2, or 3 lamp options, Corelite Class R Series includes Class R1 Ultra Shallow unit that features 1¾ in. depth and Class R2 Shallow unit that features 2 7/8 in. deep housing. Recessed, direct-indirect light can be installed into condensed plenum, enabling reduced overall building height without sacrificing desired ceiling height. Series offers Lensed, Micro Baffle, Round Perf, and Rectangular Perf shielding options.

BEA Systems, Inc.    San Jose, CA 95131-1010
Apr 09, 2008 BEA AquaLogic® Commerce Services v6.0 simplifies commerce process management to help online retailers increase sales, profitability, and store efficiency while accommodating store growth and market changes. In addition to extending commerce multiplatform SOA foundation, suite helps with commerce process management through multi-store management, support for sales on pre-/back-ordered products, secure payment integrations, streamlined order activities, and audit trail.

Cascade Microtech Inc.    Beaverton, OR 97006
Apr 09, 2008 Designed to aid in high-volume wafer testing of RF filters and switches for mobile handsets, 20 GHz P30 Pyramid Probe card has scalable architecture and is sized to enable multi-site testing. Solution's lithographic probes alleviate uncontrolled impedance and Microscrub(TM) creates small scrub mark that minimizes material displacement. Applications include multi-die testing for RF wireless, high-speed digital in SiPs, SOCs, and leading edge parametrics.

Robert Bosch GmbH    Waiblingen D-71332  Germany
Apr 09, 2008 Designed to eliminate cross contamination risk between batch runs when filling liquid pharmaceuticals, Prevas Disposable Dosing System accommodates vials, ampoules, and syringes. It installs on liquid filling lines and features completely disposable product path. Shipped completely pre-assembled, pre-sterilized, pre-validated, single-use system is comprised of bulk product bag, positive displacement-rolling diaphragm pump, filling needles, and tubes.
