ADLINK Technology Inc.    Irvine, CA 92618

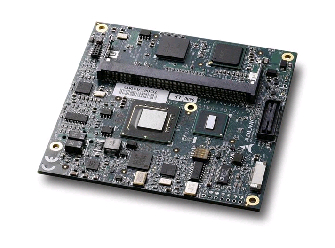

Apr 15, 2008 Enabling Internet-connected, battery-powered devices, Express-MLC measures 95 x 95 mm and is based on Intel® Atom(TM) processor Z500 series with Intel® System Controller Hub US15W. Built-in video hardware decoding offers acceleration for MPEG2, MPEG4, H.264, WMV9, and VC1, while Hyper-Threading technology allows more than one code thread to be executed simultaneously on single-core processor. Based on PCI Express bus architecture, module plugs into application-specific carrier board.

Mettler-Toledo Ingold    Bedford, MA 01730

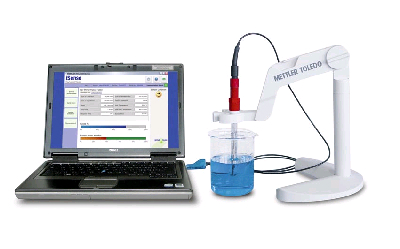

Apr 15, 2008 With iSense(TM) Asset Management Suite, users of Intelligent Sensor Management(TM) technology can apply plant-wide maintenance concepts with pre-calibrated sensors. Once sensor is connected to Windows(TM) PC via USB port, user can access various analysis, calibration, and documentation applications. Key Performance Indictors enable user to evaluate sensor condition and perform targeted maintenance operations. All operations are documented to perform advanced analysis of sensor asset database.

Cooper Lighting    Peachtree City, GA 30269

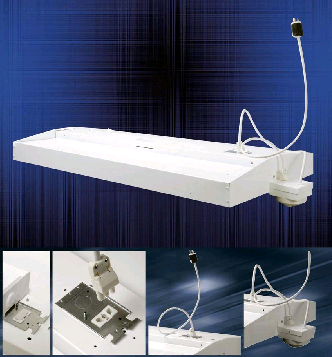

Apr 15, 2008 With plug-in power connection, Metalux Modular F-Bay Series eliminates need to remove lamps or reflectors to disconnect fixture power. Unit is supplied with pre-wired internal linear disconnect, complying with NEC requirements. Plug-in modular sensor kit option offers lighting control system to manage and conserve energy. Intended for applications with high mounting heights, luminaire is suited for retail, warehouses, industrial facilities, and convention centers.

Hitachi Power Tools    Norcross, GA 30093

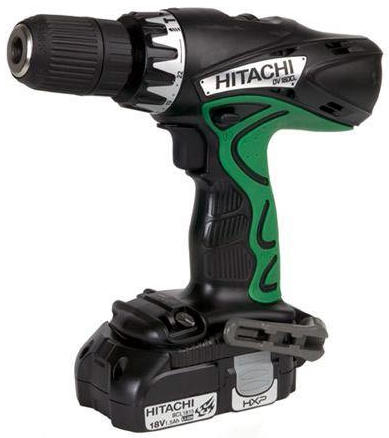

Apr 15, 2008 Featuring non-slip elastomer grip handle and weight of 4.2 lb, 9.37 in. long DV18DCL promotes user comfort while delivering up to 345 lb-in. torque for drilling, driving, and fastening. Tool delivers max impact of 21,000 bpm, and 2-speed transmission enables no-load speeds of 0-400 or 1,500 rpm. In addition to specialized clutch settings for drilling-mode and hammering-mode, 22 other driving stages make this tool suited for high-torque and precision driving application.

Shini USA    Willoughby, OH 04094

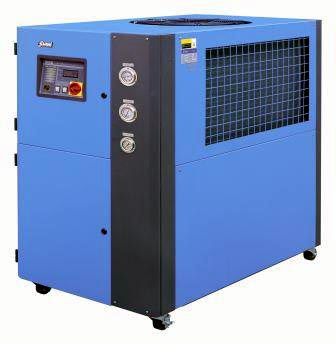

Apr 15, 2008 Air Cooled and Water Cooled Portable Chillers are designed to circulate fluid medium for continuous process cooling between 42-65°F. They includes scroll compressor, hot gas by-pass valve, liquid line solenoid valve, thermal expansion valve, and controller. Available in capacities from 3-40 tons with 230 or 460 V, chillers have copper tubing on all instruments and gauges and include separate high and low refrigeration liquid-filled pressure gauges.

Sealevel Systems Inc.    Liberty, SC 29657
Apr 15, 2008 Featuring 1,500 Vdc port-to-port isolation, C4-104.485+I, part number 3547, optically isolated 4-port adapter protects systems from ground loops and voltage transients. Each port is software configurable for full-duplex RS-422 or RS-485. It includes Oxford 16954 UART with 128 byte transmit and receive FIFOs for communications up to 921.6 Kbps. SeaCOM suite of drivers is used for BERT, throughput monitoring, loopback tests, and transmitting test pattern messages.

Servoflo Corp.    Lexington, MA 02421
Apr 15, 2008 Model MS5536 pressure sensor offers signal resolution of 0.05 mbar, with temperature compensation from 0-85°C, and self heats to achieve stable measurements with accuracy of ±1 mbar from 20-40°C and ±5 mbar from 0-60°C. It contains 64-bit factory calibration data for pressure and temperature and handles water level measurements up to 60 cm with accuracy less than 1 mm. Piezoresistive-based sensor offers power consumption of under 4 mA while accepting power supply of 2.2-3.6 V.

Newson Gale, Inc.    Lakewood, NJ 08701

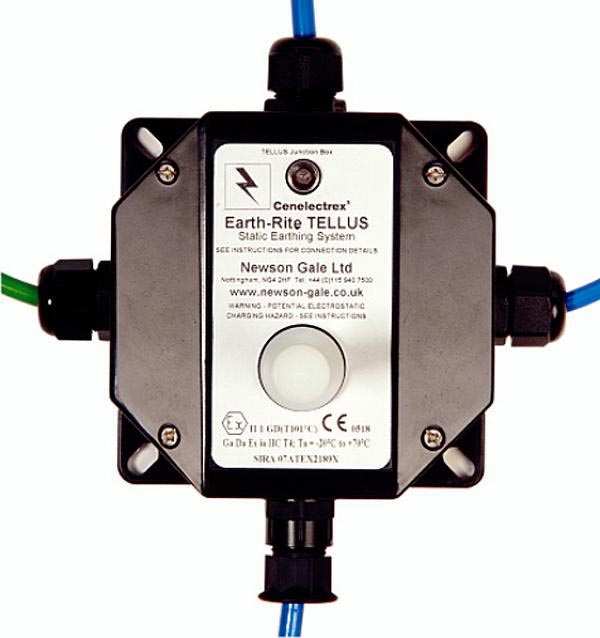

Apr 15, 2008 Earth-Rite® TELLUS(TM) monitors processing operations involving handling, transporting, or mixing of flammable or explosive products. Operating in real-time, it confirms that positive connection to ground exists and remains below 5 W, with green LED to provide indication. System is based on PSU/I.S. controller mounted in safe area as much as 350 ft from hazardous area. It is powered by 110 or 240 Vac and compliant with NFPA 77 and CENELEC 50404 guidelines.

Crystek Corp.    Fort Myers, FL 33913

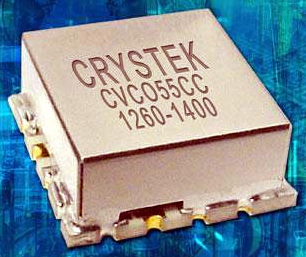

Apr 15, 2008 Supplied in 0.5. x 0.5 in. SMD package, CVCO55CC-1260-1400 operates from 1,260-1,400 MHz with control voltage range of 0.5-12 V. It features typical phase noise of -115 dBc/Hz @ 10 kHz offset and input voltage of 8.0 V, with max current consumption of 35 mA. Pulling and Pushing are minimized to 0.20 MHz and 0.20 MHz/V, respectively, and second harmonic suppression is -20 dBc typical. Areas of use include various communications applications.

Flomerics Inc.    Marlborough, MA 01752
Apr 15, 2008 ThermPaq automates process for generating accurate semiconductor package models and computing complete set of JEDEC-compatible thermal characterization data. Built upon FLOPACK SmartPart technology and FLOTHERM CFD solver, this Web-based tool is entirely wizard-driven. It can interface with Cadence APD and also serves as design tool for thermal specialists. Package sub-elements are stored as separate libraries, facilitating use of data from third-party vendors.

ADAMS Magnetic Products, Co.    Elmhurst, IL 60126

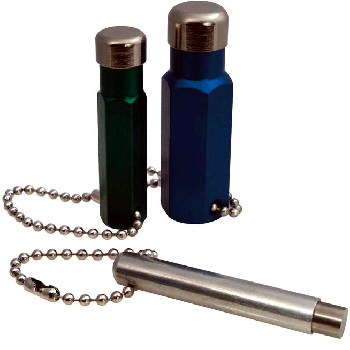

Apr 15, 2008 Available in 0.375, 0.5, and 0.75 in. diameters, Pocket Magnets offer pulling force of 2, 5, or 7 lb. Each is approximately 2.5 in. long and comes in standard silver color with attached chain for hanging from key ring, belt loop, or hook. Pocket Magnets can also be specified in choice of colors, with aluminum or plastic housing, and with custom imprinting such as company logos and contact information.

Advantech Automation Corp.    Cincinnati, OH 45240

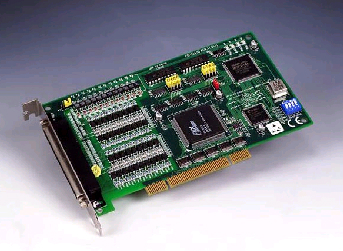

Apr 15, 2008 Designed for general-purpose, extreme motion applications, 4-axis Model PCI-1240U features NOVA® MCX314-motion ASIC that builds in variety of motion control functions, such as 2/3-axis linear interpolation, 2-axis circular interpolation, and T/S-curve acceleration/deceleration rate. Card includes hand wheel and jog function, up to 4 MPPS output for each axis, 2 pulse output types, up to 1 MHz encoder input for each axis, 2 encoder pulse input types, and constant speed control.

Snap-tite, Inc. Quick Disconnect & Valves Div.    Union City, PA 16438

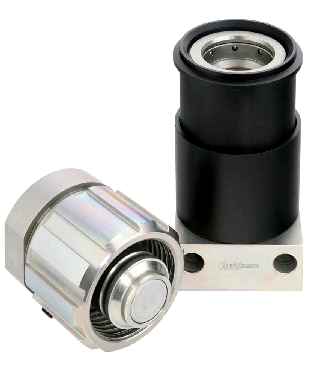

Apr 15, 2008 Adaptable to new or existing quick coupler system, QUIKXCHANGE Coupling survives hydraulic surge and pulsating flow of various work tools such as hammers/breakers, shears, and concrete crushers. Unit mounts on stick, connects or disconnects under static pressure, incorporates flush-face drybreak disconnection, and enables one man to change work tool hydraulic lines in 5 min or less.

KORENIX Technologies    Taipei 231  Taiwan

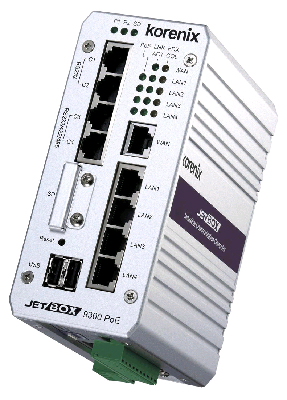

Apr 15, 2008 Equipped with Linux OS, JetBox 9310 consolidates industrial computer, router, managed switch, and PoE. RISC-based embedded computer provides 64 MB SDRAM system memory and includes 5 Ethernet ports, 2 USB 2.0 ports, 2 RS-232 ports, 2 RS-232/422/485 ports, 4 digital inputs, 4 digital outputs, and 1 SD card slot. Suited for industrial environments, computer is housed in aluminum case with anti-shock/vibration features and operates from -40 to 80°C.

Eximo    Smithfield   Australia

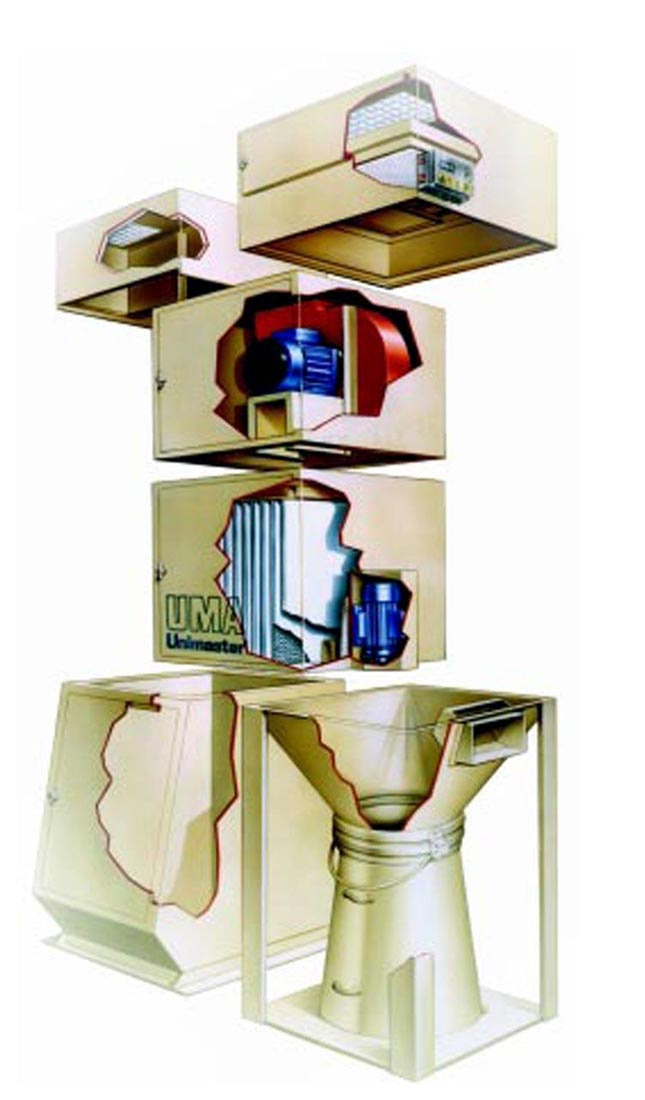

Apr 15, 2008 Unimaster dust control unit is suited for range of nuisance dust problems encountered during industrial processes. Contaminated air is drawn through inlet to filter by fan, with heavier dust particles falling into collection bin or hopper and finer dusts carried up to flat envelope shaped, multipad filter. When fan is switched off, filter fabric cleaning cycle is automatically activated and dust is dislodged by oscillating motion of shaker motor.

Pepperl + Fuchs, Inc.    Twinsburg, OH 44087 2245
Apr 15, 2008 Available in 6 models, G12 Series features SPEEDCON M12 connectors and single stainless steel mounting base that supports short and long style housings as well as various I/O mixes. Output-specific diagnostics allow maintenance personnel to quickly identify and correct problems, while machined, gold-plated contacts provide corrosion resistance. Integrated DIN clip on mounting base eliminates need for users to choose ahead of time how G12 will be mounted.

AXIOMTEK Co., Ltd.    Taipei   Taiwan
Apr 15, 2008 Model NA-811 multigigabit network security appliance is designed for VPN, firewall, UTM, and network management applications. Featuring 1U desktop form factor with 4 x Gigabit LAN ports, it supports Intel® Pentium® M processor with FSB 400/533 MHz or ULV Intel® Celeron® M 1 GHz/0K processor. It has Intel® 82573 LAN chip, 2 DDR2 SODIMM slots with memory up to 2 GB, and 2.5 in. SATA HDD and CompactFlash(TM). Front panel has 1 x RS-232 DB-9 console port, 2 x USB 2.0 ports, and LED indicators.

Henkel Loctite Corporation    Rocky Hill, CT 06067
Apr 15, 2008 Adhesin® 56-5545(TM) water-based adhesive for wet-bonding insulation to metal ducts and cabinets may be applied using spray gun or hand-applied with brush or roller. Offering UL Class 1 certification, it meets ASTM E-84 and ASTM C-916 requirements and dries in less than 10 min. For proper drying, adhesive must be used with at least one porous substrate. It can be used on painted or unpainted metals and is available in 5 gal pails and 275 gal tote containers.

Component Hardware Group, Inc.    Lakewood, NJ 08701
Apr 15, 2008 Spouts, treated internally with SANIGUARD® antimicrobial technology and listed by National Sanitation Foundation (NSF) International under Standard 61, Section 9 for use with potable water, are available on Encore® faucets. Internal diameter is coated with inorganic, silver ion antimicrobial to reduce bio-fouling by inhibiting growth of bacteria as well as odor-causing molds and fungi. Spouts can also be retrofitted to other existing Encore plumbing fixtures.

Toshiba America Imaging Systems Divison    Irvine, CA 92618-1697

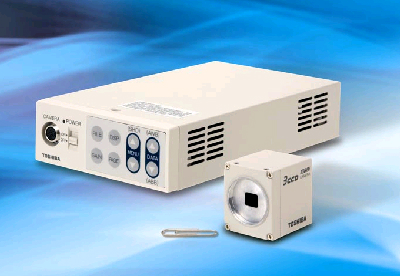

Apr 15, 2008 Utilizing 3CCD prism block technology and camera head measuring 1.6 in., IK-HD1 HDTV System features 1,920 x 1,080 resolution at 30 frames/sec. It includes C-mount lens flange, RS232C serial interface, and multiple outputs for HD-SDI, analog RGB, or Y/Pb/Pr. Accessories include 4 or 15 mm lens and camera cables in 3, 6, 10, or 30 meter lengths.
