Dwyer Instruments, Inc.    Michigan City, IN 46361
Apr 17, 2008 Liquid flow meter, PUX Series, utilizes transit time difference principle for measuring flow rates through pipes from outside with accuracy of ±1.0% of rate. In addition to digital signal processing, features include graphic LCD and serial (RS-232C) communications. Series may be set-up with various sensors of differing sizes and is available with integrated type graphic printer.

Murata Power Solutions, Inc.    Mansfield, MA 02048

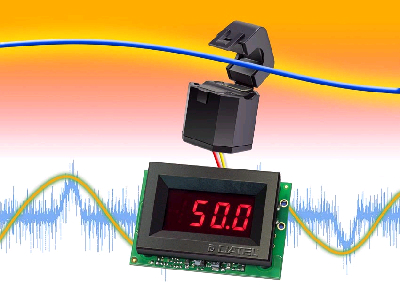

Apr 17, 2008 Available in 5 models, ACA-20RM Series provides direct measurement of true-RMS values of non-sinusoidal ac currents from 2-50 A. Self-powered, single-board modules offer choice of either 120 or 220 V nominal operation. Consuming less than 50 mA and operating from 0-60°C, meters include red LED displays with 0.37 in. high characters, precision auto-zeroing circuitry, RMS-to-DC converter circuit, and built-in bezel/filter assembly with metal fasteners.

AFC Industries, Inc.    College Point, NY 11356

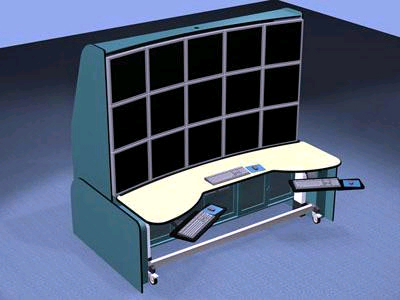

Apr 17, 2008 Combining height-adjustable work surface with 15-monitor display, 84 in. wide Command and Control Console is fully mobile and can be rolled anywhere to create comfortable security area. System features 2 ergonomic, retractable keyboard supports and fully encloses all hardware for unobtrusive appearance. Two wire mesh drawers allow airflow to computers, while comprehensive wire management system on rear of unit prevents tangling.

Elmo Motion Control Inc.    Windsor, MA 06095
Apr 17, 2008 Operating on dc power, PCB-mounted Whistle 20A/100V supports up to 20 A of continuous current, 100 Vdc. High-density performance delivers 3,300 W peak power and 1,650 W continuous power. Weighing 1.8 oz, device offers programming capabilities, communication support, and range of feedback and I/O options. It can operate in position, velocity, and current control modes, and use of Elmo software facilitates setup, configuration, tuning, analysis, and programming.

Oriental Motor U.S.A. Corp.    Torrance, CA 90502
Apr 17, 2008 Respectively rated at 200 and 400 W, RoHS-compliant BLF 6200 and 6400 series provide fully programmable brushless dc motor and driver speed control package. Driver box controls brushless dc motor from 80-4,000 rpm, a speed range of 50:1, with total speed regulation of 0.6% due to specified load, voltage, and temperature variations. Programmable control feature set lets user select 3 display modes, multi-speed operation with 8 selectable speeds, and 4 speed setting methods.

B & R Industrial Automation Corp.    Roswell, GA 30076
Apr 17, 2008 Available with 1.4 GHz Celeron M or Pentium M processor, Model APC620 utilizes Windows XP embedded with real-time extension. POWERLINK and CAN as well as X2X remote backplane are onboard as field bus interfaces. Computer includes 256 KB battery-buffered SRAM memory and integrated Smart Display Link that can be used to operate remote line with 4 displays at distances up to 160 m.

Microchip Technology, Inc.    Chandler, AZ 85224 6199
Apr 17, 2008 Consuming as little as 2.6 µA standby current, 9-member PIC24FJ256GA1 series features up to 256 KB, 16 KB RAM, and integrated Charge Time Measurement Unit (CTMU) peripheral. Latter, along with mTouch(TM) Sensing Solution SDK, lets designers add capacitive-touch user interface without any external components. Series also allows use of all onboard peripherals by enabling designers to map them to desired pin. Provided peripherals include 4 UARTs, 3 SPI ports, and 3 I²C(TM) ports.

Dri-Air Industries, Inc.    East Windsor, CT 06088
Apr 17, 2008 Available in sizes from 5-2,000 lb, TUFF-WRAP Hopper features gasketless access door and utilizes air distribution cone to dry all resin down to slide gate. Non-conductive TUFF-WRAP outer covering resists dents and scratches and helps optimize drying system efficiency. Fabricated from stainless steel, MINI-FEED system moves dried material from drying hopper to feed throat of molding machine or extruder. Amount can be as small as 7 g, depending on shot size of mold.

PCB Piezotronics Inc.    Depew, NY 14043 2495
Apr 17, 2008 ICP® Series 106/116/122/123/124 measure combustion instability and high intensity acoustics in rocket motors. They include acceleration-compensated quartz sensing elements and detect rapid pressure transients, pulsations, turbulence, noise, and spikes. With FS measurement ranges from 250-5,000 psi, units feature solid-state construction, stainless steel housings, and sensitivity up to 20 mV/psi. Configurations include helium bleed, Helium bleed and water-cooling, and water-cooling only.

Perma Pure Inc.    Toms River, NJ 08754
Apr 17, 2008 Able to lower sample's dew point from +4 to below -15°C, SDS(TM)-Series Supplemental Drying System eliminates formation of acid mists, including downstream SO3 formation in high SO2 services. Offered for single (up to 10 Lpm) or dual (up to 5 Lpm each) samples streams, unit also features corrosion resistant NEMA 12 enclosure. Dryer can be added on to compensate for undersized chillers, helping boost chiller performance in sample conditioning systems used in refineries and chemical plants.

Danaher Motion    Wood Dale, IL 60191-1073
Apr 17, 2008 Designed for harsh environments, Thomson Stainless Steel MultiTrac Ball Bushing® bearings are constructed of 440 stainless steel components to resist rust and corrosion. They offer coefficient of friction as low as 0.001, and deliver steady state travel speeds up to 10 fps and accelerations to 450 ft/s² without use of derating factors. Available in 8, 12, 16, 20, 25, and 30 mm sizes with adjustable, closed, and open configurations, bearings feature multiple track design.

Sierra Monitor Corp.    Milpitas, CA 95035 6825
Apr 17, 2008 Loaded with 4-20 mA output, RS-485 Modbus interface, SentryBus interface, integral alarm relays, and digital display, Model 5100-05-IT can be integrated into existing plant-wide safety and monitoring systems. Standalone network-enabled smart gas sensor module comes with scrolling LED with magnet operated menu and non-intrusive calibration, optional integral relay output, optional remote sensor that can be placed up to 100 ft from transmitter, and 316 SS enclosure options.

Saelig Co., Inc.    Pittsford, NY 14534
Apr 17, 2008 Featuring user-programmable alarm thresholds for T and RH%, EL-USB-RT USB-connected sensor can measure temperature from -10 to +60°C and 0-100% RH when plugged into USB port of PC installed with purpose designed software. PC displays temperature, humidity, and dew point in real-time and saves it to file that can store up to 7 days' worth of data. Software allows user to save data file permanently to hard drive and data can be graphed, printed, and exported to other applications.

Saelig Co., Inc.    Pittsford, NY 14534
Apr 17, 2008 With 12 bit resolution, 20 MS/sec sampling rate, 5 MHz bandwidth, and high-speed USB 2.0 interface, Model PS3425 4-channel PC oscilloscope can capture and display extremely detailed waveforms. It features differential inputs for measuring signals that are not referenced to ground, maximum common- and differential-mode ranges of 400 V, and PicoScope6 software. Scope has time-base range of 500 ns to 5 s per division, and 512 kS memory that enables capture of 26 ms of data.

Weiler Corporation    Cresco, PA 18326 0149
Apr 17, 2008 Burr-Rx(TM) disc brushes are made of black nylon filaments co-extruded with high aggression ceramic grains. Constructed with steel shell, they provide dimensional stability, and are produced with 2 in. bore that allows for direct mounting on equipment without need for adapters. Burr-Rx brushes are suited for deburring materials such as inconel, stainless steel, and titanium and are also available in stem-mounted wheel, mini disc brushes, and banded end brush configurations.

Elma Electronic Inc.    Fremont, CA 94538
Apr 17, 2008 Providing distinct color output, LED lightpipes feature optional thin polycarbonate barriers that prevent color mixing from adjacent rows and also provide added strength. Barriers are configurable, giving customers flexibility to have barriers between some or all of pipes. Slide covers that completely enclose shaft of lightpipe tube are also available; they allow only end of lightpipe tube to be seen and prevent light interference in all directions.

TURCK, Inc.    Plymouth, MN 55441
Apr 17, 2008 With 12-bit analog and 14-bit CANopen outputs, Sendix® encoders use Sensor-Protect(TM) technology to deliver fully encapsulated electronics and separated mechanical assembly, providing high resistance to shock (rated to 500 G) and vibration (rated to 30 G). Featuring die-cast housings, IP 69k rated single-turn magnetic absolute encoders are also resistant to humidity and condensation. Non-contact devices measure 36 mm in dia and operate over -40 to 85°C temperature range.

Instruments For Industry, Inc.    Ronkonkoma, NY 11779
Apr 17, 2008 PT186-2KWR military ruggedized pulse amplifier is designed for outdoor mobile and fixed applications. Compact unit is 6.5-18.0 GHz, 1.5 kW peak power amplifier for up to 6% duty cycles. CW/Pulse version, as well as other frequency ranges, are available to meet application requirements.

Apatar, Inc    Chicopee, MA 01013
Apr 17, 2008 Apatar Open Source Data Integration toolset uses StrikeIron US Address Verification Web service to verify and update US postal addresses. By correcting extracted addresses and adding ZIP+4 information, application cleans customer data before it gets into CRM/ERP systems, databases, and RSS feeds. It is Java-based and can run from Windows or Linux as well, as connect to Oracle, MS SQL, SalesForce.Com, SugarCRM, GoldMine, JDBC data sources, Amazon S3, and Flickr.

CGI GROUP INC.    West Montréal, Québec H3A 2M8  Canada
Apr 17, 2008 Ratabase® v5.0 enables business professionals to build, design, and deploy insurance products. It includes additional features to Product Builder and Calculator components, updates to formula language, expanding processing abilities. Policy Test Rating utility and testing facility with compare and analytical capabilities are also included. It also has security user levels for compliance with SOX and other corporate policies.
