ATTO Technology Inc.    Amherst, NY 14068
Apr 15, 2008 FastStream(TM) Storage Controller software can aggregate multiple Xserve RAIDs together to deliver performance up to 750 Mbps while providing RAID 5 protection. Software offers access to data at full performance in event of Xserve RAID controller failure using parity protection distributed among multiple arrays. It also enables aggregation of Xserve RAID arrays with 4 Gb Fibre Channel.

Performance Technologies    Norwood, MA 02062
Apr 15, 2008 Designed for equipment manufacturers and application developers, Model MTC5070 MicroTCA(TM) platform incorporates Gigabit Ethernet switching, PCI-Express® switching, MicroTCA-compliant carrier and shelf management, and SATA and SAS storage interconnect. It features 6 configurable AdvancedMC(TM) payload slots, front-to-back cooling, 40 W per slot power and cooling, built-in MCH and power functions, Telco clock support, and removable 300 W ac or dc power supply.

Symwave, Inc.    San Diego, CA 92121
Apr 15, 2008 With ability to transfer 1,000, four megapixel digital pictures in under 5 sec, FirePHY-1600 complies with IEEE 1394b S1600 standard enabling data transfer rates up to 1.6 Gbps. Housed in 64-pin 8 x 8 mm QFN package, device is backwards compatible with all prior generations of FireWire/1394. Based on SERDES technology, it is suitable interface technology for Mac and PC platforms, computer peripheral devices, and consumer and industrial applications.

3Dconnexion    Fremont, CA 94555
Apr 15, 2008 Featuring cap design for natural interactions within 3D applications, SpaceNavigator(TM) for Notebooks enables precise 3D experience in compact, mobile design. With ability to withstand wear and tear of travel, it can fit into laptop bag and comes with travel case. Portable unit is supported by all major operating systems including Windows® 2000/XP/Vista®, Macintosh® OS X 10.4.6 or later, and Linux®.

Ramtron International Corp.    Colorado Springs, CO 80921
Apr 14, 2008 Housed in 8-lead TDFN package, 2 Mb Model FM25H20 is organized as 256 K x 8-bit nonvolatile memory that reads and writes at bus speed up to 40 MHz, with essentially unlimited endurance and 10-year data retention. Hardware and software write protection feature prevents inadvertent writes and data corruption. Operating from 2.7-3.6 V over industrial temperature range of -40 to +85°C, device draws less than 10 mA for reads/writes at 40 MHz, 80 µA in standby, and 3 µA in sleep mode.

Acromag, Inc.    Wixom, MI 48393 7037
Apr 14, 2008 PMC-VSX modules feature DSP-optimized Xilinx® Virtex(TM)-5 FPGA, reconfigurable for optimal I/O processing and user-developed algorithmic computation. Banks of DDR2 DRAM accelerate data transfer in and out of FPGA, and dual-port SRAM promotes DMA transfer to PCI bus. PCI-X interface ensures bandwidth availability, and assorted plug-in I/O extension modules offer analog and digital I/O signal flexibility. Extended temperature (-40 to 85°C) and conduction-cooled models are available.

Allegro MicroSystems Inc.    Worcester, MA 01615
Apr 14, 2008 Featuring 125 KHz bandwidth capability, ACS756 open-loop Current Sensor takes advantage of low-loss leadframe of CA package and accelerated response capability of integrated core. Internal electrostatic shield shunts effects of voltage transient spikes around silicon and minimizes voltage ripple on output. While suited for various 50-100 A applications, specific areas of use include motor and inverter control as well as power supply control and protection.

Electroswitch, Unit Of Electro Switch Corp.    Weymouth, MA 02188 2913
Apr 14, 2008 Available in 3, 5, or 8 decks, Series 24 addressable network device delivers trip-coil monitoring, IRIG-B sequence-of-events reporting, system battery monitoring, self-diagnostic reporting, and 2 auxiliary monitoring inputs. Unit frees up RTU points, minimizing point-to-point wiring and facilitating load-shedding. Equipped with manual reset handle for Lock-Out Relay local control, SLOR is rated 30 A/600 V continuous with circuit-breaker coil providing ability of 95 A/125 Vdc.

Festo Corp.    Hauppauge, NY 11788
Apr 14, 2008 EMMS-ST stepper motor offers holding torque from 0.5-9.3 Nm, with external gearbox options of 3:1 and 5:1. Configurable as open- and closed-loop, CMMS-ST controller integrates braking resistor and mains filer, SD/MMC memory card, and network interfaces for Profibus and DeviceNet. There are 63 configurable positions, 8 positioning profiles with sequencing capability, and positioning profile overlapping. Combination of both handles loads of up to 20 kg.

Pickering Interfaces Inc    GRANTS PASS, OR 97526

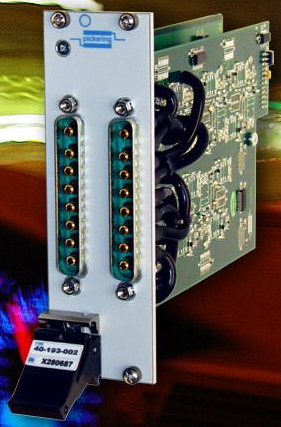

Apr 14, 2008 PXI fault insertion solutions, 40-193 and 40-194, are used for simulating high- and low-current faults when testing control systems. Both modules supports 7 channels, each of which can be opened or shorted to one of two fault connections. Channels can also be shorted together. While both modules have current rating of 20 A at 16 Vdc, 40-194 version has additional circuitry that makes it capable of switching both high current and low current loads.

FasTest, Inc.    Roseville, MN 55113-1317
Apr 14, 2008 Specifically designed for connecting to recessed ¼ in. NPTF transmitter manifold ports as well as ¼ in. side manifold ports, MIT-TM TwistMate® Connector features twist-to-connect action, providing leak-tight connection without thread sealants or wrench tightening for vacuum or pressure testing to 2,500 psi. These features eliminate wear and thread damage from repeated connections. Internal swivel allows installation while plumbed to supply line.

Henkel Corp.    Madison Heights, MI 48071

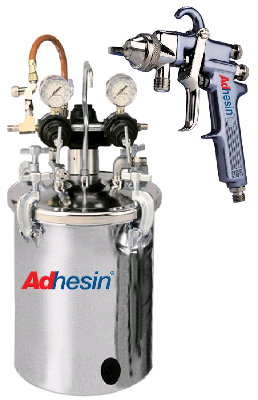

Apr 14, 2008 Intended for appliance and HVAC assembly, water-based Adhesin® 56-5545(TM) facilitates attachment of lightweight insulation to metal and may be applied using spray gun or hand-applied with brush or roller. Flame-retardant product meets ASTM E-84 and ASTM C-916 requirements and dries in less than 10 min. Available in 5 gallon pails and 275 gallon tote containers, adhesive must be used with at least one porous substrate to allow proper drying.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Apr 14, 2008 Suited for hazardous temperature measurement applications, Series TTE explosionproof transmitter has 7 preprogrammed temperature ranges selectable via internal dipswitch. It can be field-configured for any range from -20 to +250°F with minimum span of 40°F. Span and zero can be adjusted with pushbutton, and compact housing allows for transmitter to be mounted in virtually any application. Optional 2-line LCD display shows temperature and output.

Hilti Inc.    Tulsa, OK 74121
Apr 14, 2008 Hilti DS-HS 80 V2 Hand-Held Gas Saw features carburetor setting for handling acceleration, along with narrow tool body and tall motor for balance and minimized vibration. It includes starter assembly, cool running motor, and tank geometry that optimizes fuel intake. Reversible steel flanges allow stocking of multiple blade types. Selection of diamond blades for variety of applications and base materials are available.

Vaughan & Bushnell Mfg. Co.    Hebron, IL 60034
Apr 14, 2008 S2 framing hammer is split-head hammer with head split in two, which interrupts and dissipates shock generated during use and reduces stress to users hand, wrist, and arm. It includes integrated plates that protect hickory wood handle from damage during overstrikes, modular head and claw construction, and elastomeric shock gaskets. Also included are precision balance and Headstart® Magnetic Nail Holder.

Vaughan & Bushnell Mfg. Co.    Hebron, IL 60034
Apr 14, 2008 Available with milled or smooth striking face, V5 weighs 19 oz and has deep V head for reduced shock and vibration. Sidewinder(TM) Nail Puller promotes leverage for removing nails without ripping up forms, and Short Stack(TM) Claws are reinforced for optimal strength when performing tear downs and rip outs. Also included, Double D(TM) Magnetic Nail Holder accommodates standard and duplex nails while also providing increased reach for one-handed nail starting.

Thomas Products Division    Sheboygan, WI 53081

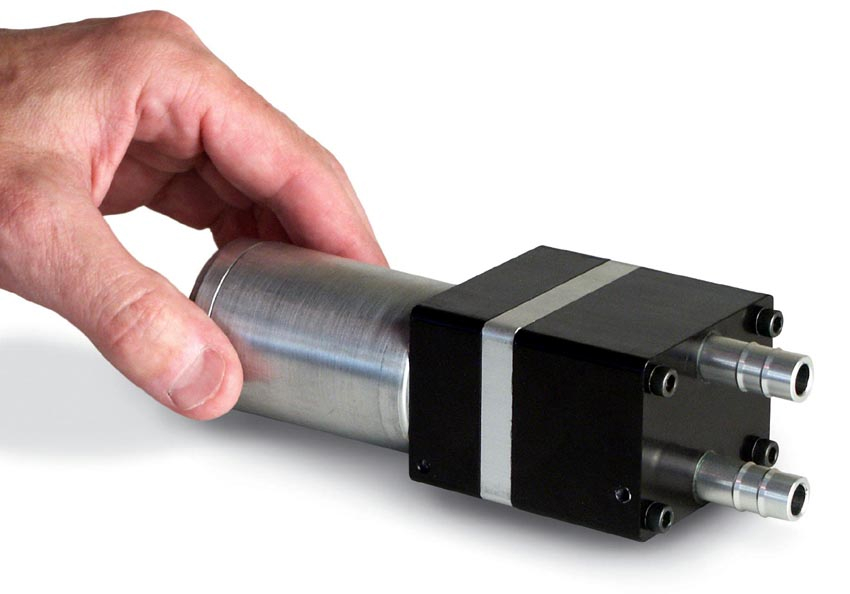

Apr 14, 2008 RL Series Rotary Lobe Blower delivers air flow up to 1.90 cfm, pressure to 2 psi, and vacuum to 4 in. hg. It can be mounted vertically or horizontally and is equipped with standard 3/8 in. OD hose barbs and 6 in. wiring harness. Featuring 12 V brushless dc motor and permanently lubricated timing gears, contactless blower is suited for fuel cells, laboratory pressure and vacuum sources, air samplers, gas boosting, and variety of portable air-moving devices.

LEVITON    Melville, NY 11747
Apr 14, 2008 PowerSwitch(TM) Enclosed Disconnect Switch with Receptacle (EDSR-23) is suited for powering portable cord connected equipment, such as pumps and bottling stations, that must be moved from location to location. At 6 ¼ in. wide, it fits between I-beam flanges and accepts standard 20 or 30 A NEMA locking flush receptacles rated up to 600 V. One 10 A NO auxiliary contact is factory-installed for remote monitoring, and additional auxiliary contacts can be accommodated.

Omega Engineering, Inc.    Stamford, CT 06907
Apr 14, 2008 Built around PID temperature controller, CL1600 Surface Probe Calibrator is designed to calibrate and verify surface probe readings from 77 to 842°F. Compact benchtop device is RoHS-compliant, has 4.75 in. dia aluminum surface, and offers uniformly heated surface area. In addition to RS232 communication, unit comes with cable, measurement and control software, as well as 5-point NIST Traceable Calibration Certificate. Areas of use include scientific, research, and calibration service industries.

Alcatel Vacuum Products, Inc.    Hingham, MA 02043
Apr 14, 2008 Suited for chemical, petrochemical, aviation, and oil processing industries, Extrima® can be used for leak testing of aircraft fuel systems and detection with diluted hydrogen as tracer gas in explosive environments where safety requirements are high. Auto-Ranging function automatically tunes instrument's sensitivity for precise leak location. IP67 waterproof rated unit provides 7 hr continuous operation from rechargeable batteries.
