H2W Technologies, Inc.    Santa Clarita, CA 91350
Apr 23, 2008 DR (dual-profile rail) positioning stages are driven by non-contact, 3-phase brushless linear motors commutated either sinusoidally or trapezoidally with Hall effect sensors. With 15.6 in. footprint, stages offer travel lengths to 160 in., load capabilities of 442 lb, continuous force to 445 lb, peak force to 1,335 lb, velocity up to 200 ips, and acceleration up to 9 G. DR Positioning Stages are suited for use as base or X-axis in stacked multi-stage applications.

AAEON Technology Inc    Taipei   Taiwan

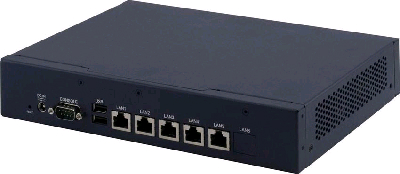

Apr 23, 2008 Designed for SMB and home office security applications, Model FWS-2150 employs 2.0 GHz VIA C7/Eden Processor with 400/800 MHz FSB or onboard 500 MHz VIA Eden ULV with 400 MHz FSB, and 240-pin DDR II 400/533 DIMM Socket system memory up to 1 GB. Device includes 5 LAN ports with 2-port bypass function for network connections. In addition, appliance accommodates one Ultra ATA-100 port, 2 SATA I ports, and one CompactFlash slot for OS and application updates.

Interface, Inc    Scottsdale, AZ 85260
Apr 23, 2008 Model T22 Pulley Torque Transducer includes central fixing screw that holds sensor to end of shaft while pulley mounts directly to torque sensor. It features ±5V output, 12-28 Vdc supply, resistance to radial forces, 2X safe overload, and ±0.1% combined error. Contactless digital design offers 16-bit resolution and low noise, and device can be ordered with bore sizes to fit drive shafts with either DIN 6885.1 or SAE keys.

Linemaster Switch Corp.    Woodstock, CT 06281

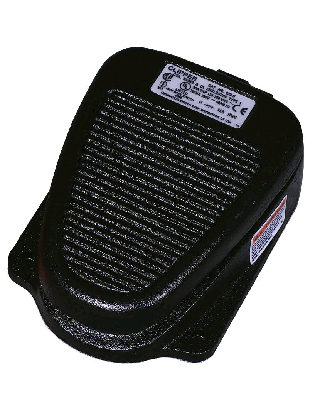

Apr 23, 2008 Designed with cast iron housing, Clipper Foot Switch is available in momentary or maintained actuation and also comes in wide treadle model that presents 7 in. target for operator's foot. Twin model and cast aluminum version with splash-resistant interior switch are also offered. Applications include communications equipment, conveyors, crimping equipment, man lifts, and material handling equipment.

Tripp Lite    Chicago, IL 60609
Apr 23, 2008 Supplied as 1U rackmount KVM Switch, NetDirector(TM) (Model B060-032-8) enables up to 8 users to independently and simultaneously control 32 directly connected computers/servers. Control can be extended to 8,000+ additional units by daisy chaining or cascading additional KVMs. Along with Web-based Administrator Utility for port/user management and control, switch offers 3-level password security that supports up to 1,024 individual user accounts and 256 group accounts.

McCrometer, Inc.    Hemet, CA 92545
Apr 23, 2008 Supplied in bolt-on saddle configuration, Mc® Propeller Model MO300SW is suitable for use in line sizes from 4-12 in. Unit features high-impact polypropylene plastic impellers and 316 SS impeller shaft supported with lubricated 440C SS bearings. Able to shed variety of organic and inorganic debris and resist sand associated with flow measurement in surface and water well applications, meter provides +2% accuracy over full flow range with +0.25% repeatability.

Lyon Workspace Products    Aurora, IL 60507

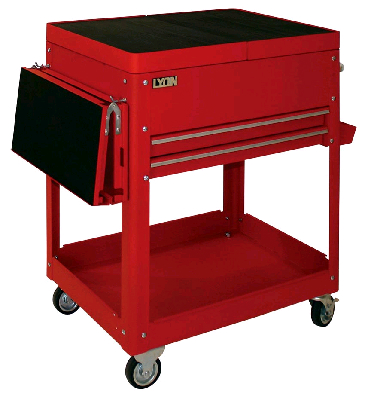

Apr 23, 2008 Featuring red powder coat finish and 4 x 1 in. casters for mobility, RollMaster(TM) Mobile Workstation has Expand-A-Top insert that extends work platform by 18 in. and stores neatly on one end of workstation when not in use. In open position, work surface reveals large storage compartment that can be locked for security in closed position. Additional features include 2 storage drawers and protective rubber mat that covers entire work surface.

Fluid Research Corp.    Tustin, CA 92780

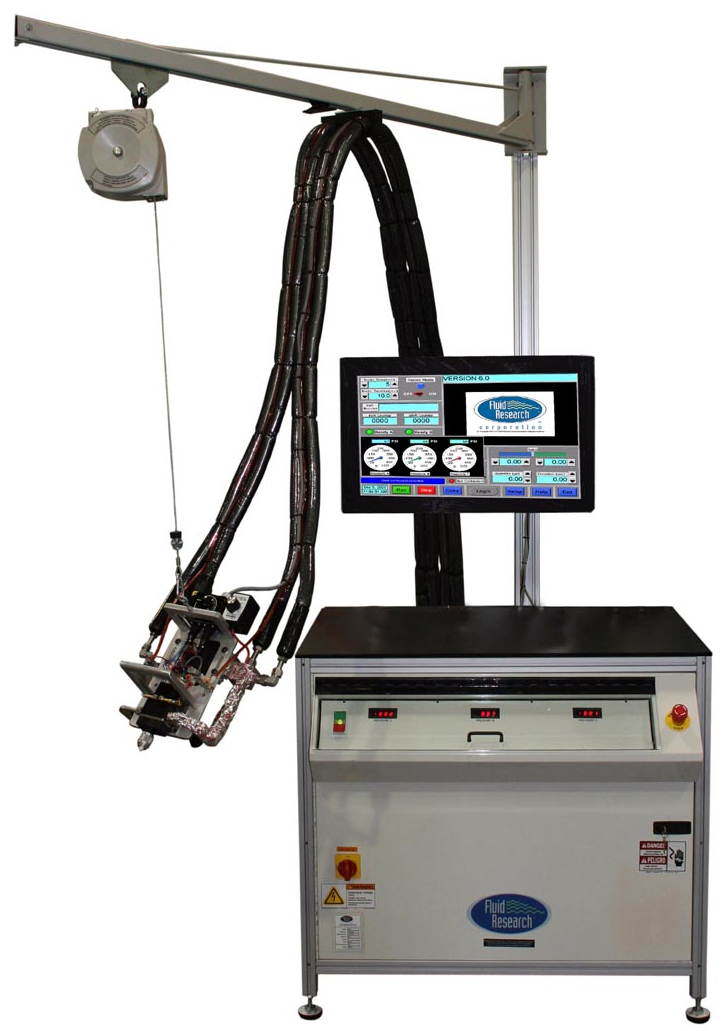

Apr 23, 2008 Signature Triple utilizes computer-based platform and progressing cavity pumps to meter, mix, and dispense 3 components simultaneously while being controlled from remote location. System is designed to address non-paint applications involving triple-component reactive materials.

Raymond Corporation, The    Greene, NY 13778 0130

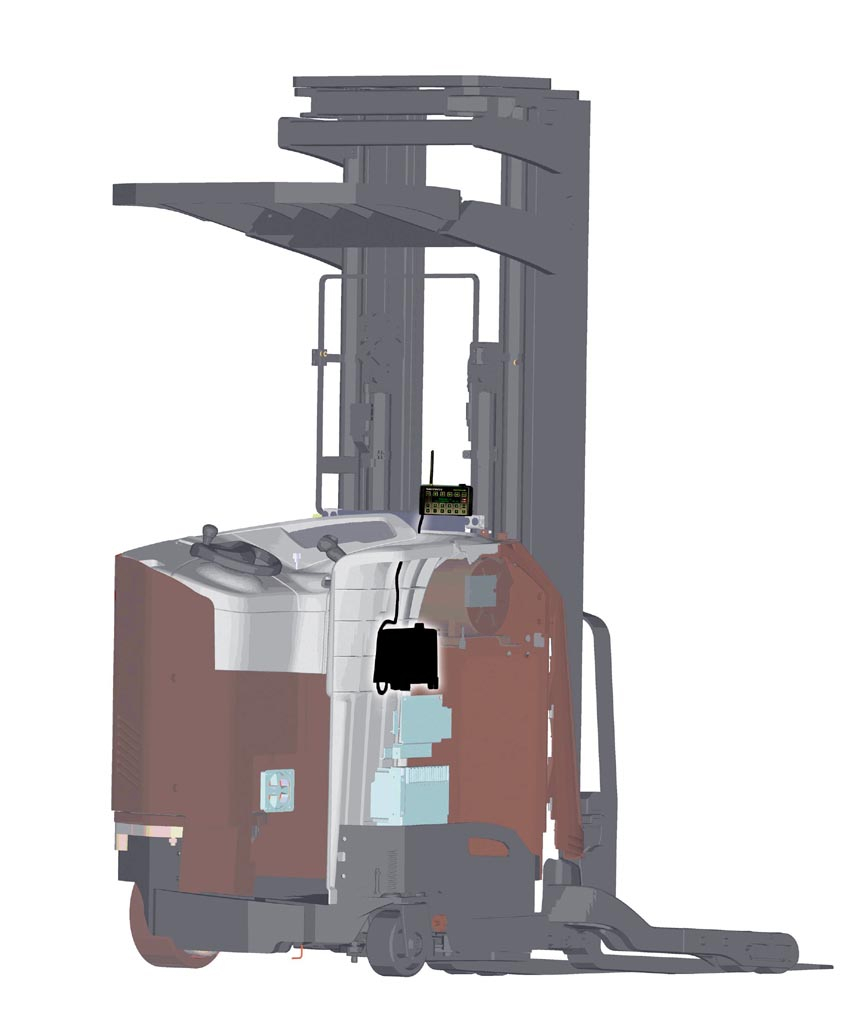

Apr 23, 2008 Drawing information from OSs of Raymond® lift trucks, iWarehouse(TM) system allows managers to access information via Web portal to generate reports and benchmark lift truck and operator productivity; diagnose potential lift truck issues remotely; and reduce risk of impacts. It connects to lift truck vehicle manager with iPort(TM) single connector. Available modules include iAlert(TM), iControl(TM), iImpact(TM), iVerify(TM), iTrack(TM), and iMetrics(TM).

Helwig Carbon Products, Inc.    Milwaukee, WI 53224 9008
Apr 23, 2008 Constant force brushholders are direct retrofits to originals and are manufactured from solid or extruded brass and machined to tight tolerances. Optional features include quick disconnect terminals and mounts as well as brush wear indicators.

Keyence Corporation of America    Elmwood Park, NJ 07407
Apr 23, 2008 Combining capabilities of SEMs and non-contact profilometry with functionality of conventional microscope, VK-9700 features 18,000x magnification and can perform surface profile, roughness, 3D, and comparative measurements. Its 3D display works with virtual trackball method and use of computer mouse to control viewing angle, lighting angle, zoom level, and Z-axis height. Images can be illuminated with pseudo-light when displayed on screen to shade irregularities on surface.

CAMI Research Inc.    Acton, MA 01720

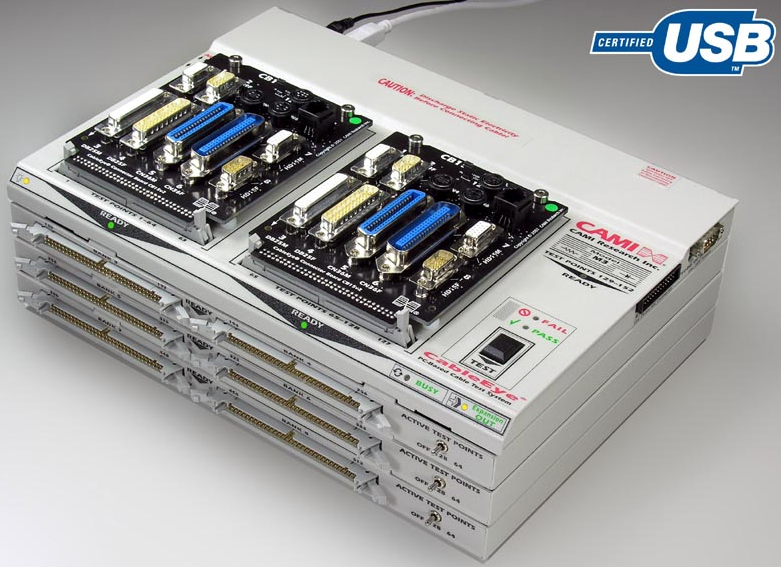

Apr 23, 2008 CableEye® checks cables and wire harnesses for opens, shorts, and miswires; measures diode forward voltage; checks resistance values from 0.3 W to 10 MW; and tests conduction and isolation resistance against thresholds. Optional API, software primitives used to exercise control over all basic functions of tester via external program, lets test engineers write software for CableEye in Visual Basic, VB.NET, C++, C#, or from any environment that can host Active-X software interface.

Sensor Developments, Inc.    Orion, MI 48359
Apr 23, 2008 Model 90229 enables operators to verify and calibrate click-type or electronic display-type torque wrenches to ensure they are providing accurate torque settings. System consists of interchangeable torque sensors supplied with ISO-17025 accredited calibration certificates, bench-mountable stand, and plug-and-play display instrument. Sensors are available in various torque ranges, from 50-3,000 lb-in.

Ingredient Masters    Cincinnati, OH 45230

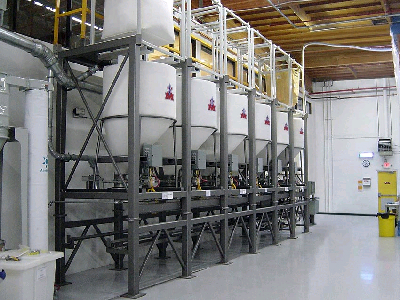

Apr 23, 2008 Designed to sequentially introduce dry and liquid materials to mixer, Batching System is based on Super Sack bulk material handling system, which incorporates multiple air-actuated dispensing hoppers, robotic scale cart, and support structure. Dispensers are polyethylene with capacities from 3.5-105 cu-ft. Controlled via Allen Bradley PLC and PC, system can store unlimited number of recipes, each date-stamped with most recent revision or approval.

Schroeder Industries LLC    Leetsdale, PA 15056-1025
Apr 23, 2008 Offered as stationary sensor that delivers instantaneous readings, TestMate Contamination Monitor (TCM) is designed for connection to hydraulic and lubrication lines with pressures up to 1,450 psi and viscosities up to 4635 SUS. It is enclosed in 4 in. dia case, utilizes optical sensor, and is able to self-diagnose continuously with error vindication via status LED. Measurement results can be output as contamination code according to ISO 4406: 1999 or SAE AS 4059 (D).

ExpressCube    Grand Island, NY 14072

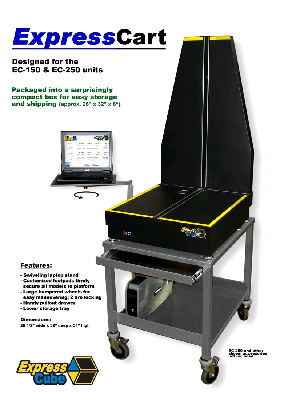

Apr 23, 2008 Able to interface with most WMS systems in real-time, ExpressCube Featherweight Gold-M incorporates laser-free ExpressCube 250 countertop dimensioning and weighing unit, which measures rectangular boxes within 24 x 24 x 36 in. measuring grid and up to 70 lb. ExpressCart measures 26½ x 32 x 31 in. and includes swiveling laptop stand, bumpered wheels, pullout drawer, and storage tray. With built-in battery, Express Power Unit permits 12 hr of operation.

Security Engineered Machinery Co., Inc.    Westboro, MA 01581

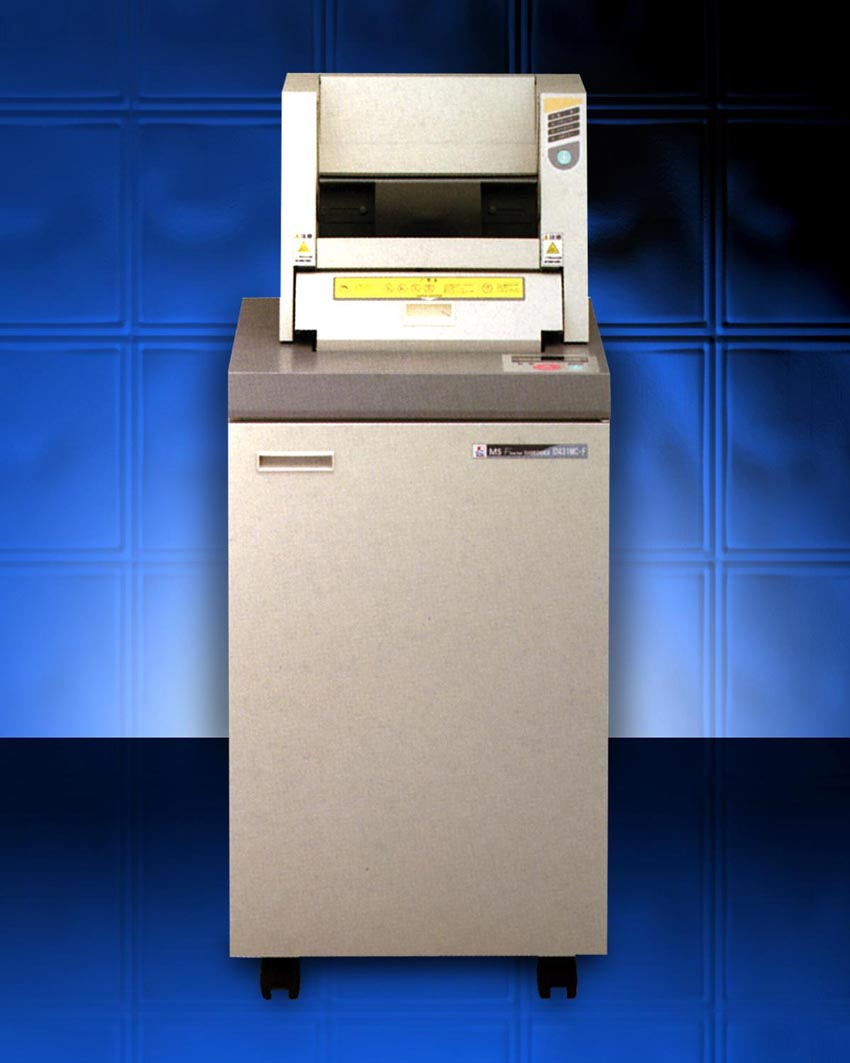

Apr 23, 2008 Capable of accepting stacks up to 1,000 sheets at one time, Model 1201PF shredder accepts paper up to 12¼ in. wide, and can operate continuously without overheating. Bypass slot allows single sheets to be fed manually without interrupting automatic feeder, while cutting head reduces paper to crosscut ¼ x ½ in. shreds. Measuring 20 x 20 x 46 in., it is suited for office use, and comes with automatic stop/start/reverse/shutoff and LCD status panel.

Tornado® Industries, Inc.    West Chicago, IL 60185
Apr 23, 2008 Featuring sealed casing and connections, Model CK 14/1 is multistage, true-HEPA machine that comes with CleanBreeze disposable filter, intake filter, and HEPA filter cartridge. System is designed to capture and trap virtually all particulates, dust, and allergens.

Tripp Lite    Chicago, IL 60609

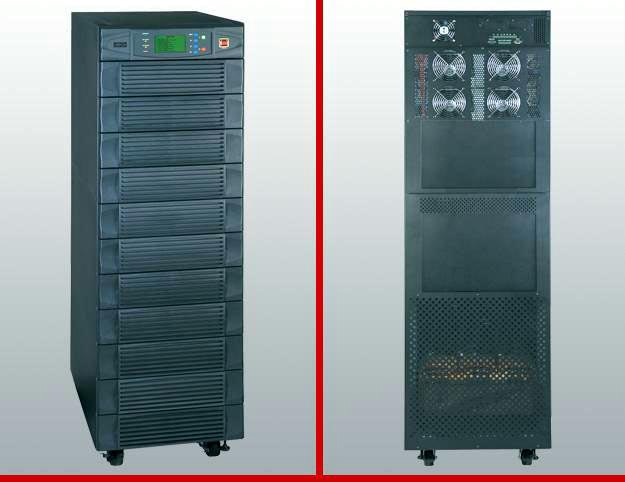

Apr 23, 2008 Suited for 120/208 V applications, SmartOnline(TM) Modular 3-Phase UPS Systems include Models SU40K, SU60K, and SU80K with capacities ranging from 40-80 kVA and operational efficiencies up to 97%. Units feature self-contained, hot-swappable multiple 20 kVA power modules to provide N+1 redundancy for critical loads. Producing less than 3% input THDi, they enable 1:1 sizing of UPS system to any generator set. LCD display provides real-time event log and stores up to 500 events.

VarTech Systems, Inc.    Baton Rouge, LA 70809

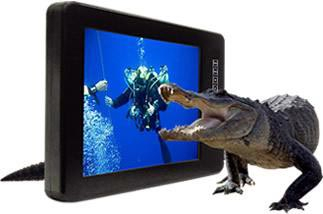

Apr 23, 2008 Available in 8.4, 10.4, 12.1, and 15.0 in. sizes, Rugged IP68 (NEMA 6P), all-weather, all-terrain LCD displays offer brightness levels from 900-1,400 nits. They feature 10-36 Vdc power supply, operational temperature range of -45 to 70°C, intrinsic and extrinsic contrast ratios, LED backlighting technology, and Enhanced Light Transmission Technology. All units have native XGA resolution of 1,024 x 768 except for 8.4 in. model which has SVGA resolution of 800 x 600.
