Bomar Interconnect Products    Ledgewood, NJ 07852

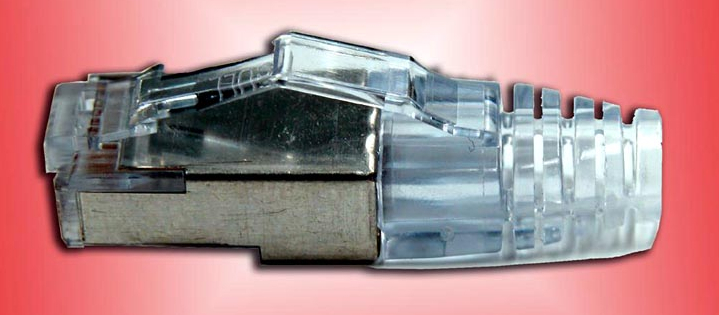

Apr 21, 2008 Model 300668SEZ Category 6 EZ-RJ45(TM) is shielded connector with 1-piece design that enables technicians to slide wire through connector and out front. Technician can pull connector over cable jacket and seat it securely in rear of connector to minimize distance between wire twists and contacts. Designed to prevent cable retraction snags, Model CBX600EZ snaggless boot provides an extended release mechanism for connector and supplementary strain relief.

Schaefer, Inc.    Hopkinton, MA 01748
Apr 21, 2008 Comprised of 2,500 W DC/DC converter, AC/DC power supply, and battery charging products, C4700 Series uses industrial-grade components in space-saving form factors (6U x 19 in. x 306 mm) to survive extreme environments. There are 200+ standard models available, with 9 standard DC input voltage options spanning 10-800 Vdc. AC input models offer 1- or 3-phase options as well as battery charging models. Single outputs are available in 12 standard ranges encompassing 4.5-400 Vdc range.

San-Tron, Inc.    Ipswich, MA 01938

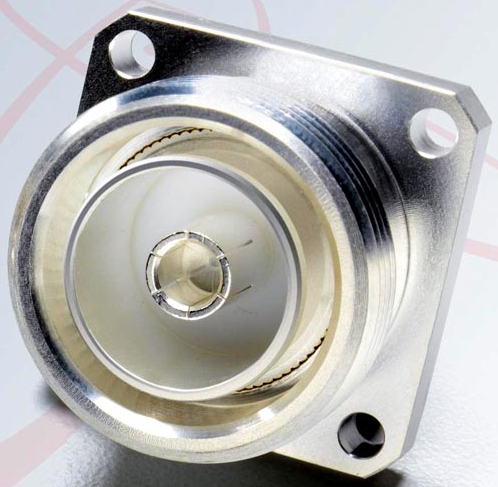

Apr 21, 2008 Capable of delivering consistent intermodulation levels, 7/16 panel receptacle is weather-sealed and suited for up-link communications. Delivery of VSWR under 1.03 (PCS) and PIM of -175 dBc ensures high-grade transmission, and .232 interface optimizes mating characteristics while reducing mating torque. Body, insulator, and center contact are all one-piece constructions. Body is offered in low-friction Albaloy, high-performance Silver, or hybrid Albaloy/Ag.

ADMET    Norwood, MA 02062
Apr 21, 2008 Designed to be combined with load cells, digital Gauge Buster Calibration Unit is used to certify materials testing machines, presses, and other load weighing equipment to ASTM E4 Force Verification standards. Up to 10 load cell calibrations can be stored, with 15 points of linearization in each calibration, and remote pushbutton is included to freeze current load and record it from display. Calibration results can also be imported into reports to produce certifications.

AFC Industries, Inc.    College Point, NY 11356

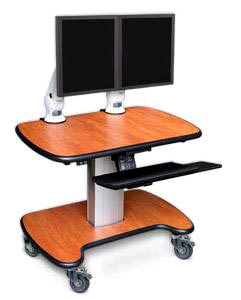

Apr 21, 2008 Designed to accommodate tight spaces, Telescopic Cart features electronically adjustable height for individual user comfort. Unit is available in 9 width and depth combinations and can accommodate up to 2 flat panel screens or CRT monitors. All sizes are customizable with table mount or clamp-style monitor arms, ergonomic or standard work surfaces, multiple laminate finishes and colors, keyboard arms and trays, and larger casters for 2 additional inches of height.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Apr 21, 2008 Paired with SX1 or SX2 clamp-on sensors, Series UXF1 Converter is part of fixed ultrasonic flow meter system designed to measure flow rates of relatively clean homogenous liquids. System features 32-bit microprocessor-based electronics and can be configured from front keyboard to particular applications. Suited for pipe diameters from 0.50-235 in., flow meter includes LCD display as well as multi-lingual display.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Apr 21, 2008 Suited for clean water applications, Series UXF2 combines microprocessing detection methods with obstruction-free flow measurement. This transit time flow meter delivers accuracy up to 0.5% and maintenance-free operation. Programmed via front panel keypad, unit weighs less than 2 lb, features signal quality indication, and has 2-line, backlit display. Additionally, temperature and pressure compensation system eliminates any error created by process fluctuations.

CIT Relay & Switch: Division of Circuit Interruption Technology, Inc.    Maple Grove, MN 55369

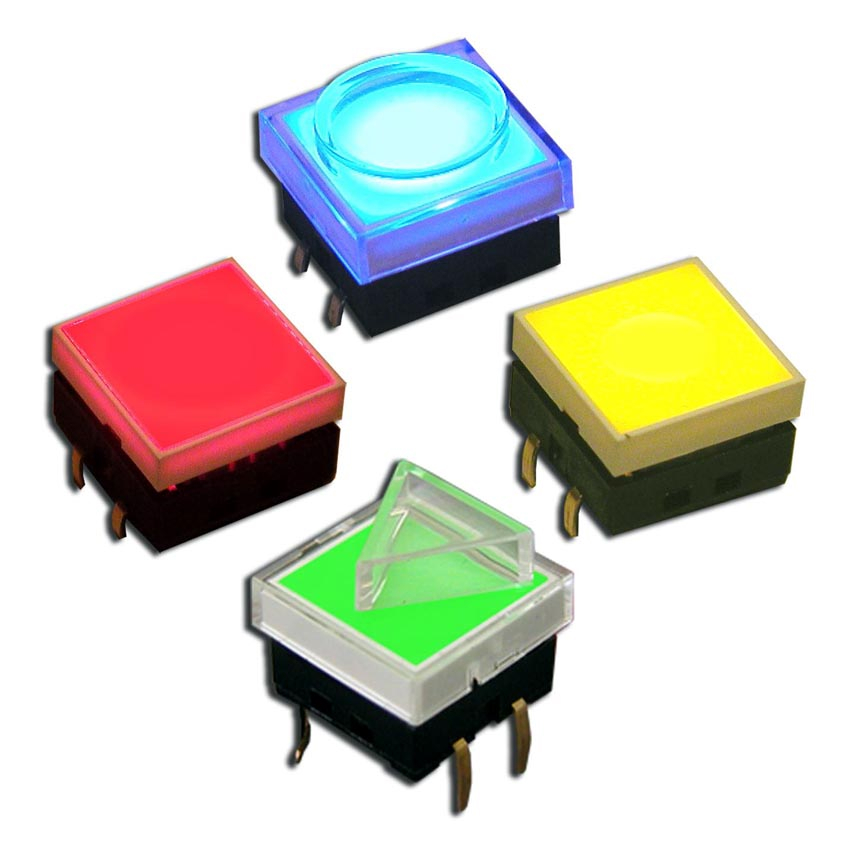

Apr 21, 2008 Offered with red, green, yellow, or blue LEDs and 7 cap options, JS Series 12 mm square illuminated tactile switch features electrical life of 100,000 cycles with electrical rating of 50 mA at 12 Vdc, and dielectric strength of 1,000 Vrms minimum with insulation resistance of greater than 100 mW minimum. Operating and storage temperature is -40 to 85°C and actuator force is 250 ±50 gF with actuator travel of 0.3 ±0.1 mm.

Cool Polymers    Warwick, RI 02886
Apr 21, 2008 Suited for heat sinks and thermal management solutions, CoolPoly® thermally conductive injection molding grade thermoplastics offer no amplification of electromagnetic or radio frequency interference and no magnetic coupling. E-series is electrically conductive and provides inherent EMI/RFI absorption, while D-series is electrically insulative and produces no signal interference. Features include thermal conductivity of 20 w/mk, thermal diffusivity of 0.1 cm²/sec, and density of 1.7 g/cc.

Thermo Fisher Scientific    Waltham, MA 02454

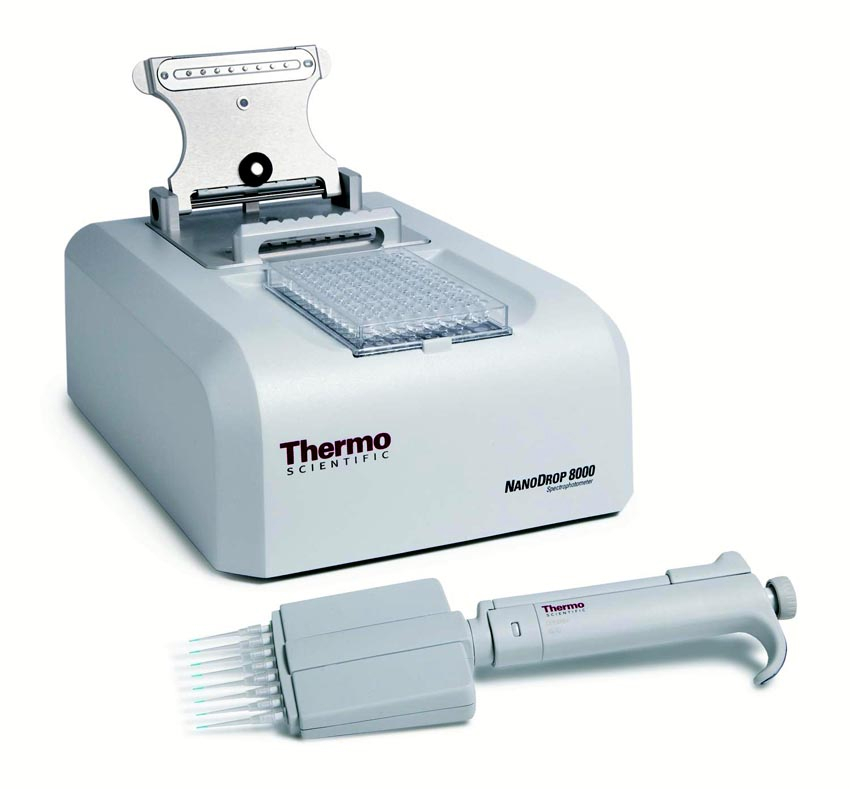

Apr 21, 2008 NanoDrop(TM) 8000 takes full spectrum UV/VIS absorbance measurements of eight 1 µL samples in 20 sec, allowing researchers to work with greater numbers of samples in less time. Featuring Auto Column Advance, Sample Position Illuminator keeps track of samples to be measured by lighting up wells from beneath plate, and allows user to select single/multiple wells for measurement and define measurement limits such as upper and lower concentrations of analyte.

Kadant Johnson, Inc.    Three Rivers, MI 49093
Apr 21, 2008 Constructed with SS and bronze components, Over-The-Shaft (OTS) Rotary Union is custom-designed for machinery that requires cooling on drive side of driven rolls and for rolls that cannot accept axially-mounted rotary union. Mechanical seal version handles high speed applications up to 750 rpm, while soft seal version with Quad-Seal o-ring and thrust washer suits slower speed applications. Rated up to 220°F and 150 psi, OTS can be applied to hydraulic oil/air applications.

Carlo GAVAZZI Automation Components    Buffalo Grove, IL 60089
Apr 21, 2008 Constructed of durable thermoplastic or rugged zinc alloy metal, mechanical switches can be used in any number of workplace safety applications. Including key interlock door, hinge-mount, pull wire, and standard limit switches with manual reset buttons, units are offered in 4 body sizes and 5 cable gland entry options to meet common global standards. UL, CSA, and CE marked switches are capable of withstanding demanding installation environments.

Instron    Norwood, MA 02062-2643
Apr 21, 2008 With capacity of 2,000 kN, SATEC(TM) Series 2000KN universal testing machine can perform tension, compression, and flexure tests on high strength materials including metals, fasteners, chain, wire, composites, wood, and concrete. Single test space provides different stroke lengths and extended test openings, while variable pressure hydraulic power supply reduces noise and heat generation. System can include optional open-faced high capacity grips.

Kontron    Poway, CA 92064
Apr 21, 2008 Based on 1.1-1.6 GHz Intel® Atom(TM) processor, nanoETXexpress-SP is intended for ultra-mobile applications. Processor and Intel® system Controller Hub US15W have TDP of less than 5 W. Module provides up to 1 Gb soldered DDR2 400/533 RAM and 2 Gb of onboard Flash as boot device. Compatible with COM Express COM.0 Type 1 connector, device offers array of interfaces, including 1 x Gigabit Ethernet, 1 x SATA port, and 8 x USB 2.0, as well as PCI-Express x1 lane for application-specific expansions.

GHX    Louisville, CO 80027
Apr 21, 2008 NuVia(TM) continually learns about products it contains by converting data into smart-objects(TM) that can discover and retain information about respective products they represent, such as manufacturer, distributor, where and how products are used, associated contracts, and if chargeable. It can process and return data to hospital within hours and hosts data in virtual item masters accessible anytime. Information on more than 10 million products used in healthcare is available.

GlobalLogic    Vienna, VA 22182
Apr 21, 2008 Based on GlobalLogic Velocity(TM) Method and Platform for distributed agile software development, Velocity Objects combines J2EE components with best practices to provide sound architecture, framework, and building blocks for developing products. Solution accelerates development by making components reusable and eliminating need to write infrastructure code or research available frameworks to find appropriate one for any given product.

Sanyo Fisher (USA) Corp.    Chatsworth, CA 91311
Apr 21, 2008 Suited for education and business presentation markets, Model PLC-ET30L offers 1,400 x 1,050 resolution, 10-bit digital gamma correction, and 4,200 lumens, while Model PLC-XT21/L provides 1,024 x 768 resolution and 4,000 lumens. Each is equipped with One-Way Flow System, which controls airflow that cools projector with single intake and exhaust vent. Optional networking module allows monitoring of projector functions and operation from remote location via web browser.

Electronics Assembly, Henkel Corporation    Irvine, CA 92606
Apr 21, 2008 Reflow curable encapsulant material, Hysol® FF6000(TM), combines flux functionality and underfill protection into one solution. It is formulated to provide flux for lead-free solder joint formation and, when cured, delivers protection against mechanical stress. In-line approach eliminates neeed for dispensing equipment as well as time required for underfill application and cure. Areas of use include Package-on-Package device configurattions and/or large (23 x 23 mm or up) BGAs and CSPs.

Pyroto, Inc.    Sturbridge, MA 01518
Apr 21, 2008 Offered as Web-based application, Pyroto Scheduler v4.0 enables training vendors or in-house training departments to input, schedule, and track large numbers of training classes and instructors. Solution delivers detailed calendar view of classes and can store range of information for each course. Additional functionality is provided for matching instructor qualifications and availability to upcoming classes as well as inviting or assigning multiple instructors simultaneously.

Digi International    Minnetonka, MN 55343
Apr 21, 2008 Both NS9215 and NS9210 integrate 2 independent high-speed controllers that are programmable as FIMs (Flexible Interface Modules), which provide different hardware interfaces based on needs of product or application. Based on ARM926EJ-S core capable of operating at speeds up to 150 MHz, products also feature on-chip 256-bit AES accelerator that provides secure network communication with SSL/TLS and IPsec protocols. Digi Dynamic Power Control(TM) is also included.
