Aven, Inc.    Ann Arbor, MI 48108
Apr 28, 2008 Measuring 6.5 in. long, Model 11080 features soft grip handle and stainless steel blades with HRC 54 hardness. Notched blade prevents material from slipping, and scissors can cut through aluminum and copper sheets up to 0.5 mm thick, plastic plate and PET up to 1.0 mm thick, and braided wire up to 1.5 mm dia. U-type blade holds items such as copper wire, cabtire cord, and various types of cotton braided and insulated cords, up to 1.5 mm dia, firmly in place to produce clean cut.

Aven, Inc.    Ann Arbor, MI 48108
Apr 28, 2008 Targeting telecom and electronics technicians, Model 10140 Crimping Tool for Micro Connections is capable of crimping 1.25-2.5 mm narrow pitch connector pin wires, and handles D-Sub connector contacts from variety of manufacturers. Pliers are made of S55C with Teflon® coating, and feature oil-resistant elastomer handles, locking latch, and coiled spring. Measuring 6.8 in. long, tool allows for fatigue-free work.

Metallized Carbon Corp.    Ossining, NY 10562
Apr 28, 2008 Metcar® Grade M-400, CS Series Blanks for general duty applications and Metcar® Grade M-106, HS Series Blanks for high-load, high-speed applications are machineable with conventional tungsten carbide or diamond tools. Suited for machining mechanical seal rings, bearings, and vanes, blanks offer lubrication when running in low viscosity liquids from -400 to +500°F.

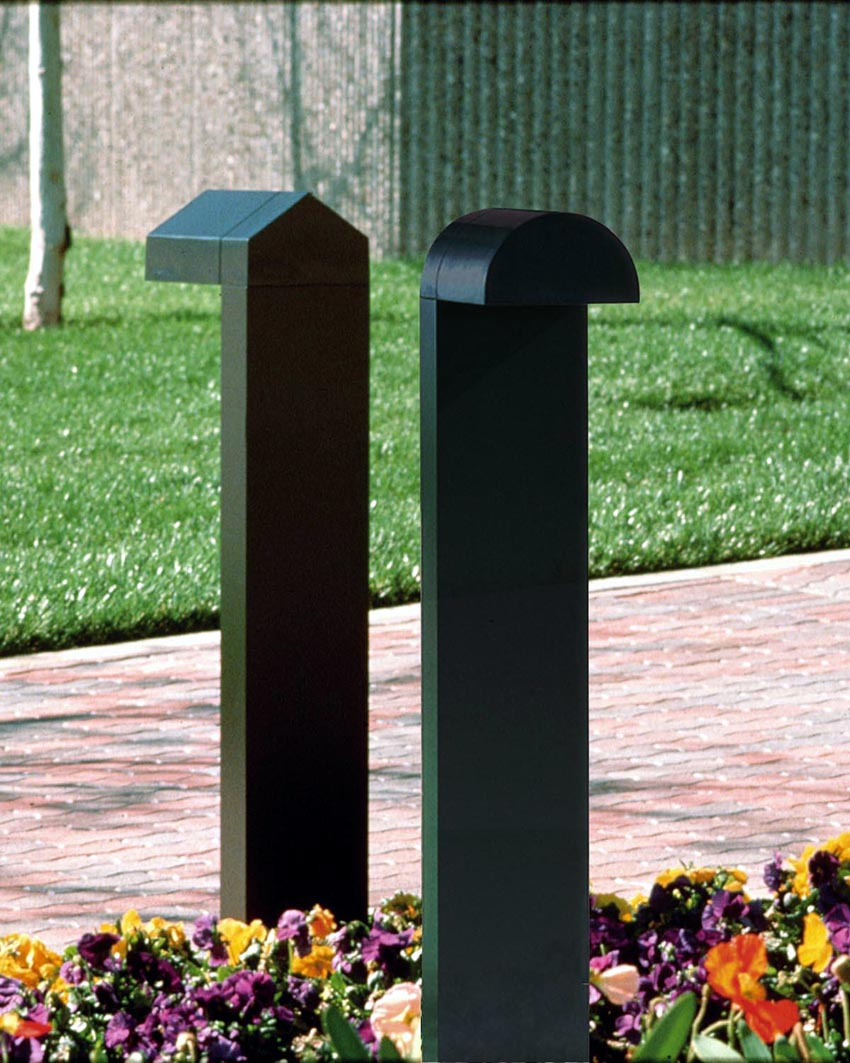

Kim Lighting    City of Industry, CA 91749
Apr 28, 2008 Site Lightform Bollard Series features LED versions in 15, 30, 60, or 120 W modules and is offered in 6 different styles. Each fixture has optical module that produces asymmetric light distribution using horizontal lamp and flat tempered glass lens. Series is designed with heavy-wall cast aluminum heads, 1-piece extruded aluminum shafts, and base with concealed bolts threaded into shaft extrusion.

Exlar Corp.    Chanhassen, MN 55317

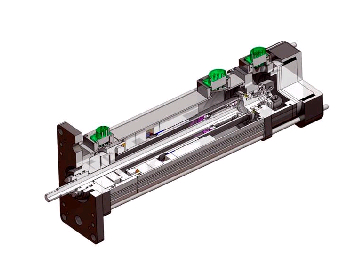

Apr 28, 2008 Employing planetary roller screw technology, GSX and I Series electro-mechanical actuators feature embedded load cell, offering direct method for obtaining electronic data relating to force being applied by actuator. Load cell is strain gauge type, providing ±1% linearity and ±0.5% repeatability and hysteresis. Separate connector is supplied for interfacing load sensor to external strain gauge conditioner/amplifier, which is required to excite strain gauge sensor.

Topp Industries, Inc.    Rochester, IN 46975

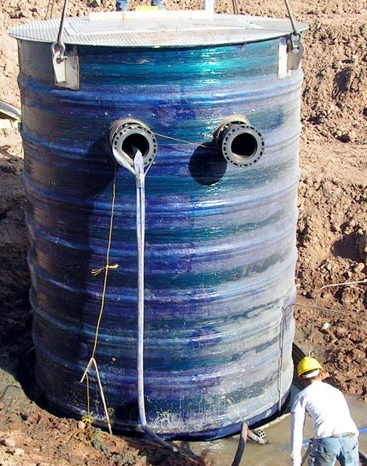

Apr 28, 2008 Available with 96 and 120 in. IDs, Fiberglass Sump and Sewage Basins are manufactured to ASTM D3753 standards. Various heights are available to meet specific application requirements, and one-piece tanks are available as deep as 35 ft. While 96 in. basins provide capacities from 3,008-7,520 US gal, 120 in. basins accommodate 4,700-11,750 US gal.

S.I.E. Computing Solutions, Inc.    Brockton, MA 02301

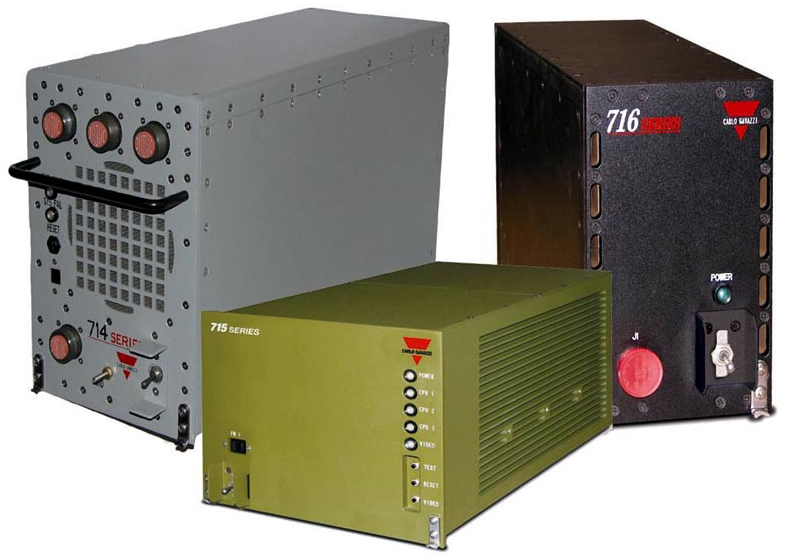

Apr 28, 2008 Engineered for harsh environment applications, 700 Series Air Transport Rack (ATR) rugged enclosures protect COTS air-cooled cards, extended temperature cards, and conduction-cooled military-grade cards. They can be engineered with convection (714 Series), re-circulating air (715 Series), conduction (716 Series), or air-over conduction (717 Series) cooling methods. Conducting walls are also configurable to address diverse environmental conditions.

Ideal Shield, LLC    Detroit, MI 48209

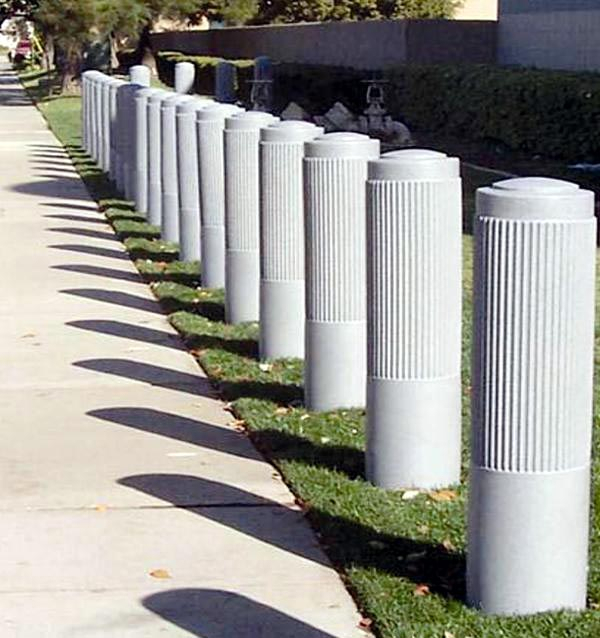

Apr 28, 2008 Manufactured from polyethylene thermoplastic, Ideal Shield® Bumper Post Sleeve slides over existing steel post to eliminate need for maintenance. It is available for post diameters ranging from 3-10 in., with sleeve height available up to 84 in. Delivered with installation tape, sleeve is available in a variety of colors and can be customized with molded in company logo.

Nippon Pulse America, Inc.    Radford, VA 24141
Apr 28, 2008 Integrating slide guide, encoder, and linear shaft motor, single-axis Model SCR100 has moving magnet design, which locates all cables and connectors in stationary base, eliminating motion errors due to cable forces. Coreless, direct-drive linear motor has zero cogging, while non-contact optical linear encoder offers resolutions from 1 micron to 10 nm with digital output. Cross roller linear stage supports optimal torque levels due to offset loads with travels from 50-300 mm.

Hermle Machine Company    Franklin, WI 53132

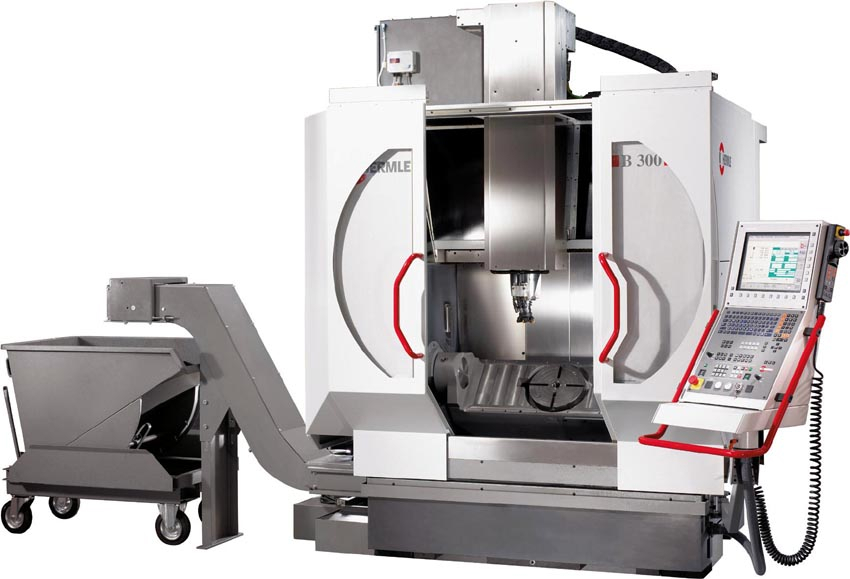

Apr 28, 2008 B 300 machining center incorporates gantry design, trunion table mounted on bearings, and mineral casting base with low thermal conductivity and vibration dampening properties. X, Y, and Z axes are 800-600-500 mm, respectively, with traverse of 30 m/min in all axes. Main drive, capable of up to 19 kW, powers 15,000 rpm spindle. Three-axis version has 1,000 x 560 mm, 1,500 kg capacity clamping table, while 5-axis model has 280 mm, 250 kg capacity NC-controlled swiveling rotary table.

Shimadzu Scientific    Columbia, MD 21046
Apr 28, 2008 Featuring UniBloc aluminum integral mass sensor, TX Series electromagnetic force restoration balances offer 220-3,200 g capacity with minimum display of 0.001-0.01 g. Equipped with load-cell function, TXB Series electronic balances provide 200-6,200 g capacity and minimum display of 0.01-1 g. Both types include Smart+ menu navigation keys and Smart Setting, which allows users to adjust ratio of stability and reaction speed without interrupting current measurements.

Konecranes Americas, Inc.    Springfield, OH 45502
Apr 28, 2008 Featuring modular design, K-Trac Cranes can be customized to accommodate design specifications that include runway and bridge length, post and hook height, and location of electrical input. Free-standing posts are built to withstand hazards of harsh factory environment and allow mobility, relocation, and on-site changes. Articulation of bridge's spherical hanger holds end-truck wheels flat on runway track, eliminating need for guide rollers.

TRUMPF Power Tools    Farmington, CT 06032
Apr 28, 2008 Nibbler N500-8 operates in reverse and in 4 directions, enabling users to move tool horizontally toward them or vertically from top to bottom. Weighing less than 9 lb, it features 1,400 W motor and operates in tight spaces. Device can cut through sheet metal up to 0.197 in. thick and SS 0.125 inches thick with working speed of 4.9 fpm. It can also cut through workpieces with 90° bends and double sheeting, such as tanks, containers, and guard rails.

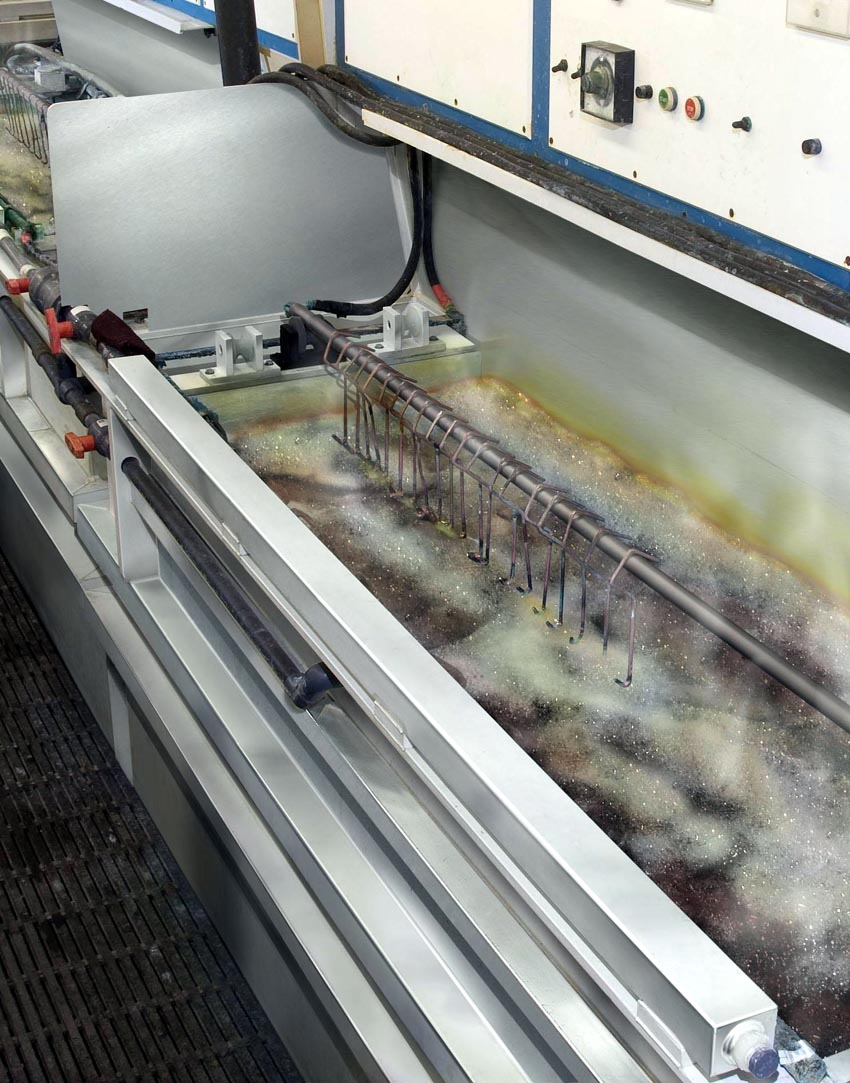

Uyemura International    Ontario, CA 91761
Apr 28, 2008 EPA-compliant Non-Mist L prevents vapor escape and minimizes evaporative losses from Cr3 and Cr5 chrome plating baths. Plating additive forms thin, strong foam blanket, preventing migration of dangerous mists that can harm workers, equipment, and ventilation systems. It also minimizes drag-out and chromic acid concentrations are kept low. Product does not contain perfluorooctane sulfonate or fluorinated surfactants.

Microchip Technology, Inc.    Chandler, AZ 85224 6199

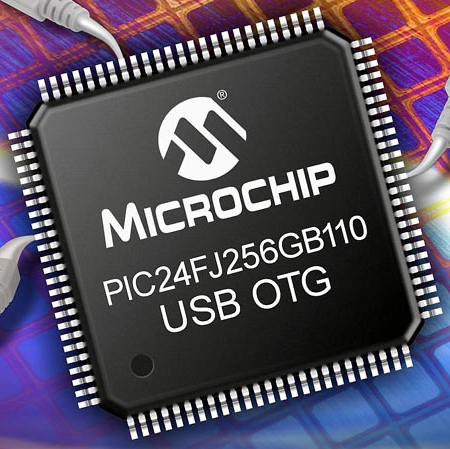

Apr 28, 2008 Along with 100 nA standby current, up to 256 KB Flash, and 16 KB RAM, PIC24FJ256GB1 series features integrated USB 2.0 device, embedded-host, dual-role, and On-the-Go (OTG) functionality. This combination facilitates addition of USB features to embedded designs, while integrated Charge Time Measurement Unit peripheral and mTouch(TM) Sensing Solution SDK enable addition of capacitive-touch UI without any external components. Up to 4 UARTs, 3 SPI ports, and 3 I2C(TM) ports are also included.

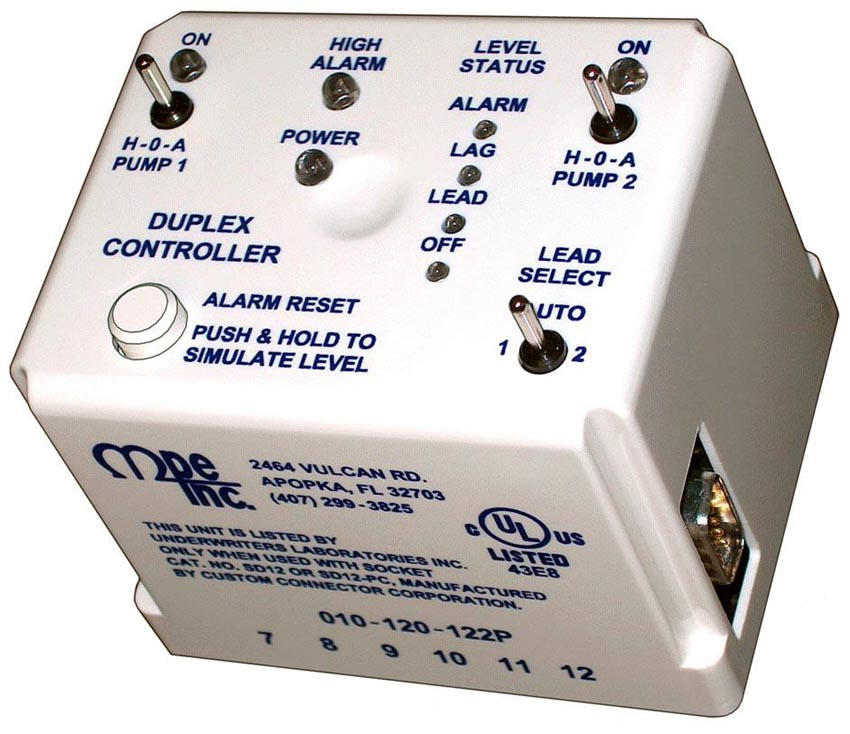

Motor Protection Electronics, Inc.    Apopka, FL 32703
Apr 28, 2008 Plug-in style and SCADA-ready (MODBUS) controller, 010-120-122P Duplexer, will accept float switch inputs or inputs from MPE Conductance Level Probe. UL-Listed product can perform pump-down and pump-up control and is suited for duplex lift station applications. Elements of construction include Modbus serial port for SCADA/Telemetry systems, Test/Reset button for simulating all I/O conditions, and alarm indication.

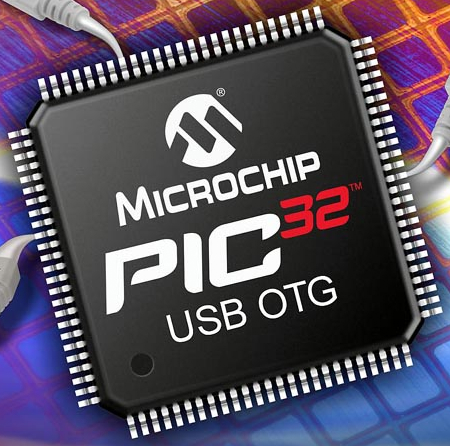

Microchip Technology, Inc.    Chandler, AZ 85224 6199
Apr 28, 2008 Offering 12 options to solve growing requirements for performance, memory, and USB OTG connectivity, PIC32 series maintains pin, peripheral, and software compatibility with Microchip's 16-bit MCU and DSC families. It is supported by MPLAB® IDE and can operate in host, device, and auto-negotiating USB embedded host/device. This enables designers to add all three modes of USB operation to their products. Model PIC32MX420F032H-40I/PT runs at 40 MHz and features 32 KB Flash memory.

Anver Corp. - Anver.Com    Hudson, MA 01749

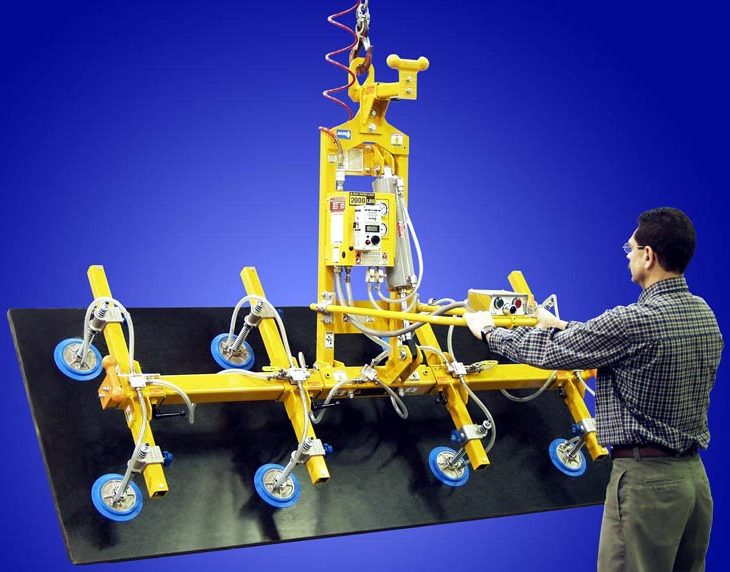

Apr 28, 2008 Suited for handling multidimensional architectural panels and large metal plates, AT Series below-the-hook, air-powered lifter-tilter features fully adjustable suction cups with extended suspensions and individual air valves. It employs compressed air cylinder for powered tilting, while vacuum loss sensor and audio-visual alarm promotes operator awareness. Various suction cups can be supplied for handling different surfaces.

Adaconn & Inserta Products, Inc.    Blue Bell, PA 19422

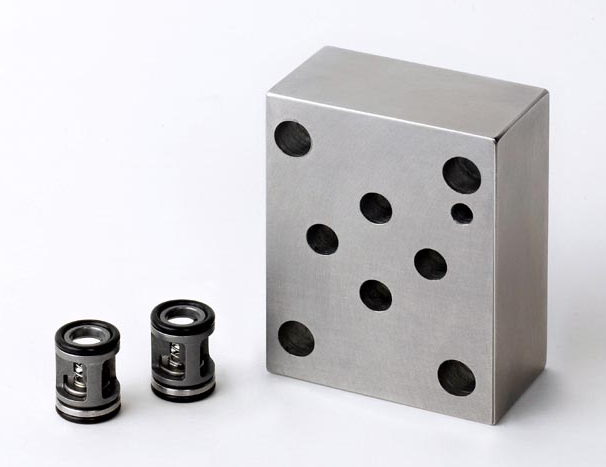

Apr 28, 2008 D03 Sandwich Check Valve Module can include up to 2 ICS Check Valve Inserts. Steel construction allows them to be used in systems up to 5,000 psi and in-Line flow minimizes pressure drop and wasted horsepower. Compact modules can optionally include orifices to provide fixed flow control.

Gateway Safety, Inc.    Cleveland, OH 44144
Apr 28, 2008 Featuring 4-sided, wraparound frame weighing 1 oz, 4x4(TM) Sport includes polycarbonate lenses with antiscratch coating. Soft inset nosepiece helps ensure comfort and flexible temple tips relieve pressure behind ear. It meets or exceeds ANSI Z87.1+ standard and has Silver Sport frame and colored mirrored lenses in sunset red, horizon blue, iridescent green, or sterling silver.
