NKK Switches    Scottsdale, AZ 85260-3420

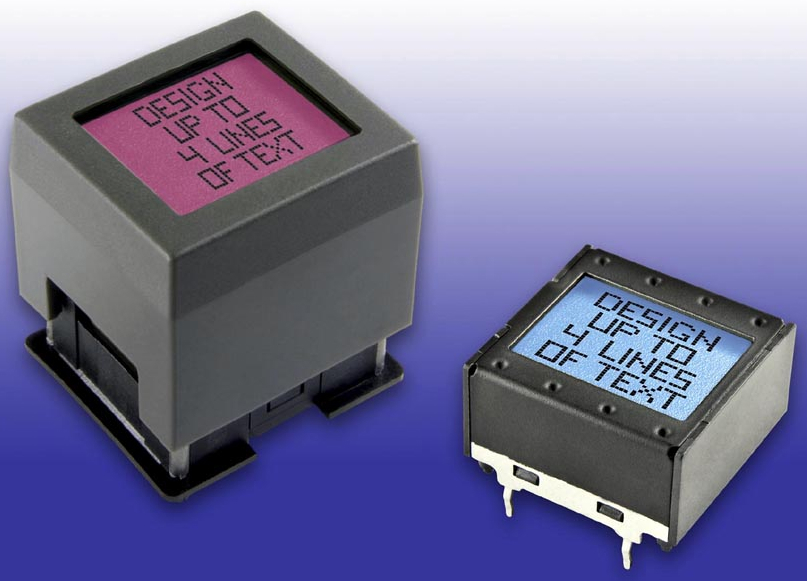

Apr 29, 2008 Suited for applications requiring GUI or real-time sequencing, SmartSwitch and SmartDisplay offer programmable 64 x 32 pixel LCD human interface module with 64 backlit colors to facilitate operator/machine interaction. Pushbutton products display graphics, alphanumeric characters, or animated sequences, including 4 lines of text with up to 10 characters per line. Both incorporate bitmap display functions with brightness backlight variable in 8 steps from dark to bright.

Z-Communications, Inc.    San Diego, CA 92126

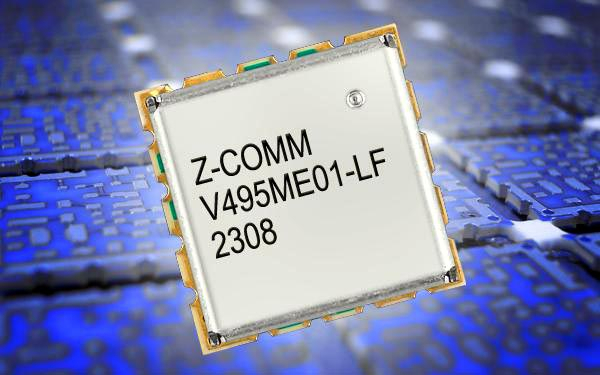

Apr 29, 2008 V495ME01-LF Voltage Controlled Oscillator for test and measurements applications offers phase noise performance of -113 dBc/Hz at 10 kHz offset and provides average tuning sensitivity of 10 MHz/V, covering bandwidth between 0.4-4.5 V. Operating at temperatures from -40º to +85ºC, RoHS-compliant unit has output power of 1 ± 3 dBm at dc supply voltage of 5 V while drawing 8 mA typ. It is contained in 0.50 x 0.50 x 0.16 in. package and is suited for automated surface mount assembly and reflow.

Z-Communications, Inc.    San Diego, CA 92126

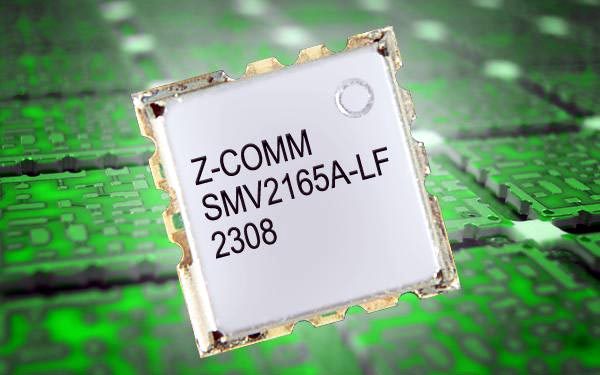

Apr 29, 2008 RoHS-compliant, subminiature VCO SMV2165A-LF in S-band features typical phase noise of -90 dBc/Hz at 10 kHz offset. From -40º to +85ºC, it has tuning sensitivity of 148 MHz/V typical and provides output power of 6 ± 3 dBm with 3.3 Vdc supply while drawing 16 mA typical. Unit is contained in SUB-L package measuring 0.30 x 0.30 x 0.08 in. and is suited for automated surface mount assembly and reflow.

Z-Communications, Inc.    San Diego, CA 92126

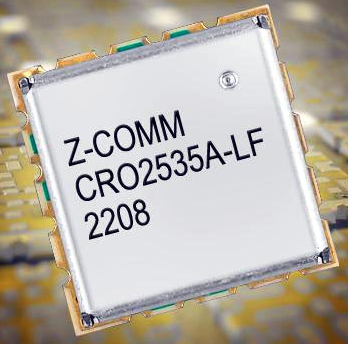

Apr 29, 2008 Supplied in 0.50 x 0.50 x 0.22 in. MINI package, RoHS-compliant CRO2535A-LF operates in S band from 2,500-2,560 MHz and offers ultra low phase noise performance (typ) of -110 dBc/Hz @ 10 kHz offset. It offers linear tuning sensitivity of 30 MHz/V (typ), covers band from 0.5-4.5 V, and delivers 2nd harmonic suppression of -25 dBc. Product provides 6.5 dBm output power (typ) @ 5 Vdc supply while drawing 24 mA (typ) over extended operating temperature range of -40 to +85ºC.

Z-Communications, Inc.    San Diego, CA 92126

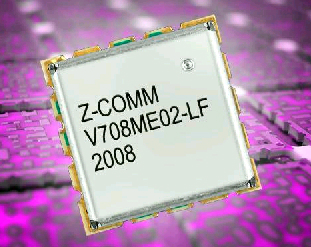

Apr 29, 2008 Operating from 640-945 MHz, Model V708ME02-LF offers ultra low phase noise of -100 dBc/Hz at 10 kHz offset. RoHS-compliant device provides average tuning sensitivity of 45 MHz/V and covers bandwidth between 0-9 V. Housed in MINI package measuring 0.50 x 0.50 x 0.13 in., voltage controlled oscillator delivers output power of 9.5 ±4.5 dBm at dc supply voltage of 9 V, drawing 13 mA over extended operating temperature of -40 to 85°C.

Z-Communications, Inc.    San Diego, CA 92126
Apr 29, 2008 Featuring low phase noise of -120 dBc/Hz at 10 kHz offset, L-band Model CRO1680A-LF offers 2nd harmonic suppression of -20 dBc with typical tuning sensitivity of 4 MHz/V, and covers band between 0.5-4.5 V. Unit provides 8 dBm output power at 5 Vdc supply while drawing 30 mA over extended operating temperature of -40 to 85°C. Housed in MINI package measuring 0.50 x 0.50 x 0.22 in., RoHS-compliant VCO is suited for narrow-band applications.

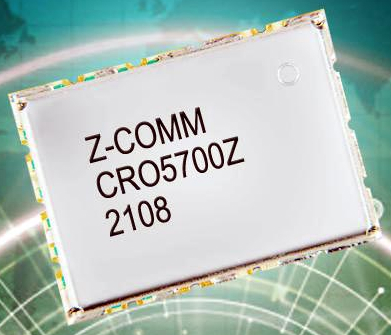

Z-Communications, Inc.    San Diego, CA 92126
Apr 29, 2008 Supplied in 0.6 x 0.8 x 0.22 in. VCO-24H package, CRO5700Z operates in C band from 5,690-5,719 MHz using doubler inside and featuring ultra low phase noise performance of -106 dBc/Hz @ 10 kHz offset. Design offers typical tuning sensitivity of 30 MHz/V and covers band from 0.5-4.5 V @ 5 Vdc supply while drawing 140 mA (typ) over extended operating temperature range of -40 to +85ºC. Areas of use include digital radio and satellite communications applications.

Z-Communications, Inc.    San Diego, CA 92126

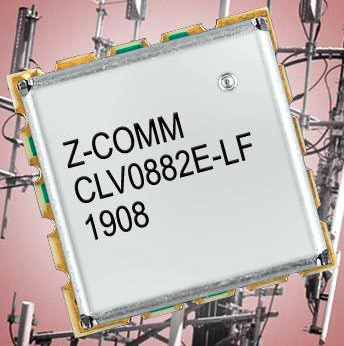

Apr 29, 2008 Supplied in 0.50 x 0.50 x 0.22 in. MINI package, RoHS-compliant CLV0882E-LF operates in UHF-band from 822-943 MHz and features ultra low typical phase noise performance of -114 dBc/Hz @ 10 kHz offset. Design covers bandwidth from 1-9 V with typical tuning sensitivity of 30 MHz/V. VCO operates at 5 Vdc supply while drawing 22 mA (typ) over extended operating temperature range of -40 to +85ºC. Areas of use include UHF bands applications that require low phase noise performance.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Apr 29, 2008 Rated for applications up to 100 psi or 28.8 in. Hg Vacuum, Series CHP Calibration Hand Pump features Acetel plastic and anodized aluminum construction that prevents body heat transfer and results in drift-free accurate readings. Oversized check valves provide smooth and controlled operation, and dual o-rings on all pistons ensure pump is leak-free. Applications include checking calibration of pressure or vacuum gauges, switches, or transmitters.

H & S Tool, Inc.    Wadsworth, OH 44281

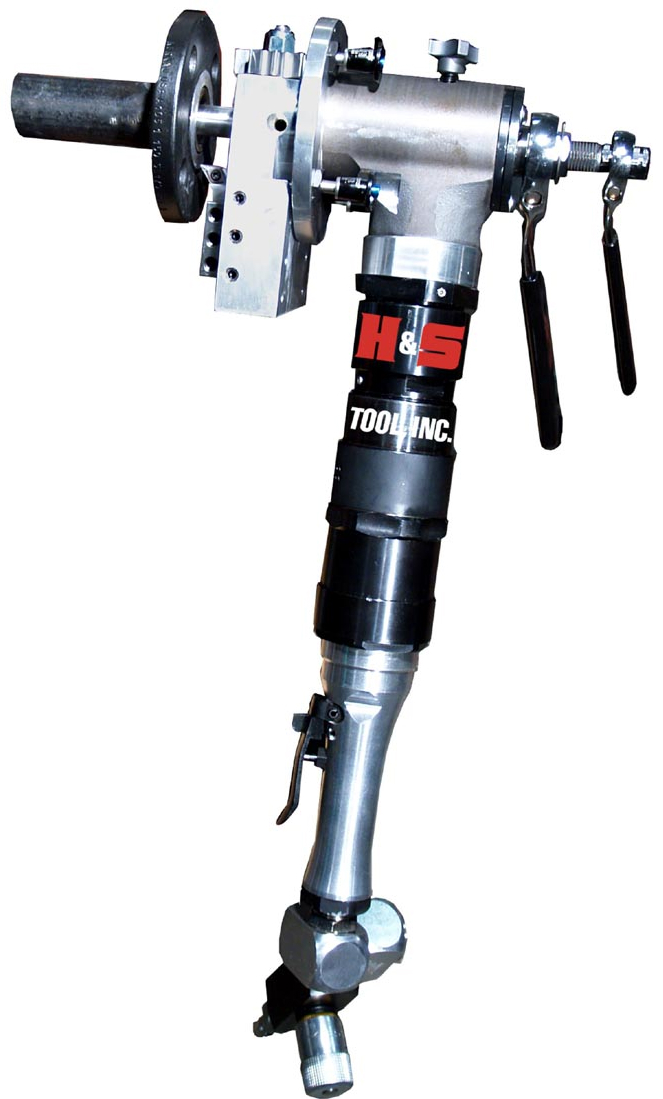

Apr 29, 2008 Powered by pneumatic motor, BF portable flange-reconditioning tool is able to apply 3 different surface finishes from 63-250 RMS with automatic feed. It has working range of ¾ ID to 8 in. OD with which to square and refinish flange faces and bolt hole patterns. Tight-clearance package, available for working in areas as small as 2¾ in., offers max working reach of 5½ in. Tool securely locks in ID of tube and is self-centering.

LMC Workholding    Logansport, IN 46947-7006

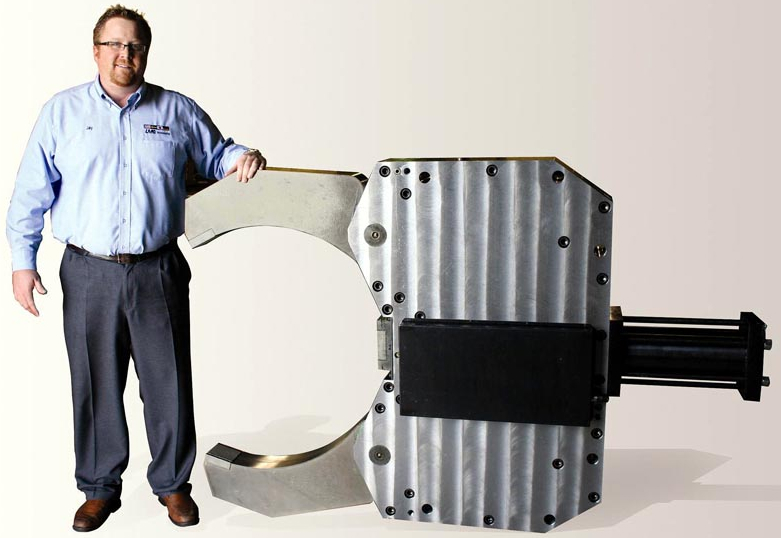

Apr 29, 2008 Designed to fit CNC or conventional lathes, extra large Atling self-centering hydraulic steady rests maintain integrity of shaft or bar workpieces that tend to bend or deflect under unstable cutting loads. Glass scale provides sizing feedback, and linear encoder measures part diameters to within ±5 microns. With clamping range of 13.4-38 in., products accommodate workpieces up to 38 in. dia and fit even where space conditions are extremely limited.

Boekel Industries, Inc.    Feasterville, PA 19053

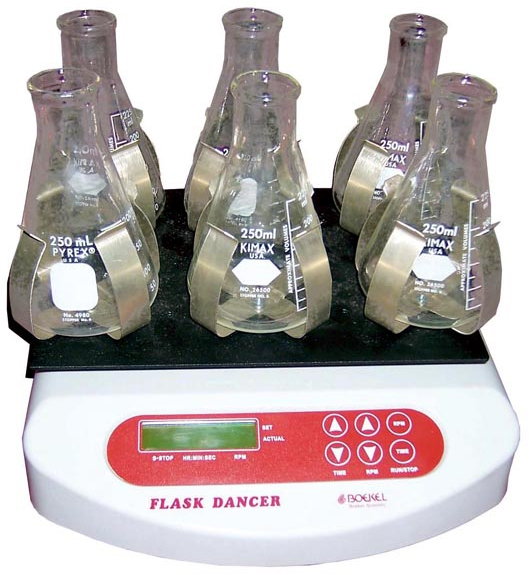

Apr 29, 2008 Offering smooth horizontal mixing motion and smooth soft start, microprocessor-controlled Flask Dancer can be programmed to operate unattended for periods up to 99 hr at speeds from 50-300 rpm. Included digital timer can be programmed to specific run time, causing unit to stop and alarm to sound when user-defined limit is reached. Able to operate in cold room or incubator, system offers 4 interchangeable platforms to accommodate various bottles, flasks, tubes, and beakers.

ITT Industries - A-C Pump    Seneca Falls, NY 13148

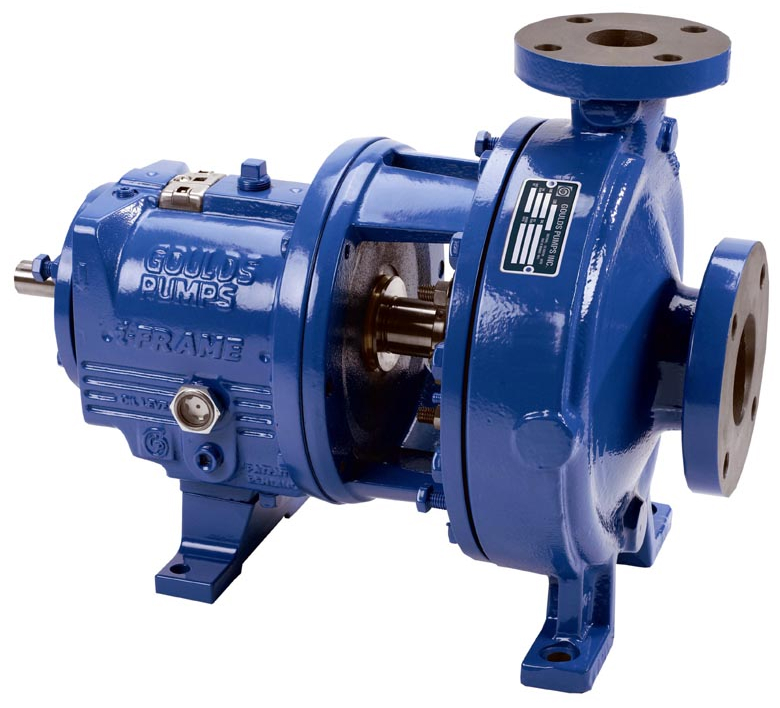

Apr 29, 2008 Using onboard intelligence, ANSI Model 3196 i-Frame(TM) issues early warning of trouble so changes to process or machine can be made before failure. Stainless-steel condition monitor, nested securely atop power end, measures vibration and temperature within preset parameters. Upon detecting excessive conditions, it will activate early warning system by displaying flashing red lights. Other features include severe-duty thrust bearings and dual stainless-steel, bronze-bearing isolators.

CIT Relay & Switch: Division of Circuit Interruption Technology, Inc.    Maple Grove, MN 55369

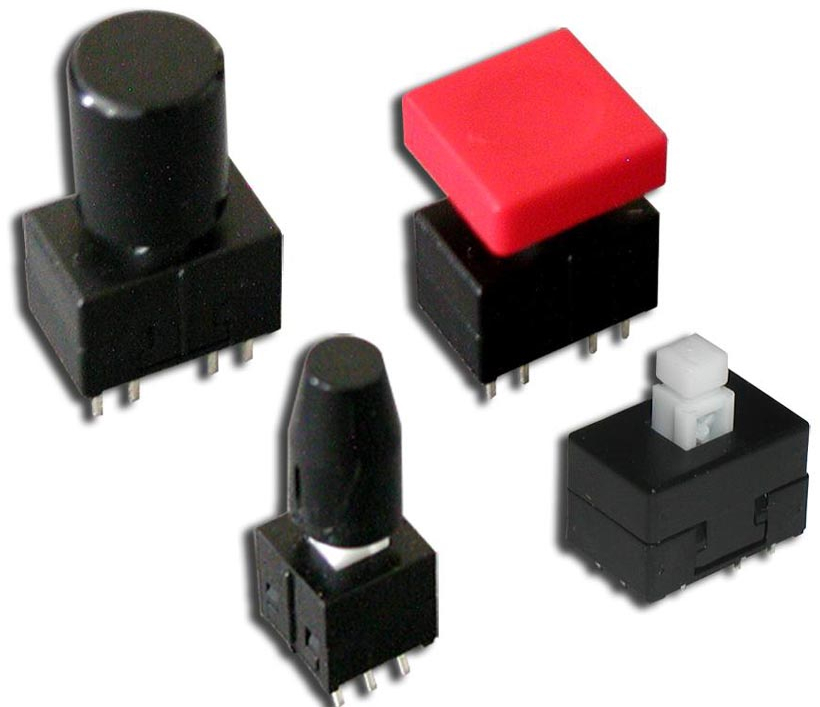

Apr 29, 2008 Available in latching and momentary versions, LP Series DPDT and DP4T switches are offered with numerous cap styles: round, square, rectangle, and low profile. Some styles offer concave or convex tops as well as ridged tops for grip. Variety of plunger heights mate with 20+ standard caps, resulting in hundreds of color, style, and height options. Featuring body sizes starting at sub-miniature 6 x 6 x 10 mm, switches have electrical life of 100k cycles with rating of 100 mA @ 30 Vdc.

Omega Engineering, Inc.    Stamford, CT 06907

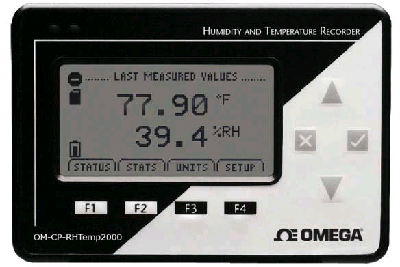

Apr 29, 2008 Equipped with 8-button, lock-capable keypad and backlit LCD, wall-mountable Model OM-CP-RHTEMP 2000 simultaneously displays remote readings of environmental parameters. On-screen data includes Min, Max, and Avg statistics for both channels; Start, Stop, and Recording Rate status; calibration information; and display options, including channels shown, units, and text size. Logger will retain recorded data even when AC and battery power are lost.

IDEC Corporation    Sunnyvale, CA 94089-2209

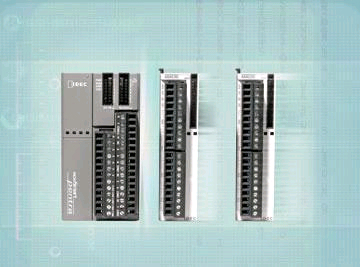

Apr 29, 2008 Expanding capabilities of MicroSmart Pentra micro PLC, 4-point Universal Input Module accepts most analog signals including 0-10 V, 4-20 mA, thermocouples, RTD, and Nickel. Snapped to side of PLC, module offers 16-bit resolution and 0.2% accuracy. Programmable logic control features double word and floating math, Modbus RTU/ASCII, Modbus TCP/IP, upgradeable firmware, embedded 100 kHz I/O, and up to 7 communication ports.

A2 Technologies, LLC    Danbury, CT 06810

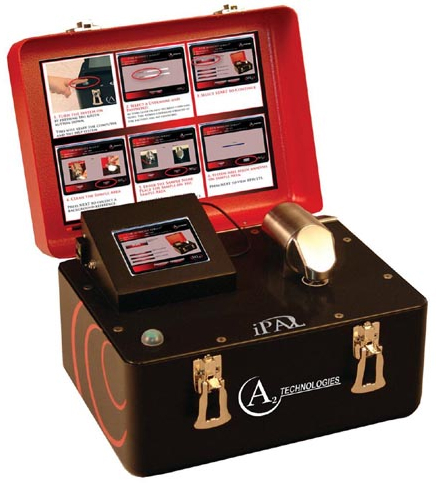

Apr 29, 2008 Designed for lubrication analysis in various power industry systems, PAL instruments quantify water levels from 50-5,000 ppm in oils with accuracy of better than 5%. Products utilize Fourier Transform Infrared (FTIR) method, which requires no hazardous reagents. In addition to measuring water level, systems immediately yield amount of oxidation and nitration byproducts present as well as amount of anti-oxidation, anti-wear, and extreme pressure additives that remain in lubricant.

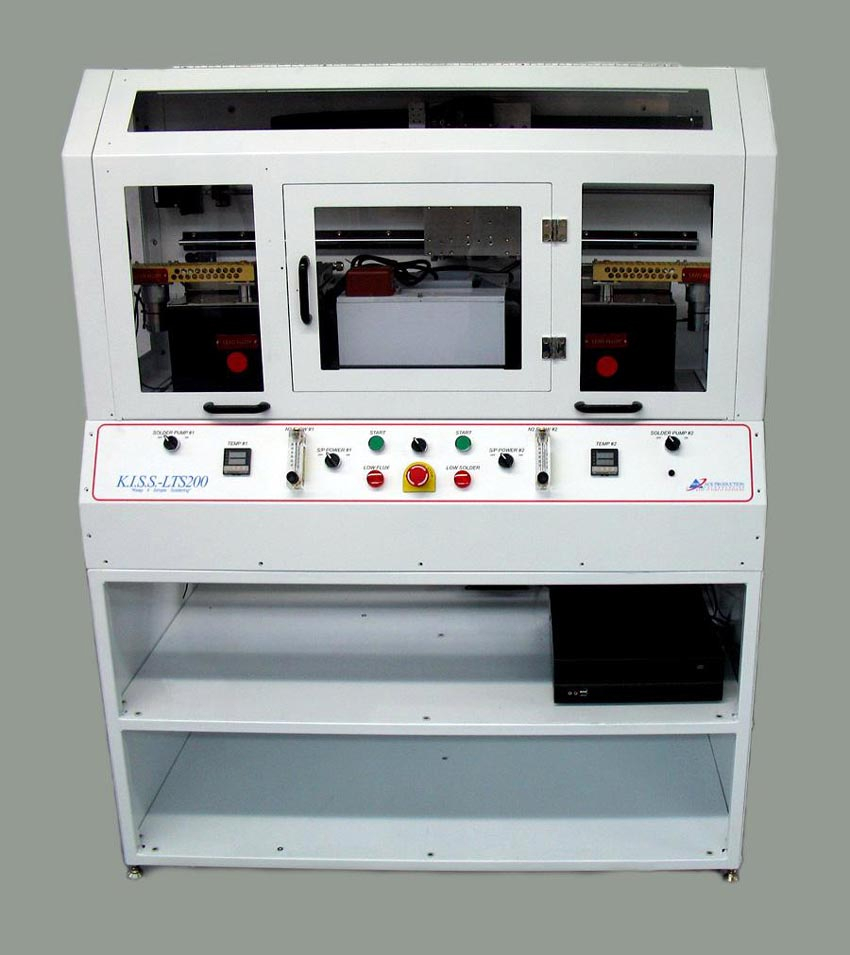

ACE Production Technologies    Spokane Valley, WA 99216
Apr 29, 2008 LTS200 Lead Tinning System is programmable, automated machine that safely reconditions component leads for Hi-Rel and/or, RoHS applications. It features central fluxing station with 2 solder pots, one mounted on either side of fluxer, and pallet holder that accepts variety of component-specific pallets. Machine can be programmed to handle all leaded parts and operator can create and add routines as well as specify and control withdrawal rate from final solder bath.

Extreme CCTV Surveillance Systems    Burnaby V5A 3C2  Canada

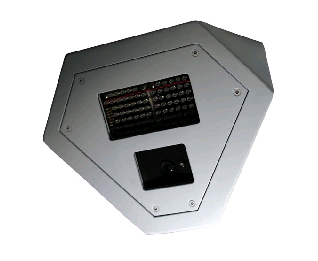

Apr 29, 2008 Combining vandal-resistant construction and IP connectivity, Model EX36 delivers networked surveillance in high-risk environments. IP Infrared Imaging utilizes 940 nm infrared illumination to deliver optimal images day or night, integrating seamlessly with existing IP network infrastructure. Able to tilt 45°, Model EX36 allows surveillance of entire room, including area directly below camera, making it suited for prisons, hospitals, and government housing authorities.

Pickering Interfaces    Wobum, MA 01801

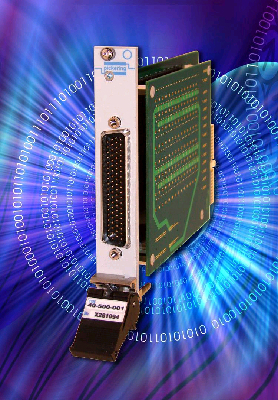

Apr 29, 2008 Consisting of 64 x 4 solid state switching matrix, Model 40-500 is capable of hot switching voltages up to 60 V. Unit can sustain inrush currents of 1.5 A for 100 ms and continuously carry 0.5 A on each cross-point switch. Y axis supports 3 A continuous current, allowing each Y axis to be connected to multiple X connections carrying high currents on each cross-point. Using 78-way D Type connector, switch is suitable for handling ac or dc signals.
