Baumer Ltd.    Southington, CT 06489 1534
Apr 25, 2008 Suited for industrial measuring applications, non-contact AlphaProx inductive sensors detect metallic objects at ranges up to 16 mm. Units can detect changes in position, distance, thickness, weight, or pressure. Teach-in function allows user to adjust measuring range and select direction of output slope. Offering resolution of 10 microns, sensors can switch between analog and digital output. Devices have IP67 chromium steel housings and operate from -10 to +70°C.

Kinetic Technologies, Inc.    Wickliffe, OH 44092
Apr 25, 2008 LOBOY(TM) cart offers 2.3 in. of ground clearance and low center of gravity for towing drums or boxes of welding wire used in robotic or hard tooled welding applications. At 33 in. wide, product fits adjacent to or in welding cell and handles up to 1,000 lb containers. Push/pull forces required for manual moving are within ergonomic limits, and no-bend towing system features spring-loaded, self-stowing towbar, frame recessed auto-hitch, and auto-release floor lock.

Hawk Measurement    Middleton, MA 01949
Apr 25, 2008 GLADIATOR Conductivity Smart Switch is suitable for any situation where it is necessary to check level of liquid in tank, including high or low level alarms, constant level control, pump control, and empty tank detection. It is available in Smart compact version that combines switching functions, local calibration, and diagnostic communications. Remote version is also available and includes separate amplifier that can be located up to 500 m away from sensor probe.

Southco    Concordville, PA 19331 0116

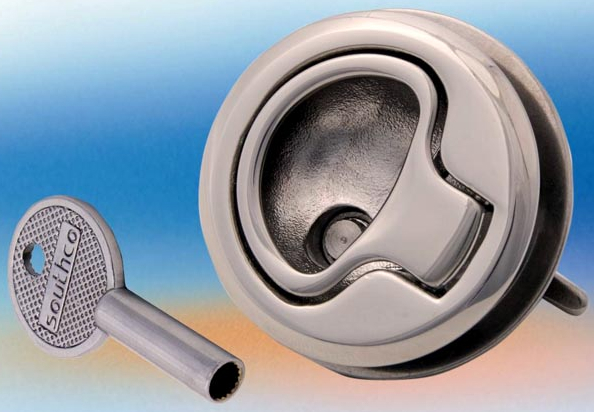

Apr 25, 2008 Featuring pull-tab actuation and push-to-close latch engagement, M1-15 latch is constructed of cast stainless steel and suits enclosures that require corrosion-resistance. It has 122 lb max recommended working load rating and also performs in mobile applications where contents of enclosure can shift and create impact load on inside of door. Able to be installed in singe 1.5 in. round hole, latch comes in standard non-locking style and optional locking version.

FCI    Etters, PA 17319

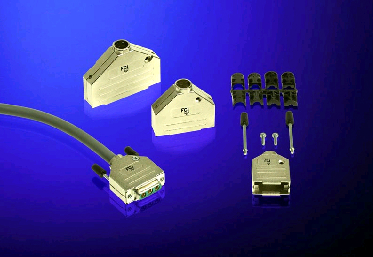

Apr 25, 2008 Available in 9, 15, 25, and 37 position versions, D-Sub Shielded Hoods are designed with 2 half-metal covers in zinc alloy, 2 jack screws, and steel fiber-reinforced plastic strain relief for EMI/RFI screening and mechanical cable retention. Strain relief works with cable diameters from 4.0-13 mm. Operating from -40 to +120°, hoods are UL94V-0 qualified and suited for industrial and telecommunications markets.

Vertilon Corporation    Westford, MA 01886

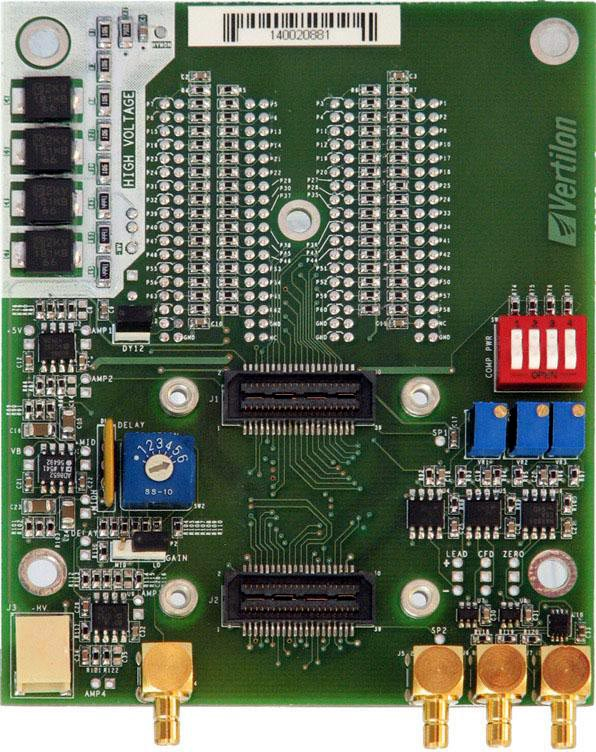

Apr 25, 2008 Board model SIB064 provides mechanical interface and electrical connectivity between Hamamatsu H8500D, a 64-element multianode photomultiplier tube, and multichannel DAQ system. High bandwidth preamplier connects directly to H8500D last dynode and provides its amplified output to one of 3 on-board pulse discriminators - leading edge, constant fraction, zero slope - to directly trigger DAQ process. Discriminators can also be bypassed for timing-sensitive applications.

NovaTracker    Cranford, NJ 07016

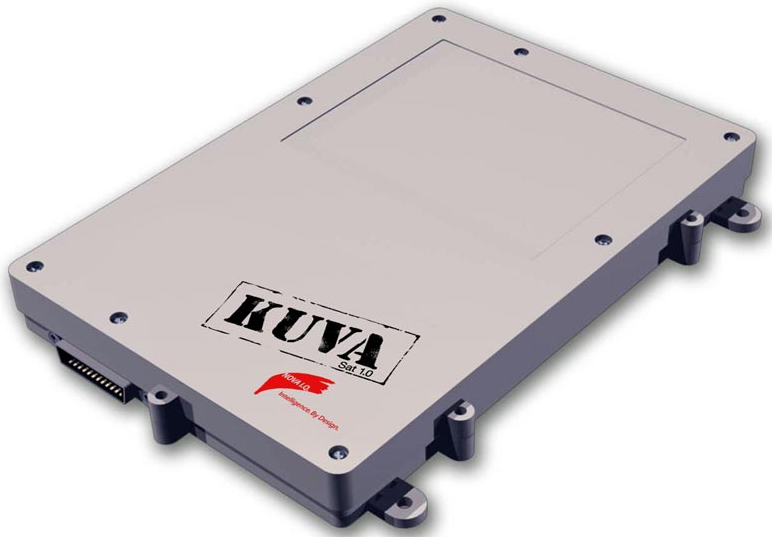

Apr 25, 2008 Delivered complete and ready to install, satellite-based KuvaSAT1 contains internal antenna, battery, and STU. It attaches to top of cargo container, railcar, or trailer and uses Satellite Data Service to provide location and asset status data to MapTrack back office display. Unit can also be programmed to report to third party mapping server and on scheduled or event-driven basis. Four alarm settings can be set independently to report range of conditions.

Kerk Motion Products, Inc.    Hollis, NH 03049
Apr 25, 2008 Kerk® Spline Shaft Series can be manufactured in 304 stainless steel on SS2-SS8 Series spline shafts, which range from 1/8-½ in. dia and include full range of bushing options. To eliminate need for external lubrication and maintenance, entire spline shaft series includes low-friction Kerkote® TFE coating and is available with any combination of basic or anti-backlash bushing; plain or thread mount bushing; and ¼, 3/8, ½, or ¾ in. dia shaft.

Spartanics    Rolling Meadows, IL 60008

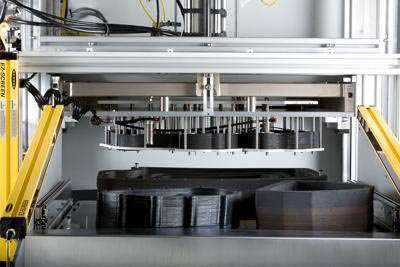

Apr 25, 2008 Finestac Nested Part Finisher® fully automates extraction and stacking of gaskets and similar die cut nested parts. Batch count can be preset, and unit comes with color touch screen and software. Finisher works inline with any die cutting system, and extracts parts so that they are scratch-free in stacks up to 89 mm tall. Scrap material is collected on conveyor and transported to separate waste bin.

2L inc.    Hudson, MA 01749

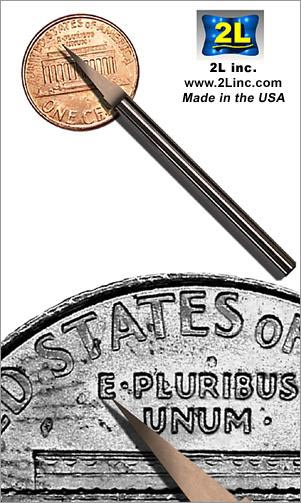

Apr 25, 2008 Solid carbide Micro-Profiler Engraving Tools are available with 1/8 in. dia shanks, 15° and 30° angles, and tip widths of .002 and .005 in. They are available in 2 engraver styles: General Purpose Engraver for use on wide variety of materials, such as steel and hard aluminums, and Softer Material Engraver designed to provide keen cut on gummier materials such as plastic and aluminum.

Huntsman Corp.    The Woodlands, TX 77380
Apr 25, 2008 Able to produce PC-like models and prototypes with polycarbonate-like clarity, RenShape® SL 7870 features notched Izod impact strength up to 1.15 lb-ft/in., flexural modulus of 286-333 ksi, and elongation of 10-22%. Impact-resistant, antimony-free liquid is formulated to conform to FDA USP 23 Class VI standards for use in medical modeling and prototyping, and is suitable for use on solid-state laser and SLA® systems.

Paradigm    Houston, TX 77024
Apr 25, 2008 Paradigm GeoSec 2D v5.2 provides information about geometry and structural history of subsurface to help geoscientists search for oil and gas sources. Compatible with Epos database and infrastructure, software incorporates capabilities such as geologic section construction, balancing, restoration, animation tools, and embedded gridding and contouring. These functions work together to create models that incorporate structural features resulting from deformation of subsurface.

Wacom Technology Corp.    Vancouver, WA 98683
Apr 25, 2008 Reversing Ramped Field Capacitive (RRFC(TM)) touch utilizes low-power circuitry and reversing ramped electro-static fields for precision and drift-free performance. It can be integrated into dual-input applications with EMR® pen-input technology or work alone on platforms requiring only finger touch interface. Accuracy, stability, and sensitivity are maintained even when working on battery power. System incorporates durable, transparent glass sensors with multiple coating and bonding options.

Pelco    Clovis, CA 93612
Apr 25, 2008 In addition to its networking characteristics, Spectra IV delivers functionality that includes analog video and telemetry control with latency-free operation and redundancy in critical applications. IP network pan/tilt/zoom (PTZ) camera/dome positioning system features inherent modularity as well as open architecture and API development program that facilitate third-party integration and video security application compatibility.

Pelco    Clovis, CA 93612
Apr 25, 2008 Through constant screening and filtering of video, Endura Intelligent Video and Analytics solution can use pre-defined rules to identify specific conditions and notify operators via alarm. System is comprised of Endura Intelligent Video Encoder (hardware) and Video Analytics Behaviors (software), which enable operators to make informed decisions. With ability to manage situation by exception, security teams can deploy personnel only when and where they are needed.

Parker Hannifin Corp., Hose Products Division    Wickliffe, OH 44092 1797
Apr 25, 2008 Suitable for over-the-sheave applications, Series 692 provides continuous 3,000 psi pressure rating for all sizes and 4:1 safety factor, which enables hose to work on most forklift models. Product offers tight bend radius, enabling small pulleys to be used in mast area, freeing up space. Rated to -40°F, hose can be also used in freezer applications.

TE Connectivity Ltd.    Berwyn, PA 19312
Apr 25, 2008 Made of adhesive-backed polyolefin, QSW Wraparound Sleeves permit permanent repair of minor damage to cable insulation without requiring connector to be removed from cable. Products are available in flat sheets with widths of 60 or 100 mm and lengths of 100, 200, 300, and 400 mm. With continuous operating temperature of -45 to 110°C, sleeves have minimum shrink temperature of 70°C, with full recovery at 130°C. They install with small propane torch, heat gun, or production oven.

Laird Technologies    Chesterfield, MO 63017
Apr 25, 2008 Suited for M2M applications, Intelligent Dual Processor 802.11 Modules feature 802.11 device server, UART interface, 12 GPIO lines, and 2 x 10-bit ADCs. One processor runs embedded interpreter with UWScript language, providing wireless connection control and capability to auto-run user scripts. At 25 x 35 mm, it also includes WLAN drivers and TCP/IP stack. Secure WEP and WPA2 implementation as well as Bluetooth co-existence and co-location support is also included.

Meridium    Suite #1100, VA 24011
Apr 25, 2008 With Asset Strategy Management, users can prioritize actions and costs so that unnecessary or low-value actions can be identified through quantitative analysis and eliminated from overall strategy. Analysis of strategy can also identify unacceptable safety, environmental, and production risks. Providing common methodology to define actions for asset and mitigated risks, program enables users to evaluate existing plans with basic qualitative risk analysis and conduct what-if scenarios.

Microsoft Corp.    Redmond, WA 98052-6399
Apr 25, 2008 With Citizen Service Platform, governments of all sizes can deliver services to citizens via Internet. Program offers variety of templates, including E-Councilor template, which allows messenger communications with virtual government worker, and Web TV template, which permits government and citizen video hosting in Web 2.0 style. Agenda Management template helps organizations streamline processes, while InfoPath form templates address areas ranging from building permitting to tax declaration.
