Mahr Federal Inc.    Providence, RI 02905
Apr 30, 2008 Utilizing MarSurf XT 20 topographical evaluation software, MarSurf(TM) WS 1 Optical Surface Metrology System can be configured to work in lab and on shop floor. It includes white light optical sensor for recording of surface topography on various materials. Test surface area and reference surface built into objective lens are imaged simultaneously by CCD camera. System can be used in precision inspection rooms and production environments, on reflective and rough workpieces.

R & M Materials Handling, Inc.    Springfield, OH 45502
Apr 30, 2008 With load capacities from 1/8 to 1 ton and lifting height up to 262 ft, LoadMate® can be installed inside wind turbine nacelle to assist with maintenance activities. Unit is constructed of pressure-cast aluminum with epoxy paint for corrosion resistance. Available with lift speeds of 64 and 16 fpm, 96 and 24 fpm, and 128 and 32 fpm, hoist features ribbed design for heat dissipation, AGMA-rated gearing, torque limiter, electromagnetic disc brakes, and upper and lower limit switches.

Highline Products    Waltham, MA 02154
Apr 30, 2008 Constructed of one-piece fiberglass, Wind Power Junction Boxes are collection system cabinets for wind farms with lid that opens over 90° and features 2 wind lock hinges. Units are rated for 35 kV and offer removable front panel option for serviceability and cable terminations. Suitable for direct burial or pad mounting, boxes meet ANSI security requirements and incorporate munsell green 2-coat finish with UV inhibitors. Sizes range from 55 x 53 in. up to 85 x 63 in.

Siemens Energy & Automation, Inc.    Alpharetta, GA 30005
Apr 30, 2008 Featuring heavy steel design, SIBAG HSD II comes equipped with variable frequency drive for vertical paddle belts and servo motor for paddle positioning. Unit includes 2-link positioning mechanism, roller transition plate, full mechanism guarding, area safety guard, and integral bed section with belt return roller. Measuring 72 in. long x 12 in. deep, sortation device is rated for up to 80 bags/min at 380 fpm, making it suitable for parcel/package applications.

Stafford Manufacturing Corporation    North Reading, MA 01864-0277
Apr 30, 2008 Stafford Hinged Shaft Collars feature triple-link hinge and captive clamping screw to simplify assembly. Offered with round, threaded, hex, and square bores, they are suitable for use as stops or spacers and for mounting devices in applications involving different shaft configurations. Collars are available in 25 sizes from 3/8-4 in. ID and 16 metric sizes from 6-50 mm and are offered in steel, SS with stainless clamping screws, and aluminum.

Dampney Co., Inc.    Everett, MA 02149
Apr 30, 2008 Thurmalox® 8886 Series delivers long-term protection in weathering conditions and creates barrier against attack from glycol cooling agents and synthetic lubricants at temperatures up to 450°F. Available in clear, black, and custom OEM colors, these 2-component silicone copolymer coatings can be applied by conventional and airless, HVLP, HTE, or assisted airless spray equipment. Coatings adhere to clean, smooth steel, copper, and aluminum substrates.

Phoenix Contact    Harrisburg, PA 17111 0100
Apr 30, 2008 Available in ribbon, D-sub, OEM controller-specific, and power distribution versions, VARIOFACE Professional field termination assemblies (FTAs) and rugged cables offer fault-free wire management from field wiring to process or motion controllers. Module design integrates channel with full range of ZB marker holders to provide flexible marking options. Single, rugged metal mounting foot moves along length of product, facilitating mounting and disconnect.

Aremco Products, Inc.    Valley Cottage, NY 10989
Apr 30, 2008 Crystalbond(TM) 509 is high-strength, thermoplastic adhesive used to temporarily secure alumina substrates and other technical ceramic materials for dicing, grinding, and polishing operations. It is applied by preheating mounting plate to 250°F, melting and spreading adhesive in uniform layer, then positioning part over adhesive, allowing assembly to cool. It dissolves in acetone or Aremco 509-S environmentally friendly cleaning agent that leaves no film or residue.

FasTest, Inc.    Roseville, MN 55113-1317
Apr 30, 2008 Providing interface between control valve actuator and calibration instrumentation, WEH 17 Series is suited for calibration during manufacturing or in field. Unit uses handle-actuated collet system for connections where no wrench tightening or thread sealant is needed, eliminating thread wear. Pressure assisted grip and seal method provide leak-tight 5000 psi connection. Constructed of stainless steel with nitrile seals, connector is suited for ¼, 3/8, and ½ in. thread sizes.

Flexaust Co., Inc., The    Warsaw, IN 46581
Apr 30, 2008 Featuring surface resistance of 10⁸-10¹⁰ W/sq, Flx-Thane® SD Hose has bronze-coated spring steel wire helix that drains charges to ground. Static dissipative hose is manufactured from FDA-acceptable materials with .030 in. thick wall and smooth interior. Suitable for light bulk material transfer applications where dust could pose explosion hazard, hose operates over -65 to 225°F range, and comes in 25 and 50 ft lengths with 2-12 in. I.D.

Pelican Products, Inc.    Torrance, CA 90505
Apr 30, 2008 Designed to be moved manually or stacked on pallets, 1730 Transport Case features open cell-core wall, polymer construction to protect sensitive equipment from harsh conditions. It includes 4 base-to-lid locking cleats for stacking stability, 2 double-wide handles, and polyurethane wheels with stainless steel ball bearings. Polymer O-ring provides dust and water tight seal, while integrated automatic pressure equalization valve keeps moisture out and prevents vacuum lock.

Olympus NDT    Waltham, MA 02453
Apr 30, 2008 Manual Weld Inspection Solution is used when phased array technology needs to be integrated in NDT inspections. OmniScan v2.1 software, included, has phased array interface and includes RayTracing feature for visual display of phased array beams. Along with Weld Overlay feature for data interpretation, software includes UT sizing curves and AWS/API code wizards. WPS series phased array probes are also included, with housings and wedges that allow inspections close to weld crown.

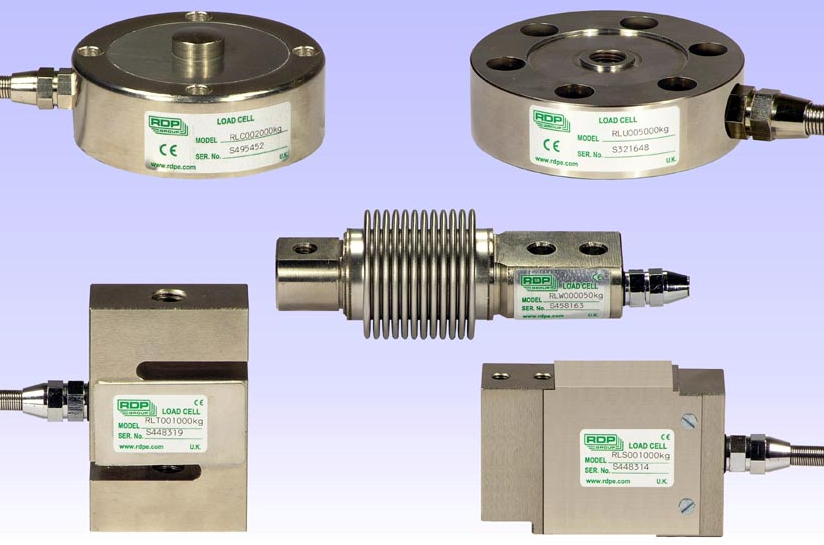

RDP Electrosense, Inc.    Pottstown, PA 19465
Apr 30, 2008 Offering linearity of 0.03% with overall accuracies of 0.1%, RL Series includes pancake-style cell for compression, tension, and universal operation in addition to models specifically designed for industrial and commercial weighing applications. Products, sealed to IP65 or IP67, have operating temperature of -20 to +60ºC and compensated temperature of -10 to +40ºC. They provide 2.0 mV/V output and overload capacity of 50%.

Interroll Corp.    Wilmington, NC 28405
Apr 30, 2008 Eliminating inefficient organization, waste, and superfluous production steps, Flex Flow Rack promotes productivity and lean manufacturing. Three components comprise this solution: tube, connector, and supporting element. Flexible design can be constructed to meet any operational task as well as adapted and reconfigured to adjust to changing logistical processes. Areas of use include warehouse stocking applications.

Henkel Corporation    Rocky Hill, CT 06067
Apr 30, 2008 Compatible with various paint systems, Terostat® 7100(TM) Adhesive/Sealant and Terostat 7700(TM) Adhesive are primerless, permanently elastic formulations used to bond and seal dissimilar substrates. Both one-component, odorless adhesives are non-corrosive and free of solvents, isocyanates, silicones, and PVC. They resist aging and weathering, cure by reacting with ambient moisture, and achieve functional strength in 24 hr.

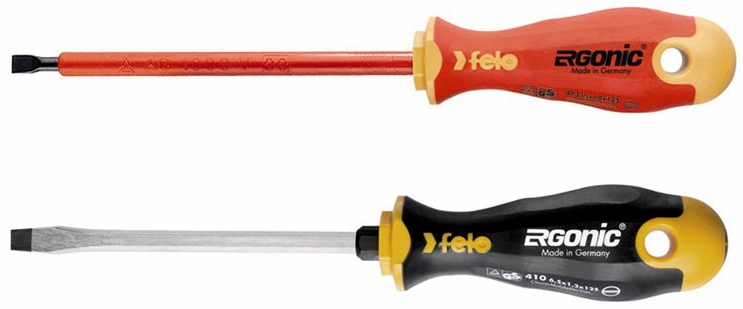

Bondhus Corp.    Monticello, MN 55362 9347
Apr 30, 2008 Available in standard and insulated versions, Ergonic® screwdrivers feature handles that conform to user's hand to promote comfort during use. Handle also serves to optimize torque transmission capability. Each screwdriver blade is machined to exacting German standards.

Miller Products Co. Rubber & Plastics Div.    Durham, NC 27713
Apr 30, 2008 Thin neck suction cups and thick neck mushroom head suction cups feature long necks that help hold objects away from surfaces. Cups with hooks include swivel or permanent fixed designs for strong hold and heavyweight capacities. Slotted, side, and top pilot holes support grip and fix applications from fragile glass to industrial mounting for heavy-duty performance. Suction cup types include miniature, small, medium, and super large sizes.

McCrometer, Inc.    Hemet, CA 92545
Apr 30, 2008 Incorporating electromagnetic multi-point sensing technology, programmable signal converter, and noise-immune cable, Multi-Mag L Series measures liquid volumetric flow rates in pipes sized from 4-120 in. Output signal is 4-20 mA analog, which is galvanically isolated and fully programmable for zero and full scale. Housed in NEMA 6/IP67 package, it is designed with dual alarms and is programmable for high/low flow rates, percent of range, empty pipe, forward/reverse, and polarity.

Floyd Bell, Inc.    Columbus, OH 43085
Apr 30, 2008 Replacing ambiguous beep with voice instructions or warnings, Announcer(TM) Series alarms play pre-recorded audio message up to 10 sec long at 95 dB. Piezo electric digital audio alarms come standard with quick connect terminals, special grill designed for maximum acoustic output, and voltage range to fit specific application. Warning message is customizable.

Agie Charmilles, LLC    Lincolnshire, IL 60069
Apr 30, 2008 Constructed with cast iron C-frame and cross-table design, FORM 20/30 is built for stiffness and can withstand temperature fluctuations of workshop environments. It has integrated tool capacity for 4-6 positions, and continuously measuring glass scales on all axes promote positioning and cutting accuracy. Solution can be integrated into data network via LAN and incorporates Advanced Power Generator, rated 72/103 A, that delivers consistent surface finish quality.
