EMKA Incorporated    Middletown, PA 17057
Apr 30, 2008 Installed by welding, mechanical attachment, or both, concealed heavy-duty hinges feature hinge pin that slides for door removal, but remains attached to enclosure using acetal circlip. They are available in mild steel version, with door part phosphatized for corrosion protection while also providing surface for powder coating. For outdoor applications in corrosive environments, on NEMA 4X or GR 487 boxes, stainless steel version is available.

EarthLCD    San Juan Capistrano, CA 92675
Apr 30, 2008 Integrated into new products, used to add GUI/status display to existing embedded products, or operated as stand-alone unit, ezLCD-105-EDK delivers capability for turn-key GUI integration with its integral processor and LCD controller. Programmable module, equipped with 8 in. color 800 x 600 TFT display, incorporates built-in intelligence and various conectivity features. SD flash card allows for graphics expansion, OEM data storage, and logging capabilities.

Douglas Machine    Alexandria, MN 56308 3399
Apr 30, 2008 Capable of speeds to 75 cycles/min, Contour(TM) SPS-75 offers tray, pad, u-board, and film-only packing capabilities. Smartrak® Steady Stream Infeed delivers repeatable operation for handling lightweight containers, and side-mounted stand is located outside machine at waist level for ergonomic film roll loading and splicing. In addition to Slipstream(TM) Pinless Metering, features include quick-change, servo-driven wrapping wands; tool-free changeovers; and automatic servo homing.

ADDER CORPORATION    Newburyport, MA 01950
Apr 30, 2008 Designed to minimize space requirements, AdderView CATx 1000 allows user to control up to 16 computers connected to CATx switch via CAT 5 cable locally or remotely up to 1,000 ft away. One or two KVM switches can be rack mounted and cascaded with other CATx 1000s to support up to 256 computers. In addition to high-resolution video and USB device control, switch offers on-screen display and serial control for remote switching, power control, and synchronizing with other CATx 1000 units.

Agito Networks    Sunnyvale, CA 94089
Apr 30, 2008 Offering business-class eFMC functionality, RoamAnywhere natively integrates with Cisco Systems' Unified Wireless Network family and supports identity-based mobility through integration with Microsoft Active Directory and LDAP. Router scales from 10-1,000 simultaneous users, and features non-blocking architecture that separates control traffic from data/voice traffic. At network layer, device delivers sub-100 ms automatic location-aware handover between WiFi and cellular networks.

Douglas Machine    Alexandria, MN 56308 3399

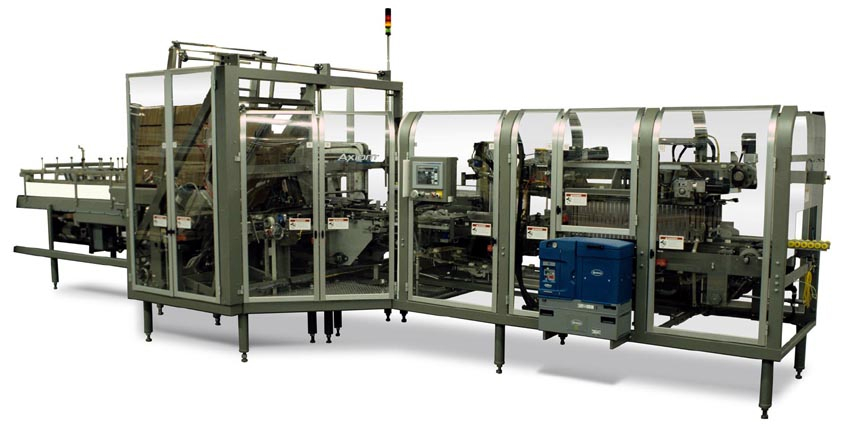

Apr 30, 2008 Featuring walk-in frame construction for maximum accessibility, Continuous Motion Axiom® DL Case/Tray Packers gently load products onto case or tray blank at speeds to 55 cases/trays per minute. Electronic motion controls ensure repeatable changeovers, while Slipstream(TM) pinless metering eliminates traditional metering pins. Smartrak® Steady Stream Infeed prevents product bridging and removes gaps that compromise pack pattern accuracy and continuous product flow.

Digital Atlantic Corp.    Bradenton, FL 34203
Apr 30, 2008 CDRoller v7.51 retrieves data from discs created by drag and drop CD/DVD writing software, including Roxio and Ahead Nero. It also finds, identifies, and recovers photos and video programs created by wide set of standalone devices, such as digital cameras and camcorders. Software includes DVD Authoring option to create new discs with recovered movies/photos that can be played back on most DVD players.

Asymtek    Carlsbad, CA 92008
Apr 30, 2008 Achieving 20,000 dots/hr on 1 mm grid, SV-100 Slider Valve delivers dots of less than 300 µm for solder paste types 4, 5, and 6 and dots as small as 125 µm in diameter with type 6 paste. Used for dispensing into small and hard to reach places, it is compatible with lead-free and no-clean solder pastes as well as silver-filled epoxies. Valve is suited for solder paste dots for passive components smaller than 0603 and rework of BGA and QFN electrical connections.

VMETRO, Inc    Houston, TX 77077
Apr 30, 2008 Available in air- and conduction-cooled rugged versions, Model ADC510 integrates two 500 MHz ADC devices, each supporting sampling rate up to 500 MSps and providing 12-bits of digital output. ADC device interfaces are routed to FMC connector to enable FPGA on baseboard to directly control and receive data. Choice of sample clock sources include onboard source that supports sampling rates of 300, 320, 400, and 500 MSPS as well as ability to utilize external sample clock.

Mentat Technologies    Cali   Colombia
Apr 30, 2008 DreamCoder for Oracle v3.0 allows users to build and execute queries and scripts, compile and debug SQL and PL/SQL code, create and modify database objects, import and export data, and enable user session and database monitoring. Integrated Development Environment (IDE) also features code folding and alias support, object fast description, autocomplete/highlighter/editor options, SQL and PL/SQL tree, XML viewer, and multi-language character set support.

Siemens Energy & Automation, Inc.    Alpharetta, GA 30005

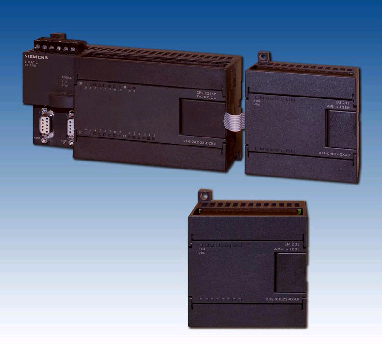

Apr 29, 2008 Part of SIMATIC® S7-200 micro PLC line, EM231 8-channel analog input module accepts unipolar 0-10 Vdc, 0-5 Vdc, 0-20 mA, and bi-polar ±5 Vdc and ±2.5 Vdc input signals, while 4-channel EM232 analog output module supports 0-10 Vdc and 0-20 mA output signals. Eight-channel EM231 TC temperature input module accommodates 7 thermocouple sensor types and ±80 mV input signals, while 4-channel EM231 supports 8 RTD sensor types and 150, 300, and 600 W resistance inputs.

Vaisala, Inc.    Woburn, MA 01801 1008
Apr 29, 2008 Capable of measuring dew point down to -112°F, DRYCAP® DMT152 relies on auto-calibration, which provides long-term measurement accuracy and optimal wet to dry response time. Transmitter's mechanics are designed to withstand harsh environments that require protection against dust, dirt, and splashed water. Typical applications include desiccant air dryers, glove boxes, and other dry chamber applications, as well as SF6 gas in high-voltage switchgear.

DIRAK    Chantilly, VA 20151-1220

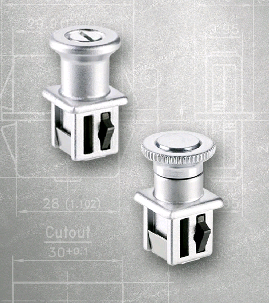

Apr 29, 2008 Featuring single-component design that combines function of captive screw and captive nut/cage nut, SNAP LINE 1-035SL Captive-Joiner 9.5 eliminates need to install separate handle. Unit offers tool-less snap-in installation, and is completely installed from front of panel, without insert. Device can also function as slam-to-close latch, requiring only push of panel against frame to ensure latching. Since it will not loosen from panel, fastener is suited for extreme vibration applications.

Elma Electronic Inc.    Fremont, CA 94538
Apr 29, 2008 Designed to plug into VPX backplanes, SerDes Test Modules can be used to test VPX switch and node cards and/or backplane channels without requiring external equipment or special test fixtures. With USB connection to laptop or desktop computer, users can create Eye Diagrams, and measure bit error rates and jitter. SerDes test technology that is deployed in VPX Test Modules is modular and can be affixed to various form factor carrier boards.

ICS Electronics Corp.    Pleasanton, CA 94588

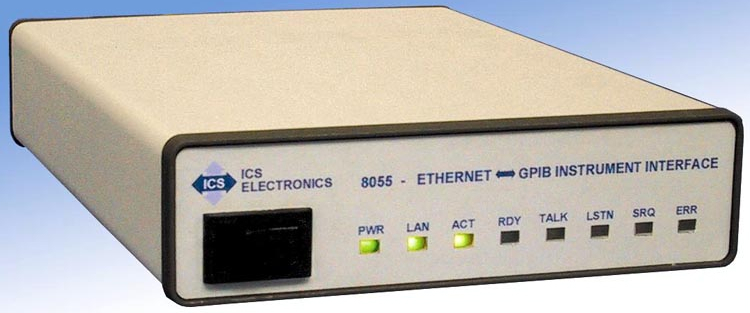

Apr 29, 2008 Model 8055 adapts GPIB instruments to Ethernet-based test systems, enabling access to these newly made VXI-11.3 instruments from any computer with NIC interface or over TCP/IP network. Used as external box or mounted inside instrument, VXI-11.3 compliant server enables instruments to be controlled by programs running in Windows and UNIX/LINUX OS. It supports reverse channel Service Request messages, as well as supporting multiple clients as part of its standard firmware.

NKK Switches    Scottsdale, AZ 85260-3420
Apr 29, 2008 Suited for applications requiring GUI or real-time sequencing, SmartSwitch and SmartDisplay offer programmable 64 x 32 pixel LCD human interface module with 64 backlit colors to facilitate operator/machine interaction. Pushbutton products display graphics, alphanumeric characters, or animated sequences, including 4 lines of text with up to 10 characters per line. Both incorporate bitmap display functions with brightness backlight variable in 8 steps from dark to bright.

Z-Communications, Inc.    San Diego, CA 92126
Apr 29, 2008 V495ME01-LF Voltage Controlled Oscillator for test and measurements applications offers phase noise performance of -113 dBc/Hz at 10 kHz offset and provides average tuning sensitivity of 10 MHz/V, covering bandwidth between 0.4-4.5 V. Operating at temperatures from -40º to +85ºC, RoHS-compliant unit has output power of 1 ± 3 dBm at dc supply voltage of 5 V while drawing 8 mA typ. It is contained in 0.50 x 0.50 x 0.16 in. package and is suited for automated surface mount assembly and reflow.

Z-Communications, Inc.    San Diego, CA 92126
Apr 29, 2008 RoHS-compliant, subminiature VCO SMV2165A-LF in S-band features typical phase noise of -90 dBc/Hz at 10 kHz offset. From -40º to +85ºC, it has tuning sensitivity of 148 MHz/V typical and provides output power of 6 ± 3 dBm with 3.3 Vdc supply while drawing 16 mA typical. Unit is contained in SUB-L package measuring 0.30 x 0.30 x 0.08 in. and is suited for automated surface mount assembly and reflow.

Z-Communications, Inc.    San Diego, CA 92126
Apr 29, 2008 Supplied in 0.50 x 0.50 x 0.22 in. MINI package, RoHS-compliant CRO2535A-LF operates in S band from 2,500-2,560 MHz and offers ultra low phase noise performance (typ) of -110 dBc/Hz @ 10 kHz offset. It offers linear tuning sensitivity of 30 MHz/V (typ), covers band from 0.5-4.5 V, and delivers 2nd harmonic suppression of -25 dBc. Product provides 6.5 dBm output power (typ) @ 5 Vdc supply while drawing 24 mA (typ) over extended operating temperature range of -40 to +85ºC.

Z-Communications, Inc.    San Diego, CA 92126
Apr 29, 2008 Operating from 640-945 MHz, Model V708ME02-LF offers ultra low phase noise of -100 dBc/Hz at 10 kHz offset. RoHS-compliant device provides average tuning sensitivity of 45 MHz/V and covers bandwidth between 0-9 V. Housed in MINI package measuring 0.50 x 0.50 x 0.13 in., voltage controlled oscillator delivers output power of 9.5 ±4.5 dBm at dc supply voltage of 9 V, drawing 13 mA over extended operating temperature of -40 to 85°C.
