DELUMPER ® Div., Franklin Miller Inc.    Livingston, NJ 07039
May 02, 2008 Designed to be used in open or closed systems, DELUMPER® 1075 LP reduces hard or soft, heat-sensitive, sticky, or wet agglomerates and lumps without degrading material or causing rise in temperature. Low-friction cutting action handles sludge cake, agglomerated chemicals, plastics, fats, waxes, or solid waste. Extended cutting teeth rotate completely through heavy bar cage, self-clearing slots with each rotation, and output sizes are adjustable by changing comb speed.

NexTek, Inc.    Westford, MA 01886
May 02, 2008 Designed to optimize RF performance at frequencies up to 6 GHz, SurgeGuard(TM) E-Class Series is based on 90 V gas discharge tube design and comes in 2 small form factors. Series PTCONFSAF09E measures 42 x 24 mm, has N-type to SMA-type connectors, and can deliver up to 30 W of RF power at max through-current of 5 A. Measuring 50 x 24 mm, PTCONxONF09E arrestors have N-type connectors and can deliver up to 30 W of RF power at max through-current of 10 A.

Atlas Vac Machine Div., Planet Products Corp.    Cincinnati, OH 45242
May 02, 2008 Model 18:30S can provide over 10,000 lbf on large format (18 x 30 in.), Silverstone-coated sealing platen. In addition to PLC for temperature, dwell time, and pressure management, sealer includes standard secondary IR thermal sensing that provides packaging engineers with platen temperature information needed during validation. Optional Direct Force Sensing System provides reading of force (lbf) exerted by tray sealer press against seal tooling on every stroke.

Best Mfg. Co.    Menlo, GA 30731
May 02, 2008 Flat-dipped in sponge nitrile compound, Zorb-IT Black-Lite 4540 offers balanced combination of dexterity, grip, and oil absorption for jobs that require all three. Breathable, seamless black knit liner minimizes odors and hides grime associated with everyday wear in industrial and automotive work environments.

Meese Orbitron Dunne Co.    Ashtabula, OH 44004
May 02, 2008 Developed to promote recycling in workplace, Sortasaurus Trux Collection Carts feature 3 individual compartments to permit plastic, glass, metals, paper, or different grades of same material to be separated at point of collection. Carts have 3 vinyl liners set within weather-resistant, powder-coated steel frame on combination wood and steel base with industrial strength casters. Available in 12- and 18-bushel capacities, carts offer choice of 6 standard and custom colors.

Drum-Mates, Inc.    Lumberton, NJ 08048
May 02, 2008 Available in plated steel and 316 stainless steel, 2 in. NPT thread ThreadGuard(TM) DM-55BTG prevents plastic thread stripping, thread wear, and other damage. Tightening in drums, totes, tanks, and other containers is permitted with Wide-Hex grip mounting feature. Operator and environmental exposure to noxious, toxic, or dangerous fumes are limited by quick mounting. Stainless steel model enables use with most plastic equipment applications covering wide chemical compatibility range.

Stafford Mfg. Corp.    Wilmington, MA 01887
May 02, 2008 Available with plain and tapped holes, Accu-Flange(TM) Collars and Precision Sleeve Flange Couplings enable user to attach components such as pulleys and cams. Collars are machineable and couplings have solid center section for close tolerance fit on ground shafting. Supplied with standard keyway, both are available with ½-1 ½ in. bores in SS, steel, and aluminum and will not mar shafts. Collars retain perpendicularity and couplings maintain less than .001 TIR concentricity.

One RF Technology    Sophia Antipolis 06410  France
May 02, 2008 Based on TinyOne Lite or Plus radio solutions, 868 MHz USB Dongle Modems offer plug-and-play connectivity to notebook or handheld device, allowing users to develop mobile solutions to monitor and control wireless Mesh networks. Units measure 78 x 30 x 7.5 mm including embedded antenna. With drivers for Windows, MAC, and Linux, modems can be integrated to any monitoring device.

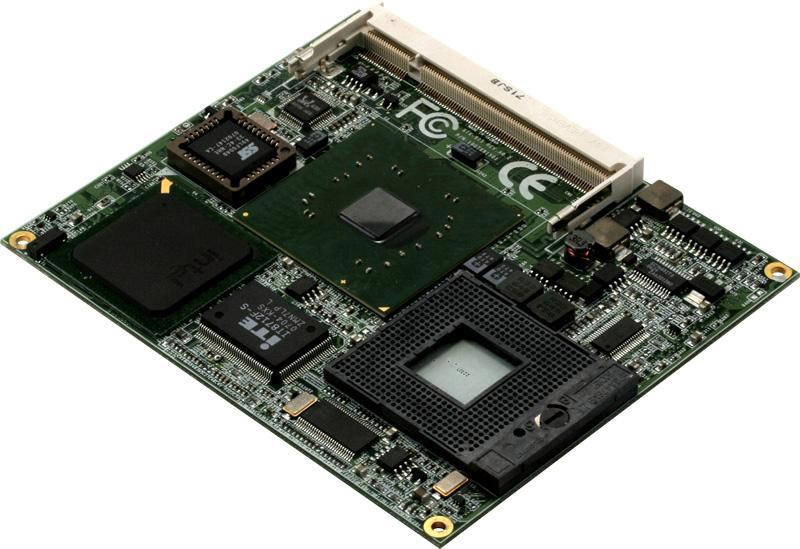

AAEON Technology Inc    Taipei   Taiwan
May 02, 2008 Compatible with ETX Rev 2.7, but not for pin definition of X2 connector, XTX-915 implements serial technologies into X2 connector that bundles SATA and PCI-Express to replace ISA interface on ETX module. Module is equipped with Intel® Socket 478-based Pentium® M/Celeron® M processors and 200-pin DDR II 400/533 SODIMM. It supports CRT/LCD simultaneous/dual view displays and accommodates 4 PCI-Expressx1, four 32-bit PCI, one LPC bus, one SMBus, and one I²C interface for expansion.

Keithley Instruments, Inc.    Cleveland, OH 44139 1891
May 02, 2008 Building on single- and multi-site parallel test capabilities, ACS v4.0 includes database capability as well as software tools and optional licenses for Reliability Test Module and ACS Data Analysis capabilities. Wafer Level Reliability testing predicts reliable lifetimes for semiconductor components such as transistors, capacitors, and interconnects. WLR tools in ACS software allow testing multiple devices in parallel while applying different stress conditions to each device.

Eurotech Group    AMARO (Udine) 33020  Italy
May 02, 2008 Providing means for statistical or data interpretation, PCN-1001 performs bi-directional detection and counting of passengers in public transportation vehicles. Non-contact stereoscopic vision detection, along with interpretation algorithm, result in counting accuracy over 97% across all lighting conditions. Parallel operation of multiple counters in daisy-chained configuration is possible, and counters can work together in real-time with overlapping areas and active detection.

Phidgets, Inc.    Calgary, AB T2M3R7  Canada
May 02, 2008 Suited for applications requiring precise positioning, Model 1062 controls position, velocity, and acceleration with respective resolutions of ½ step (40-bit signed), 0.75 ½ steps/sec (9-bit), and 140.625 ½ steps/sec² (6-bit) for up to 4 unipolar stepper motors. It plugs directly into computer USB port and can also run motor in continuous rotation mode by giving it large position address. Application programs can be written using Phidgets API.

GAO Embedded Inc.    Toronto 12345  Canada
May 02, 2008 Featuring laser exploration and processing technology, GAO800 can be used to identify fiber, test fiber loss, check fiber continuity, and evaluate transmission quality of fiber chain. Also used for linearity and non-linearity tests, tester has 850, 980, 1,310, and 1,550 nm wavelength calibration points as well as storage and page up/down functions for test figures. Additional functionality includes relative power, multiwavelength, and absolute power tests.

Dwyer Instruments, Inc.    Michigan City, IN 46361
May 02, 2008 Using ultrasonic wave propagation between transducer gap to sense presence or absence of liquid, Series MULS takes measurements at single point and provides multiple output choices for high/low level alarm, overflow prevention, and pump protection. Miniature switches can be mounted within 15° of horizontal, with no additional calibration required, and are offered in ¼ and ½ in. male NPT process connection sizes. They have 0.5 sec time delay and repeatability of less than .08 in.

Whittet-Higgins Co.    Central Falls, RI 02863
May 02, 2008 Offered in aluminum, stainless steel, and carbon steel, threaded retaining ClampNuts are available with AFBMA/ANSI, American National, ISO, Metric, Unified Coarse, Unified Fine, and Unified Constant options. Bore sizes range from 1/8-7¾ in. and 10-200 mm. Plain bore clamp style and split collars, also available, come in 1/8-4 in. and 3-100 mm bore sizes. ClampNuts and collars minimize installation and maintenance times and eliminate cutting keyways and shaft marring.

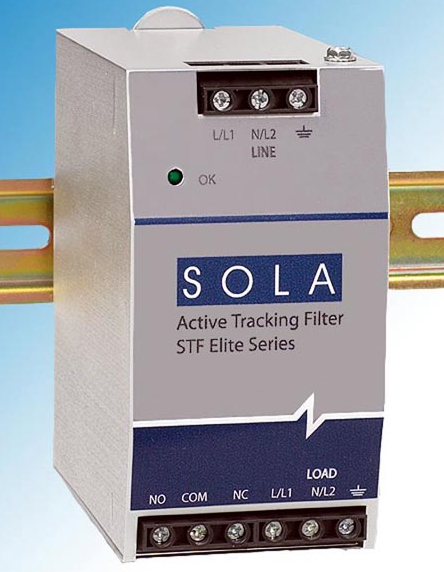

EGS ELECTRICAL GROUP ? APPLETON    Rosemont, IL 60018
May 02, 2008 Designed for mounting on DIN rails, STFE Elite Series protects against voltage transients and surges that may impair operation of industrial and machine tool equipment. Combination of hybrid-clamping network and Active Tracking® Filter technology allows products to continuously track input ac power line and respond instantly to extraneous high-frequency noise and high-voltage transients. Filters have UL-Listed surge current capacity of 45,000 A.

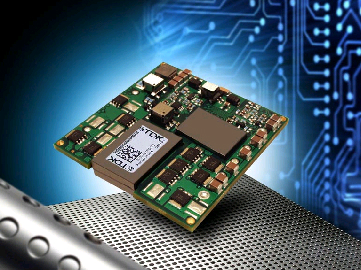

TDK-Lambda Americas Inc.    San Diego, CA 92154
May 02, 2008 Operating over input range of 36-75 Vdc, iHG Series 100 W Converters use half-brick footprint with no base plate, and include 5 V/10 A, 5 V/20 A, and 3.3 V/30 A models. Single output, RoHS-compliant devices feature single board construction, digital control circuitry, and wide output voltage adjustment/trim range from 50-110% of nominal output voltage. Input is fully isolated from output up to 1,500 Vdc, and operating temperatures range from -40 to +125°C, measured at module.

AC&E Inc    South Charleston, WV 25303
May 02, 2008 Providing simulation of robot operations including 3D linear and arc interpolations, CSR E-Hub helps engineers develop and prove out dispensing programs for desktop robots ahead of use on production line machines. Program delivers realistic simulation and accurate positioning of robot with repeatability of ±0.01 mm for dispensing beads and dots. In addition to collision detection, software enables creation and import of customized parts, fixtures, and worktables with workcells.

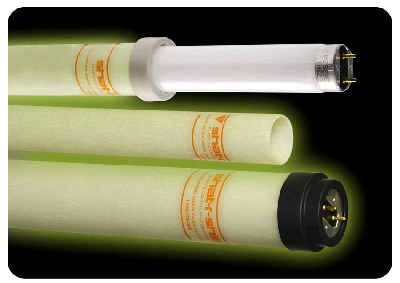

Shat-R-Shield, Inc.    Salisbury, NC 28147
May 02, 2008 Offered in T12 and T8 sizes, Luna Glow Sleeves feature translucent, tubular design that slips over existing fluorescent lamp. Units are held in place with end caps and soak up energy from powered lamp. If lights go out, sleeves immediately activate and provide stored photoluminescent illumination. Sleeves require no wiring, tools, batteries, or maintenance. With automatic activation, lighting is suited for hallways, exit stairs, elevators, and subway tunnels.

AirClean Systems, Inc.    Raleigh, NC 27604
May 02, 2008 Portable Filter Boxes provide laboratories with ability to convert total-exhaust hood into energy-efficient ductless fume hood. They utilize gas-phase-bonded carbon filters to protect fume hood operator by capturing chemical fumes and vapors and eliminating carbon dust. Post-filter gas sensor is linked to microprocessor controller, which allows adjustment of airflow velocities. Boxes also include lockable casters and 8 in. exhaust connection.
