Georg Fischer Piping Systems    Tustin, CA 92780
May 06, 2008 Designed to dispense clean water at point of use, Type 530 AquaTap(TM) Recirculating Laboratory Faucet features flow through head design that eliminates dead-legs and optimizes flow characteristics. Inline Flow Diverter (IFD) technology provides flow rate of up to 5 gpm with not more than 1.5 psi pressure drop. Faucet is available in SYGEF® PVDF, while accessory products, including IFD, are available in both SYGEF® PVDF and PROGEF® natural polypropylene.

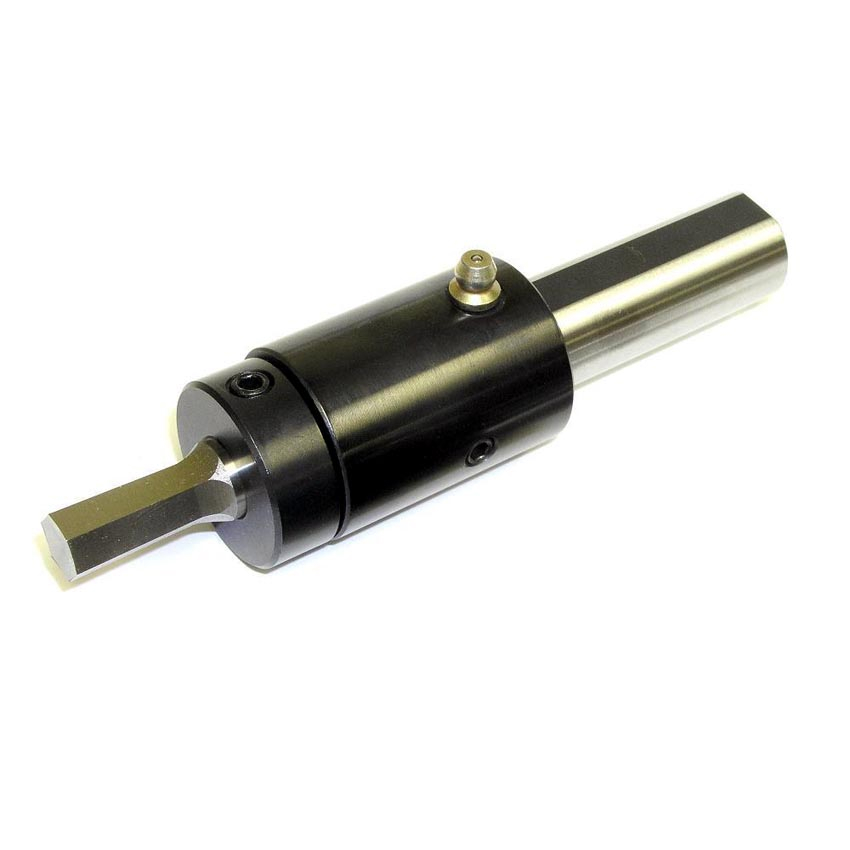

Slater Tools, Inc.    Clinton Township, MI 48038 1554
May 06, 2008 Suited for use in large Swiss type CNC machines and gang style lathes in aerospace and medical industries, 0700 Series Swiss Type Adjustment Free Rotary Broaching Tool Holder uses standard .500 in. shank and 1.75 in. overall length rotary broaches for polygon forms.

Master Bond, Inc.    Hackensack, NJ 07601
May 06, 2008 With mix ratio of 100:65 by weight, EP29LPSP can withstand temperatures to 4 K, and resist cryogenic shocks (room temperature down to liquid helium temperatures in 5-10 min time period). It cures at room temperatures, and can be heat cured at 130-165°F for 6-8 hr. Chemical resistant adhesive features mixed viscosity of 400 cps, tensile strength of 6,500 psi, tensile modulus of greater than 375,000 psi, volume resistivity greater than 1,015 W cm, and Shore D hardness of 80.

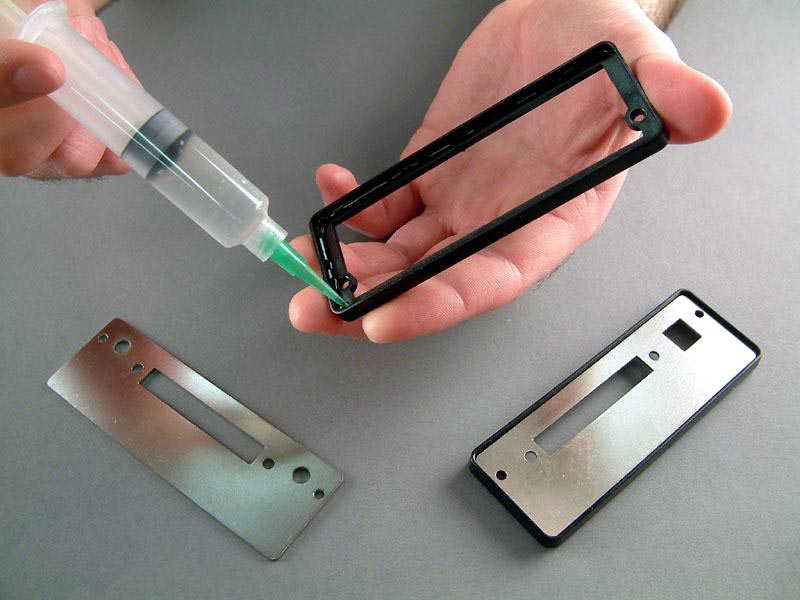

Master Bond, Inc.    Hackensack, NJ 07601
May 06, 2008 With ability to withstand temperatures up to 500°F, 2-component optically clear EP121CL cures to tough solid with chemical resistance even when exposed to adverse environmental conditions. It features 12,100 psi tensile strength, 17,200 psi compressive strength, volume resistivity greater than 3 x 1,014 ohmW cm, dissipation factor of 0.020 at 1 MHz, and dielectric constant of 3.34 at 60 Hz. EP121CL is also available in 1-component and thermally conductive versions.

On-Net Surveillance Systems Inc.    Pearl River, NY 10965
May 06, 2008 As core component of Ocularis Platform, NetDVMS 6.5 enables users to monitor and record audio from camera-connected microphones and also stream audio from control room to camera-connected sound systems, allowing 2-way audio interaction with video-monitored persons. Software supports different frame-rate video streams for live monitoring and recording, resulting in efficient data transport and reduced CPU loads. In addition, v6.5 adds support for MxPEG compression.

Beckwood Press Co.    Saint Louis, MO 63026 2405
May 06, 2008 Equipped with independently controlled clamp and draw rams, Hydraulic Tank Head Forming Press can be customized for wide range of specifications including tonnage, bed size, speed, and stroke. It features bed cushion which can be custom engineered for standard or dynamic cushion control that includes independent travel zones, utilizing recipe function on PLC interface.

MadgeTech    Warner, NH 03278
May 06, 2008 TCTemp2000 thermocouple temperature data logger holds 131,071 readings/channel and accepts thermocouple types J, K, T, E, R, S, B, and N. It features user-selectable measurement units, programmable start/stop time, and large screen that provides convenient access to minimum, maximum, and average statistics and displays battery level, external power, and sampling/recording status. N.I.S.T. traceable unit comes with 9 V replaceable battery, with up to 1 yr battery life.

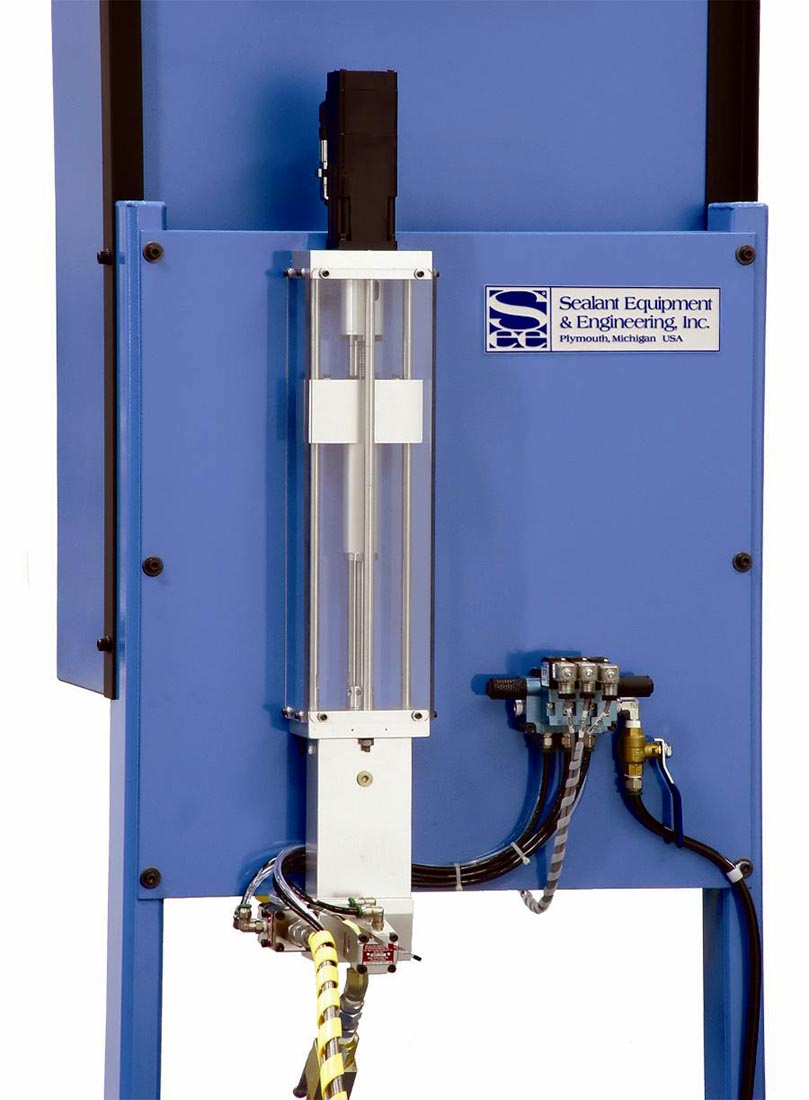

Sealant Equipment & Engineering, Inc.    Plymouth, MI 48170-0965
May 06, 2008 Incorporating Servo-Flo design of positive rod displacement precision metering of fluids in lightweight unit, Servo-Flo® 401 Series servo-motor drive meter system is designed to apply small precision beads and precisely metered shots of 1-part adhesives, sealants, or lubricant materials from 1-8.5 cc in robotic and manual dispensing applications. It accepts flow-rate commands from automation controls or can be preset to vary flow rate during dispensing.

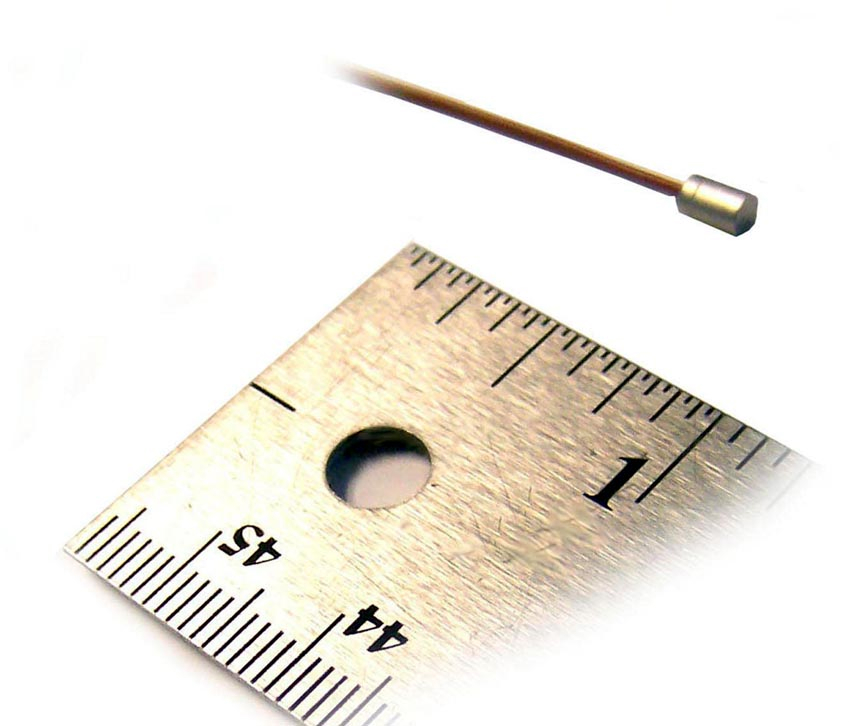

RJG, Inc.    Traverse City, MI 49686-4713
May 06, 2008 Able to analyze temperature variation inside mold cavity, Press Fit Cavity Temperature Sensor works in conjunction with eDART(TM) Process Control System to assist molders in diagnosing processing problems relating to temperature issues. Unit can be installed by drilling small hole for wire and flat bottomed pocket with tolerances necessary to press fit device in from cavity face. Placing sensors in different areas of part can show problems with non-uniform cooling.

Kinetic Technologies, Inc.    Wickliffe, OH 44092
May 06, 2008 Constructed with 3 formed and welded deck panels, picking cart offers 48 x 96 in. of unpainted flat deck surface sitting 10 7/8 in. off floor. Units are designed for attachment to narrow aisle man-up picking lifts and to provide safe movement of up to 1,100 lb of furniture or bulk items either manually, with low push/pull forces, or towed in trains. Featuring 61 in. long boxed under frame fork pockets with reinforced lead-ins, unit is also available with no bend towing system.

Meese Orbitron Dunne Co.    Ashtabula, OH 44004
May 06, 2008 Designed to reduce bending and reaching during loading and unloading, Model MOD 72L linen cart features squared center cutout opening that spans entire width of cart to provide access to towels, sheets, and table linens. Developed to ensure worker safety and compliance with OSHA's general duty clause 29 USC 654 covering ergonomics, it is available with optional mesh netting spanning entire cutout. Unit incorporates molded-in hand holds and casters with optional brakes.

Robotic Accessories    Tipp City, OH 45371 9468
May 06, 2008 Enabling collet to grip part on either O.D. or I.D., C-8800 Heavy-Duty 5C Collet Gripper can rapidly pick and place uniformly sized objects, and features pneumatically adjustable 360° clamping force for parts transfer. Unit can also function as workholding device for grinding, deburring, or polishing operations.

Extech Instruments Corp.    Nashua, NH 03063
May 06, 2008 Including Models EX612, EX613, EX622, and EX623, EX600 Series True RMS Clamp Meters feature IR thermometer for locating hot spots and NCV and dual thermocouple inputs for T1, T2, and T1-T2 differential temperature measurement. With 1.4 in. jaw opening for conductors up to 500 MCM, units provide 40,000 count clamp meter functions for dc voltage, resistance, capacitance and frequency, and can measure motor capacitors to 40,000 µF. Models EX613 and EX623 also provide dc current function.

Extech Instruments Corp.    Nashua, NH 03063
May 06, 2008 Delivering accuracy of 2% and thermal sensitivity of 0.18°F, which provides compliance to NETA testing needs, Extech i5 allows users to check for overheating in electrical panels and inspect areas that cannot be reached with thermocouples. Pocket-sized, fully automatic, thermal camera features focus-free lens and 2.8 in. high resolution color LCD. Double-molded, rugged design with easy-grip handle construction meets IP43 dust/splashproof standards.

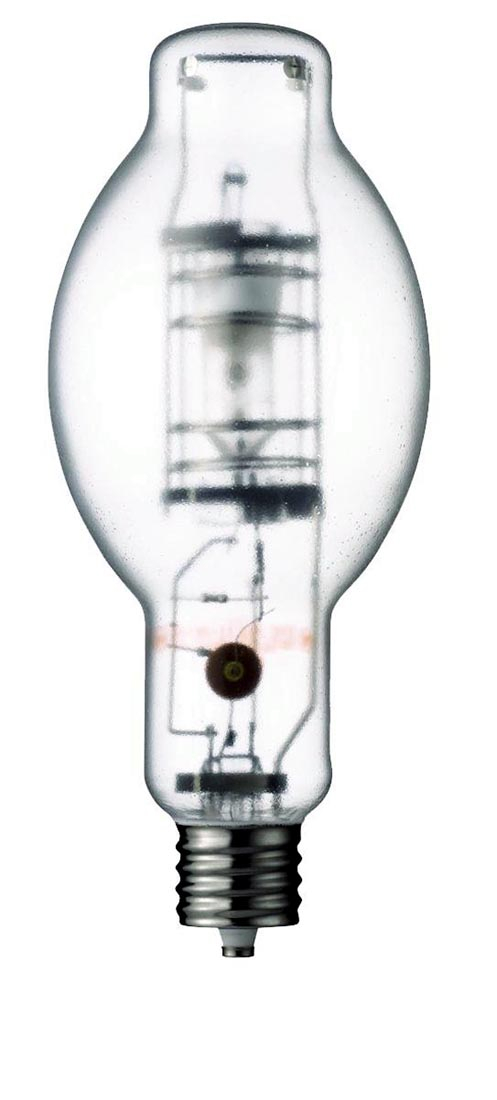

Eye Lighting International    Mentor, OH 44060
May 06, 2008 Designed with PTFE coating to prevent shattering of outer bulb jacket glass, EYE Shatterproof Metal Halide lamps are suited for food processing, food warehouse, grocery, and other facilities where reduced potential for glass shard related injuries or contamination is critical. Available in 250 or 400 W versions, Multi-Metal(TM) Premium Universal Mogul Base operates on existing metal halide systems, while ANSI O-rated Multi-Metal Ignitek(TM) 360 W model operates on 400 W open fixtures.

FCI    Etters, PA 17319
May 06, 2008 Used for connecting removable storage devices into automotive multimedia systems, SD memory connector fully complies with typical automotive electronics application requirements by operating in temperature range of -40 to +105ºC with 12,000 mating cycles.

Coleman Cable, Inc.    Waukegan, IL 60085
May 06, 2008 Able to withstand workshop, garage, or other rugged environments, Workshop Power Bar features 4 ft metal housing that contains 12 outlets spaced apart to allow for larger adapter sized plugs. Heavy-duty power strip comes with 6 ft 14/3 Ga power cord, combination on/off circuit breaker switch for safety, and outlet covers that keep out dust and debris. It also comes with all necessary mounting hardware.

Silverpop Systems Inc.    Atlanta, GA 30339
May 06, 2008 Silverpop v7.0 features intuitive work flow processes and on-screen help enabling users to access main tasks and key strategic areas of application. Mailing layout includes tabbed interface allowing customers to create, save, and send campaigns. Marketers can save, import, and export rule sets and program includes Web-based WYSIWYG editor and asset library for storing reuseable components. It supports Microsoft Internet Explorer v7.0 and Firefox.

Videojet Technologies, Inc.    Wood Dale, IL 60191-1073
May 06, 2008 Using air-driven ink system, Videojet® 2320 Ink Jet Printer performs on-line printing of variable data on corrugated shipping containers for applications requiring code heights up to 2 in. Non-contact self-cleaning and maintenance system continuously keeps printheads free of dust as well as debris, and ensures that ink used during automatic process is recycled and reused. Along with built-in networking, features include carton-tracking interlock system and CLARiTY(TM) touch-screen interface.

Quickfilter Technologies, Inc.    Allen, TX 75002
May 06, 2008 QuickfilterPro software v2.20 includes dual-filter crossover and single-filter dual-source equalizer, and free form filter drawing tool. Inverse transfer functions can be created with one button click. It can build equalization filters using speaker frequency response data imported from test equipment, and also can build two-way audio crossovers in less than 1 min. Program is used to design filters implemented in Quickfilter QF1D512 Simple and versatile FIR engine (SavFIRe).
