Pentek Inc.    Upper Saddle River, NJ 07458
Oct 01, 2012 Intended for RF and IF waveform playback, Cobalt® Model 71671 delivers 4 independent analog outputs – each through its own digital upconverter and 16-bit D/A with sampling rates to 1.25 GHz. On-board Xilinx Virtex-6 FPGA contains IP that provides turnkey waveform generation for output signal bandwidths from less than 1 kHz up to 250 MHz with extended interpolation range from 2x–1,048,576x. Module operation may also be customized by users implementing their own IP in FPGA.

Advanced Micro Peripherals    New York, NY 10001
Oct 01, 2012 Intended for systems with PCI-104 bus, HDAV2000 encodes video to industry standard H.264 format and delivers high video compression ratios along with ultra-low latency performance. Solution has composite video inputs and also supports hardware decoding to enable previously recorded video and audio to be output via HDMI (up to 1080i60), SDI (up to 1080i60), and composite video and NTSC/PAL output. PCI audio interface supports 2 stereo outputs and inputs and one Mic input.

Bomar Interconnect Products    Ledgewood, NJ 07852
Oct 01, 2012 Manufactured with small protrusions inside PCB slots, 75 Ω E-Snap™ Series BNC Connectors snap and lock securely into solder-pasted holes when they are mounted to PC board. High-density edgeboard RF interconnects, offered in male and female versions, have straight-through contact design and gold-plated contacts. Rated for use in 3G applications, connectors feature frequency range of 0–4 GHz and are suitable for employment in broadcast and telecom applications.

ASM Sensors, Inc.    Elmhurst, IL 60126
Oct 01, 2012 Incremental, non-contact measuring system, PMIS4/PMIR5, consists of sensor head and incremental magnetic ring. Sensor head has fully enclosed, IP67, shielded metal housing that offers protection against EMI and thermal overload. Guiding distance is ±1 mm, and available output types are HTL, TTL, and TTL24V. Magnetic ring comes in 3 sizes, with 83, 133, or 233 mm flanges. They are available with decadic, binary, or degree division and reach performance levels up to 327,680 pulses/360°.

Emerson Process Management    Austin, TX 78754
Oct 01, 2012 Certified for use in intrinsically safe IECEx and ATEX Zone 0 and Zone 1 hazardous areas, CSI 2125-IS Machinery Health Analyzer offers route vibration analysis capabilities and PeakVue technology. Latter enables early indication of bearing and gearbox wear. Users can customize alarm parameters and integrate collected data with AMS Suite asset management software for deeper analysis and collaboration. Operated via touchscreen, analyzer can work continuously for up to 8 hr.

Techspray Inc.    Amarillo, TX 79107
Oct 01, 2012 Supplied in 12 oz aerosol package, E-LINE IPA (Part  No. 1610-12S) is 99.8% pure anhydrous (minimal water) IPA suited for defluxing, fiber optics maintenance, stencil cleaning, tool cleaning, tape-head cleaning, and other light-duty cleaning. Sealed system complies with US South Coast regulation SCAQMD rule 1171 and California CARB requirements as well as European REACH and WEEE initiatives. Formula does not contain RoHS restricted substances, SVHC listed substances, or halides.

FIPA, Inc.    Atlanta, GA 30318
Oct 01, 2012 EKPP, EKP, and EMM Series integrate pressure regulation to reduce consumption of compressed air and energy without impacting cycle times. Equipped with automatic pressure regulation, they reduce compressed air usage by up to 50% per work piece, regardless of porosity. In addition, EMA and EKP-LSE Series can achieve savings of up to 97%, for airtight work pieces, via electronic air-saving function. All systems use 50.8 psi internally, reaching max vacuum level at feed pressure of 58 psi.

Vista System    Sarasota, FL 34234
Oct 01, 2012 Offering indoor and outdoor signs ranging from 0.7–1.4 m wide and up to 4 m tall, Vista Expand series has modern design with minimal curve. Three types of products are supported: Pylons XL signs, landscape and portrait XL wall signs, and landscape and portrait XL Post Panel signs. With design that facilitates installation as well as updates, these products can accept diverse range of insert materials.

Miller Electric Mfg. Co.    Appleton, WI 54912 1079
Oct 01, 2012 Respectively offering 275 and 325 A of welding power at 100% duty cycle, Trailblazer® 275 and 325 deliver 12,000 W peak/10,500 W continuous generator power. Smart-Cor™ technology provides independent weld and generator power, while Auto-Speed™ technology automatically adjusts engine speed to run at lower speeds determined by load applied to machine. Suited for Stick, MIG, Flux-Cored, and DC TIG welding, generators can power Spectrum® plasma cutters and are optimized for truck integration.

Rolls-Royce Corporation    Indianapolis, IN 46206-0420
Oct 01, 2012 Engineered as modular package, RB211-Gzero retrofit upgrade product will benefit operators of RB211-C and RB211-G variant gas generators that feature RT-56 or RT-62 power turbines. Package increases flow of air through engine, thereby increasing power availability at ISO conditions by 10% for RB211-G, and up to 31% for RB211-C, depending on existing configuration. Available in power range of 29–44 MW, RB211 gas turbines are suited for onshore/offshore oil and gas and power generation applications.

KASTO Ltd    Southampton   United Kingdom
Oct 01, 2012 Equipped with numerically controlled material feed and 2-speed motor with 1.1/1.5 kW of power, KASTOpractical A2 pivot-type machine delivers cutting speeds up to 35 or 70 m/min, depending on material and feed. Saw head can be indexed 45° to left or up to 60° to right, regardless of whether solid, tubular, or profile stock is being processed. Operating range for straight cuts is 230 mm round, 300 x 170 mm flat, or 220 x 220 mm square, and capacity when mitering at 45° is 190 x 190 mm.

Royal Products, Div. Curran Mfg. Corp.    Hauppauge, NY 11788
Oct 01, 2012 Designed to fit 90% of formally custom-only applications, Royal live center point styles include full diameter, reduced diameter, female 90° angle, small bull nose, and male 90° angle. Roto-Shield™ technology increases bearing life by deflecting coolant, protecting bearings, minimizing seal wear, and maintaining grease consistency. Manufactured to exacting tolerances, all live centers are accurate to ±0.00005 in. TIR or better.

Tingue Brown & Co.    Saddle Brook, NJ 07663
Oct 01, 2012 Suitable for any type of overhead rail laundry sling system, TingueSling™ Bags are available in 2-ply 1000D Ballistic Nylon, 430D Super Nylon Pack Cloth, and 430D Nylon Pack Cloth. Water-resistant bags hold their shape during sling-forming and safely secure heavy loads during operation, while preventing growth of mold and bacteria and resisting lint buildup. Available in choice of colors, bags may be custom manufactured in nearly any size, shape, or configuration.

Industrial Magnetics, Inc.    Boyne City, MI 49712
Oct 01, 2012 With inlet and outlet installed to flexible hose system, 4JIT Bullet® allows dry powder and granular materials to pass through magnetic housing and be purified of metal contaminants. Access to magnetic circuit is achieved by opening tri-clover clamp on housing and removing lower body to clean collected tramp metal. Featuring 100% stainless, 2-part body, separator is available for 3, 4, and 5 in. line sizes; operates leak-free at up to 130 psi; and is suitable for use in explosive environments.

McPherson, Inc.    Chelmsford, MA 01824
Oct 01, 2012 For vacuum UV, Model 234/302 accommodates Aluminum Magnesium Fluoride coated grating suited for work from 100–200 nm. Lower groove density Aluminum coated grating is optimized for non-vacuum UV-Vis region, while platinum coated grating is intended for use at wavelengths shorter than 120 nm (greater than 10eV). Various gratings extend optimization of 200 mm focal length spectrometer over 30–550 nm wavelength range. Model 234/302 also features CCD detectors, adjustable slits, and f/4.5.

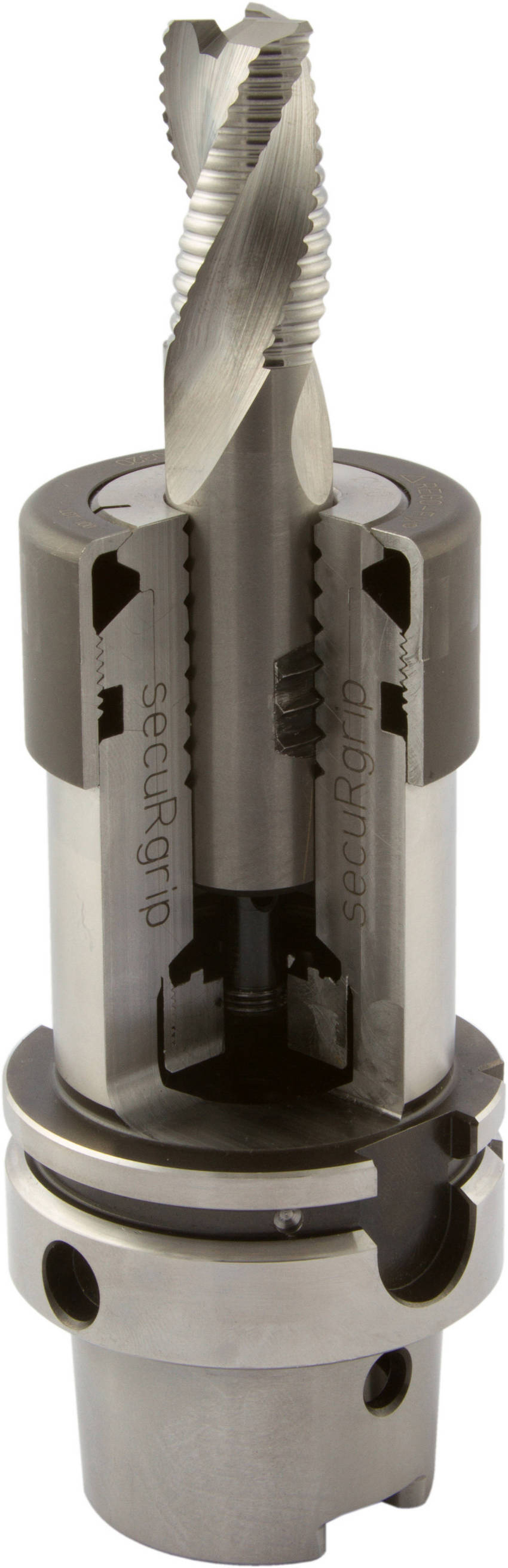

REGO-FIX Tool Corp.    Indianapolis, IN 46268
Oct 01, 2012 By utilizing powRgrip’s gripping strength in conjunction with locking system and threaded cap, secuRgrip anti-pull system locks collet and cutter to toolholder body to eliminate cutter slippage during metal removal applications. Solution has TIR of 0.0001 in. and lets manufacturers preset their tool heights. While REGO-FIX users can modify existing powRgrip holders for use with this system, solution nominally makes use of existing standard carbide or HSS endmill designs.

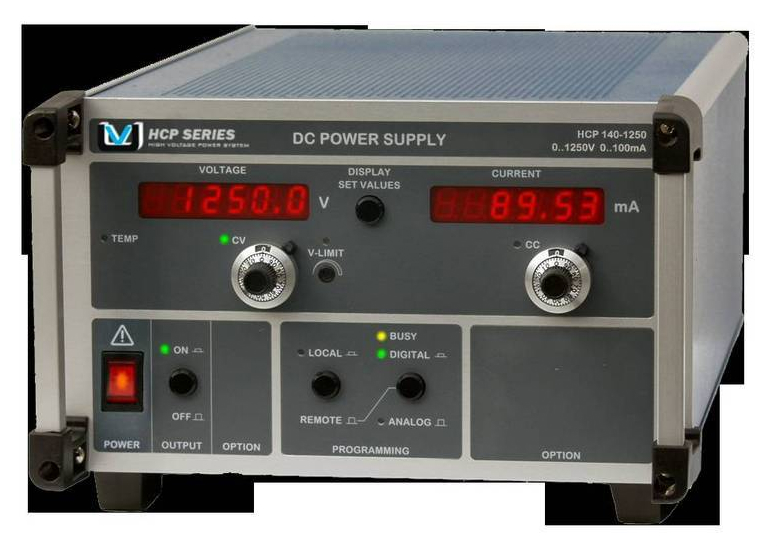

UltraVolt Inc.    Ronkonkoma, NY 11779
Oct 01, 2012 Comprised of high-voltage rackmount and benchtop power systems, HCP and MCP Series respectively offer outputs of 0–3.5 kV to 300 kV and 0–125 Vdc to 2 kV. Floating output products enable users to reach power levels from 0–14 W through 15 kW. Fully programmable via 10-turn potentiometer with locking adjustment knob, systems feature optional electronically controlled polarity reversal, voltage and current monitors, and multiple computer interfaces.

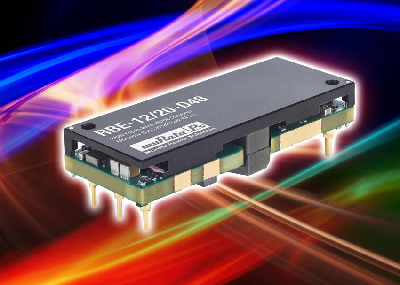

Murata Power Solutions, Inc.    Mansfield, MA 02048
Oct 01, 2012 Featuring eighth-brick configuration measuring 2.3 x 0.9 x 0.4 in., RBE Series meets DOSA requirements. Model RBE-12/20-D48 delivers regulated 12 V output at 240 W from nominal 48 Vdc input. Converters are fully isolated to 2,250 Vdc with insulation system meeting requirements for PoE applications. Housed in through-hole mounted package, standard modules are configured as open frame converters with 4.6 mm pins and negative logic. Applications include servers, data storage, and telecom switches.

FasTest, Inc.    Roseville, MN 55113-1317
Oct 01, 2012 Designed to connect to CGA 540, 580, and 580 RPV gas valves, G-Series provides repeatable connections to pressure vessels in bulk filling facilities. Products connect by inserting collet onto tank valve and rotating bail roller handle over connector and tank valve, instantly locking connector in place. Smooth operating, one-hand bail roller actuation lets technician quickly connect/disconnect vessels. Respectively, CGA 540 and 580 models are compatible with external and internal threads.

Sioux Corp.    Beresford, SD 57004
Oct 01, 2012 By heating engine coolant/antifreeze in mining haul trucks and other large equipment, Engine Coolant Heater™ ensures that equipment starts quickly in cold environments. Heater raises 150 gallons of engine coolant from -40 to +60°F in 33 minutes. Designed to fit between wheel wells of standard pick-up truck, self-contained system includes Sioux M-200 heating unit, generator, circulation pump, anti-freeze storage tank, and all hoses and hose reels needed to operate them.
