Omega Engineering, Inc.    Stamford, CT 06907
May 16, 2008 Model DOH-20D features digital LCD screen that can show dissolved oxygen (DO) in either mg/liter or percent of saturation and temperature simultaneously. Featuring memory storage and recall with data hold function, unit can store up to 16 sets of temperature and DO values. Device has low-battery and consumption indicators, and comes complete with sensor, 2 membrane caps, 20 mL of electrolyte, pipette, rubber protective cover, 9 V battery, and operator's manual.

Atlona Technologies    San Jose, CA 95131
May 15, 2008 Featuring VGA inputs and HDMI outputs, Models AT-HDMI500 and AT-HDMI510VGA are designed to seamlessly integrate desktop or laptop computer into HD display system. Units will take any PC resolution up to WUXGA and Mac, and scale it to HD resolution up to 1,080 p. Equipped with local monitor loop out, Model AT-HDMI510 enables user to connect computer's monitor and HDTV, even if there is only 1 VGA output on computer.

Thermadyne Industries, Inc.    St. Louis, MO 63017

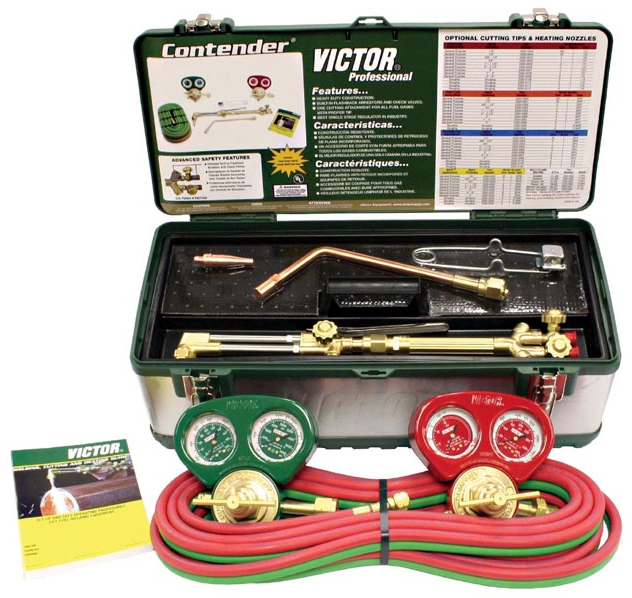

May 15, 2008 Supplied as heavy-duty solution, Contender® comes with CA 2460 cutting attachment, 315FC handle, 350 regulators with gauge guards, 25 ft T grade hose, 1-1-101 cutting tip, No. 6 MFA, striker, and professional toolbox. Built-in check valves and flashback arrestors are also included, promoting safety during operation.

Diversified Heat Transfer, Inc.    Ridgewood, NY 11385
May 15, 2008 Made entirely of specially treated AISI 316L Stainless steel to ensure corrosion resistance, E-ZEE Flow incorporates self-cleaning feature and can be used for applications such as in-floor heating, swimming pools, spas, hot tubs, and driveway snowmelts. Titanium version is also available for highly corrosive water conditions. Industrial applications include oil coolers, transmission and engine coolers, boiler sample coolers, and waste water heat recovery.

Lowell Corp.    West Boylston, MA 01583
May 15, 2008 Featuring model 51QR ratchet handle and 5 x 3½ in. long deep well sockets, 511X Wrench Kit is designed for applications in plant maintenance, repair, operation, and production as well as construction and pipeline work. Bolt-Thru design allows bolts to pass entirely through arm head and product includes quick release feature. Sockets are made of machined steel while handle is made of cast iron. Hexagonal sockets of 7/8, 15/16, 1 1/16, 1 1/8, and 1¼ in. are included.

Duraline Div., J.B. Nottingham & Co., Inc.    Islandia, NY 11749

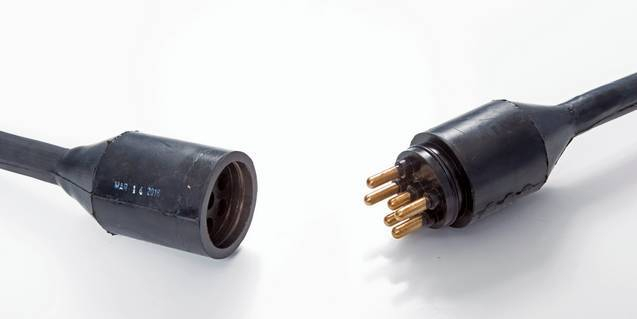

May 15, 2008 Quick disconnect 6 Wire connectors are offered in range from 1-30 A 600 V max and are available for cable sizes 10 and 12 AWG. They can be molded to 6 conductor type SOOW 600 V cable. Exceeding OSHA and NEMA requirements, quick disconnect connectors are suitable for IEC Class IP67 and NEMA Class 6 applications.

Advanced Media Inc.    Diamond Bar, CA 91765
May 15, 2008 Conforming to CompactFlash Association Standard, Ridata 233x Lightning Series provides dual-channel data throughput for 233x reading speed and 80x writing speed. Card supports 8- or 16-bit host transfers with any host speed using IORDY. It includes automatic power management feature, embedded Error Correction Code, and forward and backward functionality. Product is compatible with host ATA disk I/O BIOS, DOS, and Windows file system, utilities, and application software.

Quicksilver Controls    San Dimas, CA 91773
May 15, 2008 Single-axis, 2 x 2.5 in. servo motor controller features CAN option that can be configured for peer-to-peer, master, or slave. This allows controllers to share I/O and register with other CANopen enabled SilverDust controllers or 3rd party devices. Accessed through DB15HD port, 7 bidirectional I/O, 12-48 V input power, and communications signals can be separated using QCI-BOB, QCI-BO-B1, and QCI-BO-B1A breakouts, or QCI-BO-B52 breakout can be used for 24 V I/O operations.

Fluid Components Intl.    San Marcos, CA 92069 5115
May 15, 2008 Featuring intelligent design with no-moving parts, remote mount ST50 measures air flow from 1-125 sfps, nitrogen from 1-150 sfps, and compressed air from 4-400 msps. Accuracy is +1% of reading and +0.5% of full scale. Transmitter, which includes full digital display, can be mounted up to 50 ft away from thermal mass flow sensor in process piping and connected via two 0.50 in. FNPT cables. Housed in aluminum, epoxy-coated enclosure with NEMA 4X rating, meter operates from 40 to 100°F.

Physik Instrumente (PI)    Auburn, MA 01501

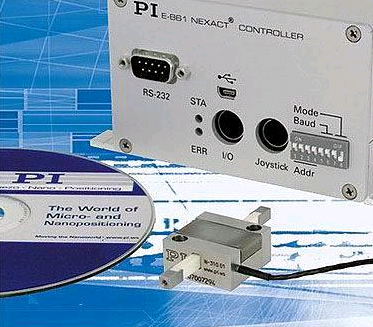

May 15, 2008 Designed for setup and automation of NEXACT® linear motors, Model E-861 provides open and closed-loop modes. For closed-loop operation, high-resolution linear encoder input is provided, backed up by required DSP processing power. For open-loop-operation, step size, count, and frequency can be set by software. Velocity of 10 mm/s and more with nanometer resolution is obtained. Up to 16 controllers can be networked and controlled over single PC interface.

Physik Instrumente (PI)    Auburn, MA 01501

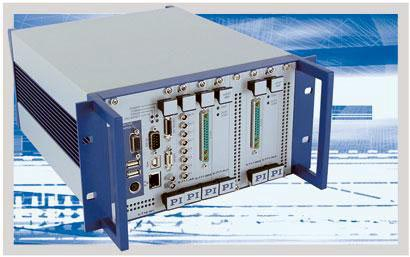

May 15, 2008 Modular Digital Piezo Controller System E-712 offers up to 50 kHz sensor update rate. It includes 20-bit D/A converters enabling subnanometer position resolution over travel ranges of over 1,000 µm. Featuring real-time OS, it offers auto-calibration and remote control via TCP/IP interface. Software-tunable proportional-integral digital servo with 2 notch filters allows operation of piezomechanics close to resonant frequency. USB, RS-232, and Ethernet interfaces are included.

Henkel Loctite Corporation    Rocky Hill, CT 06067
May 15, 2008 Loctite® Freeze & Release is low-viscosity, spray-on lubricant designed to shock-freeze metal parts, allowing lubricating oils to penetrate into rust layers. It freezes seized and rusted parts to -45°F, which causes hairline cracks to form in rust layer as metal contracts, allowing lubricant to penetrate by capillary action. Threaded assemblies can be dismantled in 1-2 min and product is available in 400 ml aerosol can.

EarthLCD    San Juan Capistrano, CA 92675

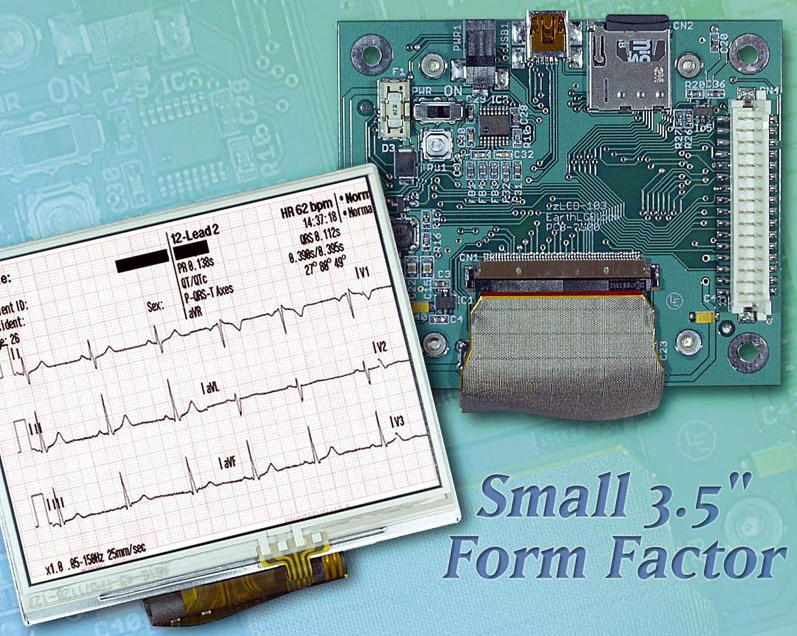

May 15, 2008 Along with 3.5 in. 320 x 240 TFT LCD, controller, LCD driver circuitry, processor, and graphic controller, ezLCD-103-EDK incorporates built-in intelligence that accelerates development time for product designs requiring small form-factor displays with GUI. Supply voltage is +5 V standard or 3.3 V optional, and SD flash card provides for graphics expansion, OEM data storage, and logging capabilities. Connectivity is provided via USB 2.0 and RS-232 ports.

Contemporary Controls Ltd    Coventry West Midla CV4 7EZ  United Kingdom
May 15, 2008 Powered from USB port, BASRTP-B BAS Router Portable can be carried from jobsite to jobsite in laptop computer bag while utilizing CAT5 cable for communication and USB cable for power, eliminating need for batteries or wall wart power supplies. Ethernet port offers shielded RJ-45 connector, while MS/TP port offers optically isolated transceiver. Available in lightweight, compact plastic case, building automation BACnet router comes with 5 ft CAT5 Ethernet cable and 6 ft USB cable.

Tharo Systems Inc.    Brunswick, OH 44212 0798
May 15, 2008 Suited for Zebra® Z4Mplus(TM) and Datamax I-Class of thermal/thermal transfer bar code label printers, PA1200t Label Printer/Applicator can apply up to 40 labels/min depending on printer used, label size, and height of product. Allowing quick setup and changeover for applying labels to top or side of varying height products, automatic/semi-automatic unit has all metal construction.

Kennametal, Inc.    Latrobe, PA 15650-0231

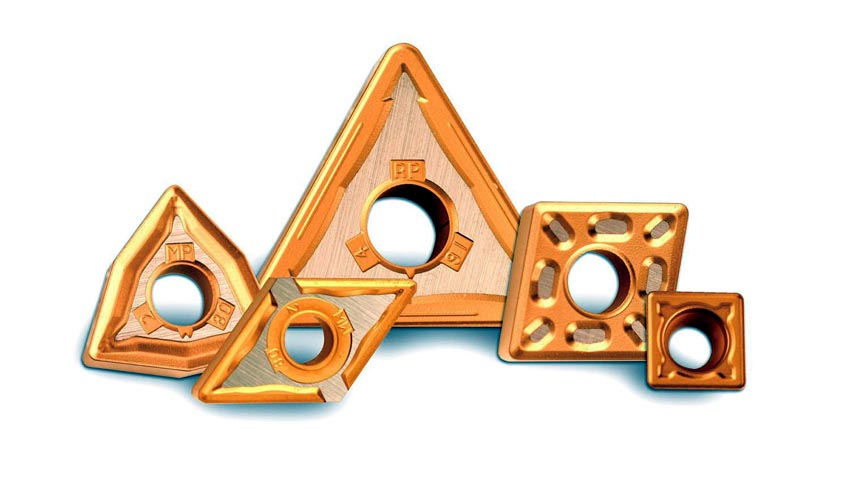

May 15, 2008 KC9225(TM) inserts reduce chip hammering and built-up edge conditions, preventing insert damage in applications demanding continuous to lightly interrupted cuts at high cutting speeds. Deformation resistance combined with sharp cutting edges makes units suitable for machining austenitic stainless steels, when machining at speeds in excess of 550 sfm. Applications include medical and food industries, flange manufacturing, chemical industry, and oil and petrochemical businesses.

IRC    Corpus Christi, TX 78411

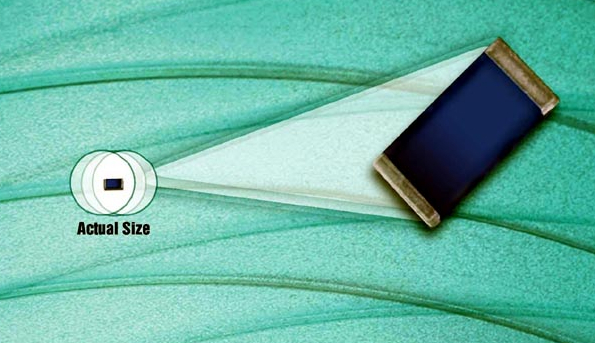

May 15, 2008 Constructed on stable TaNFilm(TM) thin film resistive element, PFC Series Tantalum Nitride 0402 precision chip resistors feature power rating of 50 mW, voltage rating of 75 V, and operating temperature range from -55 to +150°C. They are suited for use as one or two-chip solutions in battery monitoring, voltage references, voltage conversion, and voltage regulators. Offered with Sn/Pb terminations or 100% matte-tin (Pb-free), they have non-leaching nickel barrier and wrap around terminations.

Crystek Corp.    Fort Myers, FL 33913

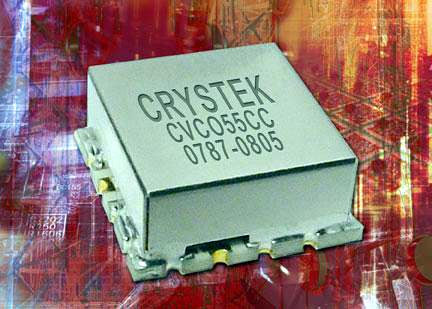

May 15, 2008 With control voltage range of 0.3-4.7 V, Model CVCO55CC-0787-0805 features typical phase noise of -122 dBc/Hz at 10 kHz offset, input voltage of 5.0 V with maximum current consumption of 35 mA, and second harmonic suppression of -15 dBc typical. Pulling and pushing are minimized to 0.05 MHz and 0.05 MHz/V, respectively. Offered in 0.5 x 0.5 in. SMD package, unit is suited for digital radio equipment, fixed wireless access, satellite communications systems, and base stations.

Maxim Integrated Products    Sunnyvale, CA 94086
May 15, 2008 MAX13041 provides ±80 V fault-protected voltage range as well as ±12 kV ESD protection on CAN bus lines. Diagnostics and over-temperature protection are included as well as 7 internal flags to indicate various fault conditions. Unit features 5 modes of operation, including sleep mode, which reduces current consumption to 18 µA in clamp-30, always-on nodes. Conformant to ISO 11898-2 specification, it is available in RoHS-compliant, 14-pin SO package and operates from -40 to +125°C.

Dawning Technologies, Inc.    Fairport, NY 14450 9542
May 15, 2008 Primarily suited for connecting clinical instruments to information systems, JavaLin/PDI combines JResultNet Interface Engine Software with modular hardware design to support various industry standard communication protocols. Serial and Ethernet ports let users connect 1 or 2 analyzers directly to LIS network without terminal server devices. Remotely accessible via point-and-click GUI and rules entry tools, solution occupies 3 x 5 in. footprint and allows for future expandability.
