CCE    Farmington Hills, MI 48334
May 12, 2008 EnSuite v2 can be used to import point cloud files in .xyz and .csv files that are typically produced on coordinate measuring machine, laser scanner, or other inspection equipment. Allowing imported point clouds to be graphically compared against CAD models, software produces color error map of point cloud vs. CAD model by displaying differences between both in range of colors. Program is useful to quality assurance engineers in manufacturing QA and CAD QA scenarios.

Xspect Solutions Inc.    Wixom, MI 48393
May 12, 2008 The Phoenix is suited for inspecting round and square holes, slots, and spherical features on car bodies and computer chassis, as well as flush-and-gap tolerances on car and truck body parts. Hybrid system combines high-resolution image processing benefits of CCD camera in X-Y plane with multiple laser triangulations for measuring Z plane. Triangulation is produced in 2 orthogonal directions. Sensor is 120 x 12 x 90 mm, with working distance from measured feature up to 100 mm.

Videx, Inc.    Corvallis, OR 97330
May 12, 2008 Rechargeable CyberKey for CyberLock Electronic Lock System allows wastewater facilities to use key that has lithium-ion polymer battery with battery-life of 3-4 yr. Battery fully charges in 15 min to 2 hr and provides 500 openings or 1-2 weeks of performance between charges. Red and green LEDs give feedback on access events and key status. Keys can be color-coded to indicate special user groups.

C&K Components    Newton, MA 02458
May 12, 2008 MDS Series micro snap-acting detect switches are available in vertical and right-angle PCB mount, with 2.9 mm travel, and SDS Series side-actuated detect switches have 2 mm profile and 2 mm overtravel. Featuring top or side actuation, SDT Series micro mini pendulum detect switches offer 2.2 mm profile, while HDT micro mini detect switches have 3.35 mm profile. Surface mount switches are implemented on server blade as safety mechanism to guarantee blade is powered down.

IRC    Corpus Christi, TX 78411
May 12, 2008 Comprised of thick film planar power resistors on insulated stainless steel substrates, WDBR Series enables motion control systems designers to replace wirewound devices with flameproof, intrinsically safe planar devices featuring inductance from less than 3 W to less than 6 W. Closely matched thermal expansion coefficients between stainless steel and dielectric film enable resistor to withstand temperature cycling, particularly in high-pulse applications. Power ratings range from 1.5-7 kW.

IRC    Corpus Christi, TX 78411

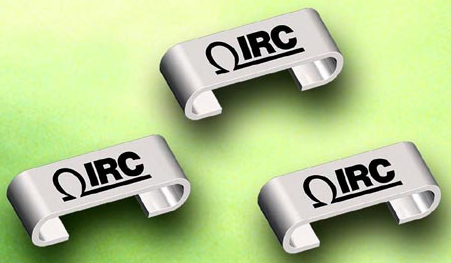

May 12, 2008 Providing current sense device with high current-carrying capability for power electronics circuits, OARS-XP Series delivers power ratings up to 5 W in flameproof design optimized for PCB-mounted heat dissipation. Products consist of 0.25 in. wide metal element resistance alloy welded to compliant copper terminals. Open air metal element does not experience degradation of performance up to 500°. Resistance values ranges from 1-25 mW, with tolerances down to ±1%.

Teknor Apex Co.    Pawtucket, RI 02861
May 12, 2008 Supplied on custom basis, low-VOC versions of Apex® vinyl compounds are designed for use in profiles and molded items, extrusion coated fabrics, as well as extruded and calendered sheet used in residential and institutional furniture and furnishings. Formulations help manufacturers achieve certification under voluntary air-quality standards developed by industry groups, which are used as reference by green building guideline organizations such as USGBC and LEED.

Angstron Materials LLC    Dayton, OH 45404
May 12, 2008 Offered in thicknesses from 0.34-100 nm and widths of 0.5-20 microns, carbon-based Nano-Graphene Platelet material demonstrates electrical conductivity similar to copper and high thermal conductivity. Product comes in several forms, including raw materials and solutions, and maintains uniform dispersion without degrading viscosity. It is suited for aerospace, automotive, energy, marine, electronics, construction, medical, and telecommunications applications.

Rogers Corporation    Rogers, CT 06263 0188

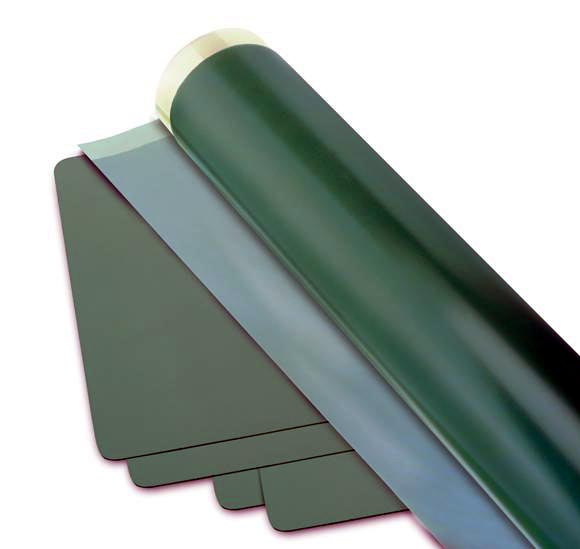

May 12, 2008 Based on open-cell urethane foam technology, E/bak(TM) cushion mounting materials are used to build thickness on cylinder as well as provide cushioning and absorb vibration in corrugated printing process. Allowing for printing on rough surfaces, they maintain high solid ink density for consistent print results over entire press run. Dark green foam with skin surface is available in 0.040, 0.060, and 0.080 in. thicknesses and is 60 in. wide.

BI Technologies Corp.    Fullerton, CA 92835-1051

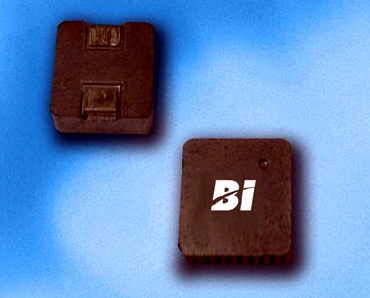

May 12, 2008 Measuring 6 x 6 x 1.6 mm, Model HM72A features pressed powdered iron alloy core construction, and is capable of controlling power losses in switching frequencies from 300 kHz to 1 MHz. Inductance values range from 100 nH to 33 µH, with saturation levels to 80 A. Operating from -40 to +155°C with max temperature rise rating of 50°C, inductor is suited for servers, notebooks, workstations, dc/dc converters, and point-of-load modules.

IMI Sensors, Div. of PCB Piezotronics    Depew, NY 14043-2495
May 12, 2008 Operating at 159.2 Hz, hand-held Model 699A02 delivers controlled, 1 G rms or 1 G peak acceleration to test accelerometers and vibration sensors weighing up to 250 g. It features automatic shut-off to preserve battery life, external power jack for ac compatibility, mechanical stops for overload protection, and capability to perform up to 1,600 operating cycles in field. Unit also meets NIST traceability requirements.

Electro Standards Laboratories    Cranston, RI 02921 3403

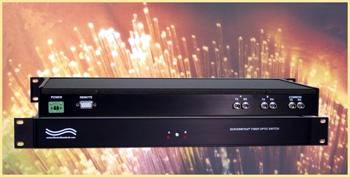

May 12, 2008 Supporting fiber optic wavelength of 850 nm and gigabyte data rate, QuickSwitch Model 6273 ST Duplex, MultiMode, A/B switch allows one workstation or device to access either of two separate fiber optic networks. It uses mirror technology and can be accessed remotely by using DB9 RS232 serial port. Users can either remotely monitor status and control switch functions or use front panel pushbutton control.

Electro Standards Laboratories    Cranston, RI 02921 3403

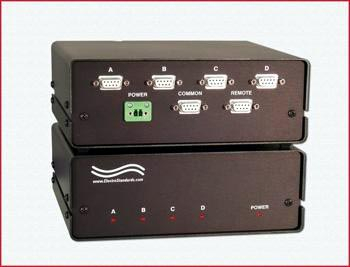

May 12, 2008 PathWay Model 7207 DB-9 A/B/C/D Switch enables connection of any workstation or device between 4 other devices or networks. Transparent to data format, switch uses a DB-9 Interface for remote control, accepting RS232 serial data ASCII commands. Model 7207 has no local or front panel switch control, which makes it suited for remote control only applications.

Shini USA    Willoughby, OH 04094
May 12, 2008 With tangential feed and power tilt adjustable hopper, Model SG-3690 Central Standard Rotor Granulator has 14 x 35 in. cutting chamber with 2 x 2 cutting blades and 3 x 2 rotating blades. Noise-free granulator features open welded steel rotor blade cutting design that cuts plastic into small, cleanly balanced granules with minimal amount of dust. Available in 460 or 230 V, it can be used beside the press for grinding sprues, runners, and rejected parts.

HOLOEYE Corp.    Laguna Hills, CA 92653-1340
May 12, 2008 Based on reflective LCOS microdisplays with 1,920 x 1,080 pixel HDTV resolution, PLUTO phase only spatial light modulators feature pixel pitch of 8.0 µm, image refresh rate of 60 Hz, and pure phase shift of 2 Pi up to 1,550 nm. PLUTO-VIS, PLUTO-NIR, and PLUTO-TELCO are optimized for 420-850, 850-1,100, and 1,550 nm wavelengths, respectively. They are suitable for applications such as wave front correction, optical tweezers/metrology, interferometry, lithography, or holography.

Alliance Scale Inc.    Canton, MA 02021
May 12, 2008 Featuring pre-assembled deck modules with self-seating hinge connectors to facilitate installation, expansion, and relocation, Portable Truck Scale incorporates Survivor ATV Series steel deck, which is offered in 10-80 ft lengths, 10, 11, or 12 ft widths, and provides up to 100 tons capacity. Providing 90,000 lb concentrated load capacity, rugged unit utilizes 75,000 lb capacity load cells and has span deflection ratio of 1:1,100 for legal highway loads.

US Products    Coeur D'Alene, ID 83815
May 12, 2008 Suited for use with low-moisture portable carpet extractors, self-contained units, or truck-mount extractors, ECC (Environmental Carpet Cleaner) turns soils and contaminants into free-rinsing soaps that neutralize alkaline or acid residues and remove them from carpets and upholstery. Product cleans carpets and leaves them with a neutral pH.

Elma Electronic Inc.    Fremont, CA 94538

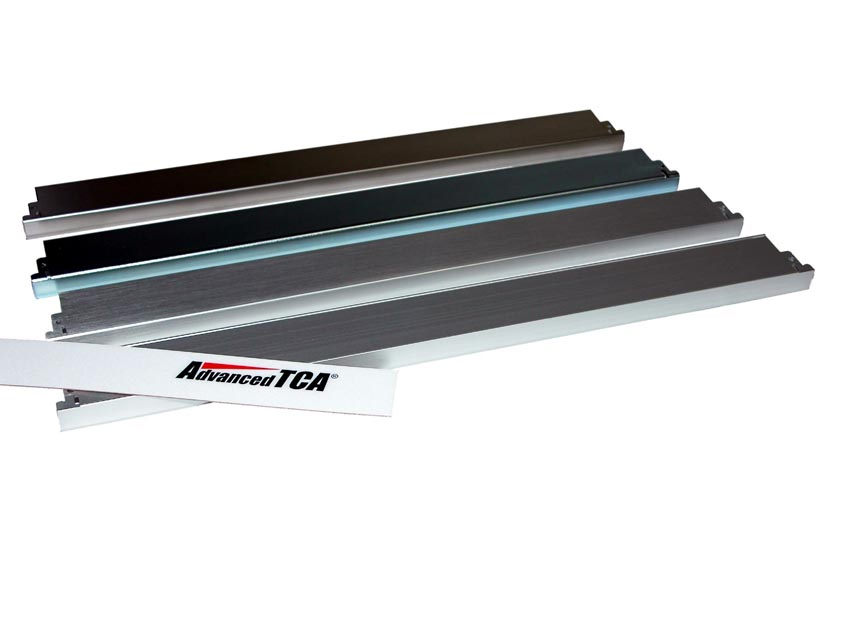

May 12, 2008 Designed for ATCA standard boards with 8U height and 1.2 in. wide, AdvancedTCA front panels include 1 version with .5 mm deep channel for overlays to be placed and non-channel version which is anodized on outside of panel with clear chromate and intended for silk-screening/painting. Extruded aluminum panels are alodined on inside for electrical continuity (EMC) purposes. Custom versions as well as front panels for VME-based, cPCI-based, and MicroTCA architectures are also available.

Microbridge Technologies Corp.    Burlington, MA 01803

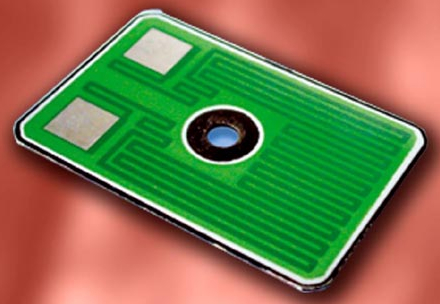

May 12, 2008 Available in 2 basic types, Rejustors target need for precision and accuracy in extreme temperature environments and offer lifetime drift of less than 1%. They have no mechanical moving parts and are suited for vibration sensitive applications such as calibrating electronics for jet engine monitoring instruments; voltage regulators; and down-hole drill, military, furnace and boiler, strain gauge, and vibration sensors.

CIBER Inc.    Greenwood Village, CO 80111
May 12, 2008 Rapid Retail® Ready-to-Run packaged enterprise resource planning implementation solution provides retailers with software, implementation, hosting, and support features all in one package. Based on SAP® for Retail portfolio, it is pre-configured set of core retail processes based on best practices. Service helps retailers manage implementation project from start to realization of business benefits.
