Danaher Motion/Portescap    Radford, VA 24141

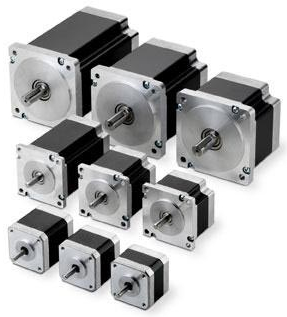

May 14, 2008 RoHS-compliant h3 Series incorporates enhancing magnets, inserted between each stator tooth, to optimize torque output across entire speed range. Supplied in aluminum housing for optimal heat dissipation, these 1.8° step motors feature Neodymium iron boron magnets as well as bearing retainer and o-ring. Larger bearings enable motor to handle higher side and radial loads. They are available in NEMA 17, 23, and 34 frame sizes, with various stack lengths available in each frame size.

Advantech Automation Corp.    Cincinnati, OH 45240
May 14, 2008 Designed for use with ADAM-5550 series PACs, ADAM-5081 features 2,500 Vdc isolation, high-speed frequency mode (5 Hz to 1 MHz), and counter code at 1 MHz. Digital filter eliminates noise and interference (1-65,000 µsec), ensuring accurate data collection and transmission, and 4 counter modes are available. Along with 4 digital output channels, solution offers frequency mode that supports up to 8 channels and can control range of electromagnetic wave status under certain conditions.

ON Semiconductor, LLC    Phoenix, AZ 85008
May 14, 2008 PureEdge(TM) NBXxxxx Series uses high Q fundamental mode crystal and analog phase lock loop multiplier to provide single or dual frequency, ultra low jitter and phase noise LVPECL/CML differential output. Units feature noise floor of -163 dBc/Hz at 10 MHz offset, and phase RMS jitter of 0.4 ps. Housed in 5.0 x 7.0 mm SMD package, oscillators are suited for 1x/2x Fibre Channel, SATA, iSCSI, PCIe, SONET/SDH, Ethernet, and clock margining applications.

Linear Technology Corp.    Milpitas, CA 95035
May 14, 2008 Housed in 2 x 2 mm DFN or ThinSOT package, constant-current Model LT3593 features high-side LED current sense topology that enables LED cathode to be connected directly to ground, creating single wire current source. Single digital control pin enables set-and-forget LED dimming with ratios as high as 32:1. Operating from input voltage of 2.7-5.5 V, device features 1 MHz constant switching frequency and can drive up to 10 white LEDs from single Li-Ion cell at efficiencies over 80%.

Phihong USA    Fremont, CA 94539

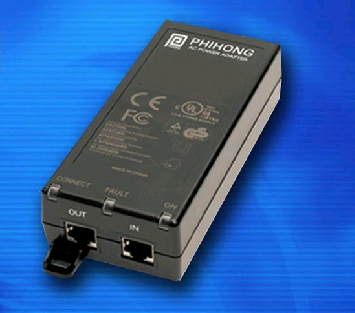

May 14, 2008 Delivering 33.6 W of power on single Ethernet port, Model POE36U provides fully compliant detection, disconnect, and voltage control. Adapter is Gigabit-compatible and incorporates diagnostic LEDs as well as overvoltage, over-current, and short-circuit protection. Featuring layer 1, 2 finger classification, device is suited for IP telephones, wireless network access points, Bluetooth access points, access controls, security cameras, IP print servers, and biometric sensors.

Hilscher North America Inc    Lisle, IL 60532

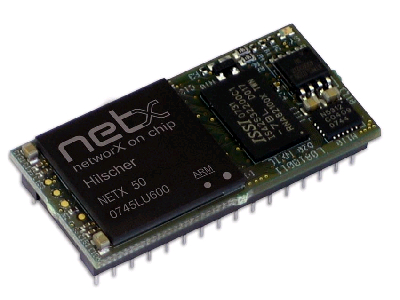

May 14, 2008 With surface area of 45 x 25 mm, netIC Communication Interface Module enables integration of real-time Ethernet end devices for automation technology such as control, drive, actuator, or sensor. It is possible to accommodate any 2 Ethernet connections for Profinet, PowerLINK, Ethernet IP, SERCOS III, EtherCAT, Modbus, and TCP/IP. Compatible with industry standard and plugged into existing IC socket in device, module includes integrated switch, hub, and 3.3 V power supply.

Walls & Forms Inc.    Dallas, TX 75374
May 14, 2008 Available in 3 standard sizes of 32 x 24, 24 x 24, and 24 x 8 in., Peg-Panel(TM) can be purchased in 100% molded plastic panel format for DIYers, or as finished peg-panel display. Unit features blank header for graphic placement and accepts all standard pegboard hardware. Measuring 1/8 in. thick, panel has ¼ in. diameter holes, 1 in. on center. Moisture-resistant board is virtually maintenance-free and will not chip, warp, break, rust, or absorb dirt or grease.

HighRes, Inc.    La Jolla, CA 92038
May 14, 2008 ReverseEngineering.com Pro/Engineer Wildfire 4 plug-in lets users capture data from existing parts while remaining directly within Wildfire environment. In order to create digitized datums, lines, splines, arcs, and circles, plug-in also includes UI that promotes end user work flow and supports switching digitizing between millimeters and inches. Align laser scan point clouds to PCMM coordinates feature is also included, as is ability to conceive complex sheet metal designs.

William Frick & Co.    Libertyville, IL 60048
May 14, 2008 Smartmark(TM) series offer reliable generation 2 passive solution for tracking all reusable packaging - totes, pallets, bulk containers - through every stage of supply chain. Offered in custom form factors with rapid prototyping available, weather-resistant products have ranges of 5-12 ft using hand-held readers (longer with fixed mount readers). Available designs include offset, impact- and temperature-resistant, fully encapsulated, and SnapAround(TM).

Kistler Instrument Corp.    Amherst, NY 14228 2119
May 14, 2008 Featuring digital charge amplifier in compact sensor housing, Type 9238 enables adjustment to processing operations. Sensor sensitivities can be programmed by ManuWare(TM) software, which matches sensor to signal conditioners or process monitors. Since transmitter measures force indirectly through proportional material strain, it can be located in accessible locations within manufacturing machinery. Single, IP67-rated cable offers resistance to production environments.

Microchip Technology, Inc.    Chandler, AZ 85224 6199
May 14, 2008 Based on UNI/O(TM) memory-device protocol, 11XX010, 11XX020, 11XX040, 11XX080, and 11XX160 are 1, 2, 4, 8, and 16 Kbit EEPROMs that can track host MCU serial data rates from 10-100 kHz. Products come in 3-pin SOT-23 packages, which facilitates evaluation because their pin-outs overlay any standard IP2PC(TM) or SPI EEPROM socket. Additional features include status registers; software write protection for ¼, ½, or full array; noise filtering; and ESD protection.

Microchip Technology, Inc.    Chandler, AZ 85224 6199
May 14, 2008 Supporting all Microchip serial EEPROM devices, single-board MPLAB® Starter Kit for Serial Memory Products (Part No. DV243003) obtains power from PC/laptop USB port and runs under MPLAB IDE to accelerate debugging and system integration. No additional power-supply connections are needed, and entire memory contents are displayed on screen for verification and editing. Kit also logs endurance cycles and stores memory contents in files for archiving and analysis.

Dwyer Instruments, Inc.    Michigan City, IN 46361
May 14, 2008 Activated upon receiving sufficient light, Series DRFT Solar Digital Refrigerator and Freezer Thermometer help monitor appliance temperature fluctuations to preserve and prevent spoilage of contents. NSF-approved products instantly show exact temperatures from -40 to +70°F on integrated LCD, and embedded switch lets user take readings in °F or °C. Measuring 4.5 x 1.1 x 0.6 in., solutions come in ABS case, utilize thermistor sensor, and offer accuracies to ±1C.

Schurter, Inc.    Santa Rosa, CA 95403

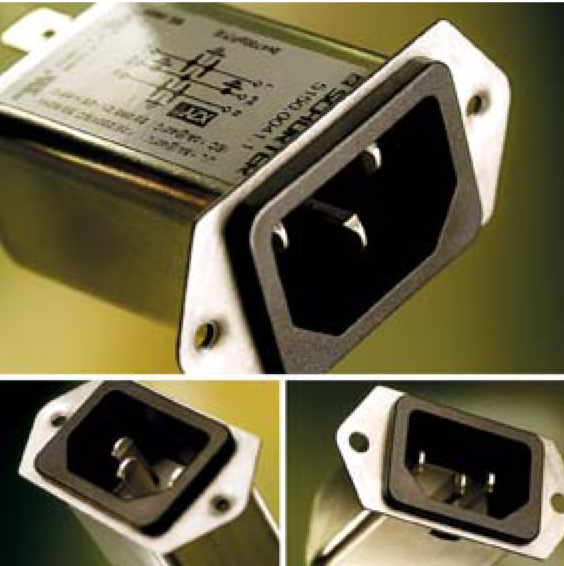

May 14, 2008 Providing universal EMC for high-frequency applications, Series 5150 possesses broadband suppression properties to 1 GHz and combines them with universal power input. It uses X2Y® filter technology, which combines X and Y capacitors into one component to eliminate leads connecting capacitors as well as minimize parasitic impedances. Double shielding between X2Y filter and filter casing, together with broad metal flange, can serve as alternative for feed-through and multi-stage filters.

Viking Corp., The    Hastings, MI 49058 9706
May 14, 2008 Model VK501 is supplied from wet system installed in heated space, eliminating need for preaction system and in-rack sprinklers. Offered in single length of 36 in. with 2 in. grooved connection, 165°F unit has K factor of 14.0 (202), and 1½ in. threaded version is also available. Each sprinkler is shipped with 2 insulating boot assemblies that seal clearance space around srinkler barrel, decreasing potential for condensation. VK501 is also cULus listed for use with wet systems.

Anver Corp. - Anver.Com    Hudson, MA 01749

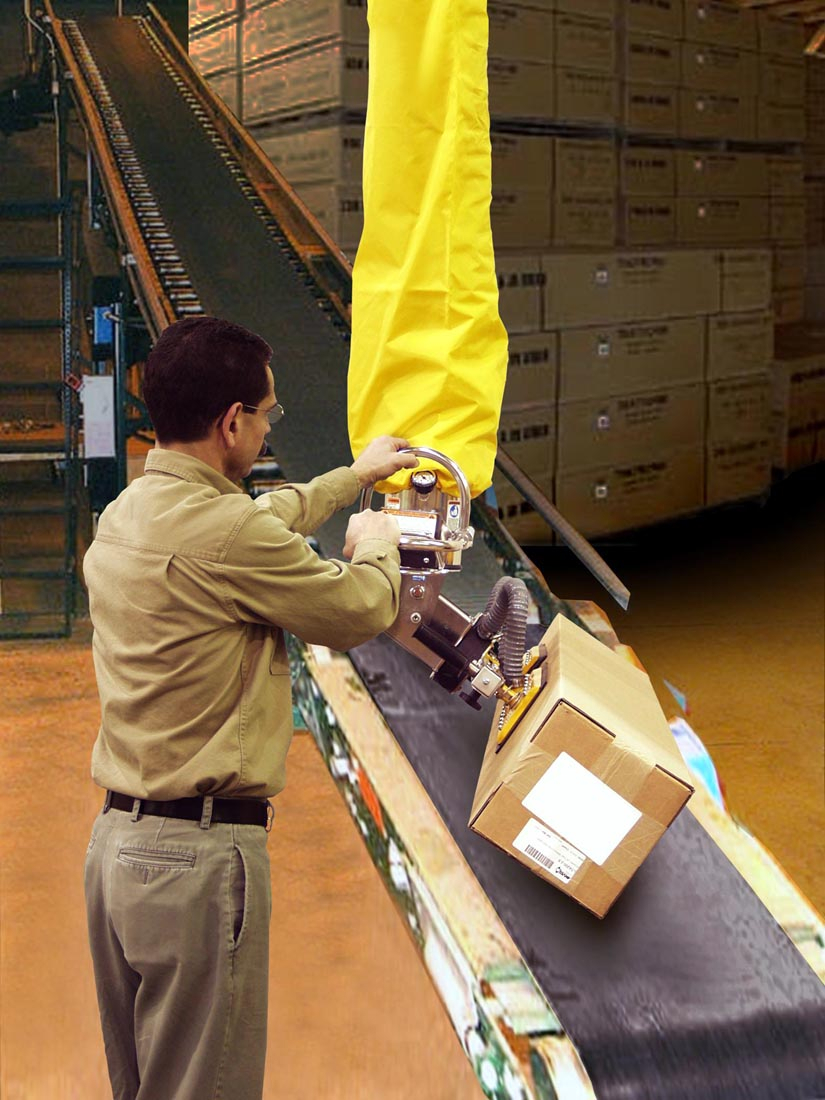

May 14, 2008 Designed for general warehousing and shipping applications, VT-Series Vacuum Tube Lifter is offered with 90° tilt mechanism that lets users pick up boxes weighing up to 50 lb, under vacuum, and mechanically reorient them for loading and unloading conveyors. Unit has hand vacuum controls for picking up and releasing boxes with lever for manually reorienting them. It comes equipped with heavy-duty pump, vacuum gauge, wire-reinforced tube, and quick-connect coupling.

Rex-Cut Products, Inc.    Fall River, MA 02720
May 14, 2008 Rex-Cut® FUSION(TM) Flap Discs combine premium coated abrasive layer and surface conditioning layer into one interleaf disc that can blend corner welds on SS architectural railings and grain-in the finish simultaneously. Available with coarse, medium, and very fine grits, 4½ in. dia discs are designed to operate at 2,700-5,000 rpm, while 5 in. dia discs operate at 2,500-4,500 rpm. Discs constantly reveal fresh abrasives as they work to remove material and run smoothly.

Munson Machinery Co., Inc.    Utica, NY 13503
May 14, 2008 Model MX-1-SSJ features internal spray line for liquid additions, discharge chute to direct flow of discharged materials, and insulated/jacketed mixing drum that can be piped to oil, steam, or chiller system. With 1 cu ft capacity, it can distribute micro ingredients with 100% uniformity regardless of disparities in bulk densities, particle sizes, or flow characteristics of batch ingredients. Unit is suited for 3-A and USDA lab or production applications as well as industrial applications.

Milwaukee Electric Tool Corp.    Brookfield, WI 53005-2550
May 14, 2008 With 2.5 in. high-resolution color 320 x 240 LCD display and 3x adjustable LED brightness control, Digital Inspection Camera provides clear picture of tough to reach places such as inside pipes, drains and equipment, and behind walls. Up-front camera controls allow for true one-hand operation, and handle is designed for comfort in any orientation. Equipped with detachable, 3 ft water-tight flexible cable, it fits through holes as small as ¾ in.

Reelcraft Industries, Inc.    Columbia City, IN 46725

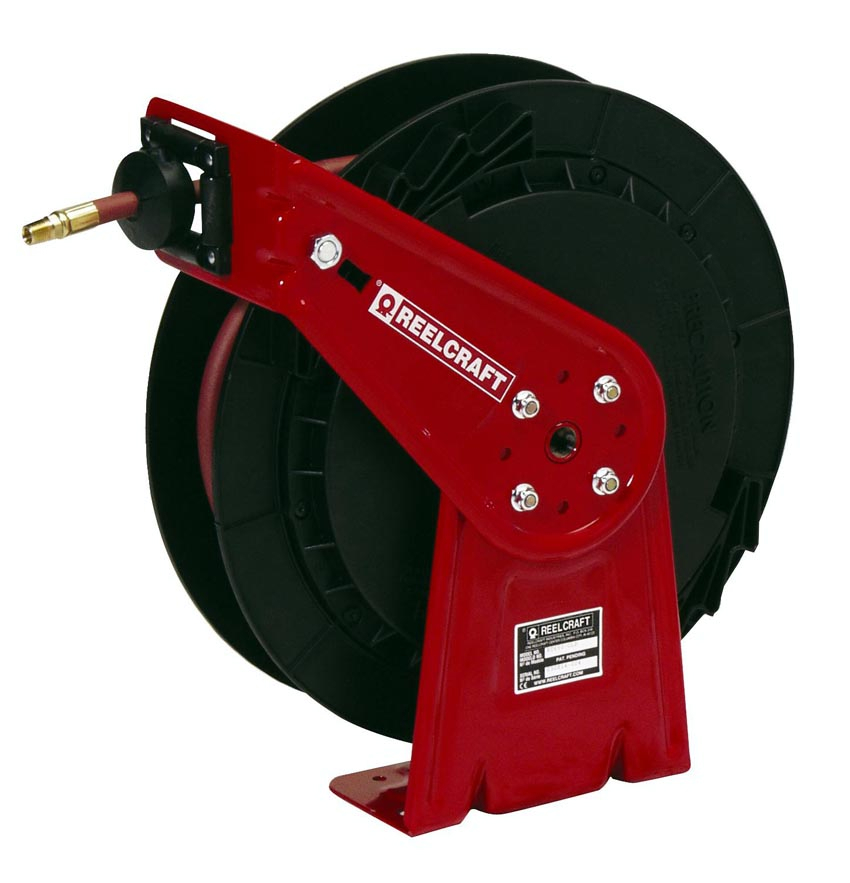

May 14, 2008 Model RT465-OLP retractable hose reel accommodates up to 65 ft of ¼ in. ID hose. Designed for medium duty industrial air and water applications, Series RT reels feature multi-position guide arm, fully enclosed drive spring, and composite spool.
