Pad Print Machinery of Vermont    East Dorset, VT 05253
May 22, 2008 Operating at speeds to 45 ips, bench-top sized Rapid Fire Cliche Maker comes with PC and uses 10 W CO2 laser to etch polymer pad printing plates to depths from 18-60 microns. Dot size of one tenth of one thousandth of one inch enables extremely fine lines and details, including half tones and 4-color process cliches. Laser-powered system produces etched polymer plates, available in 2 different styles with 10,000 or 20,000 impression lifespans.

Honeywell Analytics    Lincolnshire, IL 60069
May 22, 2008 Accommodating up to 10 XD single-gas detectors or combination of XD and X5 5-gas detector units, MicroDock II allows safety manager to manage calibration, bump testing, data logging, and recharging of detectors, all within one module. Field Manager software facilitates record keeping while storing and updating calibration data. MicroDock II operates via line power or set of 4 C-cell batteries. Additional self-contained docking modules can be added to system via plug-in connections.

CADnection    Santa Ana, CA 92705
May 22, 2008 CADnection software combines functionality of AutoCAD® and Microsoft SharePoint® to create project data management system. It provides full support of DWF (Design Web Format) data, which is managed and controlled with original AutoCAD drawing. Unlimited drawing access is provided without risks of sharing IP or accidentally editing contents of drawing. Program updates DWF files as counterpart DWG drawings are modified through normal check-in and retrieval process.

Bayer MaterialScience, LLC - Coatings, Adhesives & Sealants    Pittsburgh, PA 15205
May 22, 2008 Polyurethane raw materials can be used to formulate self-healing coatings that are scratch- and chemical-resistant, fast-curing, and meet VOC regulations, such as high solids and waterborne coatings. Offering high reactivity and full crosslinking even at low-temperature curing, 2-component polyurethane coatings include hydrogen bonds that allow for thermoplastic flow to relieve stress and allow self-healing of defects.

Schlitter Tool, Inc.    Warren, MI 48093 6036
May 22, 2008 HexMaster(TM) ELITE can make ID hexes, broaches, splines, and other shapes on Swiss, Davenport, and small CNC lathes or screw machines where space is of concern. Available with shank sizes of 12 or 22 mm and 5/8 or ¾ in., this holder offers quick-set fixturing and is suited for broaching forms less than 3/8 in. dia. Solution enables manufacture of shapes in nearly any metal on nearly any machine.

Soliant LLC    Lancaster, SC 29721
May 22, 2008 Developed for plastics, packaging, display, medical, glass, and electronics manufacturing industries, precision clean room laminating services are delivered using custom roll stock lamination equipment. Laminators feature thick/thin gauges up to .040 in. rollstock, temperature capabilities to 425°F, film tension control for light and heavy gauge films, and in-line stripping and slitting capability. Full QC staff addresses in process testing and certification of products.

Bel-Art Products    Wayne, NJ 07470
May 22, 2008 Allowing users to deploy wide range of funnel sizes for variety of projects, Scienceware Separatory Funnel Rack accepts funnel sizes from 100-1,000 cc. Two support tiers can be independently adjusted to any height on long 29 rods. Rugged, chemical resistant plastic base has compact footprint of 16 x 7.8 in.

Bosch Rexroth Corp., Pneumatics Div.    Lexington, KY 40511
May 22, 2008 BODAS RC36-20 Electrohydraulic Controller provides universal central ECU platform for deploying mobile applications, such as shift on fly gear shifting. It uses 32-bit TriCore technology that includes 150 MHz clock timing and parallel processing to run complex control circuits and mathematical floating-point operations. Unit features 125 input and output channels, 4 CAN bus interfaces, and support for intelligent sensors, including DSM1-10 speed sensor.

Thermo Fisher Scientific    Newington, NH 03802
May 21, 2008 Capable of measuring up to 10 gases or more, Model 70 FTIR Multi-Gas CEMS employs process FTIR technology and features optical system designed for 3-6 month cycle of unattended operation. FTIR analyzer uses gas cell with a 5.2 m optical path, which can be fitted with zinc selenide sample windows for elevated temperature conditions to 185°C. While dynamically aligned interferometer lends to long- and short-term stability, data analysis capability delivers continuous gas measurement.

Fairchild Semiconductor    San Jose, CA 95134
May 21, 2008 Separately supplied in 45 x 28 mm SIP package, SRM-SPM® power modules FCAS20DN60BB and FCAS30DN60BB both integrate 2 HVICs, one LVIC, 4 NPT IGBTs, 4 FRDs, 2 bootstrap diodes, one thermistor, and various protection functions. RoHS-compliant products utilize Pb-free terminals and are designed for driving 2-phase switched reluctance motors (SRM) in small-motor applications such as vacuum cleaners. Moisture sensitivity meets Pb-free reflow requirements of IPC/JEDEC standard J-STD-020.

Fairchild Semiconductor    San Jose, CA 95134
May 21, 2008 Using Field Stop structure and avalanche-rugged Trench gate technology, 1,200 V Models FGA20N120FTD and FGA15N120FTD offer optimal tradeoffs between conduction losses and switching losses, maximizing efficiency. Built-in fast-recovery diode is optimized for Zero Voltage Switching technology. Utilizing lead-free terminals, both models have been characterized for moisture sensitivity in accordance with Pb-free reflow requirements of joint IPC/JEDEC standard J-STD-020.

Fairchild Semiconductor    San Jose, CA 95134
May 21, 2008 Designed to protect applications with capacitive loads from voltage and current transients, IntelliMAX(TM) FPF1007-9 Series offers slew-rate times of 10 µs, 80 µs, and 1 ms. Longer slew rates ensure slower turn-on time, which results in limiting in-rush current into capacitive circuit elements. Utilizing lead-free terminals, RoHS-compliant switches are suited for cameras, handsets, and other portable electronics.

Fairchild Semiconductor    San Jose, CA 95134
May 21, 2008 Incorporating 2 PowerTrench® MOSFETs and high-current gate driver in transfer-molded package, Power-SPM(TM) FPP06R001 helps power supplies achieve 85% or greater efficiency at normal output load conditions to meet ENERGY STAR® requirements. It performs secondary side rectification for SMPS designs and simplifies board design by eliminating up to 10 discrete components and reducing board space. RoHS-compliant product utilizes Pb-free terminals and features J-STD-020 moisture sensitivity.

Fairchild Semiconductor    San Jose, CA 95134
May 21, 2008 Featuring I²C interface, RoHS-compliant FAN5355 provides power management solution for Dynamic Voltage Scaling (DVS) platforms found in portable applications. This 800 mA/1,000 mA, 3 MHz buck converter provides transient response that increases resilience to unexpected fluctuations in load. Architecture creates minimal ripple during PFM mode, reducing system noise and improving light load efficiency to 85%. For moderate to heavy loads, efficiency is over 90% during PWM mode.

Fairchild Semiconductor    San Jose, CA 95134
May 21, 2008 With built-in active dv/dt clamp that provides noise immunity (dv/dt) of 10,000 V/µs, random-phase FOD420 and FOD4208 facilitate solid state relay, AC motor control, and lighting ballast design. RoHS-compliant products provide 5,000 V of isolation while controlling power triacs that switch load. They utilize Pb-free terminals and can be used in conjunction with discrete power triacs.

Keystone Filter Div., Met-Pro Corp.    Hatfield, PA 19440
May 21, 2008 Available in polypropylene constructions for cleanliness and chemical resistance, 222 Giant® Plastic Industrial Filter Housing is designed to fit 222 pleated polypropylene filter cartridges, which are available in 0.2, 0.45, and 1.0 micron nominal ratings. In addition to all-polypropylene version, housing is also available with clear SAN bowls in 10 and 20 in. constructions.

Oki Electric Industry Co., Ltd.    Tokyo 105-8460  Japan

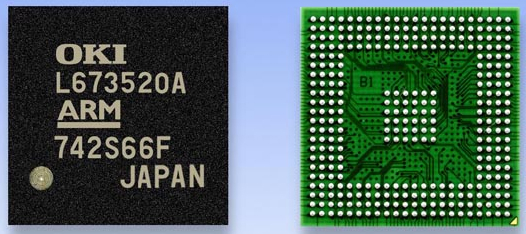

May 21, 2008 Designed for automotive audio systems and AV-integrated car navigation systems, ML673520A enables high-speed (x10) digital recording and compression and includes function to playback 3 tracks simultaneously. It includes RISC CPU and audio DSP as well as various communication functions. Compatible with USB2.0 host controller, MOST, MediaLB, and CAN controller standards, chip also lets users play back music recorded from CDs and other audio data stored on USB memories and SD cards.

LENOX    East Longmeadow, MA 01028

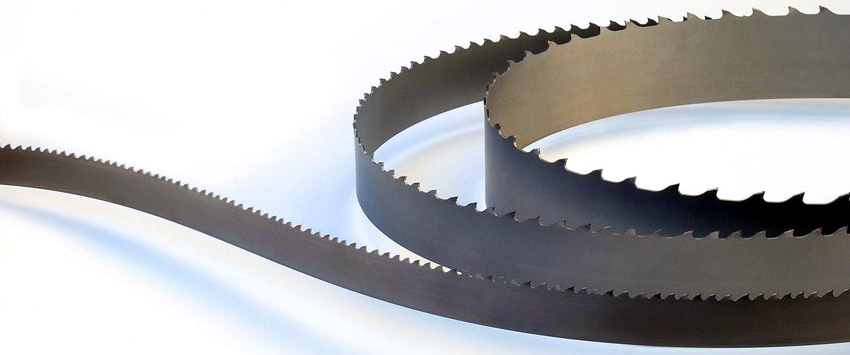

May 21, 2008 Designed for cutting large cross-sections or difficult-to-machine metals from high-strength steels to nickel-based alloys, TRI-TECH CT(TM) Band Saw Blade has set style tooth pattern specifically engineered to cut straight and eliminate pinching. Carbide tips are precision-ground for efficient cutting while maintaining balanced work load between teeth, and tooth geometry creates 3 thick chips with each pass to keep the blade moving through work-hardened materials.

EGS ELECTRICAL GROUP ? APPLETON    Rosemont, IL 60018

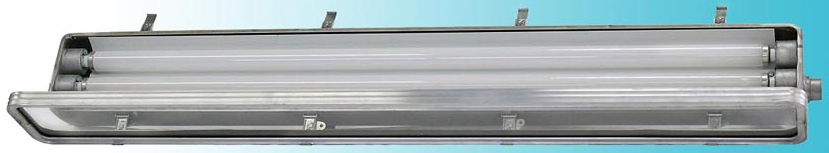

May 21, 2008 Rated for NEC Class I Division 2 atmospheres, RigMaster(TM) provides dependable source of illumination for offshore and land-based drilling rigs. Metallic fixture features impact-resistant lens and corrosion-resistant aluminum housing that withstands extended exposure to caustic chemicals, UV rays, and driving vibrations. To protect personnel and equipment during power interruption, product offers instant-on capabilities and optional emergency battery pack.

Powers Fasteners, Inc.    Brewster, NY 10509
May 21, 2008 Listed as category 1 product for uncracked concrete and dry holes, PE1000+ features 3:1 ratio holding power and meets International Building Code (IBC) requirements for strength design (Cracked Concrete). Dual-component system comes in 13 oz cartridge made from engineered plastic and can be dispensed with manually or pneumatically operated injection tool. Uses include anchoring threaded rod, bolts, reinforcing bars, and smooth dowels into concrete and other solid base materials.
