Aerotech, Inc.    Pittsburgh, PA 15238
Jun 10, 2008 Incorporating non-contact, non-cogging direct-drive technology, ANT-LX Nanotranslation Crossed-Roller Stages come in 25 and 50 mm travel versions with ±0.3 µm accuracy, ±0.05 µm repeatability, 5 g acceleration, 500 mm/s velocity, and max load up to 8 kg. Standardized, universal base-mounting pattern allows integration of 2, 3, or more axes, while 40 MHz electronic circuitry enables positioning speeds of over 500 mm/sec, even at 2 nm resolution.

Americase    Waxahachie, TX 75165
Jun 10, 2008 Configured for 1 gun plus 1, 2, 3, or 4 barrels as well as 2 gun plus 2 or 3 barrels, Blaser Compact Carrying Cases are constructed with .063 premium aircraft quality aluminum and accommodate barrels with scopes attached. Motor-style cases have spring-loaded handle and are powder coated in Blaser Green. Mil-Spec Santoprene Gasket protects contents from dirt, dust, and moisture. Stock compartment is 1.875 in. wide and barrel slots are 2.25 in. wide.

SOKYMAT AUTOMOTIVE GmbH    Reichshof-Wehnrath 51580  Germany
Jun 10, 2008 With RFID technology, S-Tag10 13.56 MHz transponder enables fast and automated sorting of soiled garments, linens, or mops in industrial laundries. Hermetically sealed tag is highly resistant to aggressive chemicals and acids, as well as thermal and mechanical stress. Designed for 200 washing and drying cycles in accordance with DIN EN ISO15797, it is available with ISO 15693-compatible chips. Tag is suitable for variety of harsh-environment industrial applications.

Lift Products, Inc.    Elm Grove, WI 53122 0349
Jun 10, 2008 Max Upender is capable of tilting paper rolls, steel coils, or standard pallet loads of up to 8,000 lb. It is available in standard platforms, U-cradles, split platform and custom platforms.

EXAIR Corporation    Cincinnati, OH 45249-1621
Jun 10, 2008 Utilizing SS 2-way pump that is suited for use with most non-flammable liquids, Mini Reversible Drum Vac System can vacuum coolant, hydraulic oils, spills, sludge, tramp oil, and waste water; then pump it back out for disposal, storage, or reclamation. Compressed air powered unit has no moving parts such as motors or impellers to clog, freeze up, or wear out. With air consumption of 19 scfm at 80 psig, it features automatic safety shut-off valve to prevent overfilling.

AnaPico AG    Zürich   Switzerland
Jun 10, 2008 With 0.001 Hz resolution, APSIN3000 CW signal generator has frequency range of 9 kHz up to 3.3 GHz. It offers RF power that is settable from -50 to +13 dBm, and phase noise as low as -125 dBc/Hz at 1 GHz and 20 kHz offset. Able to perform simultaneous frequency and power switching in less than 2 ms, 2.5 kg unit allows remote access via its LAN interface. Generator operates with stable temperature compensated 100 MHz reference (OCXO) and can be phase-locked to external reference.

Alarm Lock Systems, Inc.    Amityville, NY 11701-2801

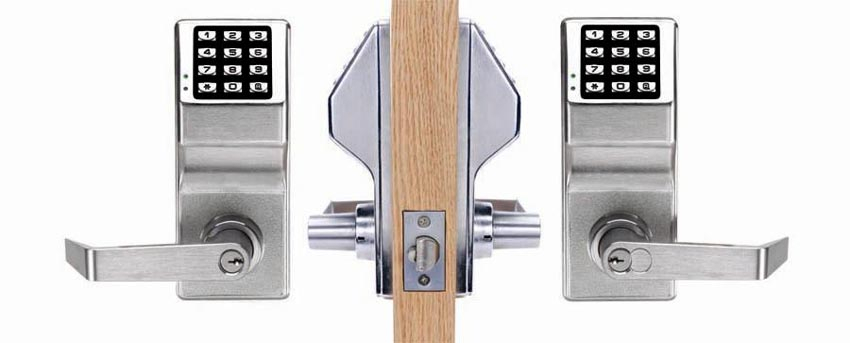

Jun 10, 2008 DL5200 standalone pushbutton cylindrical lock is 100% keypad programmable with multi-level security supporting up to 100 users, 10 managers, and 3 one-time service codes. Unit retrofits cylindrical lever-sets using slightly modified ANSI A115 Series Prep. With override feature that includes key in knob cylinder, lock runs average of 80,000 cycles with 5 AA batteries. For outdoor use, it comes in weatherproof model outfitted to withstand temperatures of -35 to 66°C.

Alarm Lock Systems, Inc.    Amityville, NY 11701-2801

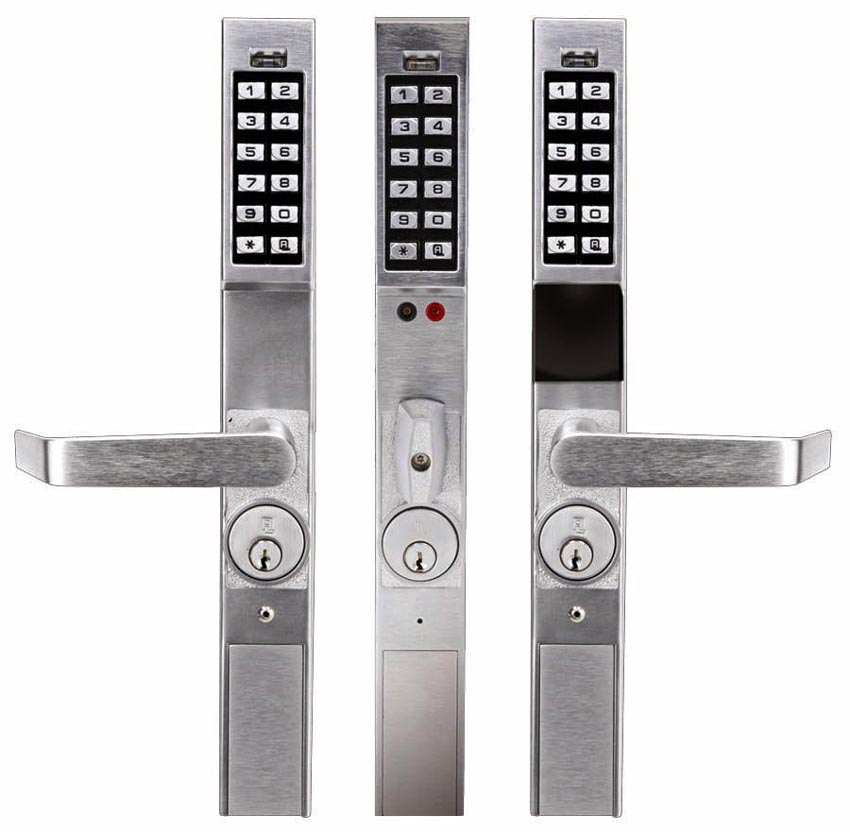

Jun 10, 2008 Including DL1200, DL1300, and PDL1300 versions, Narrow Stile Exit Device Trim Pushbutton Locks are designed with all-metal, vandal-resistant 12-button keypads that support 3-6 digit PIN codes, and multilevel user hierarchy. Compatible with Jackson, Dor-O-Matic, Von Duprin, Dorma, Arrow, and DCI & Corbin panic devices, they offer keyless access, audit trail capability, and help protect storefronts and managed properties. DL1300 and PDL1300 feature scheduling and time zone capabilities.

ASG, Div. of Jergens, Inc.    Cleveland, OH 44110
Jun 10, 2008 Suited for vertical screw applications, Linear Torque Arm has linear slide that offers smooth motion for electric or pneumatic inline tools. Machined stainless steel and multiple ball bearing design with side-by-side slides provides stability for horizontal extension and retraction of tools up to 5 lb in weight and up to 150 lbf-in. torque. Arm movement is up/down, in/out, and full 360º radial side-to-side. Each arm is provided with 2 ASG 1-3 lb spring balancers.

Astrosyn International Technology Ltd    Kent   United Kingdom
Jun 10, 2008 Two Permanent Magnet Linear Actuators feature 12 Vdc, and shaft stroke length of 12.7 mm with push/pull force of 35 N. Step angles are 15 or 7.5°, producing pitch/step of 0.0254 and 0.0127 mm, respectively. Compact units with 25 mm outside diameter and 45 g weight, have end cap on their front flange to provide protection to sleeve bearing. Applications include 3 way valve control in HVAC systems, antenna adjustment, emission control, and medical and laboratory instruments.

NSK    Ann Arbor, MI 48105
Jun 10, 2008 Providing maximum rotational speed of 5,000 rpm, Compact FA Series of ball screws are suited for spanning semiconductor, medical, factory automation, and general manufacturing industries. Lubrication is made possible via grease fitting, while 2 ports allow for maintenance or inclusion into integrated lubrication system. Ball screws feature sealing technology that minimizes grease dispersion and contributes to clean working environment.

Mid-West Instrument    Sterling Heights, MI 48314

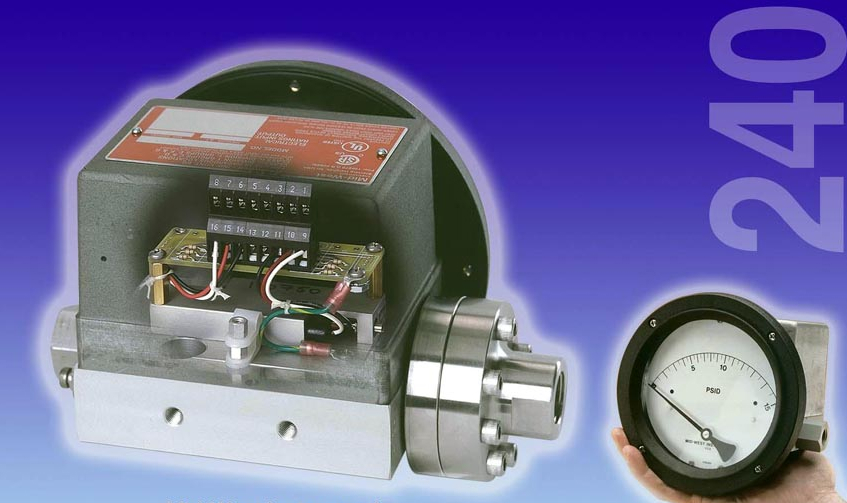

Jun 10, 2008 Model 240 offers loop powered 8-28 Vdc 2-wire transmitter using CSA, UL, and ATEX rated sensor. Diaphragm operated unit provides total separation of high and low pressure by means of convoluted elastomer diaphragm. Pressure containing elements are available in aluminum or 316 SS, and safe working pressure is 1,500 psig. Differential pressure ranges from 0-20 in. H20 to 0-100 psid are available. Gauge fronts have 4½ in. dials with shatter resistant lens.

Siemens PLM Software    Plano, TX 75024
Jun 10, 2008 As design environment for digital product development, Solid Edge® with synchronous technology combines direct and parametric modeling with interactive design environment that enables users to develop 3D models without any pre-planning. Users can add 3D driving dimensions and relationships to any part of completed model, and operations later in design cycle can drive size and position of geometry already created. All tools can be used on imported CAD data in same manner as native models.

Freescale Semiconductor    AUSTIN, TX 78735-8598
Jun 10, 2008 Designed to help reduce CO2 emissions while promoting efficiency and control of 1- to 4-cylinder engines, 32-bit MPC563xM powertrain MCUs are manufactured on 90 nm technology and built on Power Architecture(TM) e200z3 core that scales from 40-80 MHz. Emissions control technology utilizes built-in DSP engine to help maximize fuel economy and performance while minimizing engine knocking. DSP functionality can also be used to address on-board automotive diagnostics.

Green Hills Software, Inc.    Santa Barbara, CA 93101 2599
Jun 10, 2008 Built on INTEGRITY separation kernel, Device Management Solution lets users securely perform in-field and remote diagnostics, debugging, upgrades, and management of deployed software. Communications are secured by certifiable suite of cryptographic protocols, while attestation - use of hardware-based mechanisms - of device management software and any remotely loaded patches is enforced. Only authorized users and applications can access, control, and modify device.

Green Hills Software, Inc.    Santa Barbara, CA 93101 2599
Jun 10, 2008 Targeting Applied Micro Circuit Corporation's PowerPC 460EX and 460GT embedded processors, Software Development Toolkit includes optimizing C/C++ compilers for Power Architecture(TM), MULTI® integrated development environment, and high-speed hardware debug probes. Virtual prototyping platform provides extensible simulation for advanced software development, while DoubleCheck(TM) static analyzer eradicates defects early in development process.

Harmonic Lightwaves, Inc.    Sunnyvale, CA 94089
Jun 10, 2008 Inserted into existing encoder chassis, DiviCom® FLEX(TM) enables full IP processing across all headend devices, and provides real-time, any-to-any video and audio format re-encoding. IP input functionality enables deployment of geographically distributed headend architectures and allows operators to source content from IP networks or IP-ready RF demodulators/descramblers. Module supports MPEG-2 and MPEG-4 AVC streams in HD and SD formats, as well as reuse of incoming stream information.

Harmonic Lightwaves, Inc.    Sunnyvale, CA 94089
Jun 10, 2008 With Electra 5400 SD H.264 Encoders, operators can offer live, broadcast-quality video via satellite to automobiles and video streaming over IP networks. Multi-resolution encoding technology employs video pre-processing, dynamic noise reduction, full multi-pass, hierarchical LookAhead(TM) compression, and IP-based statistical multiplexing. Multi-pass LookAhead process uses dedicated H.264 compression processor to fully analyze incoming video content and proactively apply encoding strategies.

Harmonic Lightwaves, Inc.    Sunnyvale, CA 94089
Jun 10, 2008 Available as extension to NMX Digital Service Manager(TM), NMX StreamLiner® Cluster Workstation centrally manages assets and resource usage of clusters of StreamLiner video servers. It provides satellite, cable, and telco operators with intelligent tool to scale on-demand content delivery. Combined with Armada® intelligent asset manager software, program presents virtualized view of video server clusters and automatically replicates popular content to different edge servers in cluster.

Melexis Inc.    Concord, NH 03301
Jun 10, 2008 Suited for measuring ambient light or for controlling LED light in LCD backlight dimming applications, MLX75305 SensorEyeC(TM) outputs voltage that varies linearly with incident light. Photodiode, transimpedance amplifier, and linear voltage output stage are all on-chip, providing stable light responsivity over time and temperature. Supplied in 3 x 3 x 0.65 mm package, extended operating temperature range of -40 to +125°C meets AEC-Q100 automotive specifications.
