Evolis Card Printer    ZI Angers - Beaucouze 49070  France
Oct 05, 2011 Used to personalize plastic cards, Quantum prints 1,000+ monochrome cards/hr and 150 color cards/hr. Detachable unit, which supports magnetic, contact smart card, and contactless card encoding, operates independently to accelerate production. Dual-purpose hoppers, which hold 500 cards each and can be used as feeding device or for collecting personalized cards, enable autonomous operation. Additional features include metal-based body and optional centralized locking system.

Exar Corp.    Fremont, CA 94538
Oct 05, 2011 Operating from 1.65-3.6 V with 5 V tolerant inputs, Series XRA120x supports I2C/SMBus(TM) frequency up to 400 KHz, while Series XRA140x works with SPI(TM) clock frequency up to 26 MHz. When configured as input, each GPIO has internal pull-up resistor that can be enabled or disabled. Polarity of input can also be inverted, and with filters on each input, noise or glitches are ignored. Interrupt can be configured to generate interrupt on rising edge, falling edge, or both edges.

FZLED    New Taipei City   Taiwan
Oct 05, 2011 Using light guides to direct part of light output to sides, 12 Watt FZL-DL06-00 Series comes in warm white, near white, and cool white models that produce balanced, gentle illumination without compromising coverage or brightness. Warm 3,000 K light provides 600 lm with CRI of better than 80, while cool white model achieves 750 lm with 6,000 K illumination. Operating from 100-240 V input, all models offer 120° beam angle, 85% efficiency, and temperature range of -20 to 40°C.

Mitek Systems, Inc.    San Diego, CA 92131
Oct 05, 2011 With MitekONE(TM) Enterprise Deposit Platform, financial institutions can manage all deposits of checks, whether via smartphone, tablet, flatbed scanner, teller, or ATM. Fraud management mechanism enables banks and partners to detect attempted duplicate mobile or RDC deposits of checks, both within banks and across institutions. In addition, users can manage deposits by identifying types of checks so they can apply appropriate business rules for personal and business checks vs. other payment types.

LEDtronics, Inc.    Torrance, CA 90505
Oct 05, 2011 Measuring 60 in. long, Series LED60T8SM-360-XPW-001W offers clear and frosted models with total lumen output of 1,950 and 1,798, respectively, at color temperatures between 4,500 and 5,200 K. Vibration-resistant T8 units fit into standard G13 bases and provide brightness of 668 and 527 candelas across beam pattern up to 140°. Operating on input voltage range of 90-290 Vac, lights typically consume 21 W at 120 Vac.

Express Logic, Inc    San Diego, CA 92127
Oct 05, 2011 NetX(TM) Duo with IPsec support (NetX/IPsec) features TCP/IP IPv4/IPv6 dual stack, enabling encryption and authentication of each packet during network communication sessions. While solution establishes mutual authentication between sender and receiver at beginning of session and negotiates cryptographic keys to be used during session, implementation of IKEv2 protocol enables negotiation of security parameters and exchange of encryption keys without human intervention.

Metalcraft Industries, Inc.    Ocala, FL 34472
Oct 05, 2011 Powder coated black for seamless finish, Super Deluxe Scroll Bracket is constructed of twisted 3 in. steel shaft with solid cast iron ball finial and topped with decorative ½ in. round rod scroll. Two rings near end of shaft allow for guy wires to be attached. To ensure sign stability, closed-in loop in scrollwork provides another access point for guy wires. Back plate used for mounting bracket is ¼ in. thick and ranges from 18-26 in. tall x 4 in. wide.

Data Device Corp. (DDC)    Bohemia, NY 11716-2482
Oct 05, 2011 Providing up to 4 independent channels, SB-36330CX can be configured for 11.8 V line-to-line synchro/resolver, 90 V line-to-line synchro, or 2 V sin/cos signal input, with 10, 12, 14, or 16-bit resolution. Each channel provides separate reference input which is auto-ranging to accept reference signal from 2-130 Vrms. Operating over industrial temperature range of -40 to +85°C, Model SB-3633CX includes AquadB encoder emulation outputs for motor control applications.

Maxim Integrated Products    Sunnyvale, CA 94086
Oct 05, 2011 Operating over -40 to +85°C range, IO-Link® MAX14821 features digital output and input plus dual integrated low-dropout linear regulators that promote flexibility with complex sensor modules. Product is optimized for point-to-point communication between industrial controllers and sensor modules and actuators and supports all specified IO-Link® data rates. Driver for C/Q line can be configured for push-pull, low-side, or high-side output stage.

KORENIX Technologies    Taipei 231  Taiwan
Oct 05, 2011 JetNet 5828G 24+4G port Modular Managed Switch has Layer 3 IP Unicast routing features for group management of large scale networks in power substations and electrical utilities. Approved with IEC61850-3 and IEEE1613 substation as well as NEMA-TS1/TS2 traffic and EN 50121-4 railway control standards, product offers 3 modular slots that provide different copper and fiber port combinations. Also, MSR ring redundancy and MSTP network redundancy protocols ensure data transmission reliability.

Mill-Max Mfg. Corp.    Oyster Bay, NY 11771
Oct 04, 2011 Rugged spring pins, rated at 9 A, are designed with unique termination features: MM 0854-0-15-20-82-14-11-0 has solder cup, and MM 0855-0-15-20-82-14-11-0 is designed with crimp barrel. Both accept wire diameters up to 16 AWG. For PCB mount assembly, MM 0856-0-15-20-82-14-11-0 has solder tail. Inside each pin is gold-plated, stainless steel spring rated for 1,000,000 cycles. All products have .045 in. working travel (.090 in. max) and brass alloy components.

Western Digital Corp.    Lake Forest, CA 92630
Oct 04, 2011 Featuring all-metal design, My Passport® Studio(TM) provides multiple connectivity options with 2 FireWire® 800 ports and USB 2.0 interface. Unit also includes encryption and password protection software. My Passport for Mac®, housed in slim enclosure, is powered through USB 2.0 interface and serves as storage and back-up source for all digital content. Designed for use with Mac® computers and Apple® Time Machine®, both drives come in 500 GB, 750 GB, and 1 TB capacities.

Murata Electronics North America, Inc.    Smyrna, GA 30080
Oct 04, 2011 Measuring 11 x 12 x 2.1 mm and operating from -40 to +125°C, SV03 series detects angle of rotation of switch to provide rotary switch and feedback sensor in consumer electronics (CE), appliance, and automotive applications. Precision devices, featuring operating voltage of +5 Vac within ±0.5 V, provide rotational measurement within ±2% across entire 333.3° of rotation. Rated at up to 300,000 cycles, products suit long service life applications.

OSG Tap & Die, Inc.    Glendale Heights, IL 60139
Oct 04, 2011 In addition to coolant-through capabilities, HY-PRO® CARB 3D and 5D Drill Series feature point and flute geometry that reduce thrust forces and chip size. Applied multi-layered TiAlN coating resists thermo-cracking from heat, improving wear resistance, and overall design fosters achievement of higher feeds and metal removal rates. Common DIN shank sizes promote rigidity while reducing number of tool holders required to accommodate them.

J. W. Winco, Inc.    New Berlin, WI 53151
Oct 04, 2011 In addition to stainless steel, solid round shafting in 8 and 10 mm diameters, Series GN 480.1 includes stainless steel round tubing in 12, 16, or 20 mm diameters and aluminum tubing in 10, 12, or 16 mm square dimensions. All are available in lengths from 100-300 mm, with or without scales, which are laser engraved with millimeter graduations. Used with mini-clamps and related components, shafting and tubing builds support structures for mounting sensors, plexiglass guards, and other elements.

IBASE Technology Inc.    Taipei   Taiwan
Oct 04, 2011 Featuring embedded A55E controller hub, Model MI958 is available with G-Series T56N or T40N processor up to 1.65 GHz, as well as 2 DDR3 DIMM slots up to 8 GB. Board leverages processors' built-in Radeon HD graphics by providing array of video interfaces, including VGA, DVI-D, and 18-bit single channel LVDS. T56N and T48N Radeon HD 6320/6310 graphics both allow resolutions up to 2,560 x 1,600 pixels. I/O connectors on rear include dual Gigabit LAN, 4 USB, DVI-D, VGA, and dual serial ports.

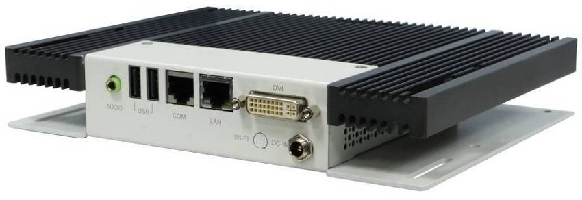

IBASE Technology Inc.    Taipei   Taiwan
Oct 04, 2011 Powered by 1.65 GHz T56N G-Series APU with on-die discrete-class DirectX® 11-capable GPU and A50M fusion controller hub, Model SI-08 supports resolutions up to 2,560 x 1,600. System delivers hardware accelerated decoding of video formats such as H.264 AVC, VC-1, MPEG-4, and MPEG-2. Wall-mounted or used as desktop system, Model SI-08 includes 2 GB DDR3 memory and 160 GB of 2.5 in. hard disk. Networking is provided by integral Gigabit Ethernet port and optional 802.11n WiFi connection.

Jtag Technologies Inc    Stevensville, MD 21666
Oct 04, 2011 AutoBuzz uses seek and discover feature to completely scan compliant design and then perform comparative tests using JTAG/boundary-scan. Users, with JTAG scan-chain information plus BSDL models of JTAG/IEEE std 1149.1 compliant parts, can connect to designs via number of compatible JTAG interface options. Program can then be set to gather complete connectivity map of any board's boundary-scan to boundary-scan pin connections.

Thermo Electron Corporation / Molecular Spectroscopy    Madison, WI 53711-4495
Oct 04, 2011 Designed to integrate with Thermo Scientific Fourier transform infrared (FTIR) microscopes, imaging attenuated total reflectance (ATR) accessory enhances spatial resolution and data acquisition speed for chemical imaging applications. ATR allows direct contact sampling of solids and liquids without further preparation. When coupled with FTIR microscope, ATR provides capability for exploring microscopic structure of heterogeneous samples.

AAEON Technology Inc    Taipei   Taiwan
Oct 04, 2011 Measuring 8 x 5.75 in., Model PCM-LN02 is powered by Intel® Atom(TM) N455 processor with fanless heatsink or D525 processor with fanned heatsink. Board includes ICH8M chipset, 2 GB DDR3 667/800 system memory, 2 SATA 3.0 Gbps interfaces, and 1 Type II CompactFlash(TM) Type II interface. For expansion, SBC provides 6 USB 2.0 ports, 5 RS-232 ports, 1 RS-232/422/485 port, and 1 LPT port. Model PCM-LN02 also has two 10/100/1000 Base-TX RJ-45 connectors for Ethernet support.
