Quintech Electronics and Communications Inc.    Indiana, PA 15701
May 23, 2008 Featuring 64 x 64 RF matrix in 6 RU, Model QE3 has operating frequency range covering both IF 50-200 MHz and extended L Band 950-2,500 MHz. Hot-swappable component cards enable replacement without any special tools or disconnecting any cables, and dual hot swappable power supply offers redundancy in powering. RF level at inputs and outputs is monitored to enable trouble shooting network interfaces, while programmable AGC and attenuation on inputs allows user to adjust input signal level.

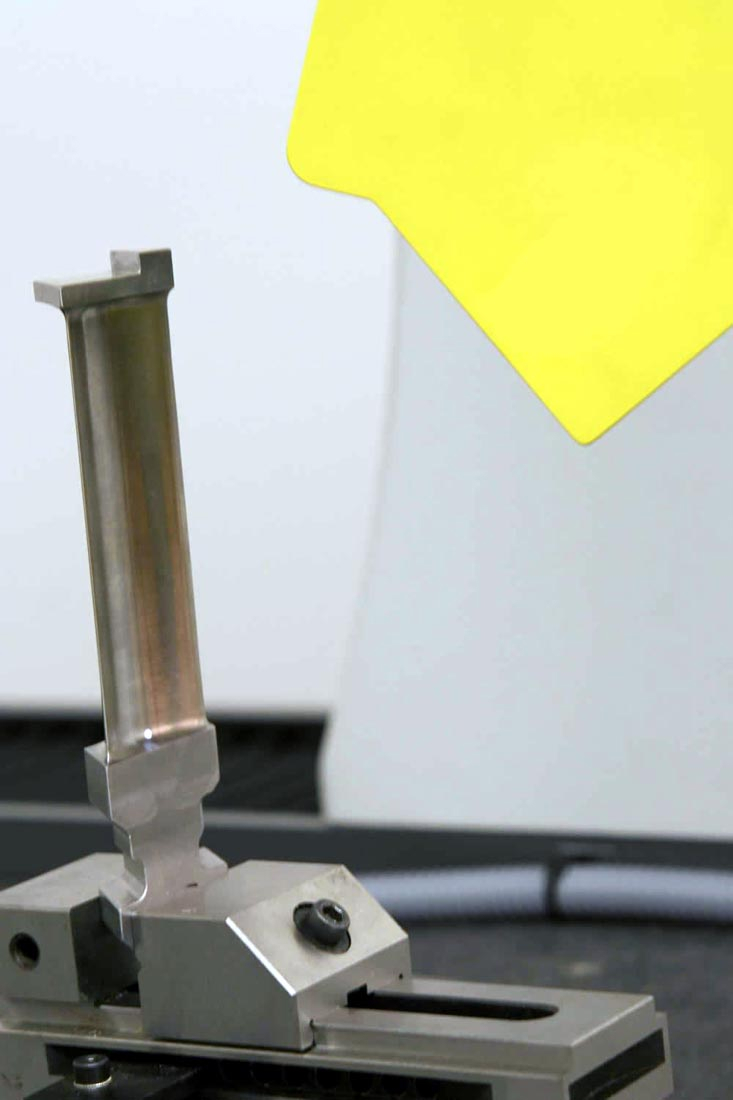

NVision, Inc.    Southlake, TX 76092
May 22, 2008 Able to measure radii down to 0.004 in., MAXOS system measures actual surface material without need to spray it with matt coating. Accuracy of system is ±0.0004 in. on polished and machined services and resolution between measured points is down to 0.0001 in. Suited for turbine blade manufacturers, system's use of non-contact measurement helps ensure that CFD simulations precisely match physical tests used to validate simulations.

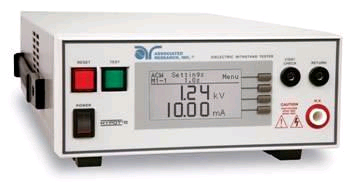

Associated Research, Inc.    Lake Forest, IL 60045
May 22, 2008 Equipped with RS-232 interface, Hypot® III Series can be setup remotely through PC. Users can also download all test results directly to PC for record keeping of electrical safety tests. Testers include graphic LCD display, SmartGFI® safety feature, VERI-CHEK® and CAL-ALERT® features, 10 memories with 3 steps per memory, and remote interlock safety feature. Series is comprised of Model 3705 AC Hipot tester, Model 3765 AC/DC Hipot Tester, and Model 3770 AC/DC/IR tester.

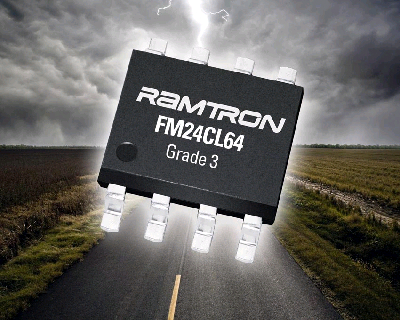

Ramtron International Corp.    Colorado Springs, CO 80921
May 22, 2008 Operating over Grade 3 automotive temperature range of -40 to +85°C, 64 Kb Model FM24CL64 combines NoDelay(TM) writes, virtually unlimited endurance of 1 trillion writes, 45 years of data retention, and I2C interface, enabling data collection/storage at max bus speed in intelligent infotainment applications. Available in green, 8-pin SOIC package, nonvolatile device operates at 3 V and draws 75 µA for reads and writes at 100 kHz.

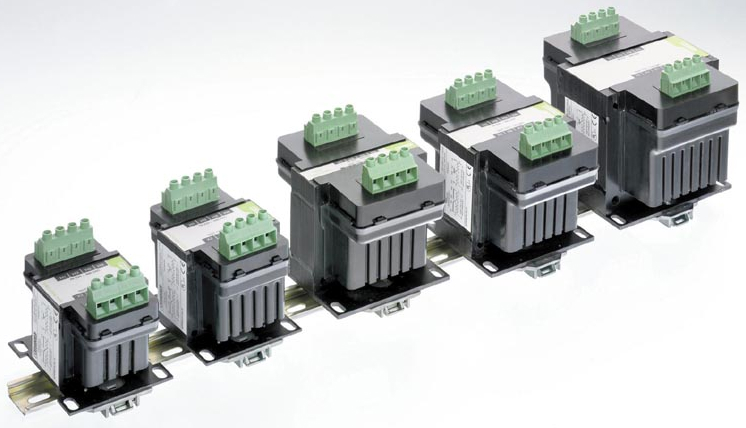

Phoenix Contact    Harrisburg, PA 17111 0100
May 22, 2008 Mounted via DIN rail or panel, CPT series maximizes inrush capability and output voltage regulation when electromagnetic devices are initially energized. Products have touch-safe COMBICON connectors with dual secondary connection points and are designed for high-inrush applications that require output voltage stability. They accept single-phase input voltages of 220/230/240/440/460/480 Vac and provide output voltages of 120/115/110 Vac with VA ratings of 50/100/150/250/500 VA.

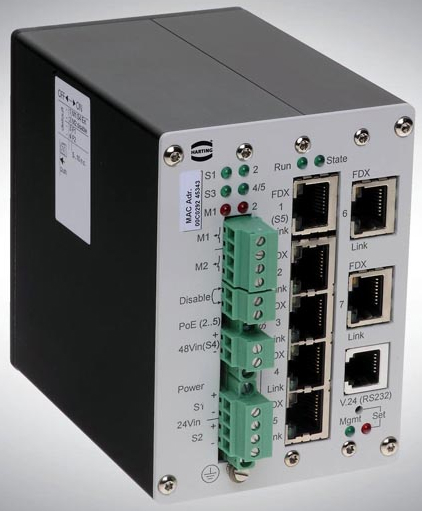

Harting KGaA      Germany
May 22, 2008 Offering management functionalities that enable consistent network administration where availability is prioritized, mCon 1000 managed Ethernet switches are suited for use as industrial network components active on Automation IT communication platforms. They are certified to DIN EN 61850-3 and support 10 Mbps Ethernet, 100 Mbps Fast Ethernet, and 1,000 Mbps Gigabit Ethernet. Up to 11 Ethernet stations can be connected with shielded twisted-pair cable and fiber optic cable.

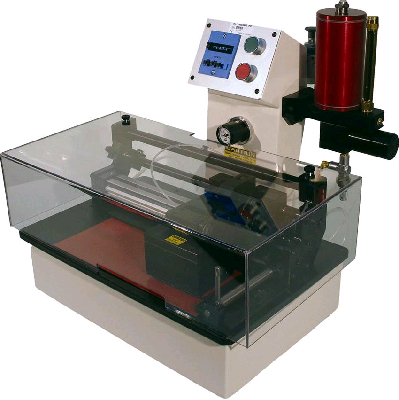

Paul N. Gardner Co., Inc.    Pompano Beach, FL 33060 6608
May 22, 2008 Semi-automated MEK Rub Test Machine incorporates constant pressure dead weight rubbing block and front panel mounted controls that enable user to program number of strokes from 1-9,999. Once cycle counter reaches preset number of strokes, unit shuts off solvent flow and returns to start position. Featuring intrinsically safe design, machine includes 425 cc solvent reservoir, adjustable solvent flow metering valve, and quick-change solvent pad system.

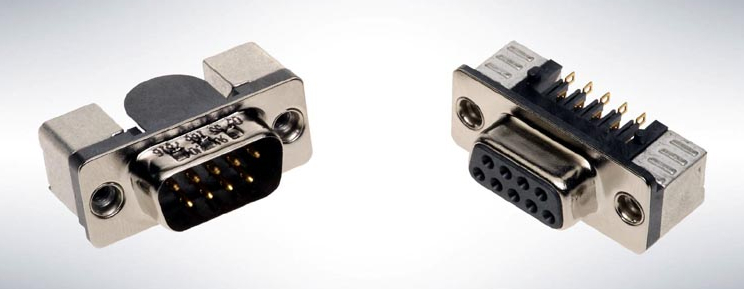

Harting KGaA      Germany
May 22, 2008 SMT version of low-profile angled D-Sub is available in 9-25 positions with hardware choices of M3 and 4-40 UNC threaded insert and M3 and 4-40 UNC female screw locks. Performance level 2 and 3 are standard, with PL1 available upon request, and 9 and 15 pole versions are delivered in 160 piece reels. Larger sizes are packaged according to the customer equipment.

Eppendorf North America, Inc    Westbury, NY 11590-0207
May 22, 2008 Vacufuge plus is designed for drying, concentration and purification of DNA, RNA, nucleotides or proteins. With fast evaporation and no sample loss, device features LCD display and control panel that improves handling while reducing evaporation times by allowing for solvent pre-selection as well as 4 heating levels for optimized drying speed. Vacuum is available with 13 fixed-angle rotors for different vessel sizes and capacities.

Excel Scientific Inc    Wrightwood, CA 92397
May 22, 2008 Used with white clear-bottom microplates, BrightMax(TM) Adhesive White Vinyl Films help to maximize signals in luminescence assays. Split backing facilitates application of film to either top or bottom of plate. Applied to bottom of 96-well filter plate, film provides medium for holding dried filters removed from plate for microscopic examination and storage.

LDRA    Wirral CH41 5LH  United Kingdom
May 22, 2008 Offered as OS- and platform-independent solution, LDRA tool suite helps identify security vulnerabilities and enforce security standards for development and deployment. CERT C Secure Coding Standard provides rules and recommendations for secure coding in C programming language, helping eliminate insecure coding practices and undefined behaviors that lead to exploitable vulnerabilities. Once established, standards can be used as metric to evaluate source code using automated process.

Anver Corp. - Anver.Com    Hudson, MA 01749
May 22, 2008 Light-Touch Vacuum System Components feature soft, food-grade, bellows-style silicone cups and adjustable suspensions for gently picking up foil-wrapped food and pharmaceutical products and placing them into boxes. Designed for high-speed packaging systems, components lift loads without damaging them or leaving trace from handling. Products can include adjustable or spring-loaded suspensions, various types of fittings, and silicone cups offered in 3 sizes.

Applied Plastics Co.    Norwood, MA 02062
May 22, 2008 APC PTFE Natural® Fluoropolymer Forming Mandrels are manufactured from SS or nitinol wire and feature smooth, uniform fluoropolymer coating that will not flake. Medical-grade, gray forming mandrels are capable of 550°F continuous operation and exhibit 0.05 coefficient of friction per ASTM-1894. They are available in lengths up to 12 ft. Wires are stocked in sizes from 0.005-0.070 in. dia and coating is applied from 0.00005-0.0008 in. thick with ±0.0001 in. final dia tolerance.

International Rectifier    Temecula, CA 92590
May 22, 2008 Featuring low RDS(ON) and high switching capability, IRFP3306PbF, IRFP4410ZPbF, and IRFP3077PbF MOSFETs are RoHS-compliant. Portfolio of 60, 75, and 100 V MOSFETs are designed for switch mode power supplies, UPSs, and industrial applications such as power tools, forklifts, and other high-power dc drives.

NKK Switches    Scottsdale, AZ 85260-3420
May 22, 2008 Available in real or complement codes, decimal or hexadecimal configurations, FR Series 10 mm Ultra-Thin DIP Rotary Switches can be specified in through-hole or SMD models. Units feature switching rating of 100 mA at 5 Vdc and non-switching rating of 100 mA at 50 Vdc. Cam-activated movable contact and gold contacts ensure continuity, while detent mechanism gives positive action for accurate switch setting. Actuators are fully rotational and can be operated clockwise or counterclockwise.

Kee Safety, Inc. (formerly Kee Industrial Products, Inc.)    Buffalo, NY 14206-2665
May 22, 2008 Kee Access® Smooth Handrail Systems are suited for stairs, ramps, walkways, and other areas where it is necessary to conform to ADA codes. Built using Kee Klamp® structural, slip-on railing components, railing system is comprised of framework of horizontal bars supported by vertical, upright posts assembled from modular fittings and standard 1¼ in. Schedule 40 pipe. Railing components are constructed of iron and are galvanized for corrosion resistance.

Pasternack Enterprises    Irvine, CA 92623
May 22, 2008 Designed to terminate LMR® Series of cable using standard LMR® trimming and crimp tooling, Type N Series of low PIM Connectors are intended for 50 W applications where intermodulation distortion is a concern. Body is brass with white bronze plating for corrosion resistance, while contacts are gold-plated with no nickel undercoat. Connectors are fully interchangeable with any type N connector that is designed to MIL-C39012 specification.

Network Technologies, Inc.    Aurora, OH 44202
May 22, 2008 With UNIMUX USB KVM Switch, users can control up to 32 USB computers with one USB keyboard, USB mouse, and VGA monitor. True autoboot USB switching allows all attached USB PC, MAC, and SUN computers to boot simultaneously. Available in 4, 8, and 16-port models, switch supports 2,048 x 1,536 video resolution.

Dwyer Instruments, Inc.    Michigan City, IN 46361
May 22, 2008 NSF®-approved to monitor temperatures in food storage applications, Series RFT is suited for use in refrigerators, freezers, cold storage cabinets, and walk-ins as well as aquariums and terrariums. Aluminum case and rear clip allow use in various environments, while scratch-resistant, acrylic lens promotes readability. Thermometer features non-toxic, organic liquid fill and provides dual unit, °F and °C measurements.

Maplesoft    Waterloo, Ontario   Canada
May 22, 2008 Equipped with code editor, Maple(TM) v12 helps users solve complex mathematical problems and create rich technical documents. Direct connectivity with CAD systems helps CAD users deploy mathematical capabilities to extend range of analysis. Dynamic Systems modeling tools offer selection of analytic and graphing tools for linear time-invariant systems, and knowledge-documentation tools allow engineers to tag designs electronically with rich technical documentation and calculations.
