Geotest - Marvin Test Systems, Inc.    Irvine, CA 92614-5846
Oct 02, 2012 As 64-channel PXI arbitrary waveform generator with 16-bit amplitude resolution, GX1649 provides output range of ±15 V and is supplied with API and UI for variety of software development environments – including ATEasy, C, Visual BASIC, COM, and LabVIEW. Module meets needs of those who have high-channel count applications for sensor simulation or system test applications where large number of DC/AC signal sources are required.

Cooper Lighting    Peachtree City, GA 30269
Oct 02, 2012 Comprising wall- and ceiling-mount fixtures, sign lights, and bollards, Lumière Eon architectural indoor and outdoor LED luminaires feature low-profile (¾ in.) design and AccuLED Optics™. Products provide efficient and controlled LED illumination in 3 distinct beam patterns: forward throw, lateral throw, and flood. Available in warm white LED color temperatures of 2700K, 3000K, and 4000K, IP66-rated luminaries offer optical efficiencies as high as 95%.

FEI Company    Hillsboro, OR 97124
Oct 02, 2012 Versa 3D™ DualBeam™ is available with UniColore (UC) monochromated electron source, which improves fine surface detail imaging capabilities at low accelerating voltages without compromising analytical performance at high voltages and beam currents. By decreasing energy spread among beam electrons, UC source reduces chromatic aberration and permits beam to be focused into smaller spot. Analytical mode offers beam currents up to 100 nA, and imaging mode offers resolution of 1.4 nm at 1 kV.

STEUTE Xtreme    Ridgefield, CT 06877
Oct 02, 2012 Featuring corrosion-resistant, stainless steel design with IP69K rating, RC Si Series withstands high-pressure/high-temperature wash downs. Non-contact, coded-magnet actuator supports switching distances up to 8 mm. For explosive environments, ATEX/IEC Ex-rated Zone 1 and Zone 21 versions are also available. Typical applications include valve monitoring, food processing, mining, fuel handling, chemical processing, packaging lines, and machine safety guarding.

Greenheck    Schofield, WI 54476 0410
Oct 02, 2012 Designed to protect against tornados and rapid pressure changes, Models HTOD-330 and -331 are double flanged channel frame style backdraft dampers that close, respectively, in same and opposite direction as normal flow. Products install in ductwork or mount to wall near building exterior and allow for air movement during normal weather conditions. Negative pressure caused by tornado causes damper to close, and spring-loaded blades return damper to open position after tornado passes.

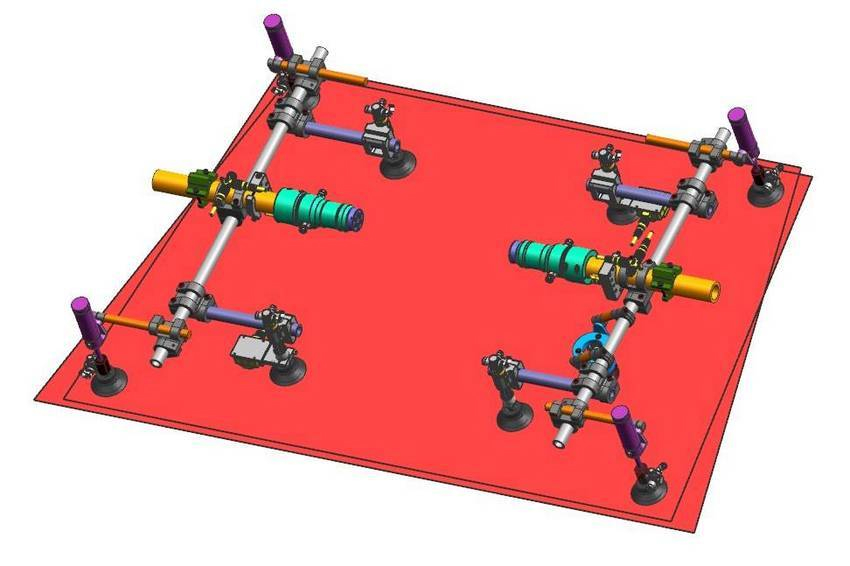

Bilsing Automation North America    Clinton Township, MI 48036
Oct 02, 2012 Featuring 2.5 in. dia aluminum round-body tooling, flexible destacking solution successfully separates and feeds both steel and aluminum blanks in various sizes and configurations. During cycle, automation lowers so that peeler suction cups are all level, with front cups spring-loaded and programmed to fire slightly prior to other cups. Air knives then fire to help peel back top sheet, breaking vacuum, which assists in separating blanks.

CAS Data Loggers    Chesterland, OH 44026
Oct 02, 2012 Featuring professional-grade NDIR sensor technology, Model RTR-756 enables real-time monitoring of indoor air quality and automatic data collection from remote locations. Self-contained unit simultaneously monitors and records CO2 concentration, temperature, and humidity, making it suitable for use in schools and office buildings, as well as testing ventilation and air conditioning controls. Battery-operated logger self-corrects for altitude, and is backed up so users do not need to plug it in.

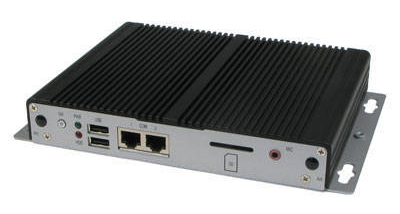

Logic Supply    South Burlington, VT 05403
Oct 02, 2012 Designed for industrial signage applications, LGX AU145 operates from -25 to +55°C and is powered by Intel® Atom™ Cedarview D2550 processor and GMA3650 integrated graphics card. I/O includes 2 Gigabit Ethernet ports; 4 USB 2.0 ports; 2 RJ45 COM ports, one of which supports RS-232/422/485 protocols; 2 DVI ports for dual displays; and one pair of independent audio line-out jacks. Space is also provided for 2.5 in. SSD and PCIe mini card slot for use with wireless card.

All Metric Small Parts (aMsp)    New Hyde Park, NY 11040
Oct 02, 2012 Featuring glass-filled nylon 6 or bakelite construction, MAKX2FM.... Series is available with through holes, threaded inserts, or threaded holes without inserts. Designed to facilitate and accelerate installation and removal, these black handles feature threaded inserts are made of zinc plated steel. Outside length ranges from 120 mm to over 213 mm.

Riegl USA, Inc.    Orlando, FL 32819
Oct 02, 2012 With measurement range of more than 6,000 m for static applications, Model VZ-6000 is suitable for measuring snowy and icy terrain in glacier mapping, monitoring, and surveying missions, as well as for specific applications in open pit mining. Combined with RiMINING software package, scanner offers optimized data registration and processing workflow for surveying of extended areas, including automatic extraction of break lines, contours, profiles, and calculation of volumes.

Techno, Inc. - CNC Router Systems    New Hyde Park, NY 11040
Oct 02, 2012 Able to be used on any Techno CNC router, Braille Insertion Tool lets users program their sign and then drill the holes, repeat same routine, and insert Braille balls (acrylic or stainless) using drill routine. Holes can be drilled and balls inserted within seconds, and entire sign/job can be finished directly on machine without manual intervention. To increase material yields, users can nest multiple signs together. Complete set includes drill bit with acrylic and stainless balls.

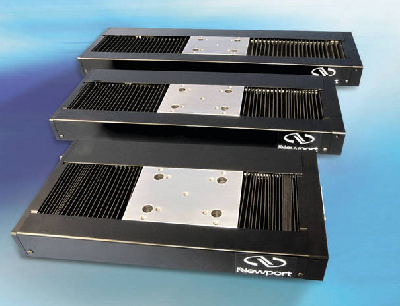

Newport Corporation    Irvine, CA 92606
Oct 02, 2012 Available in 100, 200, and 300 mm models with all-steel construction, FMSxxHA Series combines high stiffness and thermal stability for precise and repeatable measurements. Units have precision-ground, steel ball screw for high-speed motion, and crossed roller bearings with anti-creep feature, minimizing measurement noise and variability. Stages are driven by stepper motor, with linear encoder that provides on-axis accuracy down to 1 µm and sub-micron bi-directional repeatability.

HMS Industrial Networks, Inc.    Chicago, IL 60607
Oct 02, 2012 Available for PROFIBUS RT, PROFINET, DeviceNet, EtherNet/IP, Modbus TCP, and EtherCAT, Anybus CompactCom modules with M12 connectors enable network connectivity for machinery that operates in wet, dusty, or other demanding industrial environments. Protection ratings of IP20 and IP67 apply, respectively, to modules with and without housing, and all CompactCom modules are completely interchangeable.

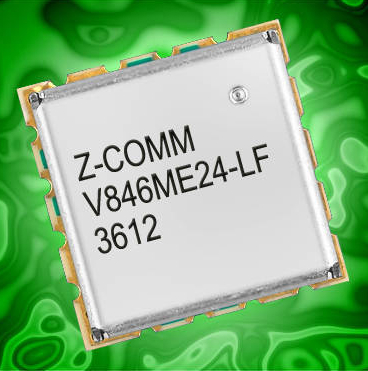

Z-Communications, Inc.    San Diego, CA 92126
Oct 02, 2012 Operating from 3,100–3,500 MHz with tuning voltage range of 1–12 Vdc, model V846ME24-LF provides better than 1.1:1 tuning linearity. RoHS-compliant VCO has spectrally clean signal of -114 dBc/Hz @ 100 kHz offset and typical tuning sensitivity of 62 MHz/V. Designed to deliver 3 dBm output power into 50 Ω load while operating off 5 Vdc supply and drawing 22 mA typ, product operates from -30 to +80°C, has typ second harmonic suppression of -20 dBc, and comes in 0.5 x 0.5 x 0.13 in. MINI-14H-L package.

Novotechnik U.S., Inc.    Southborough, MA 01772
Oct 02, 2012 Based on Novopad non-contacting inductive technology, LS1 Series is insensitive to magnetic fields and has no mechanical sensor track. Units offer measurement range of 25–100 mm for return spring version and 25–200 mm for rod only version, with resolution to 0.05% and repeatability to less than 0.05%. Output range can be programmed either the same as, or independent of, actual travel length by setting Min and Max output levels. Output options include: 0.1–10 V, 4–20 mA, 10–0.1 V and 20–4 mA.

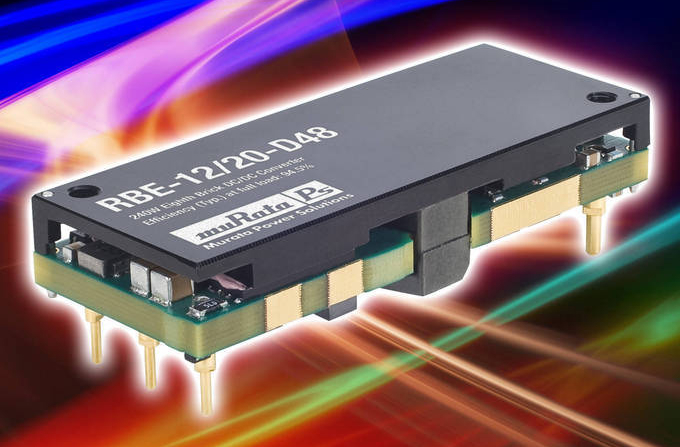

Murata Power Solutions, Inc.    Mansfield, MA 02048
Oct 02, 2012 Designed to meet DOSA requirements, RBE series measures 2.3 x 0.9 x 0.4 in., is supplied standard in through hole mounted package, and is configured as open frame converter with 4.6 mm pins and negative logic. Model RBE-12/20-D48 will deliver regulated 12 V output @ 240 W from 48 Vdc input. Efficiency level means most applications with forced air cooling will not require external heat sink; optional baseplate is available that allows for heat sink attachment.

Polygon Solutions, Inc.    Fort Myers, FL 33912
Oct 02, 2012 Designed as attachment to GT Series rotary broach holder, rotary broaching brake can be used to hold orientation for single or multiple parts. Hardware consists of standard screws and nuts that can be replaced. Brake mounts to tool holder using set screws, and additional screws are included at opening of brake to gently tighten against spindle. When broach is engaged with part, brake is loose enough to allow spindle to turn without interfering with broaching operation.

Artila Electronics,. Co., Ltd    Taipei 231  Taiwan
Oct 02, 2012 Powered by Atmel 400 MHz AT91SAM9G45 ARM9 processor with memory management unit, M-9G45A System on Module (SoM) suits devices that require HMI and M2M device management. Users can access and control device via remote site PC desktop; SoM supports TightVNC on Linux model and Remote Display Control on WinCE. Standard features include 128 MB DDR2 RAM, 128 MB NAND Flash, and 2 MB DATAFlash as well as 4 UART, one 10/100Mbps Ethernet port, GPIO, SPI, I²C and I²S bus, and USB 2.0 port.

Maxim Integrated Products    Sunnyvale, CA 94086
Oct 02, 2012 With digital input for noise immunity, Models MAX98355 and MAX98356 feature pulse-code modulation and pulse-density modulation input, respectively. Units have internal circuitry that detects input clock and automatically calculates sample rate. Providing 2.5–5.5 V single supply operation with 92% efficiency, Class D amplifiers deliver optimal audio quality with high jitter tolerance of 0.013% THD+N at 1 KHz and 99 dB dynamic range.

EXFO    Quebec G1M 2K2  Canada
Oct 02, 2012 Designed for in-service FTTH fiber testing, monitoring, and troubleshooting, FG-750 Node iOLM can test point-to-multipoint fibers, or run downstream tests from node or central office to any passive optical network line type. Based on patented Link-Aware technology, Node intelligent Optical Link Mapper can perform online quality control of contractual work and use same equipment for isolating and pinpointing optical-layer impairments.
