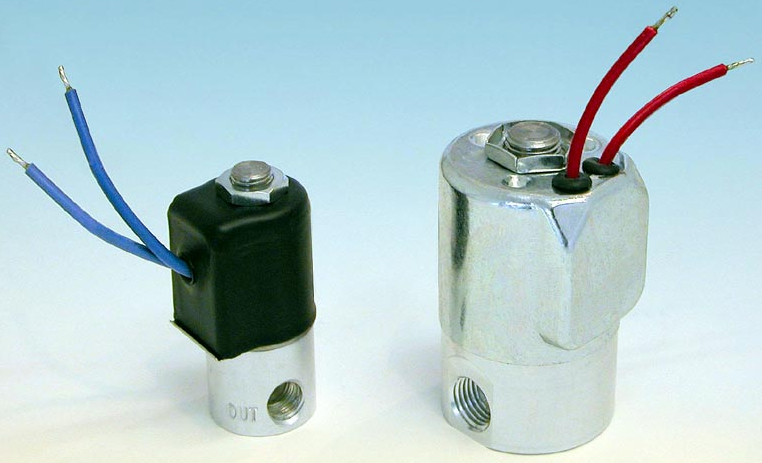

Peter Paul Electronics Co., Inc.    New Britain, CT 06050
May 30, 2008 Available with AC or DC power and operating pressures from 0-1,000 psi, 1.6 in. dia x 2.75 in. high Series 20 valves and 1 in. dia x 2.4 in. high Series 50 valves suit applications where weight is of concern. Products are offered with 2- and 3-way, NO and NC operation with 0 to +104°F operating temperature range and seals of BUNA, FKM, EPDM, Neoprene®, or TEFLON®. While Series 20 is offered in 1/8 and ¼ in. NPT, Series 50 is offered in 1/8 in. NPT only.

Transhield, Inc.    Elkhart, IN 46514
May 30, 2008 Suited for use on metals, machinery, large parts, and vehicles, Transhield custom-fit covers are made from Shrinkable Fabric(TM) and feature non-abrasive, cloth-like lining to protect finishes from damage. Breathable exterior fabric is waterproof and also serves to reduce condensation. Also incorporated, Adhesive Additive Delivery - Vapor Corrosion Inhibitor (AAD-VCI) system provides 100% protection from corrosion during transportation and storage.

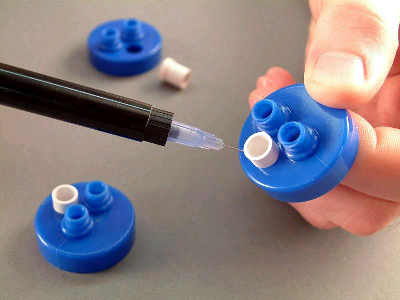

Master Bond, Inc.    Hackensack, NJ 07601
May 30, 2008 Adhering to metals, glass, ceramics, and most plastics, optically clear UV10MED is USP Class VI approved, resistant to chemicals and sterilants, and has service operating temperature of -60 to 250°F. Product is 100% reactive and does not contain any solvents or other volatiles. Curing in 5-10 sec with UV lamp and 2-3 min at ambient temperatures, UV10MED offers tensile strength greater than 4,000 psi, Shore D hardness greater than 60, and less than 5% elongation.

TE Connectivity Ltd.    Berwyn, PA 19312
May 30, 2008 Designed for use in 802.11 and 802.16 WLAN and WiMAX applications with bias voltage as low as 3.0 V, Model M/A-COM MASW-008899 can also be used in test and measurement equipment applications. Switch features typical insertion loss of 0.4 dB at 2.4 GHz while achieving isolation of 27 dB and P1dB of 28 dBm. Fabricated on 0.5 micron gate-length GaAs process, each unit is RF tested to ensure compliance, and offers full passivation.

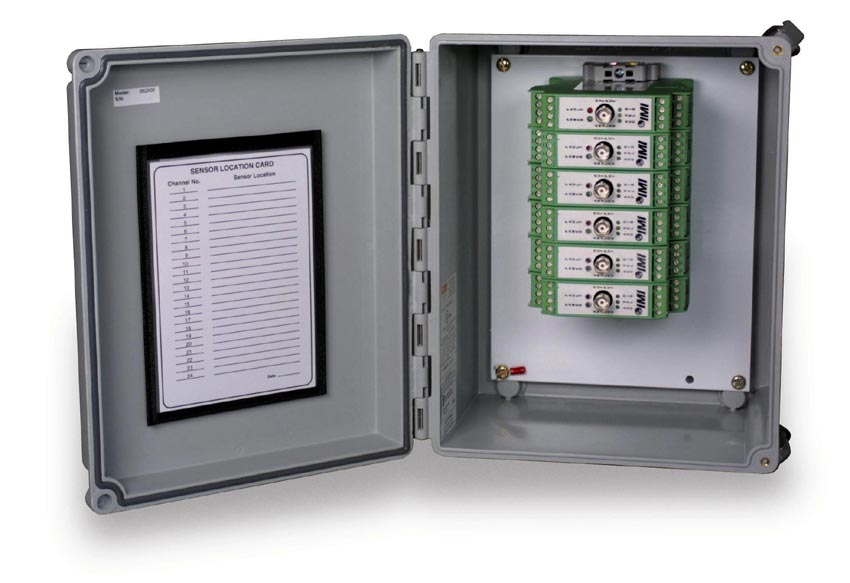

PCB Piezotronics Inc.    Depew, NY 14043 2495
May 30, 2008 Utilizing peak picking mechanism that is sensitive to impacts in bearings, Model 682A05 Bearing Fault Detector offers early warning of bearing faults such as cracked races, spalling, brinelling, fatigue failure, and loss of lubrication. DIN rail mounted unit accepts ICP® accelerometer input, and outputs 4-20 mA signal that is proportional to peak acceleration and second 4-20 mA signal proportional to overall velocity. It provides raw vibration signal for detailed diagnostic analysis.

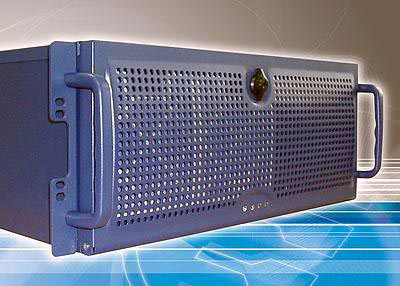

Eurotech Group    AMARO (Udine) 33020  Italy
May 30, 2008 Model APCx-4 rackmount 4U 19 in. industrial PC provides advanced Intel processing power coupled to 12 slot PICMG 1.3 expansion backplane. CE, FCC, and RoHS compliant PC accommodates mix of PCI, PCI-Express x16, and PCI-Express x1 boards, and supports Core 2 Duo, Pentium 4, and Celeron processors. DDR2 667 MHz memory up to 4 GB can be installed in PC. APCx-4 chassis includes 2 USB 2.0 ports on its front panel and audio connectors, 2 GbE ports, and 2 further USB 2.0 ports at rear.

J. W. Winco, Inc.    New Berlin, WI 53151
May 30, 2008 Offered in blank, tapped, and tapped through hole versions, Wing Nuts have hot stamped, matte shot-blasted finish. They feature slight dimple on ends to permit better grip and provide increased finger contact area. For certain minimum quantities, blank version can be tapped or reamed in inch or metric sizes to meet customer requirements.

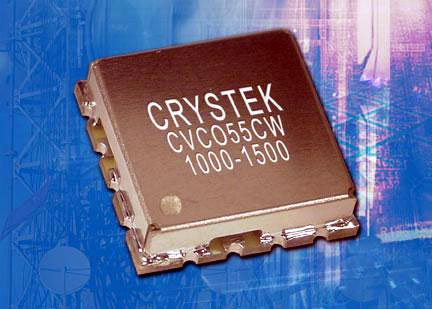

Crystek Corp.    Fort Myers, FL 33913
May 30, 2008 Available with control voltage range of 0.5-4.5 V, CVCO55CW-1000-1500 VCO features typical phase noise of -95 dBc/Hz @ 10 kHz offset, input voltage of 3 V, with max current consumption of 15 mA. Pulling and pushing are at 2 MHz and 3 MHz/V, respectively, and second harmonic suppression is -15 dBc. Offered in 0.5 x 0.5 in. SMD package, device is suited for use in applications such as digital radio equipment, fixed wireless access, satellite communications systems, and base stations.

MagnaChip Semiconductor    Cheongju-si,Chungbuk   Korea (south)
May 30, 2008 At 1/10 in., 2.2 µm MC501EA integrates VGA resolution with image signal processor to enable 5 x 5 x 3 mm camera modules. It provides 10-bit ADC as well as scene adaptive control, noise filtering, color processing, and edge enhancement. On-chip regulator enables operation on 2.4-3.1 V power supply source. Unit supports ITU-R BT.656 parallel video interface and can be configured to support host devices with 1.8, 2.5, or 2.8 V digital I/O voltages.

ABB Inc.    Auburn Hills, MI 48326
May 30, 2008 Supplied in chassis form, panel-mount robot controllers measure 250 mm deep and are designed to facilitate application planning, set up, operation, and maintenance of single or multiple robot cells. Each unit controls up to 4 robots, and separate modules specifically address robot control, axis drives, and process control. Technologies are included for optimization of motions for all robots and external axes as well as fully synchronous operation of multiple robots.

ABB Inc.    Auburn Hills, MI 48326
May 30, 2008 Combining 3 tools in one package, IndustrialIT cpmPlus Loop Performance Manager (LPM) provides users with complete plantwide analysis tool used to collect, optimize, tune, and monitor performance of control loops. Loop Auditing detects underperforming control loops, Loop Tuning helps optimize loop adjustment, and Plantwide Disturbance Analysis looks for oscillation patterns in plant and searches for root cause of oscillations.

ABB Inc.    Auburn Hills, MI 48326
May 30, 2008 IndustrialIT cpmPlus Smart Client provides secure access to automation systems via any Internet browser for real-time process visibility. It seamlessly retrieves data from System 800xA and connected third-party systems and then displays this information in user-desired format to promote informed decisions and appropriate actions. Additional functionality covers trending and Statistical Process Control, alarm and event reporting, as well as Microsoft Excel compatibility.

Adept Technology, Inc.    Livermore, CA 94551
May 30, 2008 Impervious to dust, dirt, and liquid, Cobra(TM) s800 Inverted IP65 SCARA Robot brings high-speed handling to case and carton loading applications. System is suited for mechanical assembly, material handling, packaging, machine tending, and screwdriving operations. Robot supports options such as conveyor tracking, vision guided motion, auxiliary servo axes, and general machine control.

Applied Micro Circuits Corp. (AMCC)    San Diego, CA 92121
May 30, 2008 Suited for evaluation of Power Architecture 460EX/460GT processors, Evaluation Kits provide Linux®-based evaluation boards, software development tools, sample applications, system-level benchmarks, and hardware design files. Canyonlands 460EX evaluation board includes 1.0 GHz AMCC 460EX processor, 256 MB DDR2 SDRAM, two 10/100/1G Ethernet ports, USB 2.0 host port, and SATA connector, while Glacier 460GT has similar features, but adds two 10/100/1G Ethernet ports in place of SATA and USB ports.

Dow Chemical Co., The    Midland, MI 48674-0001
May 30, 2008 With SatinFX(TM), both hydrophobic and hydrophilic actives can be encapsulated in variety of skin care products. System provides stability over time, which helps prevent oxidation of actives and discoloration of finished product. SatinFX also enables encapsulation of incompatible ingredients to provide multiple performance benefits, such as sunless tanning products that also provide anti-aging benefits.

Anadigics, Inc.    Warren, NJ 07059
May 30, 2008 Supporting IMT (UMTS2100) and EGSM (UMTS900) band operations, AWT6224 incorporates HELP3 technology to reduce average current consumption and extend talk time in 3G dual-band handsets used worldwide. Product is supplied in RoHS-compliant, 3 x 5 mm package and meets requirements for WCDMA and HSPA operation with Qualcomm chipsets. Voltage regulator and CMOS-compatible logic controls are built-in, and external dc-dc converter is not required.

Dow Chemical Co., The    Midland, MI 48674-0001
May 30, 2008 Featuring non-VOC designation in Europe and Asia Pacific, AEPD(TM) VOX 1000 is suited for use in interior water-based paints. Product has low odor, low vapor pressure, and non-yellowing characteristics. Hydroxyl functional group allows for increased open time and wet-edge improvements without lowering scrub resistance.

Dow Chemical Co., The    Midland, MI 48674-0001
May 30, 2008 Suitable for water-dilutable metalworking fluids, CORRGUARD(TM) EXT can be used in combination with other amines or as only amine in formulations since it has intermediate equivalent weight. Product enhances performance of many biocides and has shown optimal synergy with benzisothiazolinone. Combination helps control bacteria and fungi, while providing ferrous metal corrosion control and pH stability. In addition, CORRGUARD EXT forms emulsifiable salts with long-chain fatty acids such as tall oil.

Atlona Technologies    San Jose, CA 95131
May 30, 2008 Able to fit on end of CAT 5 cable, AT-VBNC400SR transfers composite or CC, full motion video up to 400 m (color) and 600 m (black and white). It has BNC type connector and, at 2.7 in., fits most cameras and security system components. With slightly larger form factor, AT-AV400U adds analog audio transfer capability. For Component-based applications, AT-COMP300SR extends color video up to 300 m and supports HDTV resolutions to 1080p, while AT-COMP300SR also transfers digital audio.

OmniVision Technologies, Inc.    Sunnyvale, CA 94089
May 30, 2008 With OmniBSI(TM) architecture, CameraChip(TM) Image Sensors can be designed down to 0.9 micron pixels, which is key to continued miniaturization of digital imaging technology. Sensor is turned upside down so that it collects light through what was previously backside of sensor. BSI reverses arrangement of layers so that metal and dielectric layers reside below sensor array, providing most direct path for light to travel into pixel and optimizing light absorption.
