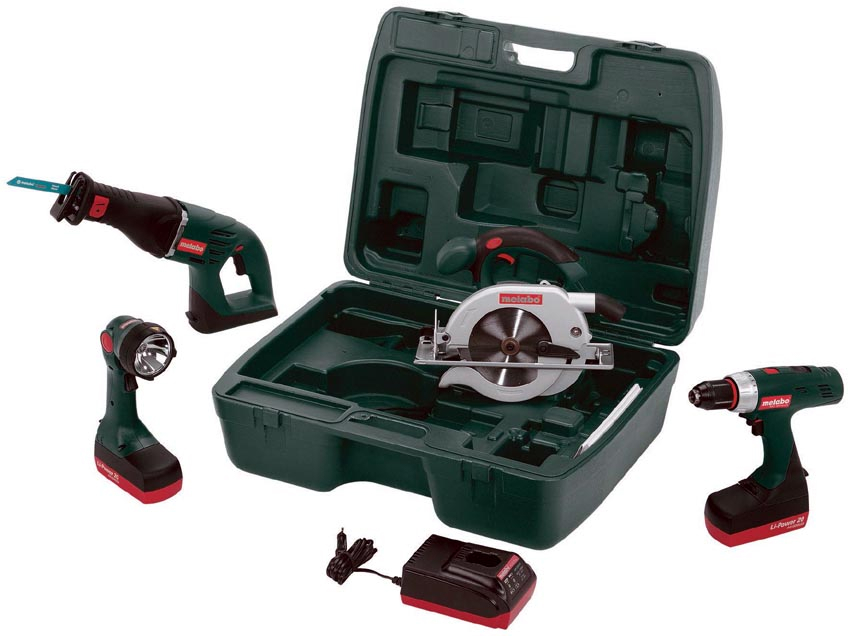

Metabo Corp.    West Chester, PA 19380 4243
Jun 05, 2008 Supplied in heavy-duty carrying case, 4-piece 18 V cordless combination kit includes SBZ 18 hammer drill/driver, ASE 18 reciprocating saw, KSAP 18 circular saw, and MLA 18 flashlight. Two 18 V batteries, featuring Li-Power lithium-ion technology, are also included for powering SBZ 18, ASE 18, and KSAP 18 in various construction applications. Air-cooled battery charging system, AC30 Plus, also comes with kit.

Weber Marking Systems, Inc.    Arlington Heights, IL 60005 4457

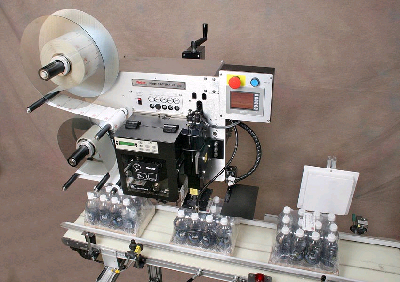

Jun 05, 2008 Utilizing thermal transfer technology, Model 5300rfid produces SmartTrak labels up to 4.5 x 6 in. with text, bar codes, and graphics at 203 or 300 dpi. As labels are printed, digital information is encoded on UHF inlays embedded in label material. Encoded information is verified by system, which then applies label to top or side of carton or pallet load. If label cannot be validated, VOID is printed on it and it is rejected before it is applied.

Keyence Corporation of America    Elmwood Park, NJ 07407
Jun 05, 2008 Operating in X, Y, and Z directions, MD-V9900 series can mark difficult shapes such as cylinders, cones, and inclined planes at speeds up to 12,000 mm/sec without compromising character clarity. System incorporates Dual End Pumping Cavity and offers 42 mm variable focal length as well as distortion-free, 300 x 300 mm marking area. Along with 3-axis control, use of special lens system eliminates need for mechanical adjustment.

Intelligent Instrumentation, Inc.    Tucson, AZ 85706

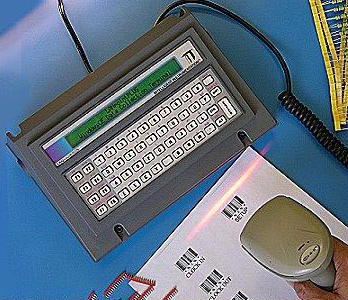

Jun 05, 2008 LANpoint® PLUS, LANpoint TIME, LANpoint CE.NET, and LANpoint 7 are available with choice of Windows CE.NET v4.2 or Windows CE v5.0, promoting programmability, database accessibility, and communications. Supplied in NEMA 12 and NEMA 4 cases, these WiFi Ethernet IEEE802.11b/g LANpoint AutoID computers feature onboard non-volatile storage, expandable to 1 GB or more, along with networking and utility software, terminal emulation interfaces, serial ports, and DIO.

Hardinge Workholding Division    Elmira, NY 14902
Jun 05, 2008 Instantly centering and locating parts without adjustment, Sure-Grip® Expanding Collet System consists of interchangeable collet heads that have -.001 to +.015 in. under-over capacity from specified size. Double-angle design ensures parallel gripping with optimal grip force, lending to stability and part accuracy, while built-in safety stop prevents collet from over-expanding. Systems are available for internal gripping diameters from 1/8-4 in.

Molex Inc.    Lisle, IL 60532-1682
Jun 05, 2008 Designed for cable-to-board applications, SSMCX multi-port system is offered in 4- and 8-port options with positive latch and holes in PCB side that accommodate solder pins for stability. Right-angle or vertical PCB connector is available with SMT or through hole configurations; straight versions operate up to 10 GHz. Specific design modifications are available for medical, high-speed test, and higher-frequency applications.

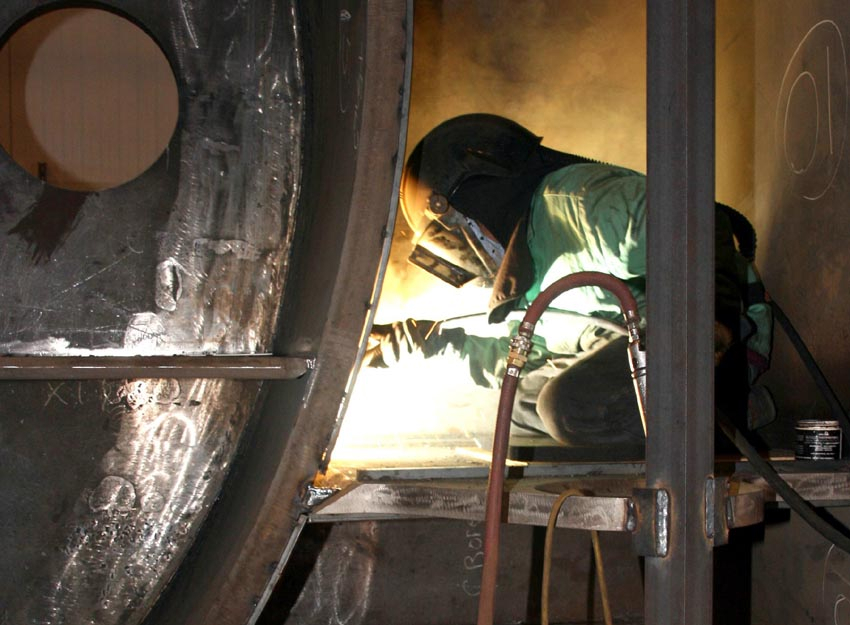

Hobart Brothers Co.    Troy, OH 45373-2900
Jun 05, 2008 For applications requiring impact toughness, arc stability, and minimal spatter, Tri-Mark® TM-811N1 features fast-freezing, easily removed slag. This gas-shielded wire, classified under AWS code E81T1-Ni1CJ H8 and E81T1-Ni1 MJ H8, can weld in all positions with either 100% CO2 or 75% Argon, 25% CO2 mixture. Designed for mining, earth moving, and petrochemical equipment, product comes in .045, .052, and 1/16 in. sizes and exhibits impact values up to 121 ft lb at -40°F.

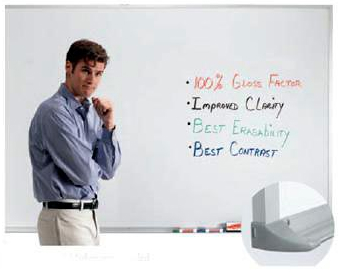

Aarco Products, Inc.    Yaphank, NY 11980
Jun 05, 2008 Suited for communications, production control, and scheduling applications, Syncoat magnetic markerboards are comprised of synthetic resin surface applied to light-gauge steel. Writing surface, resistant to stains and wear, has uniform finish with 100% gloss factor that promotes clarity, erasability, and contrast. Offered in various sizes, board features satin anodized aluminum trim, matching full length accessory tray, and molded safety end caps.

Instruments For Industry, Inc.    Ronkonkoma, NY 11779

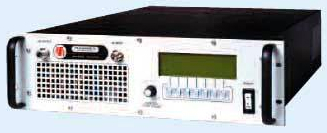

Jun 05, 2008 Measuring 5.25 in. high and weighing less than 45 lb, SMIV ruggedized Solid State Amplifiers incorporate the latest in solid state technology. This unit operates from 400-1,000 MHz as standard at 200 W. Other frequency ranges and power levels are available, and these devices are designed for fixed and mobile applications.

Epner Technology, Inc.    Greenpoint, NY 11222
Jun 05, 2008 NADCAP-certified electroless nickel plating meets MIL-C-26074D, ASTM B-656 and B-733, AMS 2404 and 2405, as well as aerospace contractor specs for corrosion resistance, hardness, and lubricity. With .001 in. thick deposit, it is available in high-phosphorous electroless nickel for dip brazed aluminum heat exchangers. Laser nickel, also available, offers .008 in. thick pit-free electroless deposit designed for optical polishing.

Light Fabrications, Inc.    Rochester, NY 14606

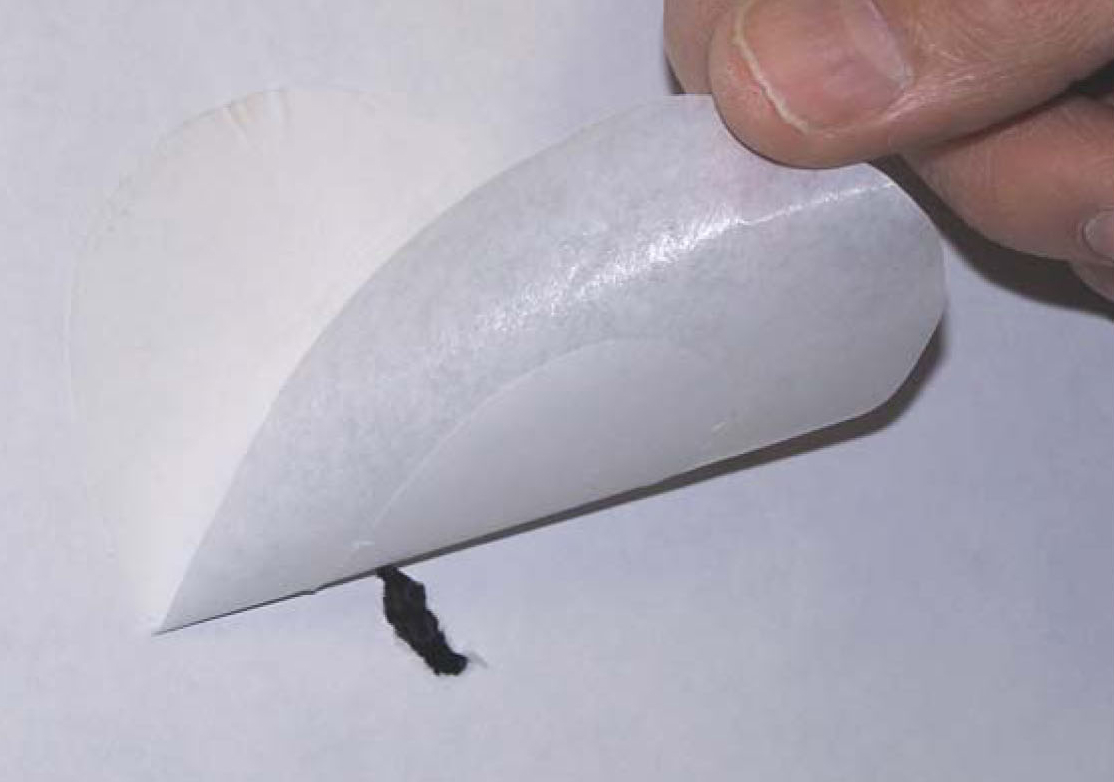

Jun 05, 2008 Designed to eliminate need for sandwich patching, LF311 printable hole patch features protective, adhesive-free center that eliminates adhesive exposure and contamination through backside of paper web. This 3.5 x 7 in. product, constructed from 2.2 mil 3M Repulpable tape, has ¾ in. adhesive perimeter and oval shape to reduce edge shock. After application, there is no transfer of impressions or glue to next layer of paper in roll.

Totally Bamboo Inc.    San Marcos, CA 92078

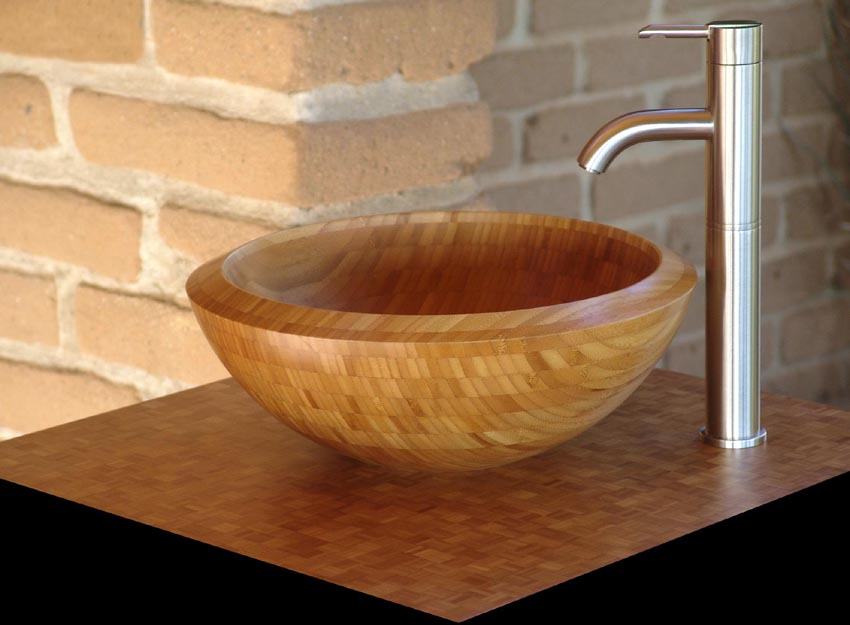

Jun 05, 2008 Sealed in waterproof, maintenance free polyurethane, Totally Bamboo Vessel Lavatory Sink is designed for both home and business use. Measuring 16.5 in. wide and 6 in. tall, eco-friendly sink features 1 3/8 in. thick wall and recessed drain opening. It is available in variety of shapes and sizes, as well as two tone version and honey colored version.

MAG IAS, LLC    Erlanger, KY 41018
Jun 05, 2008 Featuring spindle choices of 6,000-20,000 rpm and torque of up to 614 Nm, VMC line has vibration-damping cast-iron platform with electrical cabinet inside column structure. With maximum X-Y-Z travels of 51.2, 29.5, and 27.6 in., line handles parts up to 3,870 lb in aerospace, die-mold, and job-shop operations. Built with Schneeberger linear guides and low-friction Steinmeyer ETA+ ballscrews, unit is capable of 0.6 g acceleration, feed rate of 800 ipm, and rapid traverse of 1,770 ipm.

Marantz Europe    Eindhoven   Netherlands
Jun 05, 2008 PowerSpector provides detailed analysis of high resolution image data captured and processed in full 24-bit color, which facilitates identification of defects on gold or copper plated boards. Meniscus profiler works with system's multi-angle lighting to deliver solder joint integrity validation, while Synthetic Imaging algorithms deliver optimum balance between defect detection and false rejects. Flexible system can be deployed in line at any stage of assembly process.

Allegro MicroSystems Inc.    Worcester, MA 01615

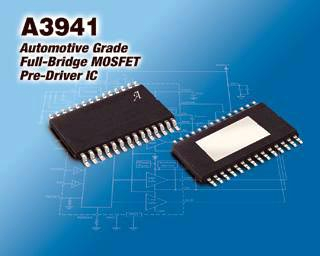

Jun 05, 2008 Model A3941 automotive grade MOSFET pre-driver IC is developed for industrial systems utilizing 24 V battery. Capable of driving 4 external N-Channel MOSFETs in full-bridge configuration, it is used in brush dc motor drive applications where high-currents in combination with high ambient temperatures require use of external MOSFETs. IC is rated over full automotive temperature range of -40 to 150°C and full battery supply range of 7-50 V.

Lyndex-Nikken Inc.    Mundelein, IL 60060

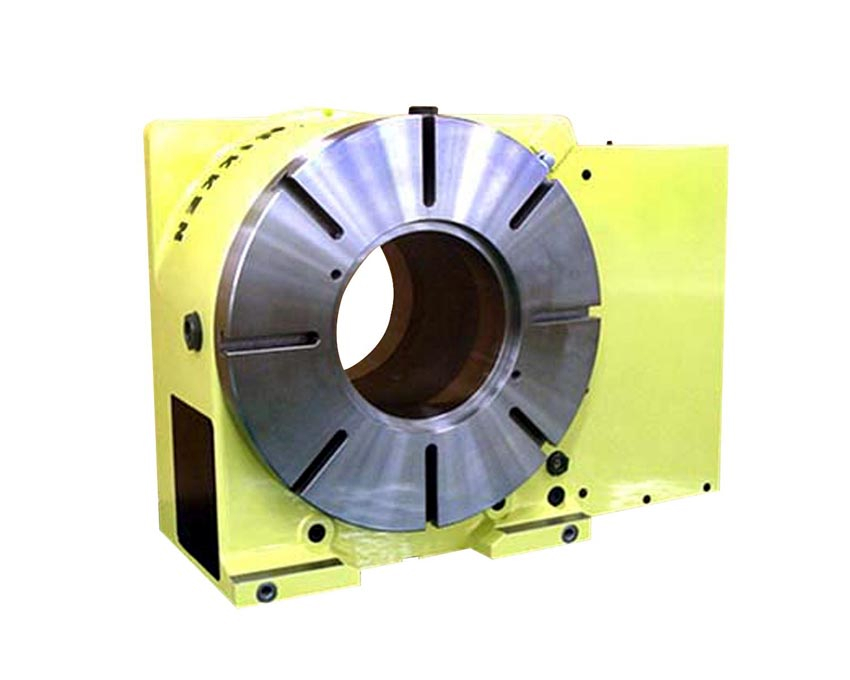

Jun 05, 2008 Designed for Oil Patch industries' large pipe applications and large diameter bar work applications, CNCB450 Ultra Large Bore Rotary Table with 205 mm dia features 8 in. dia through hole and clamping system. Carbide worm system incorporates carbide worm screw and ion nitrided worm wheel. Worm screw consists of less brittle V-grade form of carbide, while worm gear is ion nitrided to depth of 0.1 mm and external surface hardness of 68 Rc.

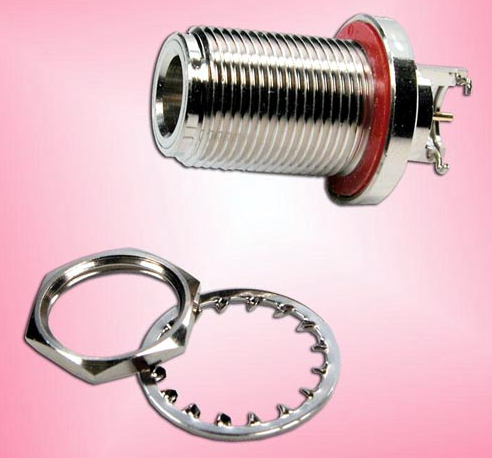

Bomar Interconnect Products    Ledgewood, NJ 07852
Jun 05, 2008 With waterproof, weather-tight, through-panel mount seal, V-Bite(TM) female Type N connector provides performance in frequencies through 18 GHz. It has impedance of 50 W, and can be employed in high power applications including base stations, cellular antennas, and portable test and measurement equipment. Featuring brass/gold contacts, unit is precision engineered of machined brass and includes straight-through contact design to provide low reflection factor with VSWR of 1.30.

French Technology Press Office, Inc.    Chicago, IL 60601
Jun 05, 2008 Aimed at plain-clothes, uniformed personnel, and engineering supervisors, CityZen for Men safety shoes are impervious to thermal variations and transfers. They are made of full-grain, water-repellent black leather, lined with Cambrelle® for extra protection, and have slip resistant sole. Undetectable by airport metal detectors, non-steel shoes include light and resistant polycarbonate toe (200 J), and anti-perforation insole made of high-resistance textile.

SICK, Inc.    Minneapolis, MN 55438
Jun 05, 2008 Providing pass/fail output, Inspector Vision Sensor verifies completeness and quality of product regardless of angle/orientation as it comes down line. Unit features 384 x 384 resolution, IP 67 metal housing, and integrated dome light that delivers high quality images even on glossy and reflective surfaces. Applications include verifying label position, date code presence and cap inspection in packaging, as well as bowl feeder inspection and verification of part assembly.

DPL-Surveillance-Equipment    Reseda, CA 91335

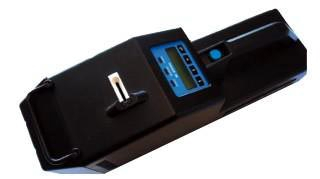

Jun 05, 2008 Able to detect minute traces of cocaine, opiates, cannabis, and amphetamine-type stimulants, DPL-N2000 portable detector helps combat trafficking and enforce law. It features LED indicators, 2 x 16 character LCD, audio alarm, and 12 Vdc rechargeable battery pack. Operating without radioactive source, it uses GC/surface ionization detection principle. With operating temperature range of -5 to +55°C, unit weighs less than 6.5 lb without battery pack and less than 11.5 lb with battery.
