Strippit Inc.    Akron, NY 14001-1321
Jun 30, 2008 Used on PPEB and Easy-Form series press brakes, CADMAN® Touch combines CNC technology and IR touch screen programming system running on Windows® XP embedded PC-based control unit. It works with LVD integrated intelligent bending database and on-board LVD CADMAN-B 3D (bending) software, creating and storing interactive integrated databases for bend allowance, angle corrections, and spring-back. GUI minimizes control input, lessening steps between drawing to completed part.

Manncorp    Willow Grove, PA 19090
Jun 30, 2008 With max frame size of 24 x 24 in., benchtop Model 5500 provides true vertical separation of stencil from PCB prior to lifting stencil frame. Unit includes tooling for double-sided boards and dual squeegees mounted to linear slide bearings for repeatable side-to-side squeegee motion controlled by operator. Self-locking dial adjustments allow X, Y, Z, and R axis settings. Raising and lowering of stencil frame is pneumatically controlled.

Sunnen Products Co.    St. Louis, MO 63143
Jun 30, 2008 Offering 3-axis servo control of spindle rotation, stroke, and tool feed, Model SV-500 automatically corrects bore geometry and size while producing constant crosshatch angle. Machine features 15 kW spindle with standard speed of 0-300 rpm and max stroke rate of 160/min. Measuring 87 x 81 x 89.5 in. without coolant tank, SV-500 is designed for bore diameters of 0.75-12 in. and can be configured as single-spindle, manually loaded machine or as multi-spindle, fully automated system.

Power Partners    Hudson, MA 01749
Jun 30, 2008 Delivering up to 30 W in 4.13 x 1.91 x 1.39 in. package, KSAFF Series operates from 90-264 Vac input and offers single outputs ranging from 3-48 Vdc. Conversion efficiencies are 75% minimum, ensuring quiet operation without need for cooling fan. Operating from 0-40°C, RoHS-compliant units feature 5% load regulation and 1% max ripple and noise. Five case types ranging from wall plug-in to desktop allow flexible options for worldwide locations.

Instron    Norwood, MA 02062-2643
Jun 30, 2008 With design that allows limited number of jaw faces to cover large range of specimen sizes, 1000HDX Universal Testing Machine features dual test space for tension, compression, bend, shear, and flexure testing on high strength materials. Control electronics provide recognition and calibration of transducers, ensuring proper instrument is being used and that data is reliable. The 1000HDX conforms to EN10002-1, ISO 6892, ASTM E8, C39 and F606, SAE J429, standards and is CE compliant.

Hennig, Inc.    Machesney Park, IL 61115
Jun 30, 2008 Designed to test telescopic machine tool covers, High-Speed Test Stand includes computerized controls that allow combinations of strokes, speeds, and acceleration/deceleration rates to simulate high speed machining centers. Speed is variable up to 1,312 ft/min, and acceleration can be adjusted to 4 G. Accelerated masses with forces up to 1,304 ft-lb can be tested.

EGS ELECTRICAL GROUP ? APPLETON    Rosemont, IL 60018
Jun 30, 2008 Available in 150 A versions, Powertite® explosion-proof plug and receptacle and explosion-proof EBR receptacle eliminate risk of drawing excessive current beyond maximum continuous rating on equipment. Units include arc-snuffing chambers, multiple grounding styles, and positive polarization to prevent matching of dissimilar amperages. Approved for use in Class 1, Div 1 and 2 hazardous locations, receptacles are UL Listed, CSA Certified, and rated NEMA 4X.

Georg Fischer Piping Systems    Tustin, CA 92780
Jun 30, 2008 Suitable for pipe sizes from 2-102 in., Signet Model 2552-3 offers dynamic flow range of 0.15-33 ft/s with repeatability of ±0.5% of reading at 25°C. Unit features corrosion-resistant materials, including 316 SS, PVDF, and FPM to ensure service reliability. With no moving parts to wear, insertion flow sensor accurately measures flow in fluids containing high content of particles, solids, and fibers, making it suitable for applications with dirty fluids.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Jun 30, 2008 Operating without any adjustments or settings, Series SCV is suited for use where backflow could potentially cause damage to pumps, filters, or process equipment. Line pressure moves plastic cone off elastomer seat, opening valve. When inlet flow stops, spring moves cone back onto seat to stop flow. True union design facilitates removal from piping system without breaking down piping connections. Valves are available in PVC with EPDM o-rings or CPVC with FPM o-rings and ½-4 in. sizes.

Z-Communications, Inc.    San Diego, CA 92126

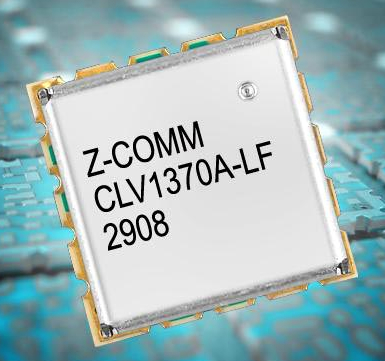

Jun 30, 2008 VCO model CLV1370A-LF in L-band operates from 1,360-1,380 MHz with tuning voltage range of 0.5-4.5 Vdc. It is designed to operate at 5 Vdc, drawing 18 mA typical over -40º to +85ºC temperature range. Typical 2nd harmonic suppression is -20 dBc. RoHS-compliant device comes in standard MINI package measuring 0.50 x 0.50 x 0.22 mm and is available in tape and reel packaging for production requirements. It is also suited for automated surface mount assembly and reflow.

GIW Industries, Inc.    Grovetown, GA 30813
Jun 30, 2008 Along with proprietary impeller vane design and Solid/Fluid Flow Technology, LCC-R pump features double-wall construction with outer ductile-iron casing and inner molded-rubber liners. Thickened shrouds and vanes provide optimal wear resistance in heavier slurries, and impeller hub side clearing vanes are effective in clearing solids. Rubber-lined impeller is interchangeable with existing metal impellers. Hub side clearing vane and flat hub side designs are available.

GIW Industries, Inc.    Grovetown, GA 30813
Jun 30, 2008 Used in hard rock mining, MDX series has low specific speed that provides stable operations by harnessing variable flow conditions confronted in modern mills. Stable flow in combination with optimum head/quantity and efficiency curve ensures efficient mill operation. Also, optimal BEP ensures stable sump level over large flow variations, operational efficiency, and equipment life. Pumps also incorporates slurry diverter technology matched with adjustable suction liner design.

DAILY RFID CO.,LIMITED    Guangzhou, 510403  China
Jun 30, 2008 Combining light-weight materials and compact footprint, HF Metal Tag-04 (RFID Transponder) is designed for gun checking and gas bottle applications. Fully encapsulated, on-metal surface tag can also be used in asset tracking applications such as railway and warehousing solutions. Meeting aerospace standard AS5678 specifications, it features read range of up to 5-7 cm on metal, and can be affixed to any metal surface by using industrial adhesives.

CyberResearch, Inc.    Branford, CT 06405 2932
Jun 30, 2008 Including 10 high-efficiency units that support loads from 350-1,000 W, CyberResearch power supplies accept 12 and 24 Vdc inputs or ac frequencies from 47-63 Hz, with input voltages from 100-240 Vac. Model PWR 750GB requires about 938 W of ac power, losing 188 W and eliminating 312 W of unnecessary cooling.

Pacific Bearing Co.    Rockford, IL 61125
Jun 30, 2008 Providing smooth and quiet linear guidance, PL(TM), MT(TM), and MX(TM) series of linear actuators feature ball screw, lead screw, or belt drive options. PL series is mountable, MT series is available in different drive configurations (including vertical configuration) and different sizes, while MX series allows for high load capacity travel at high speeds. All 3 models work in multitude of environments, and carry t-slots which enable mounting.

TT electronics IRC Wirewound and Film Technologies Division    Boone, NC 28607
Jun 30, 2008 HVC Series thick film resistors feature high voltage operation in 1206, 2010, and 2512 package sizes, with power ratings of 0.3, 0.5, and 1 W and rated voltages of 1,000, 2,000, and 3,000 V, respectively. They have 100 kW to 1 MW resistance range, with tolerances to 0.5%, 1%, 2%, and 5%, maximum overload voltage to 4.5 kV, and -55 to +155°C operating temperature range. Units offer less than -25 ppm voltage coefficient and ±100 ppm/°C temperature coefficient.

Heyco Products    Toms River, NJ 08753
Jun 30, 2008 Able to lock firmly into panels and withstand push back force of 35 lb, Louvered Plugs for panel through holes allow passage of air for ventilation while limiting liquid infiltration. They can accommodate mounting hole diameters from .875 to 3.000 in. and panel thicknesses from .125 to .250 in. Available in black color, plugs can be used for ventilation in electronic enclosures, motor housings, and metal or plastic panels.

FUTEK Advanced Sensor Technology, Inc    Irvine, CA 92618
Jun 30, 2008 With resistance to vibration, shock, temperature variations, and RFI, Model PMP300 Pressure Sensor is suited for industrial and OEM pressure measurement applications. Available with ¼ NPT male and amplified 0-10 V 3-wire as standard, customizable units have signal output of 0-10 Vdc, and achieve accuracy of less than or equal to ±0.5% full scale. Stainless steel welded measuring cell eliminates need for soft sealing material that may deteriorate over time.

AccuStream, Inc.    New Brighton, MN 55112
Jun 30, 2008 DiaLine features embedded diamond orifice, which helps eliminate misalignment and wear that is sometimes caused by damaged ruby orifices. It is equipped with abrasive flow concept that ensures proper protection of diamond orifice and maximizes life of diamond. Cutting head adapts to all major manufacturers on/off valves.

DXL Enterprises, Inc.    Mahwah, NJ 07430
Jun 30, 2008 Designed for Trenton 32 GB system host boards, Model SBS214 features 6 fans, 500 W power supply, CD/DVD and floppy drives, 3 SATA hard drive removable carriers, 2 two front mounted USBs, and other standard peripheral hardware in 2U chassis. It also fits Trenton Technology's dual and single processor PICMG 1.3 SHBs for graphics and server class applications. Measuring 20 in. deep, chassis is suited for vertical or horizontal mounting in space constrained shipboard applications.
