Emerson Process Management    Austin, TX 78754
Jun 25, 2008 AMS Device Manager v9.5 provides AMS Wireless SNAP-ON application to plan, customize, visualize, and manage smart wireless networks. MV Engineering Assistant enables configuration and test calculation functions on both HART® and FOUNDATION(TM) fieldbus MultiVariable transmitters, while AlertTrack(TM) gives users increased visibility to health of field devices and documentation of parameter changes to help identify equipment issues and areas for process improvement.

Danaher Motion    Wood Dale, IL 60191-1073
Jun 24, 2008 Engineered as matched and integrated sub-system for HDD applications, Dover DMM-101 Single Axis Controller and ST1 Air Bearing Spindle set also includes software and cable. Bundle help OEMs build data storage solution without need to specify separate components and figure out how to configure them for optimal performance. While DMM-101 offers velocity stability performance of 0.0006% at 7,200 rpm, ST1 delivers acceleration of less than 1 sec to 15,000 rpm for 65 mm disks.

Bosch Security Systems    Fairport, NY 14450 9199
Jun 24, 2008 Rack-mount base unit, VIP X1600 XF series, accommodates up to 4 multichannel video and audio encoder modules as well as up to 4 VIP X1600 XFMD decoder modules. There are three 1 Gbps Ethernet ports for network connectivity, inside-rack cabling, and redundancy. Also included, 1 Gbps small form factor pluggable optical transceiver slot on front enables direct fiber connection to remote SAN. High-density decoding capability makes device suited for creating monitor walls.

Bradley Corp.    Menomonee Falls, WI 53051
Jun 24, 2008 Bradmar(TM) No Site(TM) Solid Plastic Partitions eliminate site line between door and pilaster by employing matching profiles on hinge side and overlap on strike side. Offered in floor-mounted, overhead-braced, and floor-to-ceiling versions, European-style partitions do not require any special floor or ceiling construction and come in 26 shades. Products are made from 1 in. thick HDPE, which is waterproof, resists dents and graffiti, and does not absorb odors.

CTI Electronics    Stratford, CT 06615
Jun 24, 2008 Designed for continuous use in harsh environments, KIO6000 Series comes in painted aluminum or stainless steel enclosure, is molded of silicone rubber, and has 2 mm travel with red backlit embedded numeric keypad. Gold over nickel contacts, combined with waterproof sealing, helps ensure reliable operation. Along with full 101/104 key functionality, keyboard comes with drift-free OrbitalMouse® - button-style mouse pointer molded in silicone rubber.

Coxreels    Tempe, AZ 85283-4323
Jun 24, 2008 Intended to protect cable and enhance safety of work environment, 112WCL Series 12 in. hand crank welding cable reel features heavy-duty, all-steel construction and bronze, self-lubricated spherical bearings at each end of drum. Integrated drag brake/reel stop prevents free-wheeling and cable uncoiling during storage and transport, while Cable Keeper prevents pigtail from whipping or twisting. Reel handles up to 100 ft of 2/0 Gage welding cable.

CGW, Camel Grinding Wheels, USA    Niles, IL 60714
Jun 24, 2008 Optimized for sharp cutting action and extended working life, zirconia flap wheels have cotton-backed flaps for flexibility and ¼ in. shanks to facilitate use. Products come in 1, 1 ½, 2, and 3 in. diameters with grit sizes of 40, 60, and 80. Offered in quantities of 10, products are recommended for smoothing and deburring steel, stainless steel, non-ferrous metals, and alloys.

PCB Piezotronics Inc.    Depew, NY 14043 2495
Jun 24, 2008 Offered with selectable filters or isolated grounds, rack-mount models suit applications where case ground piezoelectric sensors are used and could cause ground-loop noise. Model 483C30 offers 8 channels with true galvanic isolation of each input to output, x0.1-x200 incremental gain, 4-order 10 kHz low pass filter, and Ethernet interface. Model 481A03 has 16 channels of ICP® inputs with programmable 8-order elliptical low pass filters, x0.0025-x200 incremental gain, and RS-232 interface.

PCB Piezotronics Inc.    Depew, NY 14043 2495
Jun 24, 2008 PCB® array microphones, with integral preamplifier, provide multi-channel measurements and operate from same constant current source required for ICP® accelerometers, allowing use of both in same test. Acoustic sensors offer TEDS-compatible option, promoting channel count capability and traceability as well as conformance with IEEE 1451.1 standard. Functionality covers range of automotive testing applications.

Safety Technology International    Waterford, MI 48327
Jun 24, 2008 Operating up to 150 ft and including one 6 V alkaline battery, Model STI-32600 lets users know when their door is opened by sending signal to receiver, announcing an entrance with selected melody or tone. Suited for home, store, or office, users can mount small transmitter and magnet to any door and plug remote receiver unit into any electrical outlet. Users can also distinguish between front/back doors by adding transmitters and selecting different tune on each transmitter.

Summit Microelectronics, Inc.    Sunnyvale, CA 94085
Jun 24, 2008 Operating at switching frequency of 1 MHz, Model SMB119 incorporates 3 synchronous step-down converters, 2 step-up converters, 1 configurable step-up or step-down converter, 1 low-dropout linear regulator, and fully programmable system supervisor that monitors all channels for under- and over-voltage events. It provides digital power management via I2C interface and non-volatile memory. IC operates directly from +2.7-6.0 V input over 0-70°C or -40 to +85°C temperature ranges.

IMS Connector Systems GmbH    Löffingen   Germany
Jun 24, 2008 Models 4396.SMBA double plug and 4408.SMBA single plug PCB mount style automotive connectors are capable of being re-flowed to various IPC/JEDEC J-STD_020C and IEC-norm 60068 standards. Units do not tilt during either pick and place process or soldering operation. Model 4396.SMBA double plug unit is 12.5 mm wide.

CAS Data Loggers    Chesterland, OH 44026
Jun 24, 2008 Suited for data collection applications on moving equipment or machinery, Squirrel 2020 data logger can integrate into existing wireless networks in laboratories, offices, and factories. It also enables remote data collection without need for communications cables or converter boxes. Unit offers 24-bit resolution, voltage measurements up to 60 Vdc, internal storage for up to 1.8 million readings, 4 alarm outputs, 2 pulse counters inputs, and 8 digital inputs.

Sound Management Group LLC    Hillsborough, NJ 08844
Jun 24, 2008 Compatible with most track systems, SoundElite® is customizable window treatment which can reduce overall noise levels in interior space where windows and interior glazed surfaces would normally restrict introduction of absorptive materials. With 80% absorption at 500, 1,000, and 2,000 Hz articulate speech frequencies in closed position, vertical blind absorbs 35% of incident sound at these frequencies in open position. It is suited for retrofitting as well as new installations.

Binder-USA    Camarillo, CA 93012

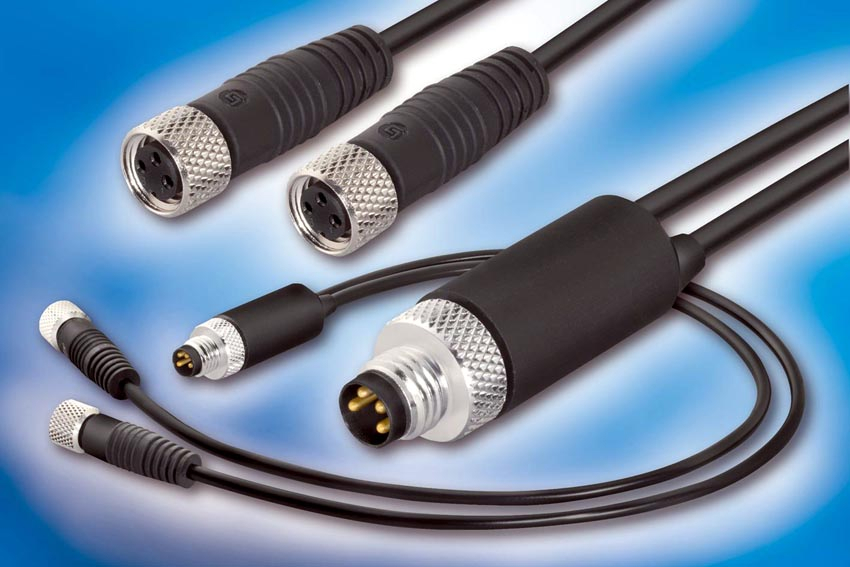

Jun 24, 2008 Featuring industry-standard M8 threaded locking system that assures reliable operations in harsh environments, M8 to M8 dual patchcord is used to make connection between female and 2 male M8 connectors in industrial network. Male M8 connector has 4 contacts, which connect to 3 contacts in each of female connectors. PUR-jacketed cable comes in standard length of 0.3, 0.6, and 1 m. When properly mated, connections meet IP67 ratings.

MGV Stromversorgungen GmbH      Germany
Jun 24, 2008 Model P2071 comes with 2 different types of 120/230 V mains input, either front feed via IEC320/C5 cold connector or rear feed via 24/8-channel M-power strip. Module offers no-load protected outputs of 5.1 and 3.3 V at 8 and 10 A, respectively. Designed for use with free (hot-air) convection, unit is EN60950, UL60950, and CSA22.2-950 approved, and operates at temperatures ranging from -25 to +70°C (2%/K derating from 50°C).

Audio Video Supply, Inc.    San Diego, CA 92111
Jun 24, 2008 With viewing resolution of 1,920 x 1,080 at 60 Hz, horizontal and vertical viewing angle of 176°, and 16.77 million color picture quality, Model AVS CG500-MTC 42 in. Commercial Grade LCD Monitor projects clear picture for open display or for indoor viewing. It features built in rear facing audio amplifier and speaker (8 W x 2), 2 and 3 input AV module for connecting to audio or video system, and control key lockmode to activate or deactivate keypad.

Sandvik Coromant Co.    Fair Lawn, NJ 07410
Jun 24, 2008 Using 4 cutting edges, CoroMill 690 provides 2D profile milling of titanium components for aerospace industry. Optimized chip flutes reduce chip jamming and each insert pocket contains threaded coolant hole. Unit is suited for circular interpolation from pre-drilled hole, square shoulder milling, and edging and contouring. Integrating iLock(TM) interface, tool is compatible with Capto® toolholders, allowing it to be used in applications with long overhangs and reaches.

KATAKA A/S    Copenhagen V DK-1718  Denmark
Jun 24, 2008 Based on segmented spindle technology, KATAKA actuator has maximum push/pull force of 200 and 100 kg, respectively. With 50 mm height and 400 mm stroke, compact actuator is suited for applications where linear motion is required from confined spaces or the force is needed perpendicular to elevated surface.

FKN Systek, Inc.    Framingham, MA 01702
Jun 24, 2008 Developed to singulate prescored PCBs with closely spaced components, Model K7000 features 12 in. long linear and 3.8 in. dia circular blade, both with .030 in. thin symmetrical cutting edge. Circular blade is mounted on round shaft with center line of cutting blade passing directly through middle of support bearing. Depanelizer is transportable and also available in motorized version (K8000).
