Saelig Co., Inc.    Pittsford, NY 14534
Nov 19, 2007 Weighing 1 lb and measuring 6.7 x 3.8 x 1.85 in., PSA2701T provides engineers with 1 MHz to 2.7 GHz spectrum analyzer. It offers sweep modes of continuous, single, peak hold, and average (up to 256 sweeps) with unlimited storage for waveforms, set-ups, and fully annotated screens under user-defined file names. In addition to Wi-Fi, Bluetooth®, and IR interfaces, connectivity is offered via built-in mini USB connector as well as web and email access.

Cornerstone Automation Systems, Inc.    Prosper, TX 75078
Nov 19, 2007 SolidCube 4010 provides automation in put-away or shipping operations where high speed and/or accuracy are required. Operating either standalone or integrated into existing conveyor systems, it offers choice of checkweighers. System enables real-time cubing for freight and inbound manifest and is also suited for UPS/FedEx/DHL/USPS dimensional weight compliance.

Humphrey Products    Kalamazoo, MI 49003
Nov 19, 2007 Designed for pneumatic applications, 310/410 Series 1/8 in. ported 3- and 4-way direct acting solenoid valves feature set screw and pushrod assembly designed as single threaded pushrod to eliminate opportunity for wear between those 2 parts. Short-stroke balanced poppet design at requires no lubrication and is tolerant of impurities in air system. While 310 Series has 0.12 CV and 410 Series has 0.14 CV, both are rated for air and inert gas from vacuum at 28 in. Hg to 125 psig.

CILS INTERNATIONAL    Beverly, MA 01915
Nov 19, 2007 Allowing in-house addition of variable data via thermal transfer printer, CIL 8200SC metalised polyester labels are resistant to various chemicals and solvents when used in combination with CILS thermal transfer ribbons. Various sizes are available, partially pre-printed or blank. Example uses include labeling aircraft components, fuel valves, hydraulic pumps, and flow control gauges. Bureau service is also available to print barcodes and number sequences.

ChemFree Corporation    Norcross, GA 30093
Nov 19, 2007 Able to hold 550 lb load, SmartWasher model SW-28XE features 2 brush stations with flexible nozzles, adjustable timer with 10 or 30 min continuous flow, adjustable thermostat, 300 gph pump, light kit, and parts basket. System utilizes bioremediation process which combines OzzyJuice® aqueous-based degreasing solution with OzzyMat(TM) specialized particulate trap impregnated with naturally occurring microbes to dissolve contaminants while purifying cleaning solution.

Panasonic Electric Works Corporation of America    New Providence, NJ 07974
Nov 19, 2007 Offering zero force replacement for mechanical push buttons, Model SUNX SW-101 features fully configurable operation indicators that provide visual feedback to operation with respect to process status. Ergonomic design allows for multiple mounting configurations to achieve optimum application coverage.

Sonobond Ultrasonics    West Chester, PA 19380
Nov 16, 2007 Available bench mounted or adapted for robot operation, WeldMaster(TM) C-Frame I has one ultrasonic head and opposing anvil, while WeldMaster(TM) C-Frame II has 2 ultrasonic heads, one that powers welding tip and one powers anvil. Units can be operated by robot arm, which positions welder at desired weld locations, while automotive parts to be joined are held stationary in fixture. Both are supplied with microprocessor-controlled 2,500 W power supply.

Automation U.S.A., Inc.    Gettysburg, PA 17325
Nov 16, 2007 QNix®8500 supports bi-directional wireless communication with PC via support for QNix® SAT thumb-sized wireless radio probe. It accommodates interchangeable probes with 200 mil max measuring range and offers multiple calibration options. Available with and without memory, system does not require calibration but allows for customized measurements. Software is available for transfer to and evaluation of data in Excel as well as gauge configuration.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Nov 16, 2007 Available in 11 standard inductance values, Model TJ5-HT features max DCR range of 0.29-0.0024 W when vertically mounted and 0.3-0.003 W when horizontally mounted. Units offer inductance range of 470-0.47 µH and saturation current from 1.5-50 A. With operating temperature to +200°C and toroidal design to minimize EFI, RoHS-compliant inductor is suited for switching power supplies, EMI-RFI filtering, and output chokes.

RLE Technologies    Fort Collins, CO 80524
Nov 16, 2007 Integrating with any network management system via SNMP, Falcon F1000 and F3400 enable remote, web-based environmental monitoring of critical operating parameters via embedded firmware that handles all data collection, alarm reporting, and multiple concurrent communication mediums. Both stand-alone systems accommodate up to 4 analog, 4 digital, or thermistor signals, while Model F3400 allows for additional 24 digital inputs, which can be used to monitor simple contact closure signals.

Bulgin Components PLc    Barking Essex IG11 0AZ  United Kingdom
Nov 16, 2007 Available in 3 panel-mounted configurations, Mini USB AB-style Connectors include Model PX0456, which mounts in front of panel with flying lead to rear and is terminated with 6-way 0.1 in. crimp connector. Mounted in rear of panel, Model PX0457 has flying lead terminated with 6-way PCB header, and Model PX0458 has straight PC pins for direct soldering to PCB. RoHS-compliant, 5-pole connectors provide USB V2.0 performance up to 480 Mb/s.

Elma Electronic Inc.    Fremont, CA 94538
Nov 16, 2007 Designed to ARINC 404A, Air Transport Rack Chassis can fit up to 10 6U x 160 mm slots in 1 ATR Short size. Unit accepts conduction-cooled modules in various architectures such as VME/64x, cPCI, and VXS. Independent dual liquid-cooled sidewalls dissipate in excess of 100 W/slot, and can use glycol, kerosene, PAO, and salt water. Powered via 28 Vdc/270 V or optionally 1 and 3-phase 115 Vac at 400 Hz, chassis can take up to 1 kW of input power.

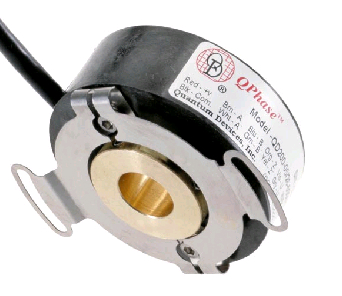

Quantum Devices, Inc.    Barneveld, WI 53507
Nov 16, 2007 With bore sizes up to 0.625 in., QPhase(TM) QD200 eliminates need to install modular or kit encoders onto OEM products. Measuring 0.93 in. high x 2.00 in. dia, complete operational unit includes integral dual ABEC 5 ball bearing and stainless steel spring mount that provides 30° rotational adjustment. Options include 4-8 pole 3-phase commutation signals for brushless motors, 5-26 Vdc input voltage, and resolutions from 500-5,000 ppr derived directly from encoder disc.

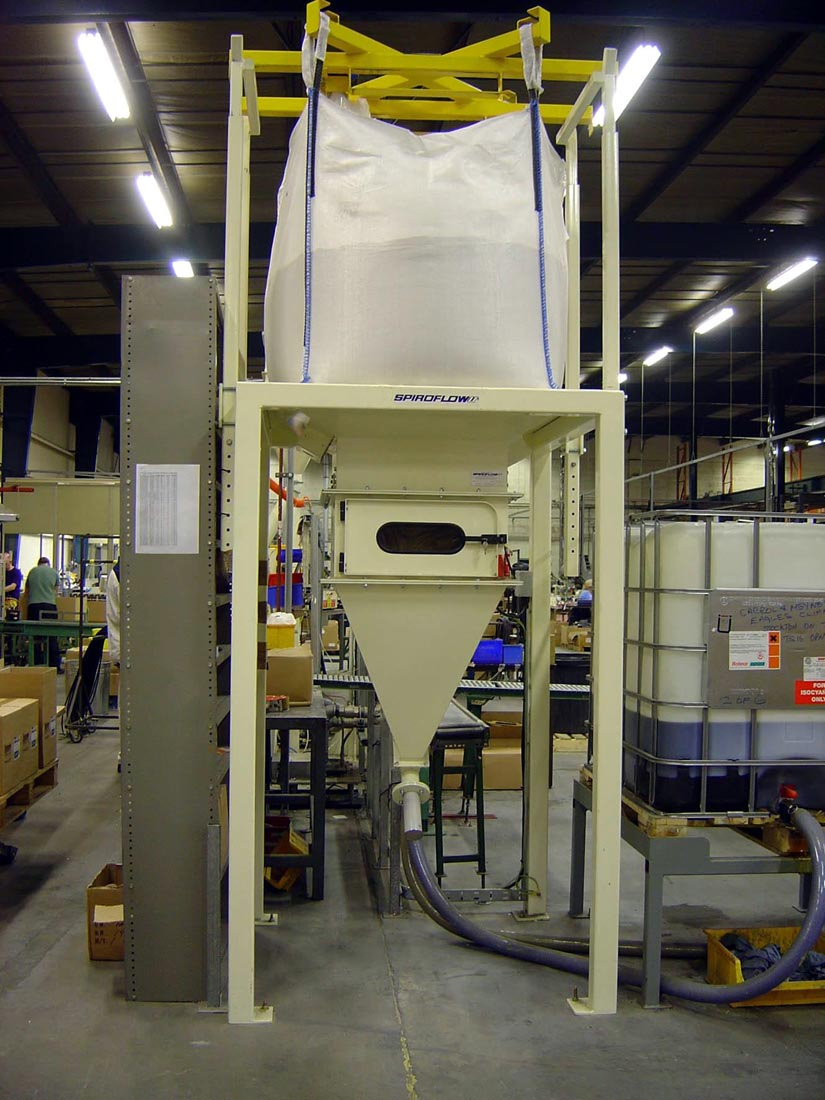

Spiroflow Systems, Inc.    Monroe, NC 28110
Nov 16, 2007 Spiroflow Universal Type 2 Bulk Bag Discharger provides controllable discharge by volume of poor flowing materials. Able to handle bags up to 6 ft high and weighing 2 tons, it features screw conveyor that meters flow of bag contents to process vessel as well as spring-loaded arms that raise and tension bag during emptying and prevent bag spout from sagging. Dust control connection to factory dust extraction system or to local dust collector is also included.

Spirax Sarco, Inc.    Blythewood, SC 29016
Nov 16, 2007 Part of FTI Series inline float and thermostatic steam traps, 1½ in. process trap is offered in 5 pressure ranges from 15-200 psig, with maximum capacity of 11,059 lb/hr at 200 psig. Single-seated mechanism design ensures tight shut-off under no-load conditions. With all SS corrosion-resistant internal components, device includes 3/8 in. drain connection and thermostatic air vent designed to withstand superheat, pressure surges, and water hammer.

The Kerfkore Company    Brunswick, GA 31525
Nov 16, 2007 Featuring 2-ply construction, econoKORE offers balanced panel that is calibrated for consistent size and thickness. It can be bent and attached to ribbed frame by use of nails and is installed with traditional fabricating tools and methods. Sizes include ¼, 3/8, and ¾ in. thicknesses with MDF core and poplar plywood face in 4 x 8 and 8 x 4 ft panel sizes. Additionally, ¼ and 3/8 in. versions are available with high-density fiberboard face. Boards weigh 1 lb/ft².

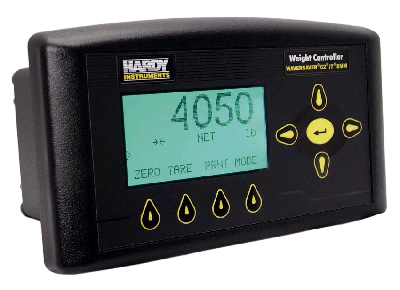

Hardy Process Solutions    San Diego, CA 92123 1825
Nov 16, 2007 Measuring 3 in. deep, Model HI 4050 includes WAVERSAVER® to eliminate effects of surrounding vibration, C2® electronic calibration without test weights, SD-based secure memory module card, and INTEGRATED TECHNICIAN® for diagnostics and troubleshooting. Unit offers Ethernet 10/100BaseT with embedded web server and RS-232 printer or scoreboard display port. Controller is available with AC or DC power and panel, remote, or blind DIN rail mounting configurations.

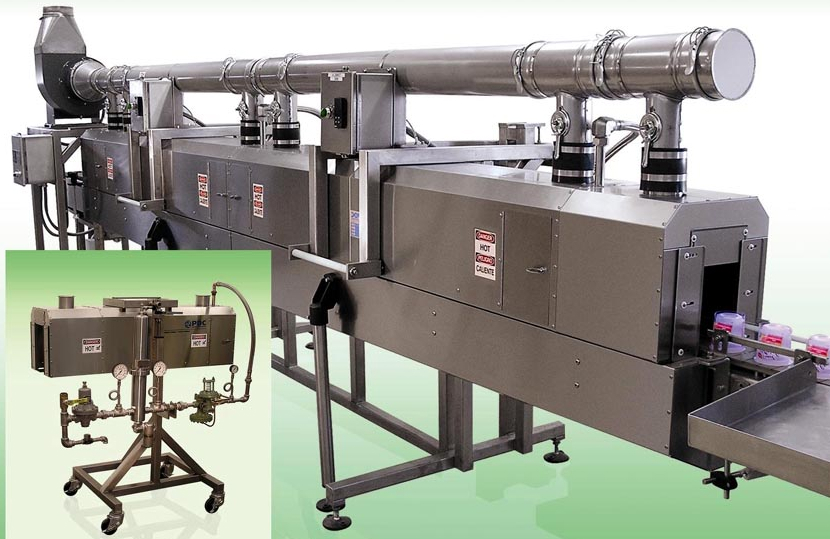

PDC International Corp.    South Norwalk, CT 06854
Nov 16, 2007 Based on dual-zone steam tunnels, heavy-duty KST 55-710 is used for precise shrinking of shrink sleeve labels at slow to moderate speeds. Adjustments for steam volume, flow, and nozzle position allow application of steam to specific points on package. Containers of any shape can be filled or empty, and tunnel works with PVC, PETG, OPS, and PLA films in gauges as thin as 40 microns. Optional Efficiency Package features thermostatically-controlled electronic temperature regulator.

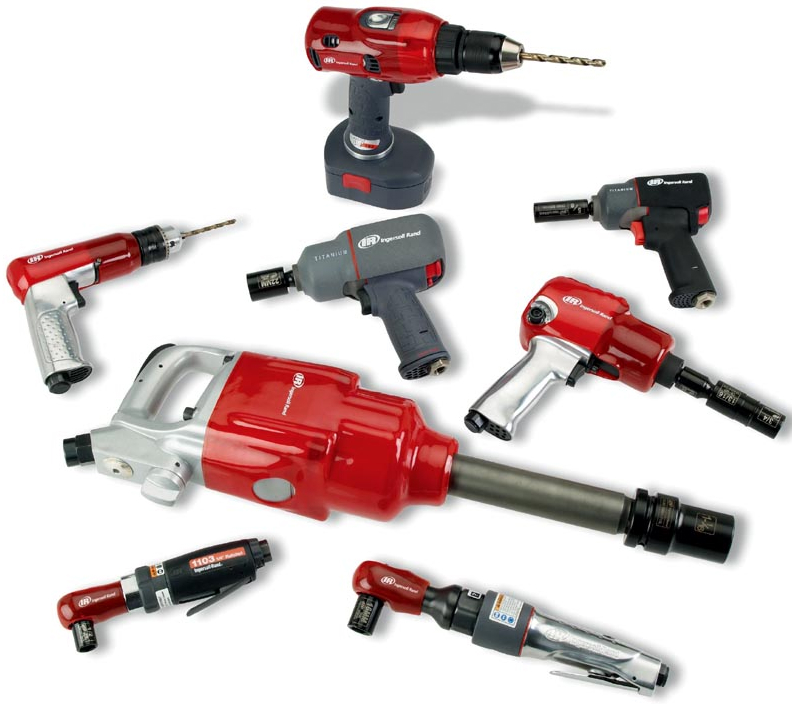

Ingersoll-Rand Co.    Annandale, NJ 08801
Nov 16, 2007 Tool boots are designed for use with Ingersoll Rand Impactools(TM), ratchets, and drills. Boots fit snugly around tool casings, protecting them from damage caused by debris and contaminants while keeping external casings clean. Built to withstand conditions in automotive and industrial environments, elastic exterior has bright red color that also facilitates tool identification.

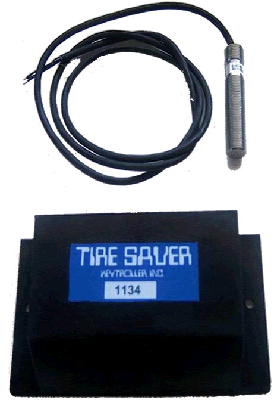

Keytroller Inc.    Tampa, FL 33614
Nov 16, 2007 Designed for Toyota, Cat, Mitsubishi, Nissan, Doosan, and Komatsu lift trucks, plug-and-play N-Series TIRE-SAVER also extends tire life on forklifts by not allowing directional change if vehicle speed or engine rpm is above setpoint. Kit consists of controller module to set speed and engine rpm threshold, controller module to fool vehicle management system computer, wire harness to connect to alternator, and wire harness to connect to directional solenoids.
